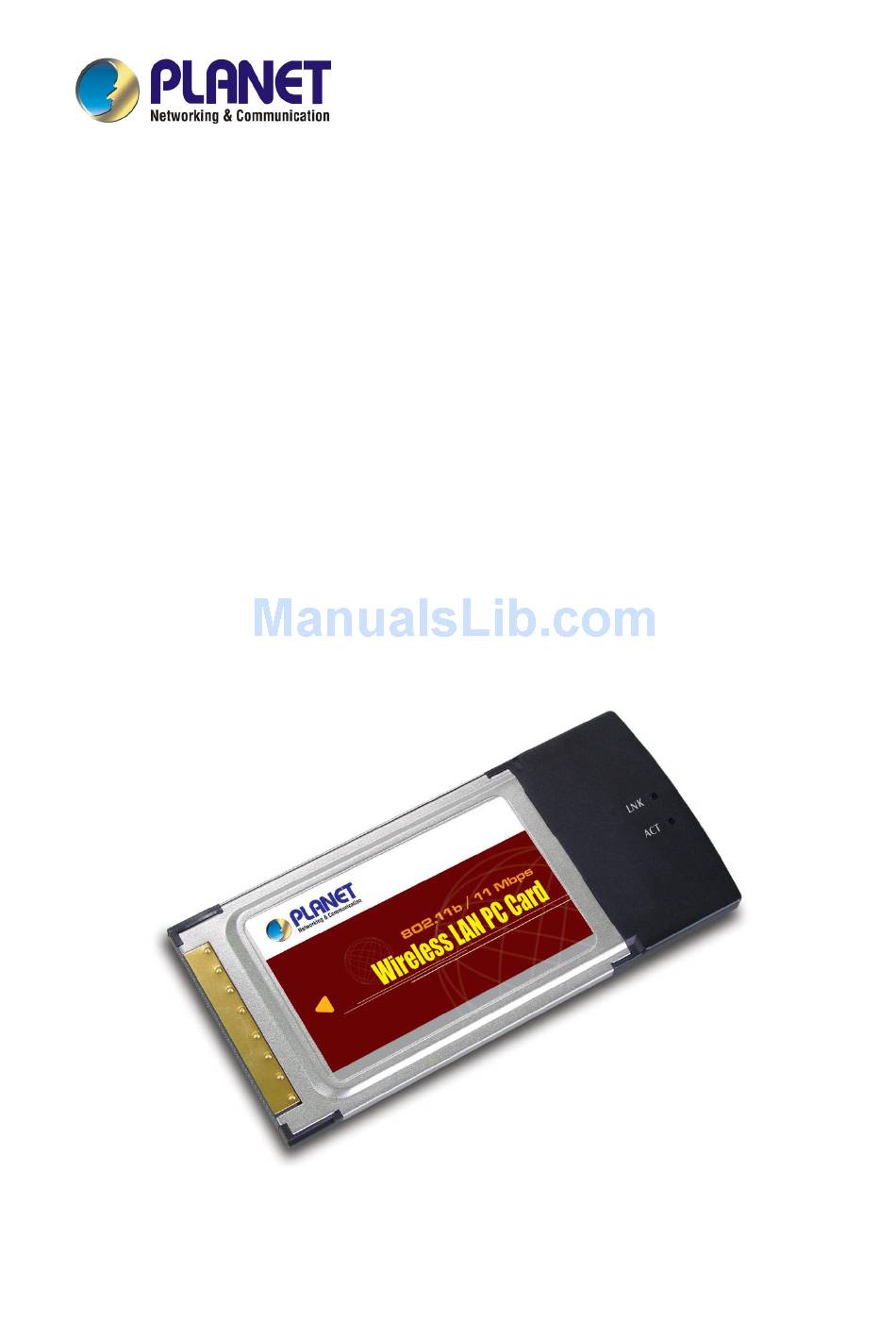

- Page 1 Wireless LAN PCMCIA Card WL-3553 User’s Manual...
- Page 2 Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
- Page 3 The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. Potential restrictive use France: Only channels 10,11,12 and 13 Revision User’s Manual for PLANET Wireless LAN PCMCIA Adapter Model: WL-3553 Rev: 2.0 (March, 2004) Part No. EM-WL3553V2...
-
Page 4: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION .............. 1 ..........................1 EATURES .......................... 2 PPLICATIONS ......................... 4 PECIFICATION ........................ 4 ACKAGE ONTENTS ..................... 5 INIMUM YSTEM EQUIREMENTS ....................5 NSTALLATION ONSIDERATIONS CHAPTER 2 INSTALLATION PROCEDURE ....6 98/M /2000 D ................6 INDOWS RIVER NSTALLATION... -
Page 5: Chapter 1 Introduction
With its auto-fallback function, the data rate can be move to lower speed if signal quality is not good enough. WL-3553 provided with a built-in dipole antenna and is connected to PC PCMCIA slot. Thus, it is capable of being placed practically anywhere on or around your computer to get better signal quality and longer connection distance. -
Page 6: Applications
In this function, it is not just a client anymore. All the wireless clients can connect to each other via the AP mode WL-3553. For SOHO and SMB users, they can save the money for buy a WL-3553 to instead Access Point to work. - Page 7 1.2.3 Ad-Hoc An Ad-Hoc wireless LAN is a group of computers, each equipped with one WL-3553 adapter or other wireless adapters, connected as an independent wireless LAN. Computers in a specific Ad-Hoc wireless LAN must be configured to share the same radio channel.
-
Page 8: Specification

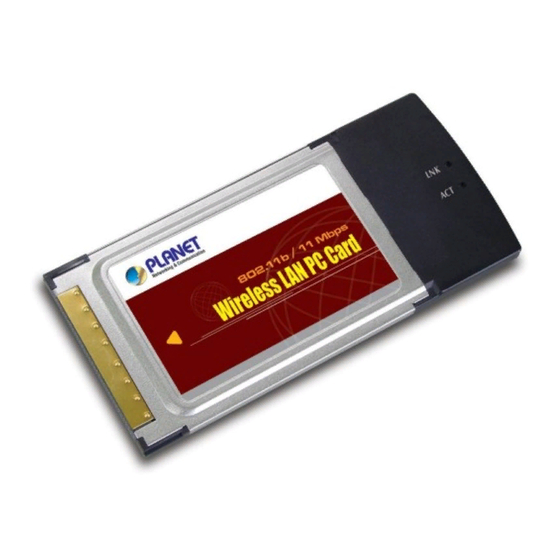

The wireless security network installs quickly and provides the flexibility to reconfigure easily. 1.3 Specification Wire Free – 11Mbps Wireless LAN PCMCIA Adapter Product Model Name WL-3553 Attach Interface PCMCIA Type II, CardBus LED Indicators ACT, LNK Operating Frequency / Channel 2.412~2.462GHz (FCC, Canada) / 11 Channels... -
Page 9: Minimum System Requirements
WL-3553 Quick Installation Guide Drivers and User’s Manual CD If any of the above items are missing, contact your supplier as soon as possible. 1.5 Minimum System Requirements Before installation, please check the following requirements with your equipment. -
Page 10: Chapter 2 Installation Procedure
Windows 98/Me. About Windows XP/Server 2003 driver installation, please refer to next section. Plug WL-3553 into your PC’s PCMCIA slot. Power on the PC and insert Drivers and User’s manual CD into CD-ROM drive. Windows will automatically detect this wireless card and ask the user to install driver. Please click... - Page 11 Please select the first option and click “Next” to continue. Select “Specify a location” and click “Next”. You can click “Browse” to find the driver location. (Assume "E" is your CD-ROM drive, the driver can be found in E:\Drivers\WL-3553\Win2000). Please click “OK” to continue.
- Page 12 Windows will show this screen to prompt you that it found a driver for the device you are installing, please click “Next” to continue. Windows 2000 may tell you this driver doesn’t contain Microsoft digital signature. Don’t worry about this; Pleaser click “Yes” to continue the installation.
-
Page 13: Windows Xp/Server 2003 Driver Installation
Plug WL-3553 into your PC’s PCMCIA slot. Power on the PC and insert Drivers and User’s manual CD into CD-ROM drive. Windows XP will detect WL-3553 and ask you to install driver. Please select the second option and click “Next”. - Page 14 E:\Drivers\WL-3553\WinXP). Please click “Next” to continue. WinXP will show you this dialog box to prompt you the driver has not passed Windows logo testing, please press “Continue Anyway” to continue. Please click “Finish” to complete the driver installation.
-
Page 15: Configuration Utility Installation
2.3 Configuration Utility Installation Run “setup.exe” under “E:\Utility\WL-3553\” directory, or click the “Start” button and choose “Run”. When the dialog box appears, enter “E:\Utility\WL-3553\setup.exe” (Assume “E” is your CD-ROM drive). You will see the dialog box as the picture. Please click “Next” to continue. -
Page 16: Chapter 3 Configuration Utility
Windows XP/Server 2003, you may see the dialog box as below. Please click “OK”. Then you will see the configuration utility main screen. In order to use this utility to configure WL-3553, please clear the “Windows Zero Config” option in the bottom of the screen. Windows XP and Server 2003 have provided a wireless configuration program for users to configure their wireless card without install manufacturer’s utility. -
Page 17: Chapter 4 Station Mode
Chapter 4 Station Mode 4.1 General In this option, you can check the current settings and the Signal Strength of the WL-3553. 4.2 Profile In this option, you can check and modify the profiles. Add: When you want to add a profile manually, please click this bottom. Then you can see... - Page 18 Ø Profile Name: The name of this profile. Ø Network Name (SSID): Shows and can be configured the SSID of the BSS that willing to join. Ø This is a computer –to-computer (ad hoc) network; wireless access points are not use. : When you want this card to be a Ad-Hoc node. Please tick this option. Ø...
-
Page 19: Available Network
Set Default: If you want to set one of the profiles to be the first option which WL-3553 will connected when your PC bootup. Please select the profile and click this button. -
Page 20: Advanced
4.4 Advanced In this option, you can have some advanced settings for WL-3553 working. Power Save: Shows Power Management modes. There are two optional selections for this mode. Ø None: Disable Power Save mode. Ø Min: Enable the adapter in the power saving mode when it is idle, but some components of the adapter is still alive. -
Page 21: Status
Wireless Mode: You can select this card to work in which wireless standard. WL-3553 is just support 802.11b. Preamble Mode: Preamble type defines the length of CRC block in the frames during the wireless communication. “Short Preamble” is suitable for high traffic wireless network. “Long Preamble”... -
Page 22: Statistics
4.6 Statistics In this option. You can get the real time information about the packet transmission and receiving status. -
Page 23: Chapter 5 Ap Mode
Chapter 5 AP Mode 5.1 General In this option, you can see current SSID and BSSID of AP mode WL-3553. You may press the “Config” button to configure WL-3553 as an AP for the wireless clients connected. If there are some clients connect to AP mode WL-3553, you can see their information in the Association Table. -
Page 24: Advanced
5.2 Advanced In this option, you can have some advanced settings for WL-3553 working. Beacon Interval: The interval of time that this access point broadcast a beacon. Beacon is used to synchronize the wireless network. DTIM Period: Shows the client how often the beacon contains a delivery traffic indication message. -
Page 25: Statistics
5.3 Statistics In this option. You can get the real time information about the packet transmission and receiving status. You can click “Reset” button to clear the record to recount. -
Page 26: Chapter 6 Frequently Ask Question
Does AP mode WL-3553 work like a stand along Access Point? Yes, AP mode WL-3553 is work likes a stand along Access Point when you use it to your wireless network for the wireless clients to connected. When you run site survey function of your... -
Page 27: Appendix
Appendix This section provides some technology document of IEEE802.11b. Read the description below to know the standards about IEEE802.11b. ü What is the IEEE 802.11b standard? The IEEE 802.11b Wireless LAN standards subcommittee, which is formulating a standard for the industry. The objective is to enable wireless LAN hardware from different manufactures to communicate. - Page 28 Spread Spectrum technology, it has the inherent security feature of scrambling. On the software side, WLAN series offer the encryption function (WEP) to enhance security and Access Control. Users can set it up depending upon their needs. ü What is DSSS？What is FHSS？And what are their differences? Frequency-hopping-spread-spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that is known to both transmitter and receiver.
