Planet WNL-9501 Quick Installation Manual

1. Package Contents
WNL-9501 x 1
Quick Installation Guide x 1
CD Disk x 1
External Antenna x 1

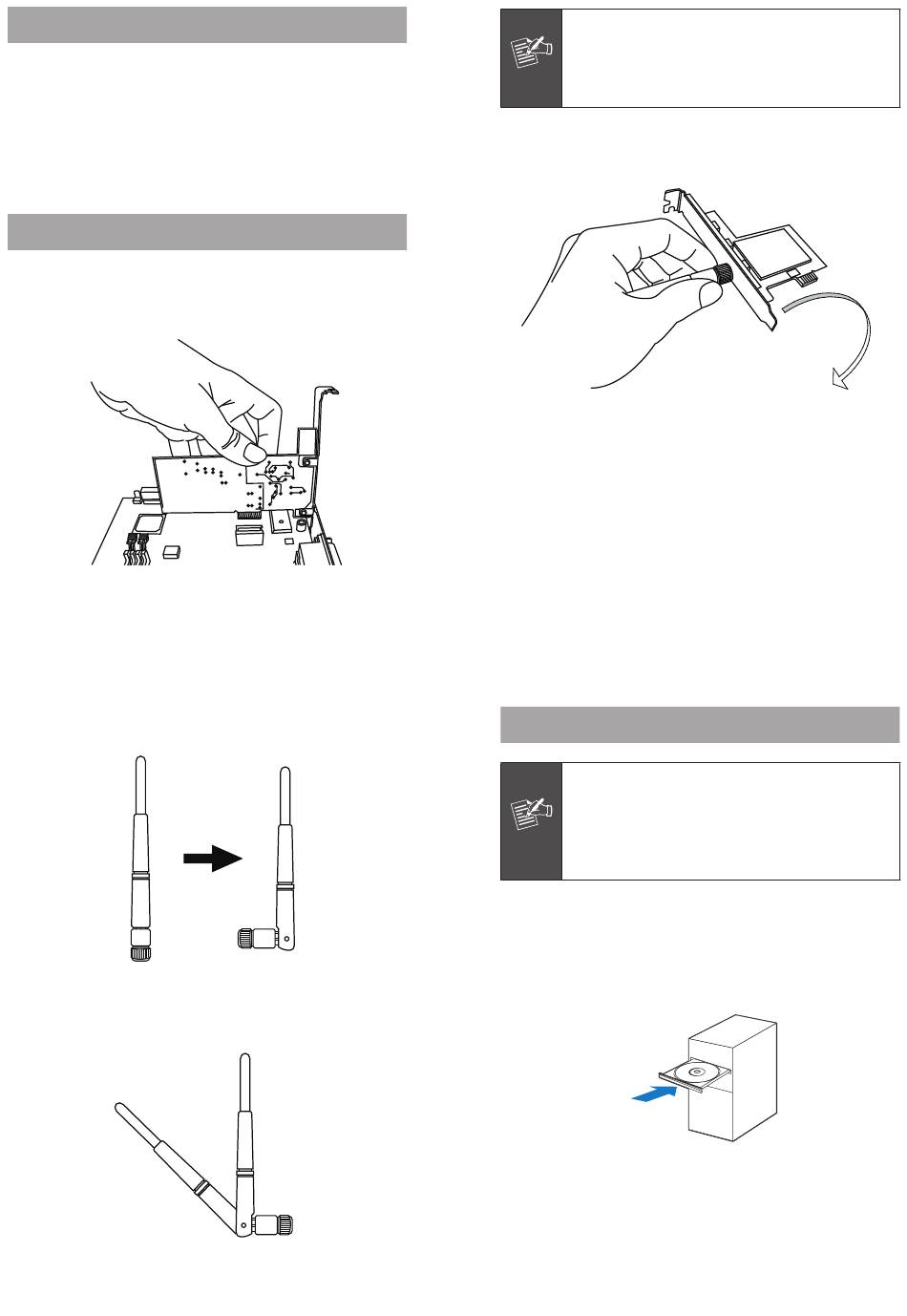

2. Hardware Installation
1. SWITCH THE COMPUTER OFF, remove the cover and
insert the wireless network card into an empty PCIe slot
of your computer.
3. You can bend the antenna to fit actual needs:
4. To improve radio reception, please adjust antennas to the
position shown in the picture.
Side view
– 1 –
– 3 –
Tip: It's recommended to touch some metal
material before installing the network card,
or the static on your body may damage the
Note
components on network card and computer.
2. Fasten the antennas to the antenna connectors on the
network card by clockwise direction.
3. Utility Installation
1. If you have installed the other wireless cards
before, please uninstall the existing drivers
and utilities first.
2. The installation below is performed in
Note
Windows 7 system. The installations in
Windows XP and Vista are similar.
1. Power on the computer. The system will find the new
hardware and display the message below. Click "Cancel"
to skip.
2. Insert the bundled CD into the CD-ROM drive to launch
the auto run program. Once completed, a menu screen
will appear.
3. Click the "setup.exe" hyperlink to initiate the install
wizard.
4. Read the License Agreement carefully. Click "Yes" to
accept it and continue.
– 2 –
– 4 –
