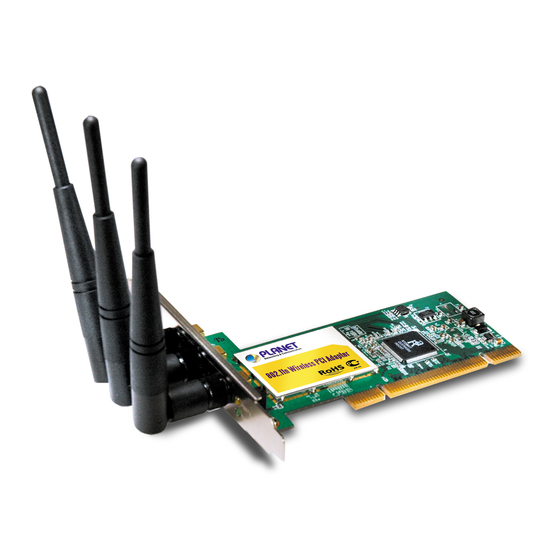

Planet WNL-9320 Specifications

802.11n Wireless PCI Adapter
F
or higher wireless transferred performance, PLANET introduces the
802.11n wireless PCI adapter - WNL-9320. It is a PCI2.2 wireless adapter
that can operate in either Ad-Hoc mode (Point to Point/Point to Multipoint
without an Access Point) or Infrastructure mode (Point to Point/Point to
Multipoint with an Access Point) 2.4GHz frequency band; it's backward
compatible with 802.11b and 802.11g for users to create a new wireless
environment based on the existing wireless network. With integrating the
latest innovative 802.11n technology, the maximum data rate of
WNL-9320 is up to 300Mbps which is almost six times of standard G.
Featuring smart antenna technology, the 802.11n design helps combat
distortion and interference, so the Network Card can send its data streams
with greater distances and be more reliable. The WNL-9320 supports the
most convenient security, " Wi-Fi Protected Setup (WPS) "which is the way
to build connection between wireless network clients and APs. This
WNL-9320 supports two types of WPS, Push-Button Configuration (PBC)
and PIN code (key Wireless adapter card pin number).
Note: AP should be supported the function of WPS while useing.
The WNL-9320 supports both 64/128-bit WEP (Wired Equivalent Privacy)
and WPA/WPA2 (Wi-Fi Protected Access) for securing wireless network
connections. The driver and utility support most popular operating
systems, Windows 2000 / XP / Vista. With advanced features and high
performance capability, the WNL-9320 is an excellent choice for
constructing a wide range of wireless solutions.

Data Sheet

1
Key Feature
• 2.4GHz ISM band, unlicensed operation
• Supports Wi-Fi Protected Setup (WPS).
Note: the function is not support in Windows Vista
• Compliant with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
(draft 2.0)
• Support PCI v2.1/2.2 standard
• Provides up to 300Mbps data rate
• Support 64/128-bit WEP and WAP/WAP2 high-level security
mechanisms
• Support Ad-Hoc / Infrastructure mode
• Support WMM (WiFi Multi-Media) function to meet the
multi-media data bandwidth requirement
• Support of Power Save mode
• High-efficiency antenna expands the scope of your wireless
network
• Support of most popular operating systems including
Windows 2000 / XP / Vista
WNL-9320
