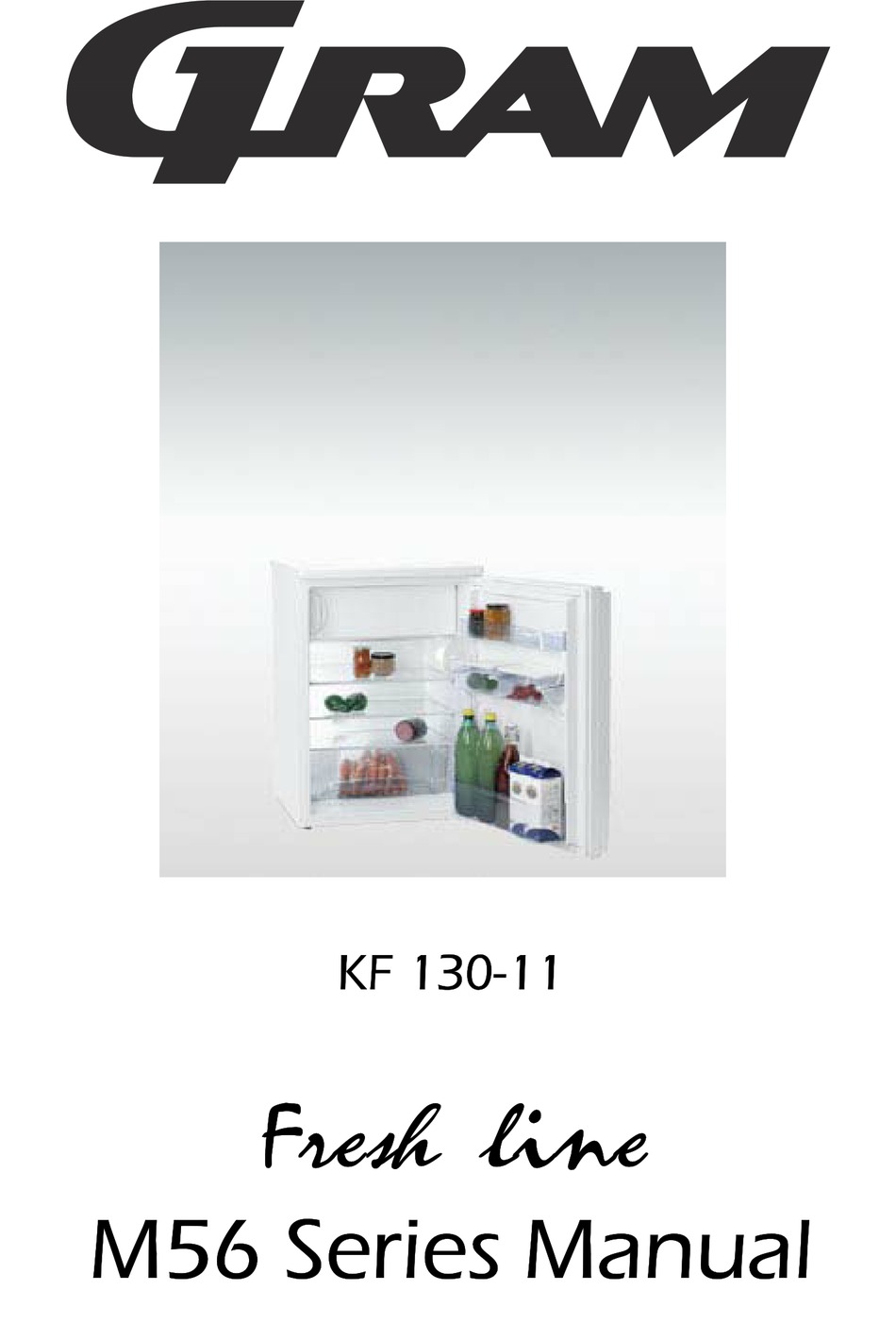

  • Page 1 KF 130-11 sh l M56 Series Manual...
  • Page 2 CONGRATULATIONS ON YOUR NEW GRAM sh l FRIDGE/FREEZER. Congratulations on your new fridge/freezer. The fridge/freezer was developed taking the different storage requirements of food items into consideration. Some must be stored cold - others require a little higher temperature. A few must be stored separately so as not to impart flavour and odour to other items of food.
  • Page 3: Table Of Contents

    Bottle shelves Vegetable drawer Multi-boxes Freezer compartment Defrosting And Cleaning Defrosting of the refrigerator Defrosting of the internal freezer compartment Cleaning the fridge/freezer GRAM Customer Care And Servicing Checklist Contact Details Spare Parts Nameplate - Your appliance details and specifications...
  • Page 4: Important Information

    IMPORTANT INFORMATION The fridge/freezer contains the environment-friendly, non-ozone depleting refrigerant R600a. As R600a is a flammable gas, it is important to avoid damage to the refrigeration circuit during transport and installation. If the refrigeration circuit is damaged, avoid using naked flame in the vicinity of the fridge/freezer and connecting power to the fridge/freezer.
  • Page 5: If The Fridge/Freezer Is Not To Be Used For Some Time

    Please observe the environmental rules on disposal. There might be special requirements/conditions to be observed. Information on disposal can be obtained from: - Gram A/S - Your white-goods supplier - Authorities (your local council, Ministry of the Environment, etc.)
  • Page 6: Product Description

    PRODUCT DESCRIPTION The fridge/freezer is intended for use in a normal household. It is designed for temperature class SN-T in accordance with European standard EN 153. This means that the fridge/freezer will run best at a room temperature of +10ºC to +43ºC. Thermostat dial Freezer Compartment Storage Shelf...
  • Page 7: Setting Up And Installation

    SETTING UP AND INSTALLATION Where to place the fridge/freezer For safety reasons the fridge/freezer must not be installed outdoors; it must be placed in a dry room. Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight.
  • Page 8 If the refrigerator is placed beside another refrigerator or freezer, there must be at least 20mm clearance between them. If the appliance is not built in but positioned with it’s door hinge side against a wall, there should be at least 50mm between the appliance and the wall in order to allow the door to open easily.
  • Page 9: Building Into A Kitchen Cabinet

    Building into a kitchen cabinet Building into a kitchen cabinet with sufficient ventilation around the fridge/freezer to dissipate heat from the compressor. The appliance can stand direct on the floor or on its plinth. (2) Building into a refrigerator cabinet Building into a refrigerator cabinet follows the same principal as shown in illustration 2.
  • Page 10: Installation And Ventilation Diagrams

    Installation And Ventilation Diagrams The measurements below is a guideline only. The degree of the door opening shows the minimum requirement to easily access the storage bins. (4 & 5) 20mm+ 35-50mm+ 20mm+ 110º 110º 20mm 70mm+ 50mm+ 35-50mm+ 110º 20mm+...
  • Page 11: Electrical Connection

    Electrical connection The appliance is intended for connection to alternating current. The connection values for voltage (V) and frequency (Hz) are given on the nameplate inside the cabinet. Power must be connected via a wall socket with switch. The wall socket should be easily accessible.
  • Page 12: Changing The Door Hinge Over To The Opposite Side

    Changing the door hinge over to the opposite side Illustrations 6, 7 & 8 below, show how easy it is to change the doors from right-hinged to left-hinged, or vice versa. (Changing the door from left to right is done in the same way, but opposite). *The fridge/freezer must be switched off and emptied completely.
  • Page 13: Using The Fridge/Freezer

    Turn the thermostat dial past “0” to turn the fridge/freezer on. The fridge/freezer is switched off when the dial setting is at “0”. Although Gram refrigeration products are generally very quiet, it is normal for certain noises to be heard during operation, e.g.
  • Page 14: Brief Temperature Variations

    Brief temperature variations Brief temperature variations are normal and occur when: - the cabinet is filled with fresh food items - the door is left open for longer periods - the refrigerating element defrosts Items of food in the cabinet will not be affected by these variations and the temperature will quickly return to normal.
  • Page 15: Using The Fridge/Freezer's Accessories

    USING THE FRIDGE/FREEZER’S ACCESSORIES Glass shelves The glass shelves can be arranged to give more, or less space between the shelves thus allowing flexible cabinet arrangement (12 and 13). Extract the shelf by lifting up the left shelf side (14). Start by removing the top shelf when you want to clean the refrigerator or rearrange the shelves.
  • Page 16: Defrosting And Cleaning

    DEFROSTING AND CLEANING Defrosting of the refrigerator Defrosting of the refrigerator is automatically carried out when it goes through it’s set temperature cycle, refer to “Changing the temperature” on page 13. However, a manual defrost should be carried out when a build up of excess ice is noticed on the evaporator plate (situated internally at the rear of the cabinet).
  • Page 17: Cleaning The Fridge/Freezer

    Cleaning the fridge/freezer Turn the fridge/freezer off by turning the thermostat dial to “0” and disconnect the power supply to the fridge/freezer. The fridge/freezer is best cleaned using a weak soap solution and a soft cloth. Never use cleaning agents that scour. It is also highly recommended that harsh cleaning agents are not used to clean the plastic components as certain chemicals can lead to premature deterioration and cause damage to these parts.
  • Page 18: Gram Customer Care And Servicing

    GRAM CUSTOMER CARE & SERVICING Checklist If you discover a problem with your fridge/freezer, please refer to the following points before contacting your supplier for assistance. PROBLEM POSSIBLE CAUSES WHAT TO DO Refrigerator does *No electricity to the power *Check the plug is connected operate.
  • Page 19: Contact Details

    PROBLEM POSSIBLE CAUSES WHAT TO DO Water found in the bottom *Blocked drain hole. *Clear drain hole with the of the refrigerator. cleaning pin supplied. *Food or packaging touching *Re-position food items away from the rear of the refrigerator the rear of the refrigerator. (evaporator plate).
  • Page 20: Nameplate - Your Appliance Details And Specifications

    This warranty is valid in New Zealand only. Terms and conditions: In this warranty (a) ‘Refrigerator’ means any ‘Gram’ or ‘Elcold’ energy efficient refrigerator or freezer accompanied by this document which is purchased from a Dealer authorised by Independent Power (NZ) Limited;...
  • Page 21: Limitation Of Liability

    representatives of the Authorised Service Agent to your home. If you are outside an Independent Power (NZ) Limited service area, you will bear these costs. For information about whether you are in an Independent Power (NZ) Limited service area please check our website http://www.indepower.co.nz You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship.
  • Page 24 NORTH SHORE CITY 0753 NEW ZEALAND Ph: +64 9 415 6686 Fax: +64 9 415 6685 www.indepower.co.nz Gram A/S Importeur Belgie Importeur Nederland Gram Finland OY Aage Grams Vej 1 Gebr. Bruyninckx N.V. Magee b.v. Sinikalliontie 3b DK-6500 Vojens Kerksstreet 8g Postbus 88...
