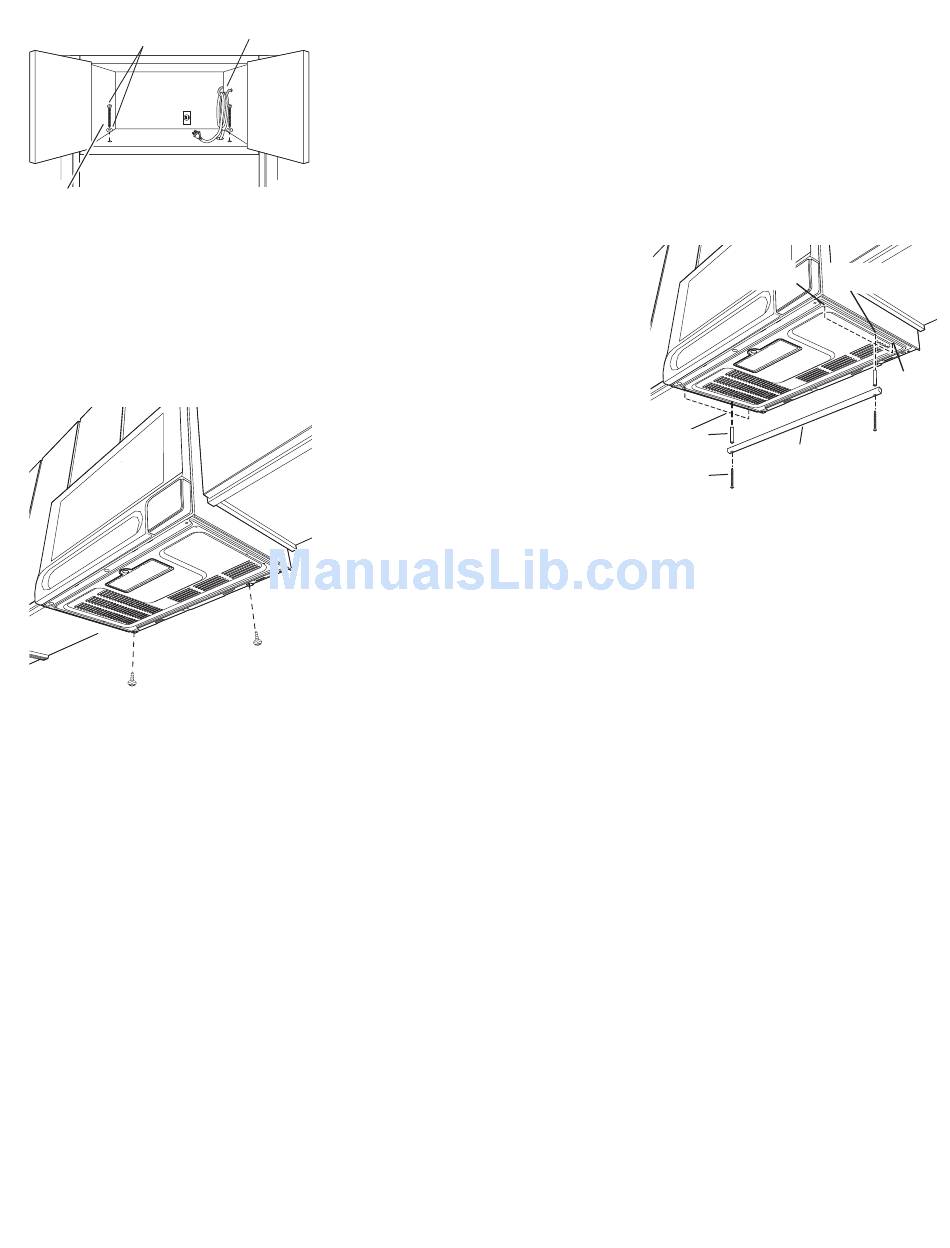

top cabinet screw
and flat washer
NOTE: Screw length has been designed to
accommodate 3/8" and above cabinet depth.
If less, screw must be cut to required length.
15.
Use two top cabinet
screws and two flat washers
supplied in the installation
hardware to attach the unit to the
top cabinet.
16.
Secure the levers that are
on the bottom of the oven.
Reinstall tapping screw removed
in Step 2b in one lever and install
tapping screw from parts bag in
other lever. Securely tighten
screws.
6
power cord
17.
hanger
Screw power cord hanger
into convienient location inside
cabinet. Make a bundle of the
power supply cord and attach it
to the power cord hanger.
18.
Plug power supply cord
into a grounded 3-prong outlet.
To get the most efficient use
from your above-the-counter
microwave oven, read your
Use and Care Guide.
Installing the
Utensil Bar
NOTE: None, one or both of the
utensil bars may be installed.
1.
Open the carton and remove
parts. Remove sleeves, screws
and S-hooks from the bag.
front
location
sleeve
utensil
bar
screw
2.
Determine in which
location(s) – front, middle, back –
the bar(s) is/are to be installed.
3.
Insert sleeves into holes in
utensil bar. Insert screws through
utensil bar and sleeves. Use
Phillips screwdriver and tighten
screws to bottom of oven.
IMPORTANT: To avoid blocking the
vents, do not hang items such as
towels from the utensil bar(s).
Total utensil weight should not
exceed 5 lbs. per bar.
middle
location
back
location
