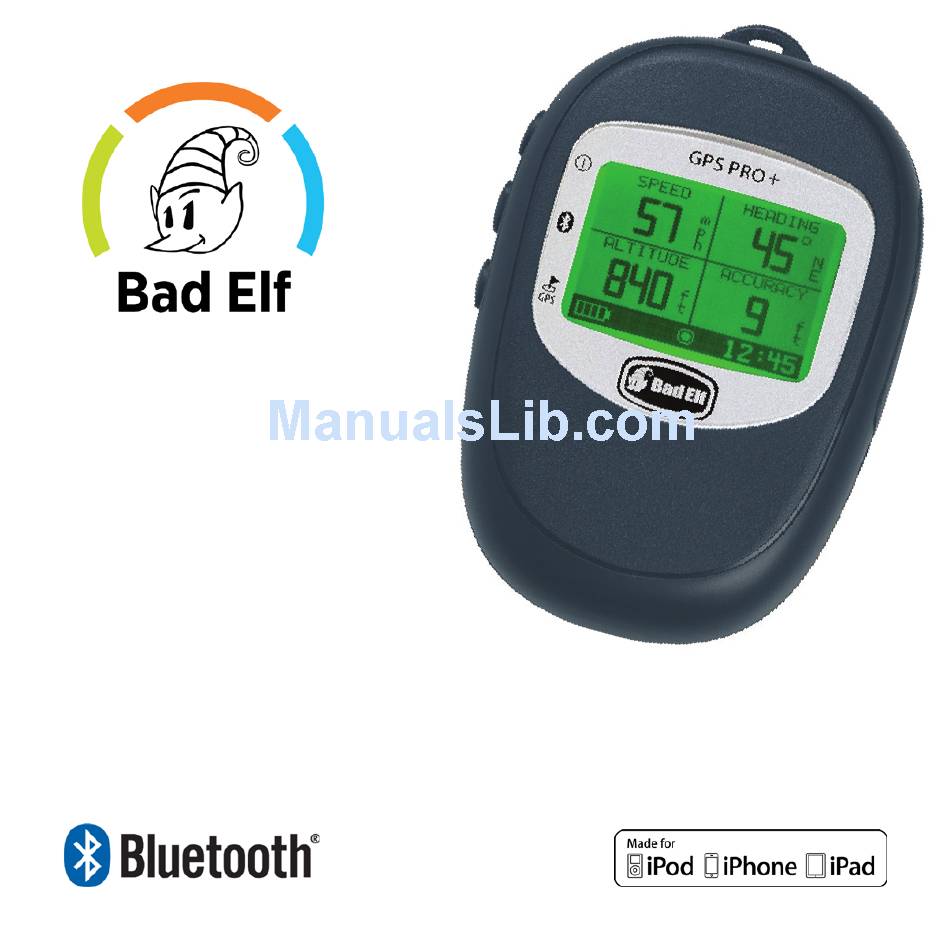

- Page 1 GPS Pro+ Bluetooth GPS & GLONASS Receiver Made for iPod touch, iPhone, and iPad Barometer • All Day Battery LCD Display • Splash Resistant Data Logger • USB Data Transfer Bluetooth Connect Five Devices BE-GPS-2300...
- Page 2 © 2014 Bad Elf, LLC Bad Elf, LLC...
- Page 3 Bad Elf GPS Pro+ Contents of This Package This package contains the following items: • Bad Elf GPS Pro+ GPS & GLONASS receiver with Bluetooth® wireless technology and Barometric Altimeter • USB charging cable • Vehicle Charging Adapter (suitable for 12V cigarette sockets) •...
- Page 4 Figure 2 - Back View of the GPS Pro+ Dimensions The Bad Elf GPS Pro+ is small and lightweight, but with a rugged, solid feel. Its dimensions and weight are: Dimensions: 3.0 x 2.4 x 0.7 inches (76.5 x 61.5 x 17.5 mm) Weight: 3.2 ounces (90 grams)
- Page 5 Prior GPS devices used simple LEDs to indicate status, leaving the user guessing about status details. The Bad Elf GPS Pro+ makes it easy for the user to check location details (latitude, longitude, altitude, track, speed, and universal time) directly on the GPS without requiring connectivity to the iPod touch, iPhone, or iPad.
- Page 6 Bad Elf utility app available through iTunes. 1. Power Button a. Press and hold this button for 3 seconds to toggle the Bad Elf GPS device ON or OFF. b. Press this button momentarily to toggle the LCD backlight ON or OFF.
- Page 7 0183 formatted position data using a serial over USB connection. Data Storage The Bad Elf GPS Pro+ contains 16MB of flash memory for storage of trip data. At a standard sampling rate of one position recorded per second (1Hz), the device can store up to 200 hours of trip data.
- Page 8 Bad Elf GPS Pro+ Charge the Bad Elf GPS Pro+ The Bad Elf GPS Pro+ is charged via the mini-USB connector on the back of the device. Before using the Bad Elf GPS Pro, fully charge the device. To charge, simply use the provided cable and plug the Bad Elf GPS Pro+ into any standard USB power source, such as a computer, wall charger, or the included car charger.
- Page 9 Bad Elf GPS Pro+ To pair the Bad Elf GPS Pro+ with an iPad, iPhone, or iPod touch, follow these simple steps: 1. On the Apple device, start the Settings app, then select General > Bluetooth. Make sure Bluetooth is turned ON.
- Page 10 Store. If you do not have Internet connectivity, or do not wish to download the app at that time, you can ignore this prompt. Your Bad Elf GPS Pro+ does not require the Bad Elf Utility app to operate with apps and will work out of the box with any location-based apps you have installed.
- Page 11 Once data logging is complete, you can use the Bad Elf Utility app to save, map, share, or delete the recorded trip or connect the GPS Pro+ to your computer with a USB cable and access the log files directly through your file explorer.
-
Page 12: Technical Specifications
IC Compliance This Class [B] digital apparatus complies with Canadian ICES-003. VCCI Compliance Bad Elf is a member of the VCCI Council. Industry Canada Compliance Category I radio communication devices comply with Industry Canada Standard RSS-210. Category II radio communication devices comply with Industry Canada Standard RSS-310. -
Page 13: Battery Warnings
Bad Elf GPS Pro+ Battery Warnings If these guidelines are not followed, the embedded lithium-ion battery may experience a shortened life span or may present a risk of damage to the GPS, fire, chemical burn, electrolyte leak, and/or injury. Do not leave the GPS exposed to a heat source or in a high temperature location, such as in the sun in an unattended vehicle (e.g., car, airplane, helicopter, or boat). -
Page 14: Fcc Compliance
• Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Bad Elf service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. -
Page 15: Limited Warranty
Bad Elf retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. - Page 16 Distributor warranties are only valid in the area of intended distribution. Units purchased in the United States must be returned to the Bad Elf service center in the United States for service.
-
Page 17: Thank You
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Bad Elf is under license. Contact Bad Elf Product Support if you have any questions while using your GPS. In the USA, go to http://bad-elf.com/support. - Page 18 Bad Elf GPS Pro+ Notes Page 16...
- Page 19 Bad Elf GPS Pro+ Notes Page 17...
- Page 20 Engineering Magic ® © 2014 Bad Elf, LLC http://bad-elf.com...
