Summary of Contents for Bad Elf BE-GPS-2200

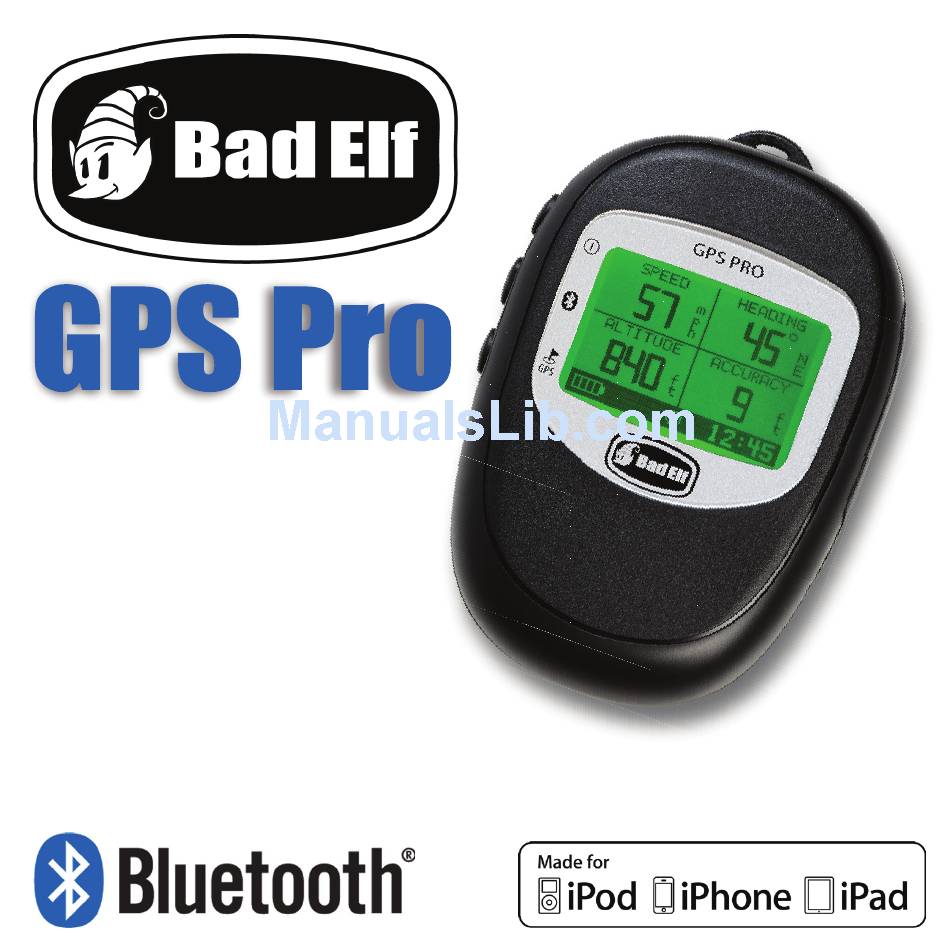

- Page 1 BE-GPS-2200 GPS Tracker with Data Logging Backlit LCD Display Long Battery Life Fits in the Palm of Your Hand Water Resistant for Outdoor Use Shared Bluetooth® Wireless Connectivity...
- Page 2 © 2012 Bad Elf, LLC Bad Elf, LLC...
-
Page 3: Contents Of This Package
Contents of This Package This package contains the following items: • Bad Elf GPS Pro GPS receiver with Bluetooth® wireless technology • USB charging cable • Vehicle Charging Adapter (suitable for 12V cigarette sockets) • User Guide Note: Apple device refers to the supported iPod touch, iPhone, or iPad equipped with Bluetooth®... - Page 4 Figure 2 - Back View of the GPS Pro Dimensions The Bad Elf GPS Pro is small and lightweight, but with a rugged, solid feel. Its dimensions and weight are: Dimensions: 3.0 x 2.4 x 0.7 inches (76.5 x 61.5 x 17.5 mm) Weight: 3.2 ounces (90 grams)
- Page 5 Figure 3 - Side View of the GPS Pro Backlit LCD Display Interface The Bad Elf GPS Pro offers the fi rst Apple approved GPS with an informative user interface. Prior GPS devices used simple LEDs to indicate status, leaving the user guessing about status details.
- Page 6 Bad Elf utility app available through iTunes. 1. Power Button a. Press and hold this button for 3 seconds to toggle the Bad Elf GPS device ON or OFF. b. Press this button momentarily to toggle the LCD backlight ON or OFF.
- Page 7 Bad Elf cables and the enabling software. Data Storage The Bad Elf GPS Pro contains 64MB of fl ash memory for storage of trip data. At a standard sampling rate of one position recorded per second (1Hz), the device can store up to 100 hours of trip data. The data can be divided into separate trips or collected as one single data log.
- Page 8 Charge the Bad Elf GPS Pro The Bad Elf GPS Pro is charged via the mini-USB connector on the back of the device. Before using the Bad Elf GPS Pro, fully charge the device. To charge, simply use the provided cable and plug the Bad Elf GPS Pro into any standard USB power source, such as a computer, wall charger, or the included car charger.
- Page 9 Bluetooth radios ON and are within range of each other. To pair the Bad Elf GPS Pro with an iPad, iPhone, or iPod touch, follow these simple steps: 1. On the Apple device, start the Settings app, then select General > Blue- tooth.
- Page 10 Apple device for installation into the accessory hardware. After you have paired your Bad Elf GPS Pro to your Apple device for the fi rst time, you will be prompted to download the Bad Elf GPS Utility app from the iTunes App Store.
- Page 11 You can then choose either to record a point of inter- est (POI) and continue data logging or to turn data logging off. Once data logging is complete, you can use the Bad Elf Utility app to save, map, share, or delete the recorded trip.
-
Page 12: Technical Specifications
Technical Specifi cations • GPS ► 66-channel MTK chipset confi gurable to 1-10Hz refresh rate ► Satellite acquisition times: (<30s cold, <15s warm, <5s hot) • Bluetooth ► 2.1 + EDR ► Range: 33ft (10m) • Internal Battery ► Charging voltage: 5VDC @ 500mA ►... -
Page 13: Battery Warnings
Battery Warnings If these guidelines are not followed, the embedded lithium-ion battery may experience a shortened life span or may present a risk of damage to the GPS, fi re, chemical burn, electrolyte leak, and/or injury. Do not leave the GPS exposed to a heat source or in a high temperature loca- tion, such as in the sun in an unattended vehicle (e.g., car, airplane, helicopter, or boat). -
Page 14: Fcc Compliance
• Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Bad Elf service center. Unauthorized repairs or modi- fi cations could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. -
Page 15: Limited Warranty
Limited Warranty This Bad Elf product is warranted to be free from defects in materials or work- manship for one year from the date of purchase. Within this period, Bad Elf will, at its sole option, repair or replace any components that fail in normal use. - Page 16 Distributor warranties are only valid in the area of intended distribution. Units purchased in the United States must be returned to the Bad Elf service center in the United States for service.
- Page 17 Bad Elf. Bad Elf hereby grants permission to download a single copy of this manual onto a hard drive or other elec-...
- Page 18 Notes...
- Page 19 Notes...
- Page 20 Engineering Magic ™ © 2012 Bad Elf, LLC http://bad-elf.com...
