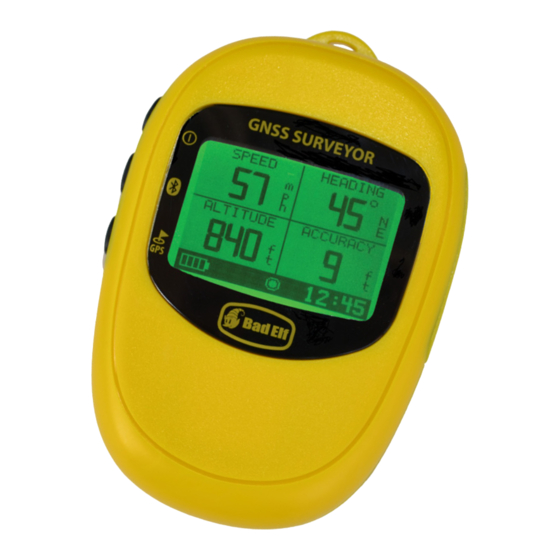

Bad Elf BE-GPS-3300 Manual

Bluetooth gnss receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

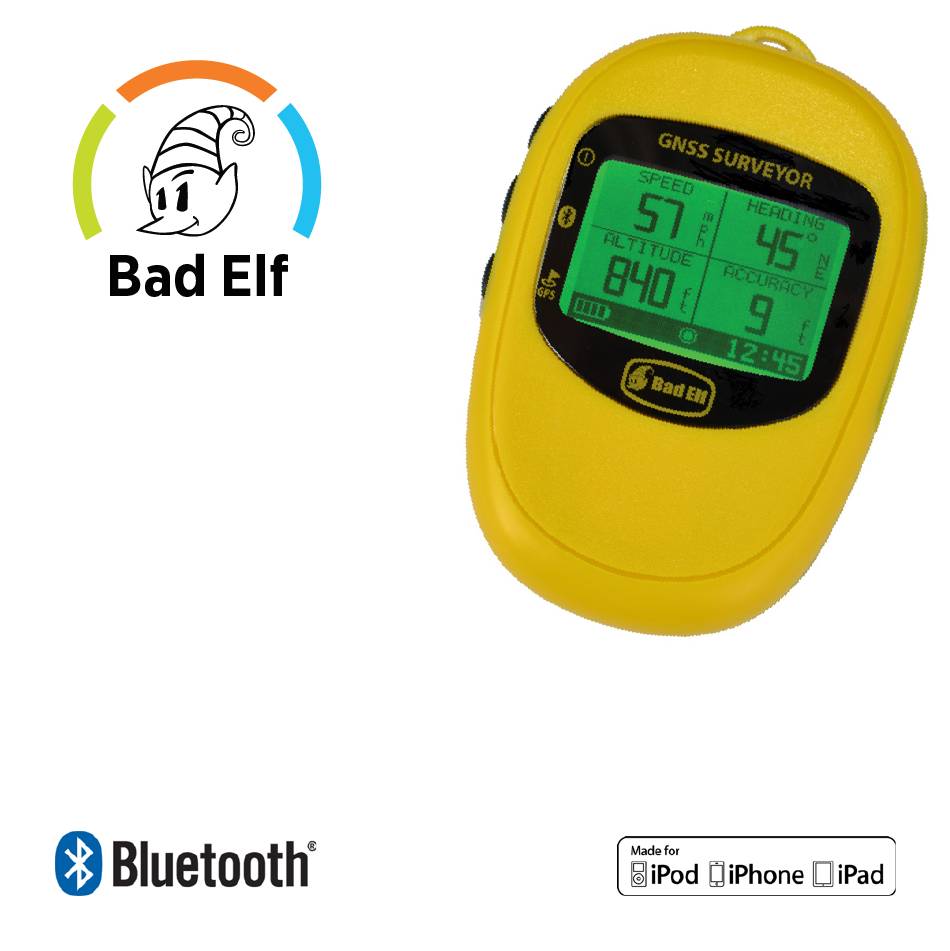

GNSS
Surveyor
Bluetooth GNSS Receiver
Made for iPod touch, iPhone, and iPad
LCD Display • Splash Resistant
LCD Display • Splash Resistant
Real Time 1m Accuracy
Real Time 1m Accuracy
Sub-meter Capable via Post Processing
Sub-meter Capable via Post Processing
Data Logger • All Day Battery
Data Logger • All Day Battery
BE-GPS-3300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE-GPS-3300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bad Elf BE-GPS-3300

Summary of Contents for Bad Elf BE-GPS-3300

  • Page 1 LCD Display • Splash Resistant LCD Display • Splash Resistant Real Time 1m Accuracy Real Time 1m Accuracy Sub-meter Capable via Post Processing Sub-meter Capable via Post Processing Data Logger • All Day Battery Data Logger • All Day Battery BE-GPS-3300...
  • Page 2 © 2022 Bad Elf, LLC Bad Elf, LLC...

  • Page 3: Contents Of This Package

    Bad Elf GNSS Surveyor Contents of This Package This package contains the following items: • Bad Elf GNSS Surveyor receiver with Bluetooth® wireless technology and Barometric Altimeter • USB charging cable • Vehicle Charging Adapter (suitable for 12V cigarette sockets) •...
  • Page 4 Figure 2 - Back View of the GNSS Surveyor Dimensions The Bad Elf GNSS Surveyor is small and lightweight, but with a rugged, solid feel. Its dimensions and weight are: Dimensions: 3.0 x 2.4 x 0.7 inches (76.5 x 61.5 x 17.5 mm) Weight: 3.2 ounces (90 grams)
  • Page 5 The Bad Elf GNSS Surveyor offers an Apple approved GPS with an informative user interface. Prior GPS devices used simple LEDs to indicate status, leaving the user guessing about status details. The Bad Elf GNSS Surveyor makes it easy for the user to check location details (latitude, longitude, altitude, track, speed, and universal time) directly on the GPS without requiring connectivity to the iPod touch, iPhone, or iPad.
  • Page 6 Bad Elf utility app available through iTunes. 1. Power Button a. Press and hold this button for 3 seconds to toggle the Bad Elf GPS device ON or OFF. b. Press this button momentarily to toggle the LCD backlight ON or OFF.
  • Page 7 65 hours of trip data. The data can be divided into separate trips or collected as one single data log. The Bad Elf Utility app readily offloads trip data logs for storage on the Pod touch, iPhone, or iPad. The data can then be emailed and shared.
  • Page 8 The Bad Elf GNSS Surveyor is charged via the mini-USB connector on the back of the device. Before using the Bad Elf GPS Pro, fully charge the device. To charge, simply use the provided cable and plug the Bad Elf GNSS Surveyor into any standard USB power source, such as a computer, wall charger, or the included car charger.
  • Page 9 Bad Elf GNSS Surveyor To pair the Bad Elf GNSS Surveyor with an iPad, iPhone, or iPod touch, follow these simple steps: 1. On the Apple device, start the Settings app, then select General > Bluetooth. Make sure Bluetooth is turned ON.
  • Page 10 Your Bad Elf GNSS Surveyor does not require the Bad Elf Utility app to operate with apps and will work out of the box with any location-based apps you have installed.
  • Page 11 Once data logging is complete, you can use the Bad Elf Utility app to save, map, share, or delete the recorded trip or connect the GNSS Surveyor to your computer with a USB cable and access the log files directly through your file explorer.

  • Page 12: Technical Specifications

    Bad Elf GNSS Surveyor Technical Specifications • GPS – 56 channel u-blox NEO-7P GPS/GLONASS/QNSS module – configurable to 1-10Hz refresh rate – Satellite acquisition times: (<30s cold, <15s warm, <5s hot) • Bluetooth – 2.1 + EDR – Range: 33ft (10m) •...

  • Page 13: Battery Warnings

    Bad Elf GNSS Surveyor Battery Warnings If these guidelines are not followed, the embedded lithium-ion battery may experience a shortened life span or may present a risk of damage to the GPS, fire, chemical burn, electrolyte leak, and/or injury. Do not leave the GPS exposed to a heat source or in a high temperature location, such as in the sun in an unattended vehicle (e.g., car, airplane, helicopter, or boat).

  • Page 14: Fcc Compliance

    • Consult the dealer or an experienced radio/TV technician for help. This product does not contain any user-serviceable parts. Repairs should only be made by an authorized Bad Elf service center. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations.

  • Page 15: Limited Warranty

    Bad Elf retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
  • Page 16 Distributor warranties are only valid in the area of intended distribution. Units purchased in the United States must be returned to the Bad Elf service center in the United States for service.

  • Page 17: Bluetooth Security

    The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Bad Elf is under license. Contact Bad Elf Product Support if you have any questions while using your GPS. In the USA, go to http://bad-elf.com/support.
  • Page 18 Bad Elf GNSS Surveyor Notes Page 16...
  • Page 19 Bad Elf GNSS Surveyor Notes Page 17...
  • Page 20 Engineering Magic ® © 2022 Bad Elf, LLC http://bad-elf.com...
