LUMINA PRO Lighting SH-LED PAR64F User Manual page 8

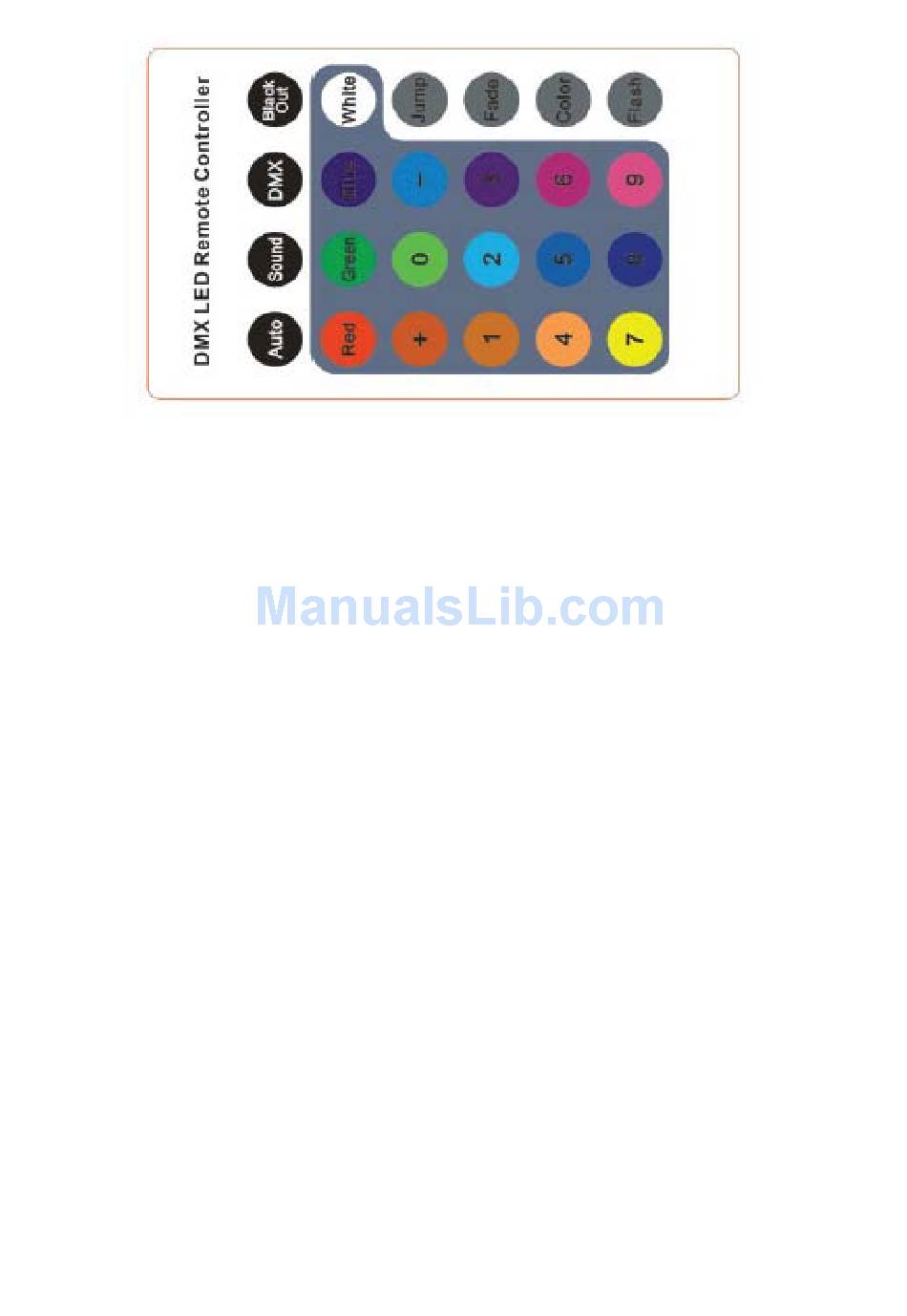

(1)Auto Auto show
(2)Sound Sound active
(3) DMX DMX512 control, be switch mode between address and channel.
(4) Black Out Press once to shut off the light and again to re-activate it
(5)Red Red light is turned on
(6)Green Green light is turned on
(7)Blue Blue light is turned on
Red 、Green and Blue light are turned on
(8)White
(9) + Increase parameters
In Color mode, the light color with the picture in the above of the same
color.
(10) －
Reduce parameters
(11) 0~9 Only in DMX and Color mode, the digital key to effective.
In DMX mode, when you press down a key one of digital key digital tube
flickered on, until you have press three key so far.
(12) Jump Hop change mode
(13) Fade Gradual change mode
(14) Color Static color
You must first press the "Color" key if the program is not in Color
mode before you can select color from the keypad.
(15)Flash Only in Auto Dimmer, Jump, and Color mode, the function key to
effective. Singular time into strobe mode, even number exit.
7A
