CH3
CH4
CH5
(CH7<60)
CH5
(CH7>=60)
CH6
(Static color mode)
CH6
( color change mode)
CH7

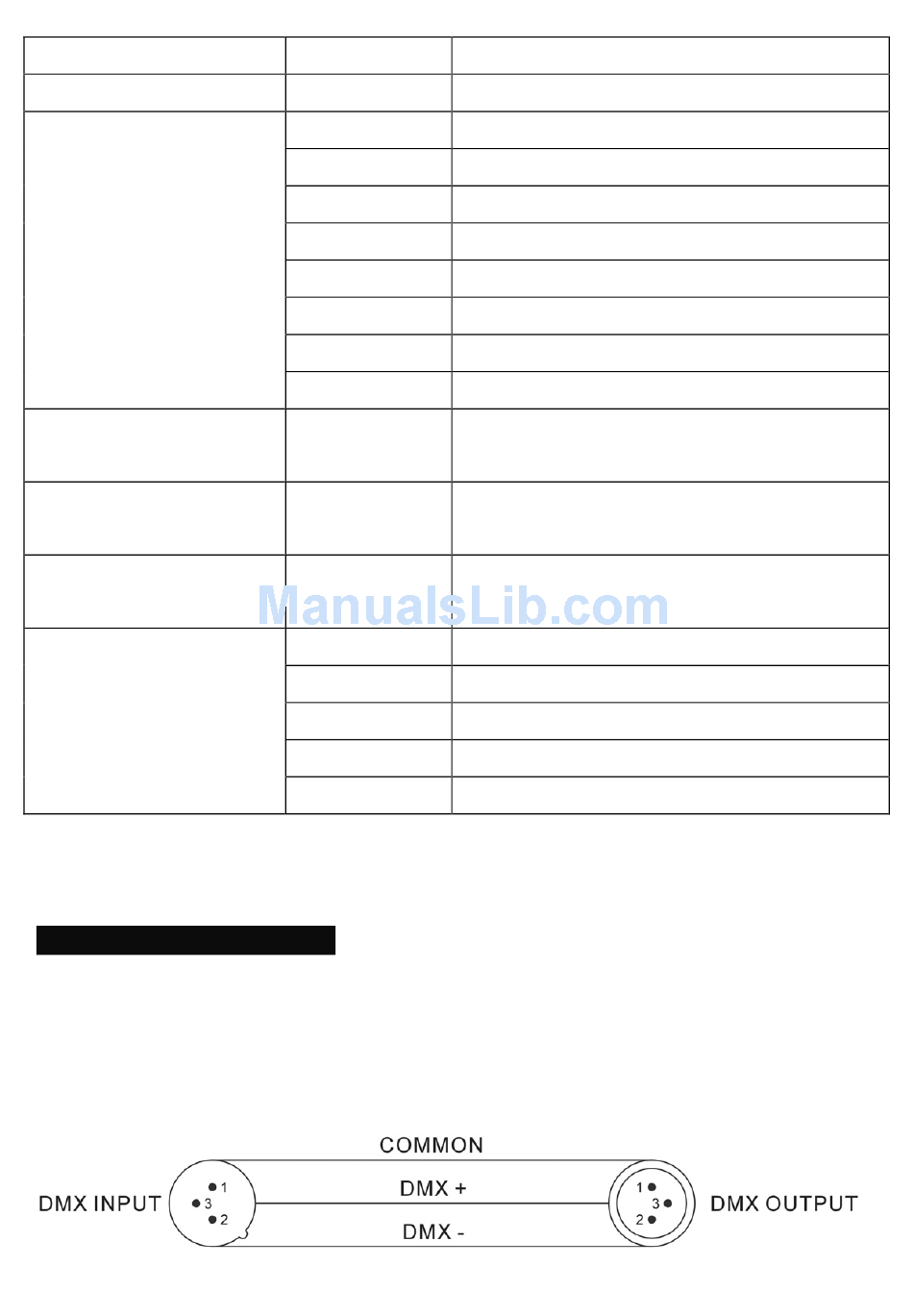

7. DMX512 Connections

The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
0-255 BLUE dimmer
0-255 Master dimmer
0-6 Dimmer mode
7-65 Slow to fast strobe
66-69 None
70-128 Pulse strobe from slow to fast
129-132 None
133-191 Strobe fading in from slow to fast
192-195 None
196-255 Strobe fading out from slow to fast
In standalone mode, running speed from
0-255
slow to fast
0-255 Static color select
0-255 Strobe from slow to fast
0-59 Dimmer mode
60-119 Static color mode
120-179 Color jump change mode
180-239 Color gradual change mode
240-255 Sound active mode
