Summary of Contents for LUMINA PRO Lighting SH-LED PAR64F
-

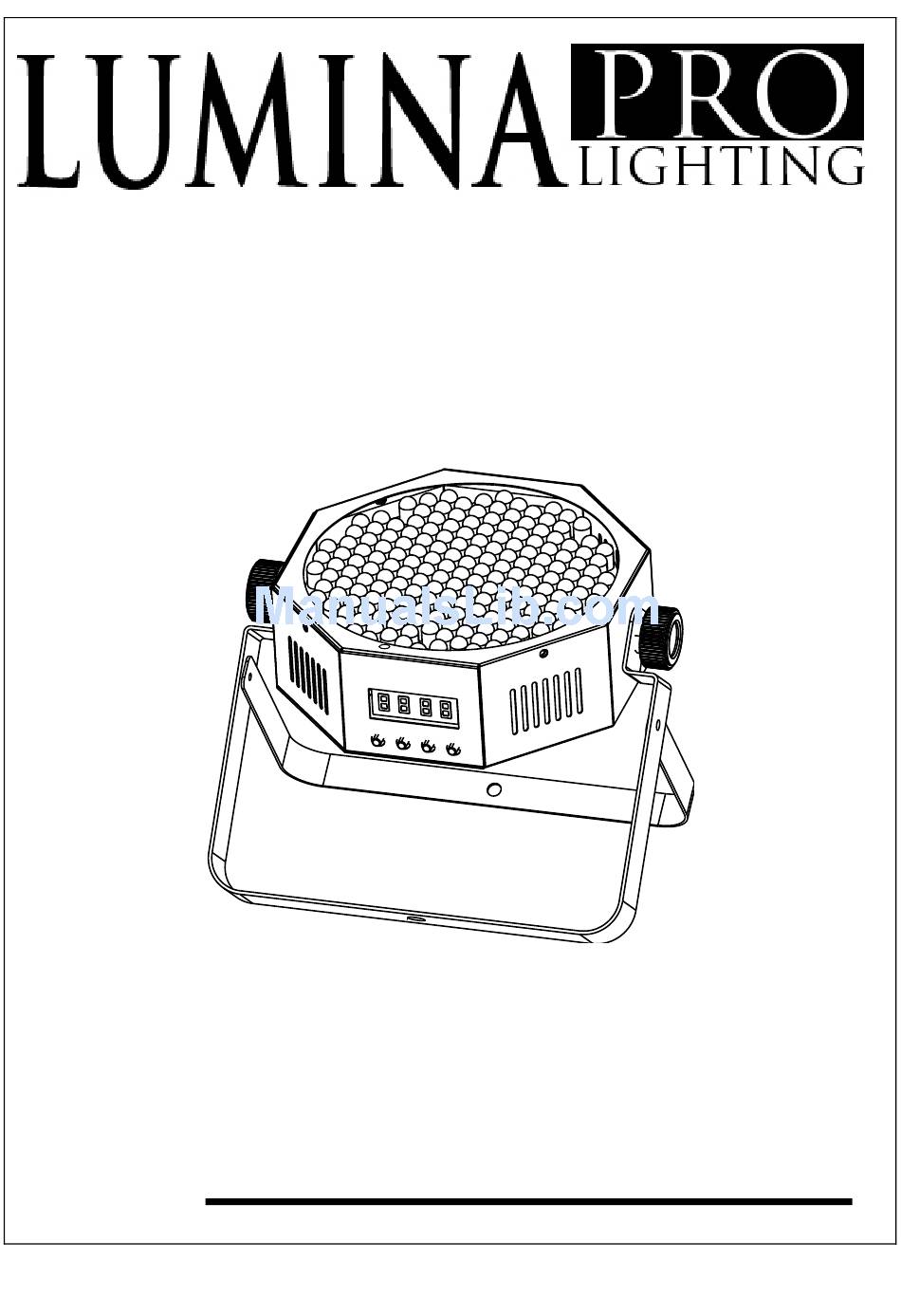

Page 1: User Manual
FLAT PAR LED LIGHT IR REMOTE Product Code: SH-LED PAR64F User Manual Please read the instructions carefully before use... -
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. Installation 4. How to set the unit 5. How to control the fixture 6. DMX512 Configuration 7. DMX512 Connections 8. Troubleshooting 9. Fixture Cleaning... - Page 3 1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this instruction booklet. ...
-
Page 4: Technical Specifications
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. Caution There are no user serviceable parts inside the fixture. Do not open the housing or attempt any repairs yourself. In the unlikely situation, your unit may require service, please contact your nearest dealer. - Page 6 4.2 Main Function Menu To select the program functions To go forward in the selected functions Down To go backward in the selected functions Enter To confirm the selected functions and go into the next layer menu...
-
Page 7: How To Control The Fixture
5. How to control the fixture The IR sensor is located at the top of the LED Lights. Please point the remote within 1M from the sensor to control the fixture. IR Sensor... - Page 8 (1)Auto Auto show (2)Sound Sound active (3) DMX DMX512 control, be switch mode between address and channel. (4) Black Out Press once to shut off the light and again to re-activate it (5)Red Red light is turned on (6)Green Green light is turned on (7)Blue Blue light is turned on Red 、Green and Blue light are turned on...
-
Page 9: Dmx512 Configuration
6. DMX512 Configuration 3 channels Mode: Channel Value Function 0-255 RED dimmer 0-255 GREEN dimmer 0-255 BLUE dimmer 5 channels Mode: Channel Value Function 0-255 RED dimmer 0-255 GREEN dimmer 0-255 BLUE dimmer 0-255 Master dimmer Dimmer mode 7-65 Slow to fast strobe 66-69 None 70-128... -
Page 10: Dmx512 Connections
0-255 BLUE dimmer 0-255 Master dimmer Dimmer mode 7-65 Slow to fast strobe 66-69 None 70-128 Pulse strobe from slow to fast (CH7<60) 129-132 None 133-191 Strobe fading in from slow to fast 192-195 None 196-255 Strobe fading out from slow to fast In standalone mode, running speed from 0-255 slow to fast... - Page 11 1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system 2.
-
Page 12: Troubleshooting
Pin 1 = Ground Pin 2 = Data Compliment (negative) Pin 3 = Data True (positive) 8. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. -
Page 13: Fixture Cleaning
1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition. 9. Fixture Cleaning The cleaning of internal must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. - Page 14 EC Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1:199601-2; EN55103-2:1996; EN61000-3-2:2000+A2:2005; EN61000-3-3:1995+A1:2001+A2:2005. & Harmonized Standard EN 60598-1: 2004 IEC 60598-1:2003+ corrigendum 2004 Part 1:General requirements and test Following the provisions of the low voltage directive 73/23/EEC and...
- Page 15 Sunhope Inc. 2750 14th Ave., Unit G12-13, Markham, Ontario L3R0B6, Canada Phone: (905) 604-7080 Email: info@sunhope.ca Web: www.sunhope.ca www.smartlight.ca Innovation, Quality, Performance...
