ViewSonic A90f+-1 VCDTS23307-2R Service Manual page 10

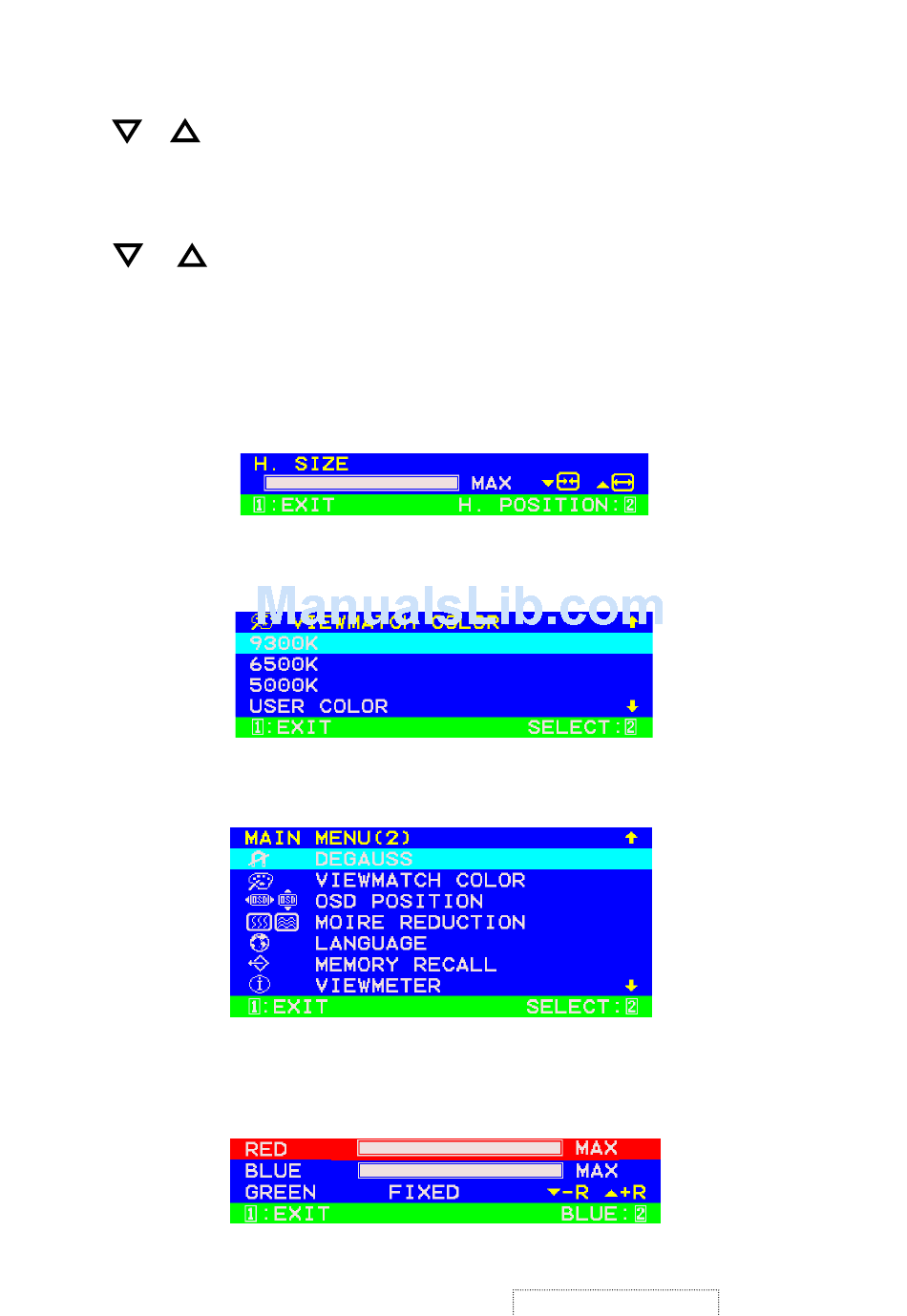

Using and keys to move a cyan window bar to get your desired items. If it is selected,
Then pressing "2" key to display
Sub menu as below to start adjustment.
Using and to decrease / increase value on selected item. Noted that the menu can do two
items adjust
by pressing "2" key, it will change to another one in toggle.
In main menu (1), move the cyan window bar up to the first item or down to the last item, then the
next bar moving will enter main menu (2) as below for other adjustment.
In main menu 2, if " VIEWMATCH COLOR" is selected, then pressing "2" key will display
color sub menu as the following
The three default color modes (9300k, 6500k, 5000k) are factory preset, User can select these
default colors but can't adjust and save.
If "USER COLOR" is selected, then pressing "2" key will display next sub menu as below to start
color adjustment.
ViewSonic Corporation
FIGURE 2 ( USER MODE OSD MENU 2)
7
Confidential – Do Not Copy
A90f+-1
