Summary of Contents for ViewSonic E90f
- Page 1 All manuals and user guides at all-guides.com E90f/E90fb Color Monitor User Guide Guide de l’utilisateur Guía del usuario Guia do Usuário With Plug & Play ✘ 19" (18.0" Viewable Diagonal)
-
Page 2: Table Of Contents
Setting the Timing Mode ...........5 OSD Lock Settings ............5 Adjusting the Screen Image ........6 Other Information ..........10 Specifications ............10 Troubleshooting ............11 Customer Support ...........12 Cleaning the Monitor ..........13 Limited Warranty .............14 Appendix .............15 Safety Guidelines ............15 Compliance Information ..........16 ViewSonic E90f/E90fb... - Page 3 No part of this document may be copied, reproduced or transmitted by any means for any purpose without prior written permission from ViewSonic Corporation. Product Registration To register your product online, go to the ViewSonic website for your region. See the Customer Support table in this guide. Product name:...
-
Page 4: Getting Started
• E90f/E90fb monitor • Quick Start Guide • Power cord • D-sub video cable (for VGA graphics card) • ViewSonic Wizard CD-ROM (includes User Guide PDF and INF/ICM display optimization files) Precautions • For best viewing conditions sit at least •... -
Page 5: Quick Installation
INF file. To register your product online, go to This is on the CD. the ViewSonic website for your region. See the Customer Support Insert the ViewSonic Wizard CD. table in this guide. -
Page 6: Using Your Monitor
Select the resolution by moving the slider, which displays in the Desktop area or Screen area in the window. NOTE: The refresh rate should already be set if you have completed the ViewSonic Wizard CD installation (or refer to your graphics card’s documentation). OSD Lock Settings You have the option of using the OSD Lock feature to prevent current image adjustments from being changed. -

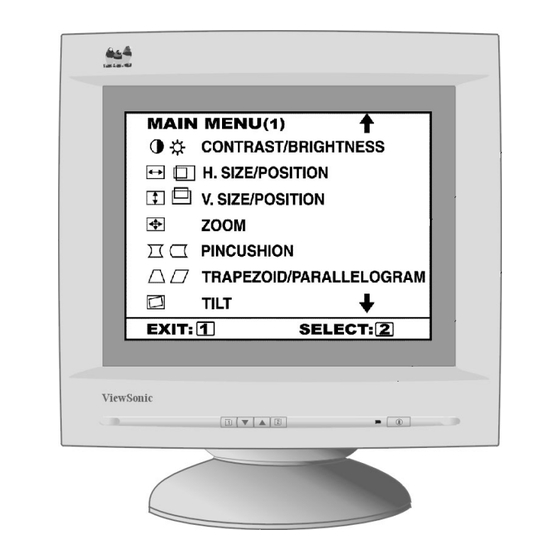

Page 7: Adjusting The Screen Image
Control panel Displays the highlighted Displays the Main option or toggles Power button Menu or exits and between options saves Control panel Control panel Scrolls through Power light: options or adjusts green = on settings orange = power save ViewSonic E90f/E90fb... - Page 8 Pin Balance left or right. adjusts the top and bottom of the screen image until Trapezoid they have equal length. slants the vertical edges of the screen image until Parallelogram they are parallel. rotates the entire screen image. Tilt ViewSonic E90f/E90fb...
- Page 9 Language for the menus and control screens: English, French, German, Italian, and Spanish. allows you to move the on-screen menus and OSD Position control screens. ViewSonic E90f/E90fb...
- Page 10 Exception: This control does not affect changes made with the User Color control. ® displays information regarding the current input Viewmeter signal coming from the graphics card of the computer. See Setting the Timing Mode on page 5. ViewSonic E90f/E90fb...
-
Page 11: Other Information
Power modes Green = On (normal, <100w) Orange = Off mode (< 3 W) Macintosh users may need an adapter. Contact ViewSonic (see Customer Support on page 12). Preset Timing Modes VGA 640 x 400 @ 70 Hz VESA 1280 x 1024 @ 75 Hz ®... -
Page 12: Troubleshooting
• Connect the monitor to another computer. • Select Degauss from the Main Menu. Do this only once. • If you have an older graphics card, contact ViewSonic ® Customer Support. Entire screen image rolls vertically •... -
Page 13: Customer Support
F: 65 273 1566 viewsonic.com Asia Other Asia/Pacific viewsonic.com.tw T: 886 2 2246 3456 service.ap@ countries and F: 886 2 8242 3668 viewsonic.com Indian Peninsula South Africa viewsonic.com/asia T: 886 2 2246 3456 service.ap@ F: 886 2 8242 3668 viewsonic.com ViewSonic E90f/E90fb... -
Page 14: Cleaning The Monitor
Some chemical cleaners have been reported to damage the screen and/or case of the monitor. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 15: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 16: Appendix
N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED. If you have any questions concerning which proper power cord to use, consult the dealer from whom you have purchased the product. ViewSonic E90f/E90fb... -
Page 17: Compliance Information
This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. ViewSonic E90f/E90fb... - Page 18 All manuals and user guides at all-guides.com ViewSonic Corporation...
