Operating manual

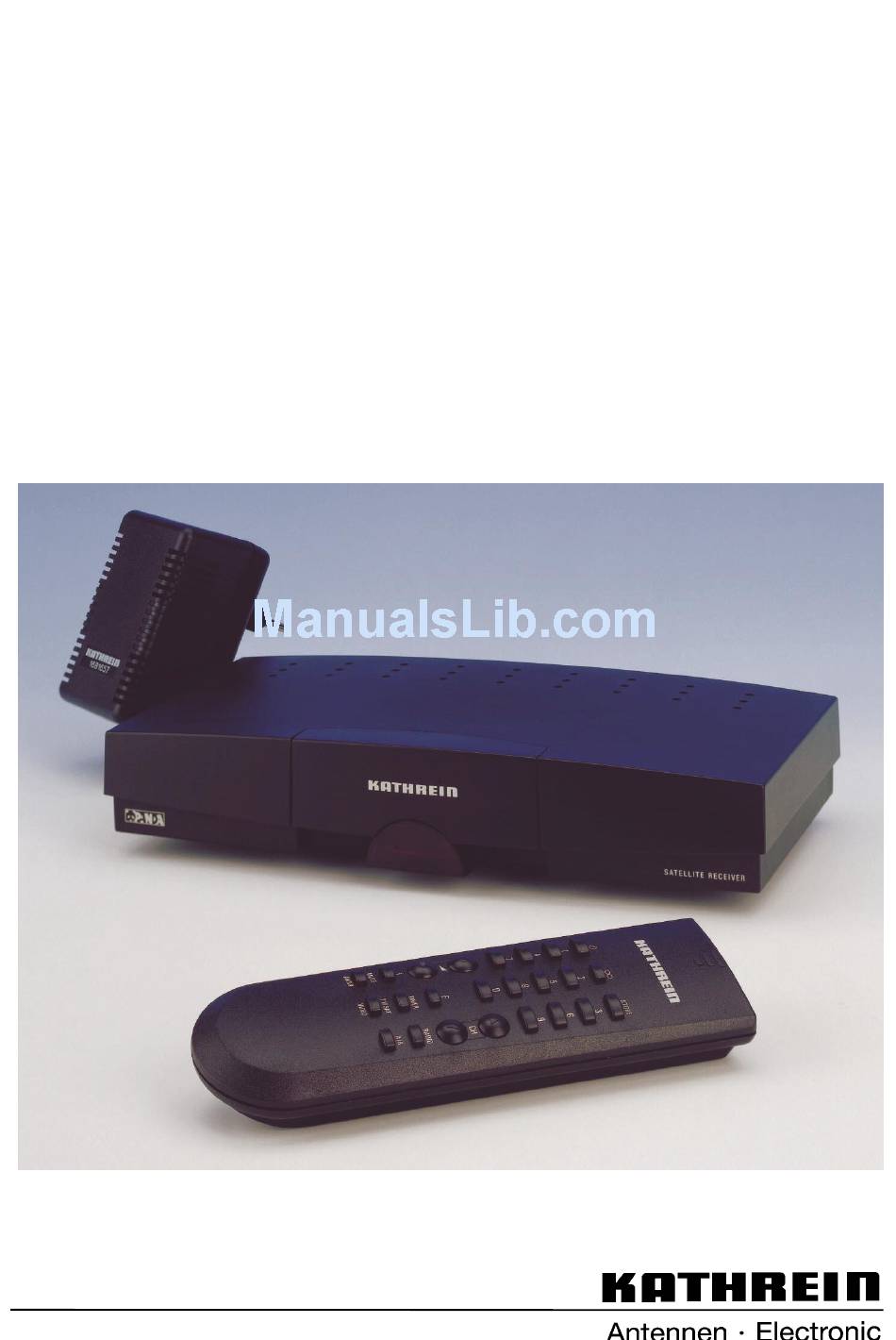

Kathrein Satellite Receiver
UFD 345
Order No.: 260 411

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UFD 345 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kathrein UFD 345

  • Page 1 Operating manual Kathrein Satellite Receiver UFD 345 Order No.: 260 411...
  • Page 2: Table Of Contents

    Contents Inhalt Controls, displays and connections... 3 View of front panel with infrared sensor, rear panel and remote control handset ... 3 Front panel and infrared sensor... 4 Rear panel connections... 4 Remote control handset keys ... 4 Safety instructions ... 5 Important notes regarding operation ...
  • Page 3: Controls, Displays And Connections

    Controls, displays and connections Bedienelemente, Anzeigen und Anschlüsse This section contains a brief description of all the control elements, displays and connections. The key symbols presented here are also used when describing the operating sequences. View of front panel View of rear panel Remote control handset...
  • Page 4: Front Panel And Infrared Sensor

    Controls, displays and connections Front panel Location slot for infrared sensor Detachable infrared sensor Receiver for infrared signals from the remote control. The detachable infrared sensor allows the receiver to be in- stalled hidden from view. All that is necessary is for the in- frared sensor to be within the reception area of the infrared signals from the remote control.
  • Page 5: Safety Instructions

    Safety instructions Sicherheitshinweise The following section contains important information relating to operation, place of installation and connecting-up of the receiver. Read these notes carefully before putting the unit into operation. Important notes regarding operation Extended absence/Thunderstorms During periods of extended absence or at the onset of thunderstorms always dis- connect the unit from the supply, or withdraw the mains plug if the power supply unit is used.
  • Page 6: Important Notes For Siting And Installation

    If the feeder system (LNB) is supplied with an external supply voltage and the LNB supply voltage is not used for polarity switchover (e.g. Kathrein single-cable feeder system UAS 330), the receiver‘s LNB supply must be set to “OFF”(refer to section: “Initial settings, LNB supply voltage“).
  • Page 7: Connecting Up And Putting Into Operation

    Please take note of guidance in section: “Safety- and Installation Instructions” Installing the receiver The UFD 345 satellite receiver is suitable for mobile use in motor homes or cara- vans, but can also serve as a fixed station in the home.
  • Page 8: Satellite Signal Connection

    Connecting up and putting into operation Connect inner hollow conductor plug to the power supply socket (6). Caution! If the power supply cable is modified or a different one is used, it is essential to check for correct polarity. Incorrect polarity will result in damage to the receiver. For fixed applications use the accompanying power supply unit 230 V~/16 V=.
  • Page 9: Inserting Batteries Into Remote Control

    Connecting up and putting into operation TV and video recorder connection (VCR) Connect-up the satellite receiver (TV Scart socket) and TV set with a Scart ca- ble. If your TV set has stereo capability, a Scart connection allows you to receive the sound in stereo.
  • Page 10: Receiver Operation

    Receiver operation Bedienung des Receivers In this chapter you learn how to select TV and radio programmes using your re- ceiver, and how to adjust the volume and set up other functions. Switching the unit on Once the supply voltage is connected the unit goes into standby mode. normal operation.
  • Page 11: Adjusting Volume, Balance And Tone

    Receiver operation Note With the setting “2- or 3-digit programme selection” there is a switch to the desired programme after approximately 3 seconds. Digits can be entered during this time period. With the setting “free programme selection“, the receiver switches to the corre- sponding programme slot immediately after each input.
  • Page 12: Stereo-/Mono- Channel Changeover

    Receiver operation Stereo- / Mono- / Channel changeover Broadcasts can be transmitted in the two-tone channel method (e.g. original tone “English" on channel 1, “German" tone on channel 2). Press the nel in the order: Stereo The selected channel is shown on the screen. The setting is not saved.
  • Page 13: Displaying The Info Menu And Programme Overview

    Receiver operation Example You want to insert the programme from programme slot “P083" into programme slot “P003" Select programme slot P083 using the Press the The menu for the function "Swap programme slots" appears. Press the The screen display for the “Insert“ function now appears: Select programme slot P003 using the Press the The programme from programme slot 83 is now inserted at programme slot 3.
  • Page 14: Programme Overview

    Receiver operation Programme overview (in TV mode only) Press the The programme overview appears on the screen. The programme currently selected is indicated by <..>. Picture optimisation when reception is weak Where weak reception results in a grainy picture as, for example, at the fringes of the reception area, the "Picture optimisation"...
  • Page 15: Programming Tv Programmes

    Programming TV programmes Programmieren von TV-Programmen The satellite receiver has already been factory pre-programmed for satellite re- ceiving systems with feed systems (receiving system) which have an oscillator fre- quency of 9.75 GHz. All of the programmes set up are listed in the table enclosed. If your satellite receiving system uses a feed system with a different oscillator fre- quency, the receiver only needs to be matched to the feed system oscillator fre- quency during the installation.
  • Page 16 Programming TV programmes Satellite frequency With input via the numeric keys the range 10700 to 12747 MHz. With the receiving frequency by moving in 1 MHz steps (recommended if the picture is grainy due to weak signals). Polarisation/Orbit position In these two menu entries, signal selection is carried out by the LNB supply voltage and the 22 kHz switching signal, which is superimposed on the LNB supply volt- age.
  • Page 17: Decoder Menu

    Programming TV programmes (9750 MHz). The LO frequency groups are also used for satellite recognition during fully auto- matic adjustment with our HDP 150 automatic positioner. For this the individual satellites are assigned the following LO groups: Satellite Astra Eutelsat 13° Eutelsat 10°...
  • Page 18: The "Audio" Menu

    Programming TV programmes The “Audio” menu The following settings can be made in the audio menu: Mode: Frequency: De-emphasis: VOL 0-9 VID A/B STOR STBY Audio mode Setting of operating mode as: “Stereo”, “Mono narrow” or “Mono wide” Operating mode “Stereo“ and “Mono narrow“ is selected on reception of the sound sub-carrier, “Mono wide“...
  • Page 19: Initial Settings

    Initial settings Programmieren von Radio-Programmen Programme providers are continually bringing out new radio programmes for broadcast via the satellites. The “Radio“ menu allows you to store these pro- grammes. The settings for radio programmes in “Radio“ mode are carried out in the same way as for the “TV“...
  • Page 20: Calling The Initial Setup Menu

    Initial settings can be invoked only from the switched-off state. (power supply interrupted). Calling the initial setup menu Withdraw the mains supply plug (inner hollow conductor plug) from the socket (6). Press both the programme selection buttons (4) and keep them pressed. Insert the unit‘s mains supply plug again.
  • Page 21: Osd Language

    Here you can turn off the power supply for the feed system if this is implemented by an external power supply and signal selection is likewise not carried out by means of the LNB supply voltage (e.g. Kathrein single-cable feed system UAS 330).
  • Page 22: Oscillator Frequency

    As a result, you can easily install the UFD 345 on other receiving systems without needing to reprogramme every single programme slot. You only need to set up the particular oscillator frequencies that your receiving system uses.
  • Page 23: Diseqc Menu

    (also termed Simple DiSEqC or just DiSEqC) DiSEqC 1.0 DiSEqC 2.0 The UFD 345 receiver is equipped with both the tone-burst signal and DiSEqC 1.0. The setting required is dependent on the components of your receiving system. Settings in the DiSEqC Call the initial setup menu (see paragraph “Calling the initial setup menu“).
  • Page 24: 22 Khz Signal

    Initial settings 22 kHz signal In this menu entry, you specify whether the 22 kHz signal is to be used to switch between a satellite‘s lower and upper frequency range (low/high) or to switch be- tween two satellite positions (Pos. A/B). 22 kHz: High/Low: (Factory preset) 22 kHz: Pos A/B :...
  • Page 25: Switching Over Remote Control's Command Set

    The “Remote” setting in the “DiSEqC” menu entry is intended for future applica- tions. If the UFD 345 receiver is operated in a receiving system with a “Subscriber- controlled preprocessing system“ e.g. “Kathrein UFO mini digital”, Remote must be set in the DiSEqC menu.
  • Page 26: Features

    Features Ausstattungsmerkmale The UFD 345 receiver is equipped with the following features: 200-channel memory for TV programmes, freely programmable 99-channel memory for radio programmes, freely programmable Low-threshold tuner for picture optimisation when reception is poor Selectable oscillator frequencies allow troublefree matching to feed systems with divergent oscillator frequencies.
  • Page 27: Specifications

    Specifications Technische Daten UHF characteristics Sat IF frequency range Input level range IF frequency IF bandwidth FM threshold Low threshold tuner Video Frequency range Deviation Output voltage De-emphasis Audio Subcarrier frequency range Bandwidth - Mono wide - Mono narrow / Stereo Frequency range De-emphasis Output voltage...
  • Page 28: Scart Socket Assignments

    Specifications General Unit dimensions (B/H/D) Weight Temperature range Ambient temperature Accessories Power pack 230 V / 16 V=/1 A Infrared sensor, Infrared remote control Scart cables, 12 V connecting cable with universal plug 6-24 V DC 2x 1.5 V batteries, type: LR 03, size: AAA (micro) Operating manual Scart socket assignments Signal...
  • Page 29: Menu Structure

    Menu structure Menüstruktur Video- and Audio Setup Menu Return (stepwise) into normal programme mode with key Save settings with key Select menu entries with Make the setting with Change from Video menu to Audio menu with key Change from Audio menu to Video menu with key Video Setup Menu call up with key STORE + VIDEO...
  • Page 30: Radio Setup Menu

    Menu structure Radio Setup Menu Return (stepwise) into normal programme mode with key Save settings with key Select menu entries with Make the setting with Radio Setup Menu call up with key STORE + RADIO (press twice) or with the numeric keys for frequency setting Programme slot Satellite frequency Polarisation...
  • Page 31: Initial Setup Menu

    Menu structure Initial Setup Menu Return (stepwise) into normal programme mode with key Save settings with key S Select menu entries with Make the setting with Call initial setup menu Disconnect the power supply, Press both CH buttons on infrared and keep pressed, Reconnect the power supply! (press twice).
  • Page 32: Connection Examples / Service Note

    Connection example / Service note Service note: Dear Customer, In the unlikely event that you should experience problems with your receiver, please contact your local specialist dealer or our service organisation.
  • Page 34 KATHREIN-Werke KG telephone (++49)08031/1840 fax (++49)08031/184306 Anton-Kathrein-Straße 1-3 P.O.B. 10 04 44 D-83004 Rosenheim/Germany...
