Summary of Contents for Audemars Piguet Calibre 2910
- Page 1 Instructions for use Mode d’emploi illenary inute epeater ap e with scapeMent Calibre 2910 Hand-wound...
- Page 3 nglish...
- Page 4 1. Introduction p 37 The Manufacture Audemars Piguet Millenary Minute Repeater with AP escapement 2. About the watch p 42 The Minute Repeater New Audemars Piguet escapement Dual balance-spring Power reserve Quick-link contents page (see opposite). 3. Watch description p 52...
-
Page 5: The Manufacture Audemars Piguet
The Manufacture Audemars Piguet The Vallée de Joux : cradle of the watchmaker’s art n the heart of the Swiss Jura, around 50 kilometres north of Geneva, nestles a landscape which has retained its natural charm to this day : the Vallée de Joux. - Page 6 Vallée de Joux, the cradle of Haute Audemars Piguet continued to build on Horlogerie. Determination, imagination and its now international reputation with discipline led them to instant success. A creative designs.
- Page 7 Millenary Minute Repeater with AP escapement Founded in Le Brassus in 1875, the Audemars Piguet Manufacture very rapidly made a name for itself in the art of striking watches. As time went by, further complications were added (perpetual calendar and chronograph in 1882 and power reserve display in 1885).

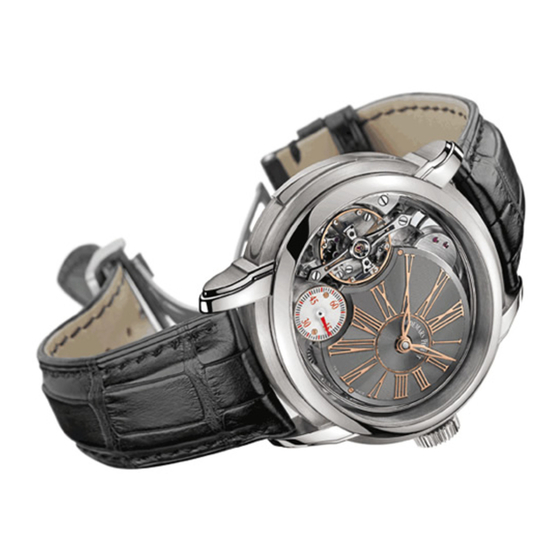

- Page 8 The Millenary Minute Repeater with Audemars Piguet escapement strikes on demand with a low tone for each hour, a double, high-and-low tone for each quarter hour and a high tone for each minute elapsed since the last quarter.
- Page 9 Its innovative design and outstanding performance render this patented system a minor revolution in watchmaking mechanics. It heralds the new generation of Audemars Piguet movements and furthers the performances of the watches produced by the Manufacture. The new AP design host s a number of technical...
- Page 10 This development has been patented by Indirect impulse Audemars Piguet. Direct impulse Dia. 2a Dia. 2b Fewer moving parts in the transmission equals greater efficiency...
- Page 11 Dual balance-spring The calibre 2910 also stands out for its totally new regulator component. It has two spirals one on top of the other offset by 180°. Undoubted advantages The system of dual “opposing” flat balance-springs has many advantages : no more balance-spring "end curves"...
-
Page 12: Power Reserve
Tremendous operating accuracy Power reserve The blocking system Calibre 2910 has a power reserve of 165 hours (about 7 days).This endurance is achieved by a large-diameter, dual barrel system developed by Audemars Piguet, with a blocking mechanism guaranteeing optimum performances. - Page 13 Frequency : 21,600 vibrations/hour (3 Hz) Number of jewels : 40 Power reserve : 165 hours (approx. 7 days) Manual winding Audemars Piguet lubrication-free escapement KIF Elastor shock protection system Variable inertia balance Flat dual balance springs Balance stopping device when the time is adjusted...
-
Page 14: Watch Indications And Functions
Watch indications and functions (see figure on the inside cover) Hour hand Minute hand Small second hand (at 7 o’clock) Minute repeater : Repeater slide to activate the striking mechanism Your watch is fitted with a three-position crown : Crown in the neutral position Crown in manual winding position Crown in time-setting position... -
Page 15: Setting The Time
Setting the time Winding the watch Precautions to be taken before setting the time : Your watch is fitted with a mechanical hand-wound Your watch is equipped w ith a clutch system movement. making it impossible to set the time while the We recommend you to wind the watch fully every striking mechanism is working. - Page 16 T he Mil lenar y Minute Repeater w at ch w it h However, sometimes the movement does not Audemars Piguet escapement strikes the hours, start again automatically. quar ters and minutes on demand, using t wo...
- Page 17 Guarantee and care All details concerning the guarantee and instructions on caring for your watch are provided in the enclosed certificate of origin and guarantee.
