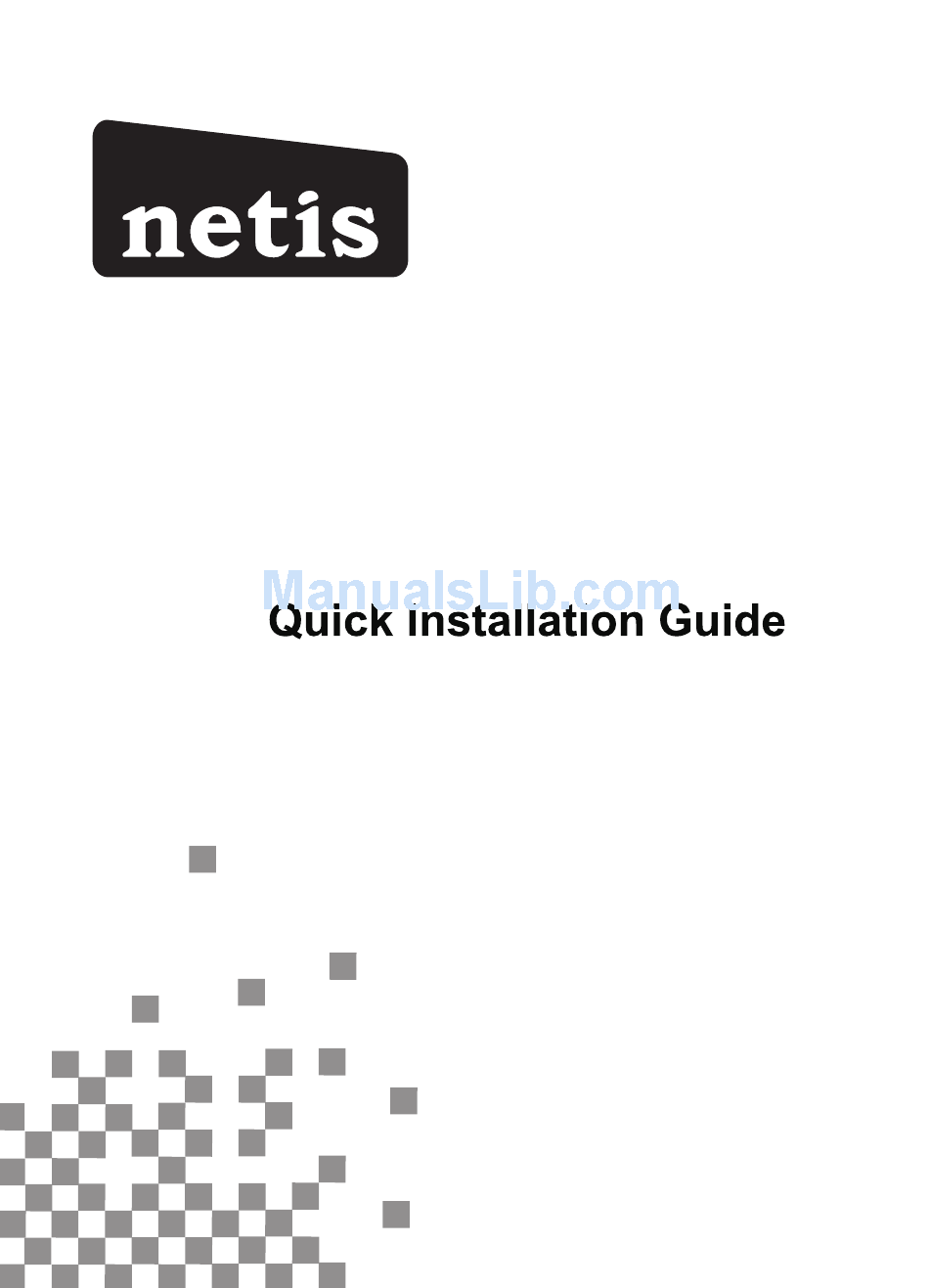

- Page 1 ADSL2+ Modem With Wireless-N Router...
-
Page 2: Hardware Installation
ADSL2+ Modem With Wireless-N Router Quick Installation Guide 1. Hardware Installation Step 1: Connect the ADSL Line. Method one: Plug one end of the twisted-pair ADSL cable into the ADSL LINE port on the rear panel of the router, and insert the other end into the wall socket. - Page 3 ADSL2+ Modem With Wireless-N Router Quick Installation Guide Name Status Indication Power is on Power is off Flash The ADSL negotiation is in progress ADSL The LINE port is linked up. The LINE port is linked down. Flash Data is being transferred over the Internet.
-
Page 4: For Windows 7 Or Windows Vista As Below
ADSL2+ Modem With Wireless-N Router Quick Installation Guide 2. Configure PC For Windows 7 or Windows Vista as below. Step 1: Click , then select the Open Network and Sharing Center. Figure 2 Step 2: Click the Change adapter settings. - Page 5 ADSL2+ Modem With Wireless-N Router Quick Installation Guide Figure 4 Step 4: Double click the “Internet Protocol Version 4(TCP/IPv4)”. Figure 5...
- Page 6 ADSL2+ Modem With Wireless-N Router Quick Installation Guide Step 5: Select the “Obtain an IP address automatically” as below. Then click “OK”. Figure 6 3. Login Start your web browser and type the private IP address of the Router in the URL field: 192.168.1.1.
-
Page 7: Modem Management
ADSL2+ Modem With Wireless-N Router Quick Installation Guide Then,enter the default User Name admin and the default Password admin Figure 8 And then click OK to access to the Wireless Modem Management Panel screen. 4. Modem Management This webpage provides you the convenient and simplest way to configure your Modem to access the internet. -
Page 8: Wireless Network & Security
ADSL2+ Modem With Wireless-N Router Quick Installation Guide Third: Enter the Fixed IP address which provided by your ISP then click “ Add” Fourth: Click “Save” botton to make it effetive. Figure 9 5. Wireless Network & Security To connect to the Wireless AP, we should have the most basic... - Page 9 ADSL2+ Modem With Wireless-N Router Quick Installation Guide configuration of the router at first. In this section, you can set the wireless network parameters required to access the AP of your WLAN interface. Go to Setup->WLAN->Basic page, you can configure the wireless parameters.
- Page 10 ADSL2+ Modem With Wireless-N Router Quick Installation Guide Here you can choose the encryption method to prevent any unauthorized access to your wireless network. There are three most commonly used encryption method (a total of six encryption support), including the WEP encryption, WPA-Personal, WPA2-Personal, etc.
- Page 11 ADSL2+ Modem With Wireless-N Router Quick Installation Guide Figure 12 Step 4: Click “Wireless Network Connection” with the right button of your mouse. Then select “View Available Wireless Networks”. Figure 13 Step 5: Double click the wireless network your product provided.
- Page 12 ADSL2+ Modem With Wireless-N Router Quick Installation Guide Figure 14 Step 6: Input the key you stetted before if the wireless network you connecting to requests password. USA/Canada Technical Support: Phone (toll free in USA& Canada): 1-866-71-network or 1-866-716-3896 Email: usa_support@ netis-systems.com For North America only Netis SYSTEMS CO., LTD...
