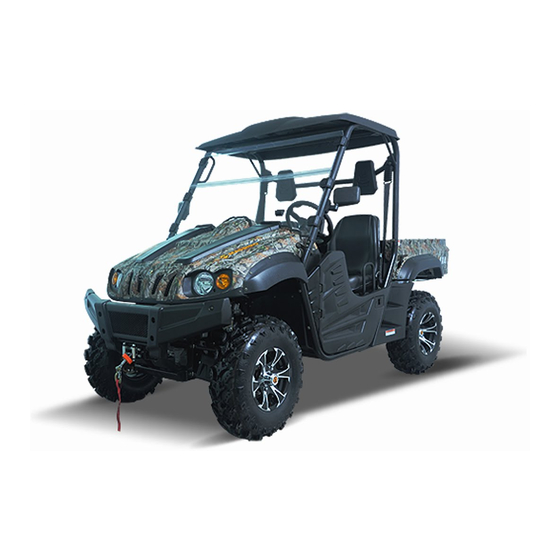

MASSIMO ALLIGATOR 700 and MSU 700
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSU 700 and is the answer not in the manual?

Questions and answers

David
May 28, 2025

Is the manual for the Massimo MSU 700 the same as the one for the Warrior 700?

User image 68378321a36bb
0

Subscribe to Our Youtube Channel

Related Manuals for Massimo MSU 700

Summary of Contents for Massimo MSU 700

  • Page 1 MASSIMO ALLIGATOR 700 and MSU 700 Owner’s Manual...
  • Page 2 Owner Manual INTRODUCTION Congratulations on your purchase of the Massimo Alligator 700 or MSU 700. This Owner’s / Operator’s manual will provide you information regarding safe operation, operational instructions, maintenance and care. Fully understanding this manual and following all of the instructions herein will provide the knowledge needed to have safe and enjoyable UTV operation.
  • Page 3 Owner Manual...

  • Page 4: Important Manual Information

    Owner Manual IMPORTANT MANUAL INFORMATION FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS INJURY Particularly important information is distinguished in this manual by the following OR DEATH. notations: The Safety Alert Symbol means ATTENTION! YOUR SAFETY IS INVOLVED! Failure to follow WARNING instructions could result in severe injury or death to the machine operator, bystander or a person inspecting or repairing the machine.

  • Page 5: Important Notice

    Owner Manual IMPORTANT NOTICE This UTV is designed and manufactured for OFF - ROAD use only. It is illegal and unsafe to operate this UTV on any public street, road or highway. This UTV complies with all applicable OFF - ROAD noise level and spark arrester laws and regulations in effect at the time of manufacture.
  • Page 6 Owner Manual Location of the Warning and Switches 4-10 Specification Labels Accelerator Pedal 4-14 Brake Pedal 4-15 Safety Information Parking Brake Lever 4-16 Drive Select Lever 4-17 Description and Vehicle Fuel Tank Cap 4-17 Identification Seats 4-18 Identification Number Records Vehicle Identification Number Seat Belts 4-19...
  • Page 7 Owner Manual Brake Fluid Leakage Tire Wear Limit 5-13 Brake Operation Operation Fuel Starting the Engine in Low Gasohol Temperatures Engine Oil Starting the Engine Coolant Warming Up Final Gear Oil Drive Select Lever Operation and Differential Gear Oil Driving In Reverse Throttle Pedal Parking Throttle Freeplay...
  • Page 8 Owner Manual Turning your Vehicle To Change the Engine Oil 8-10 Braking Final Gear Oil 8-13 Going Uphill Changing the Final Gear Oil 8-15 Going Downhill 7-10 Differential Gear Oil 8-16 Crossing Through Shallow Water Changing The Differential Gear Oil 7-12 8-17 Riding Over Rough Terrain...
  • Page 9 Owner Manual Checking the Brake Pedal 8-32 Troubleshooting 8-48 Parking Brake Lever Free Play Solution to Common Problems in Adjustment 8-33 the Vehicle 8-50 Brake Light Switch Adjustment 8-35 Cleaning and Storage Cable Inspection and Lubrication 8-35 Cleaning Brake Pedal and Accelerator Pedal Storage Lubrication 8-36...
  • Page 10 Location of the Warning and Safety Labels ⑬...
  • Page 11 Location of the Warning and Safety Labels Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label is available by contacting your dealer.
  • Page 12 Location of the Warning and Safety Labels...
  • Page 13 Location of the Warning and Safety Labels...
  • Page 14 Location of the Warning and Safety Labels...
  • Page 15 Location of the Warning and Safety Labels...
  • Page 16 Location of the Warning and Safety Labels...

  • Page 17: Safety Information

    Safety Information SAFETY INFORMATION This off-highway utility vehicle handles differently from other vehicles including cars and UTVs. SEVERE INJURY OR DEATH can result if you do not follow these instructions: Read this manual and all labels carefully and follow the operating procedures described. ●...
  • Page 18 Safety Information 2-2 Never attempt jumps or other stunts. ● Always inspect your vehicle each time you use it to be sure it is in safe operating condition, Always ● follow the inspection and maintenance procedures and schedules described in this manual. Always keep hands, arms, feet, and legs inside the vehicle at all times during operation.
  • Page 19 Safety Information Never operate on hills that are slippery or ones where you will not be able to see far enough ahead of ● you. Never go over the top of a hill at speed if you cannot see what is on other side. Always follow proper procedures for going uphill.
  • Page 20 Safety Information 2-4 WARNING POTENTIAL HAZARD Improper handling of gasoline. WHAT CAN HAPPEN Gasoline can catch fire and you could be burned. HOW TO AVOID THE HAZARD Always turn off the engine when refueling. Do not refuel right after the engine has been running and is still very hot.
  • Page 21 Safety Information WARNING POTENTIAL HAZARD Starting or running the engine in a closed area. WHAT CAN HAPPEN Exhaust fumes are poisonous and may cause loss of consciousness and death within a short time. HOW TO AVOID THE HAZARD Always operate your vehicle in an area with adequate ventilation.

  • Page 22: Description And Vehicle Identification

    Description and Vehicle Identification Headlights Spark arrester Front shock absorber assembly adjusting ring Passenger seat belt Brake fluid reservoir Passenger seat Air filter element(engine and air intake duct) Oil filter cartridge V-belt case Engine oil dipstick Driver seat Battery Driver seat belt Fuses Spark plug Coolant reservoir...
  • Page 23 Description and Vehicle Identification Light switch Steering wheel Starter (choke) Main switch On-Command four-wheel-drive and differential lock switches Multi-function meter unit Auxiliary DC jack Drive select lever Parking brake lever Accelerator pedal Brake pedal NOTE: The vehicle you have purchased may differ slightly from those in the figures of this manual.
  • Page 24 Description and Vehicle Identification Identification Number Records Record the Vehicle Identification Number and Vehicle Identification Number model label information in spaces provided for The Vehicle Identification Number (VIN) is assistance when ordering spare parts from a stamped into the frame. service center or for reference in case the vehicle is stolen.

  • Page 25: Control Functions

    Control Functions Functions of the respective switch positions CONTROL FUNCTIONS are as follows: Main switch All electrical circuits are supplied with power, and the headlights and taillights illuminate when the light switch is on. OFF: All electrical circuits are switched off. The key can be removed in this position.

  • Page 26: Indicator And Warning Lights

    Control Functions Indicator and Warning Lights CAUTION: Do not operate the electric starter ● continuously for more than 5 seconds at a time or starter damage could occur. Wait at least 5 seconds between each start attempt. Do not turn the key to the “START” ●...
  • Page 27 Control Functions This indicator light comes on when the drive Low-Range Indicator Light “L” select lever is in the “R” reverse position. This indicator light comes on when the drive select lever is in the “L” position. Coolant Temperature Warning Light “ ”...
  • Page 28 Control Functions is out. Continuous use while the light is monitors working condition of EPS system. on may cause damage to the engine. Fault can be displayed by fault indicator light High beam indicator and fault indicator of EPS system, so the The light being on means headlight is at high driver can acknowledge fault of EPS in time beam mode.
  • Page 29 Control Functions Speedometer Unit Check the meter. If fault indicator light of EPS system does not be lit, ECU can be for regular use. If fault indicator light of EPS system is lit, that means EPS system find out some fault during ECU self-checking process, then you should consult your local dealer for maintenance in time.
  • Page 30 Control Functions Speedometer unit functions: from the odometer, to the tripometer, and a speedometer (which shows the speed) then to the hours meter; then it starts the an odometer (which shows the total cycle over. distance covered) The odometer displays the total distance a tripometer (which can be cleared and traveled by the UTV.
  • Page 31 Control Functions button on the display. This will also change panel. The left 4WD indicator has a blinking displayed mileage from miles circle on the front axle when the grey and kilometers. yellow 4WD selector buttons are pressed in Clock time adjustment indicating the “4WD”...
  • Page 32 Control Functions slippery roads or when climbing a steep hill, symbols showing in either the left or right make sure the 4WD lock indicator is on. 4WD indicators. When riding on a flat road at a comparatively high speed, adjust settings CAUTION: “2WD/UNLOCK”...
  • Page 33 Control Functions time press the clock button, the time will be shown. Then after five seconds, the fault code returns again. Only after the fault is fixed, will the time show automatically. The description for the fault codes are shown in Chapter 11 of this manual.
  • Page 34 Control Functions 4-10 Switches CAUTION: Do not use the headlights with the engine turned off for an extended period of time. The battery may discharge to the point that the starter motor will not operate properly. If this happens, remove the battery and recharge it. 1.
  • Page 35 4-11 Control Functions conditions. On-Command Four-Wheel–Drive and Differential Gear Lock Switches Two-wheel drive (”2WD”): Power is sup- plied to the rear wheels only. Four-wheel drive (“4WD’): Power is supplied to the rear and front wheels. Four–wheel drive with the differential gear locked (“4WD-LOCK”): Power is supplied to the rear and front wheels when the differential gear is...
  • Page 36 Control Functions 4-12 On-Command four-wheel-drive switch WARNING “2WD/4WD” POTENTIAL HAZARD Changing from 2WD to 4WD or from 2WD to 2WD-Differential UNLOCK, or vice-versa while the vehicle is moving. WHAT CAN HAPPEN The vehicle handles differently in 4WD than in 2WD and in 2WD- Differential UNLOCK in some circumstances.
  • Page 37 4-13 Control Functions set the switch to “LOCK”. When the the select lever is set to position , and differential gear is locked, the differential then set the switch to “2WD”. gear lock indicator light will come on along with the differential gear lock indicator in the On-Command Differential Gear Lock multifunction meter unit display .To release Switch “4WD”/”LOCK”...
  • Page 38 Control Functions 4-14 indicator and indicator light are flashing) will cause the engine speed HOW TO AVOID THE HAZARD to be limited until engagement is Always ride at a slow speed when the complete. vehicle is in 4WD-LOCK, and allow extra time and distance for maneuvers.
  • Page 39 4-15 Control Functions Brake pedal Press the brake pedal to slow or stop the vehicle. WARNING POTENTIAL HAZARD Malfunction of the accelerator pedal. WHAT CAN HAPPEN A faulty pedal that makes it difficult to speed up or slow down could cause loss of control.
  • Page 40 Control Functions 4-16 lever, press the release button, and then push the lever all the way down. Spring pressure helps return the lever to the released position. Be sure to fully release the parking brake before starting out, Failure to do so may result in poor performance and premature wearing of the rear brake and V-belt.
  • Page 41 4-17 Control Functions Drive select lever Fuel tank cap The drive select lever is used to shift you Remove the fuel tank cap by turning it vehicle into the low, high, neutral and reverse counterclockwise. positions. (Refer to pages 6-4—6-6 for the drive select lever operation.) 1.
  • Page 42 Control Functions 4-18 To install a seat, insert the projection on the Seats rear of the seat into the seat holders and To remove a seat, pull its seat lock lever push down on the seat at the front. upward, lift the front of the seat, and then WARNING slide the seat forward and up.
  • Page 43 4-19 Control Functions 1. Seat belt (×2) 2. Latch plate (×2) 3. Buckle (×2) Seat belts This vehicle is equipped with three-point seat To wear the seat belt properly, do the belts for both the operator and passenger. following: Always wear the seat belt while riding in the 1.
  • Page 44 Control Functions 4-20 2. Push the latch plate into the buckle until it shoulder belt should fit against your clicks. Pull up on the latch plate to make chest. If it is loose, pull the belt out all the sure it is secure. way and then let it retract.
  • Page 45 4-21 Control Functions Glove compartment WARNING CAUTION: POTENTIAL HAZARD To protect from damage, do not put metal Not wearing the seat belt or wearing the products, like tools or sharply edged seat belt improperly. products directly in the glove compartment. If WHAT CAN HAPPEN they must be stored, wrap them in There is increased risk of being killed or...
  • Page 46 Control Functions 4-22 Cargo bed Opening and closing the tailgate 1. Cargo bed 2. Tailgate 1. Tailgate 2. Latch (×2) 3. Cargo hook(×4) To open Unhook the latches, and then lower the tailgate. To close Place the tailgate in the original position, and then hook the latches.
  • Page 47 4-23 Control Functions Lifting and lowering the cargo bed WARNING POTENTIAL HAZARD Pinch points. WHAT CAN HAPPEN You or someone else could be pinched between the cargo bed and the frame when the bed is being lowered. HOW TO AVOID THE HAZARD 1.
  • Page 48 Control Functions 4-24 WARNING WARNING POTENTIAL HAZARD POTENTIAL HAZARD Overloading the cargo bed Carrying a passenger in the cargo bed WHAT CAN HAPPEN WHAT CAN HAPPEN Could cause changes in vehicle handling The passenger could fall, be thrown out, which could lead to an accident. or be struck by objects in the cargo bed.
  • Page 49 4-25 Control Functions Front and Rear Shock Adjustment The spring preload can be adjusted to suit the operating conditions. You can reduce preload for a softer ride, or increase preload if frequent bottoming out of the UTV occurs. CAUTION: Frequent or severe bottoming out of the UTV can cause increased wear or damage to the 1.
  • Page 50 Control Functions 4-26 WARNING Standard position: B A-Minimum(soft) POTENTIAL HAZARD E-Maximum(hard) Improper shock absorber adjustment. WHAT CAN HAPPEN Uneven adjustment can cause poor handling and loss of stability, which could lead to an accident. HOW TO AVOID THE HAZARD Always adjust the shock absorbers on the left and right side to the same setting.
  • Page 51 4-27 Control Functions Trailer hitch bracket Auxiliary DC jack The auxiliary DC jack is located at the right This vehicle is equipped with a 1 ¼ in side of the front panel. The auxiliary DC jack receiver bracket for a standard trailer hitch. can be used for suitable work lights, radios, Trailer towing equipment can be obtained at etc.
  • Page 52 Control Functions 4-28 jack. 4. When the auxiliary DC jack is not being used, cover it with the cap. CAUTION: Do not use accessories requiring more than the above maximum capacity. This may overload the circuit and cause the fuse to blow. If accessories are used without the engine running or with the headlights 1.
  • Page 53 Pre Operation Checks Before using this vehicle, check the following items: ITEM ROUTINE PAGE Check operation, free play, fluid level and fluid leakage ● Brakes 5-2 - 5-3， 8-32 Fill with DOT 4 brake fluid if necessary ● Check for proper operation, condition and free play Parking brake 6-8 - 6-9 ●...
  • Page 54 Pre Operation Checks WARNING Brakes Check for correct brake pedal free play. If the POTENTIAL HAZARD brake pedal free play is incorrect, have a Failure to inspect the vehicle before service center adjust it. (See pages 8-34 - operating. Failure to properly maintain the 8-35.) vehicle.
  • Page 55 Pre Operation Checks Brake fluid leakage Check to see if any brake fluid is leaking out of WARNING the pipe joints or the brake fluid reservoir. Apply POTENTIAL HAZARD the brakes firmly for one minute. If there is any Driving with improperly operating brakes. leakage, have the vehicle inspected by a WHAT CAN HAPPEN service center.
  • Page 56 Pre Operation Checks Fuel Your engine has been designed to use regular Make sure there is sufficient gasoline in the unleaded gasoline with a pump octane number tank. ([R+M] /2) of 91 or higher, or research octane number of 91 or higher. If knocking or pinging Recommended fuel: occurs, use a different brand of gasoline or Unleaded gasoline only...
  • Page 57 Pre Operation Checks WARNING Engine oil Make sure the engine oil is at the specified level. POTENTIAL HAZARD Add oil as necessary. (See pages 8-10) Improper care when refueling. WHAT CAN HAPPEN CAUTION: Fuel can spill, which can cause a fire and In order to prevent clutch slippage severe injury.
  • Page 58 Pre Operation Checks Recommended engine oil type and CAUTION: quantity: Hard water or salt water is harmful to the engine. See page 10-2 You may use soft water if you cannot get distilled water. Coolant Check the coolant level in the coolant reservoir Coolant reservoir capacity when the engine is cold.
  • Page 59 Pre Operation Checks WARNING Final gear oil Make sure the final gear oil is at the specified POTENTIAL HAZARD level. Add oil as necessary. (See pages 8-14 - Removing the radiator cap when the engine 8-15 for details) and radiator are still hot. WHAT CAN HAPPEN Recommended oil: You could be burned by hot fluid and steam...
  • Page 60 Pre Operation Checks WARNING Recommended oil: Failure to check or maintain proper SAE 80 API GL-5 Hypoid gear oil operation of the throttle system can result in an accident and lead to serious injury or Throttle Pedal death if the throttle pedal sticks during Check to see that the accelerator pedal operation.
  • Page 61 Pre Operation Checks Throttle Freeplay Throttle Freeplay Adjustment If the throttle pedal has excessive play due to 1. Remove both seats. Remove the middle cable stretch or mis-adjustment, it will cause a cover of the engine. (see PAGE 8-9 ) delay in throttle response, especially at low 2.
  • Page 62 Pre Operation Checks 5-10 4. Resume the center cover and seat to their when pulled out and retract on its own when position released. The latch plate should click securely into the buckle and release when the release Steering Wheel Inspection button is pushed firmly.
  • Page 63 5-11 Pre Operation Checks as necessary for proper operation. Tires WARNING Switches POTENTIAL HAZARD Operating this vehicle with improper tires, Check the operation of all switches. Have a or with improper or uneven tire pressure. service center repair as necessary for proper WHAT CAN HAPPEN operation.
  • Page 64 Pre Operation Checks 5-12 3. The tires should be set to the 5. Use no more than the following pressures recommended pressure: when seating the tire beads. Front 10psi (70kpa, 0.7 kgf/cm Front 36psi (250kpa, 2.5kgf/cm Rear 10psi (70kpa, 0.7 kgf/cm Rear 36psi (250kpa, 2.5kgf/cm Check and adjust tire pressures when the Higher pressures may cause the tire to burst.
  • Page 65 5-13 Pre Operation Checks Set pressure with tires cold. Set tire pressures Tire wear limit to the following specifications: When the tire groove decreases to 0.12 in (3 Recommended mm) due to wear, replace the tire. Minimum Maximum Pressure 10psi (70kpa 9 psi (63kpa, 11 psi, (77kpa, Front...
  • Page 66 Operation WARNING WARNING POTENTIAL HAZARD POTENTIAL HAZARD Operating vehicle without being familiar Freezing control cables due to cold with all controls. weather conditions. WHAT CAN HAPPEN WHAT CAN HAPPEN Loss of control, which could cause an Loss of vehicle control, which could accident or injury.
  • Page 67 Operation indicator light does not come on, ask a Starting the Engine service center to inspect the electric circuit. CAUTION: The engine can be started in any gear if See the “Engine Break-In”section prior to ● operating the engine for the first time. the brake is applied.
  • Page 68 Operation attempt. the throttle pedal to make the engine run at 2500RPM to charge the battery for 5-10 Continue warming up the engine until it minutes; when the voltage of battery is over idles smoothly before riding. 12V, the idle speed will be normal. If the idle speed is still high, please contact your WARNING service center.

  • Page 69: Driving In Reverse

    Operation and the vehicle can been ridden. Shifting: Neutral to High and High to Low Otherwise, go on with the third step. 1. Stop the vehicle. Keep your foot off the 3. Continue warming up the engine until it accelerator pedal. idles smoothly.
  • Page 70 Operation the shift guide. NOTE: Please kick the brake pedal first, before place ● gearshifts lever to“reverse”position. In the brake pedal, there is a cable, which is ● connected to a position pin located on the gearshift assembly. Only when the brake pedal is depressed, the position pin will be retracked, and gearshifts can be removed to “reverse”...
  • Page 71 Operation the engine, the light may not come on until the vehicle starts moving. 4. Check behind for people or obstacles, and then release the brake pedal. 5. Press the accelerator pedal gradually and continue to watch to the rear while backing up.
  • Page 72 Operation WARNING WARNING POTENTIAL HAZARD POTENTIAL HAZARD Parking on a hill or other incline. Improperly operating in reverse. WHAT CAN HAPPEN WHAT CAN HAPPEN The vehicle could roll out of control, You could hit an obstacle or person increasing the chance of an accident. behind you, resulting in serious injury.
  • Page 73 Operation Parking Parking on a Slope a) When parking, stop the engine and shift the drive select lever into the neutral position. b) Push the brake pedal down, and pull the parking brake to top position to park the vehicle 1.
  • Page 74 Operation Vehicle Break-in Period The break-in period for your new UTV vehicle is the first 25 hours of operation, or the time it takes to use the first three tanks full of gasoline. No single action on your part is as important as a proper break-in period. Careful treatment of a new engine and drive components will result in more efficient performance and longer life for these...
  • Page 75 6-10 Operation momentary (2-3 seconds maximum) full of use. Use of any engine oil not mentioned in throttle operation under load does not harm ● this manual will cause severe damage to the engine. the engine. Each full throttle acceleration sequence should be followed with a substantial rest period for the engine by cruising at lower Engine Break-In...
  • Page 76 Operation 6-11 10-25 Hours: performance. Break in the clutches and belt Avoid prolonged operation above 3/4 throttle. by operating at slower speeds during the Rev the vehicle freely but do not use full break-in period as recommended. Pull only throttle at any time. light loads.
  • Page 77 6-12 Operation test all nonstandard accessories, nor with accessories. The vehicle may have any control over the quality or handle differently than it does without suitability of them. Choose a genuine accessories. accessory, or one that is equivalent in design and quality. Loading Accessories should be rigidly and Cargo or a trailer can change the stability...
  • Page 78 Operation 6-13 with a bathroom scale. Put the tongue of the loaded trailer on the scale with the MAXIMUM LOADING LIMIT tongue at hitch height. Adjust the load in Vehicle loading limit (total weight of ● cargo, operator, passenger and the trailer, if necessary, to reduce the accessories, and tongue weight): weight on hitch.
  • Page 79 6-14 Operation Make sure cargo in the trailer cannot Avoid hills and rough terrain. Choose ● move around. A shifting load can cause terrain carefully. Added weight affects the an accident. stability and handling of the vehicle. Make sure the load does not interfere ●...
  • Page 80 Operation 6-15 WARNING POTENTIAL HAZARD Overloading this vehicle or carrying or towing cargo improperly. WHAT CAN HAPPEN Could cause changes in vehicle handling which could lead to an accident. HOW TO AVOID THE HAZARD Never exceed the stated load capacity for this vehicle.

  • Page 81: Driving Your Vehicle

    Your Vehicle DRIVING YOUR VEHICLE WARNING GETTING TO KNOW YOUR VEHICLE POTENTIAL HAZARD This off-highway utility vehicle will handle Not wearing the seat belt. and maneuver differently form an ordinary Wearing the seat belt improperly. passenger car or other vehicle. WHAT CAN HAPPEN Before you begin to use your vehicle, be sure There is increased risk of being killed or...
  • Page 82 Your Vehicle WARNING The total weight of operator, passenger, accessories, cargo, trailer tongue weight, POTENTIAL HAZARD and the vehicle itself must not exceed 1,880 Carrying a passenger in the cargo bed. lbs (853Kg). WHAT CAN HAPPEN The passenger could fall or be struck by objects in the cargo bed.
  • Page 83 Your Vehicle The driver and passenger must always wear WARNING a seat belt, an approved motorcycle helmet, eye protection and protective clothing, POTENTIAL HAZARD Overloading this vehicle or carrying or including over-the-ankle boots, gloves, a towing cargo improperly. long-sleeved shirt or jacket, and long pants. WHAT CAN HAPPEN Keep hands and feet inside the vehicle at all Could cause changes in vehicle...
  • Page 84 Your Vehicle WARNING HOW TO AVOID THE HAZARD POTENTIAL HAZARD Always wear an approved motorcycle Operating this vehicle without wearing an helmet that fits properly. You should also approved motorcycle helmet, eye wear: protection, and protective clothing. WHAT CAN eye protection HAPPEN (goggles or face shield) Operating without...
  • Page 85 Your Vehicle LEARNING TO OPERATE YOUR VEHICLE Perform the Pre-Operation Checks on pages You should become familiar with the 5-1 - 5-11. Set the parking brake, shift to performance characteristics of the vehicle in neutral, and follow the instructions on page a large, flat area that is free of obstacles and 6-1 to start the engine.
  • Page 86 Your Vehicle possibility of an accident. attempt to turn around or make abrupt maneuvers on slope. Position your hands on the steering wheel so CAUTION: that your thumbs and fingers do not wrap Do not shift from low to high or vice versa around the wheel.
  • Page 87 Your Vehicle Follow these precautions when operating in reverse: 1. Always check for obstacles or people behind the vehicle. 2. Apply the throttle lightly. Never open the throttle suddenly. 3. Back up slowly. 4. Apply the brakes lightly for stopping. 5.
  • Page 88 Your Vehicle BRAKING Braking ability is affected by the type of terrain. In most cases, gradual application of the brakes is more effective than abrupt braking, particularly on loose surfaces like gravel. Always allow for greater braking distance on rough, loose, or slippery surfaces.
  • Page 89 Your Vehicle some hills are too steep for you to climb. WARNING Maximum slope angle:15° POTENTIAL HAZARD Operating on excessively steep hills. WHAT CAN HAPPEN The vehicle can over turn more easily on extremely steep hills than on level surfaces or small hills. HOW TO AVOID THE HAZARD Never operate your vehicle on hills too steep for it or your abilities.
  • Page 90 Your Vehicle 7-10 Before climbing the hill, first be sure you are around. With your foot on the brake, look behind you and plan your descent. Shift the operating in low range 4WD or, if necessary, with 4WD. To climb a hill, you need traction, drive select lever in reverse so you can use momentum, and steady throttle.
  • Page 91 7-11 Your Vehicle Before starting downhill, make sure the you will be able to react to obstacles that may vehicle is in low-range 4WD. On most slopes, appear. this will let you use engine braking to help you go downhill slowly. Go as slowly as WARNING possible.
  • Page 92 Your Vehicle 7-12 CROSSING THROUGH SHALLOW WATER WARNING If you must cross shallow, slow moving water POTENTIAL HAZARD up to the depth of the vehicle’s floorboards, Operating this vehicle through deep or choose your path carefully to avoid sharp fast-flowing water. drop-offs, large rocks, or slippery surfaces WHAT CAN HAPPEN Loss of control, which could result in an...
  • Page 93 7-13 Your Vehicle Vehicle Immersion CAUTION: CAUTION: After riding your vehicle in water, be sure to If your vehicle becomes immersed, major drain the trapped water by removing the engine damage can result if the machine is check hose at the bottom of the air filter case, not thoroughly inspected.
  • Page 94 Your Vehicle 7-14 5. Dry the spark plugs and reinstall them, or CAUTION: install new plugs. Make sure all components that are washed 6. Attempt to start the engine. If necessary, and assembled are coated lightly with repeat the drying procedure. grease.
  • Page 95 7-15 Your Vehicle 1. Drive select lever box check hose 1．V-belt cooling duct check hose 1．V-belt case drain plug Riding Over Rough Terrain Operating over rough terrain should be done with caution. Look for obstacles that could cause damage to the vehicle or could lead to a rollover accident.
  • Page 96 Your Vehicle 7-16 vehicle could occur. WARNING POTENTIAL HAZARD Failure to use extra care when operating this vehicle on unfamiliar terrain. WHAT CAN HAPPEN You can come upon hidden rocks, bumps, or holes, without enough time to react. Could result in the vehicle overturning or going out of control.
  • Page 97 7-17 Your Vehicle thoroughly. Look from both your approach Riding in Brush or Wooded Areas side and the exit side. If you believe you can When operating in areas with brush or trees, continue safely, decide the path that will watch carefully on both sides and above the allow you to get over the obstacle at as close vehicle for obstacles such as branches that...
  • Page 98 Your Vehicle 7-18 WARNING POTENTIAL HAZARD Improperly operating over obstacles. WHAT CAN HAPPEN Could cause loss of control or a collision. Could cause the vehicle to overturn. HOW TO AVOID THE HAZARD Before operating in a new area, check for obstacles.
  • Page 99 Periodic Maintenance and Adjustment NOTE: Periodic Maintenance and Adjustment If you do not have a torque wrench available Periodic inspection, adjustment and during a service operation requirin lubrication will keep your vehicle in the safest g one, take your vehicle to service center to and most efficient condition possible.
  • Page 100 Periodic Maintenance and Adjustment WARNING WARNING POTENTIAL HAZARD POTENTIAL HAZARD Servicing an engine while it is running. Operating this vehicle with improper modifications. WHAT CAN HAPPEN WHAT CAN HAPPEN Moving parts can catch clothing or parts of the body, causing injury. Improper installation of accessories or Electrical components can cause shocks modification of this vehicle may cause...

  • Page 101: Periodic Maintenance And Adjustment

    Periodic Maintenance and Adjustment Periodic Maintenance Chart for the Emission Control System ● For vehicles not equipped with an odometer or hour meter, follow the month maintenance intervals. ● For vehicles equipped with an odometer or an hour meter, follow the mile (km) or hours maintenance intervals. However, keep in mind that if the vehicle is not used for a long period, the month maintenance intervals should be followed.

  • Page 102: General Maintenance And Lubrication Chart

    Periodic Maintenance and Adjustment General maintenance and lubrication chart INITIAL EVERY Month Whichever ITEM ROUTINE Miles 1,500 1,500 3,000 Comes first (Km) (320) (2,400) (2,400) (4,800) (1,200) hours Check coolant leakage. ● Cooling system Repair if necessary. ○ ○ ○ ○...
  • Page 103 Periodic Maintenance and Adjustment INITIAL EVERY Month Whichever ITEM ROUTINE Miles 1,500 1,500 3,000 Comes first (Km) (320) (2,400) (2,400) (4,800) (1,200) hours Check bearing assemblies for looseness/damaged. ● Wheel bearings* ○ ○ ○ ○ Repair if damaged. ● Stabilizer bushings* Check for cracks or damage.
  • Page 104 Periodic Maintenance and Adjustment NOTE: Recommended brake fluld:DOT4 ● Brake fluid replacement. ● When disassembling the master cylinder or caliper, replace the brake fluid. Check the brake fluid level ● and add fluid as required. On the inner parts of the master cylinder and caliper, replace the oil seals every two years. ●...
  • Page 105 Periodic Maintenance and Adjustment Hood To open Unhook the hood latches, and then slowly tilt the hood up until it stops. Hood To close Lower the hood slowly to its original position, 1. Latch (×2) and then hook the hood latches. Secure projections on the underside of the ①...
  • Page 106 Periodic Maintenance and Adjustment Console To remove 1. Remove the seats. (See pages 4-18─ 4-19 for seat removal and installation procedures.) 2. Remove the parking brake lever boot. 3. Pull the console upward (the drive select lever boot will come loose.) 1.
  • Page 107 Periodic Maintenance and Adjustment 2. Install the parking brake lever boot. procedures.) 3. Install the seats. 3. Check the engine oil level on a cold engine. CAUTION: NOTE: When installing the console, be sure not If the engine was started before checking the to pinch the cables or wires.
  • Page 108 Periodic Maintenance and Adjustment 8-10 8. Install the console. To change the engine oil (with or without oil filter cartridge replacement) 1. Remove the console. (See page 8-9 for console removal and installation procedures.) 2. Place an oil pan under the engine to collect the used oil, and then remove the engine oil filler cap.
  • Page 109 8-11 Periodic Maintenance and Adjustment 1. Engine oil drain bolt 1. Oil filter cartridge 2. Oil filter wrench NOTE: NOTE: Skip steps 4-6 if the oil filter cartridge is not An oil filter wrench is available at a nearby being replaced. service center.
  • Page 110 Periodic Maintenance and Adjustment 8-12 1. Oil filler cartridge 2. Torque wrench 1. O-ring 7. Install the engine oil drain bolt, and then 6. Install the new oil filter cartridge with an tighten it to the specified torque. oil filter wrench, and then tighten it to the specified torque with a torque wrench.
  • Page 111 8-13 Periodic Maintenance and Adjustment several minutes while checking it for oil Recommended engine oil: leakage. If oil is leaking, immediately turn See page 10-2. the engine off and check for the cause. Oil quantity: 10. Turn the engine off, wait at least ten Without oil filter cartridge replacement minutes, and then check the oil level and 2.01 qt (1.9L)
  • Page 112 Periodic Maintenance and Adjustment 8-14 CAUTION: 1. Be sure no foreign material enters the final gear case. 2. Please clean the sensor every 320 mile period. 3. Install the oil filler bolt, and then tighten it to the specified torque. Tightening torque: 1.
  • Page 113 8-15 Periodic Maintenance and Adjustment Changing the final gear oil Tightening torque: 1. Place the vehicle on a level surface. Final gear oil drain bolt: 2. Place a container under the final gear 14 ft·lbf (20 Nm, 2.0 m·kgf ) case to collect the used oil.
  • Page 114 Periodic Maintenance and Adjustment 8-16 Tightening torque: Final gear oil filler bolt: 17 ft·lbf (23 Nm, 2.3 m·kgf) 7. Check for oil leakage. If oil leakage is found, check for the cause. Differential gear oil Checking the differential gear oil level 1.
  • Page 115 8-17 Periodic Maintenance and Adjustment Changing the differential gear oil 1. Place the vehicle on a level surface. Tightening torque: 2. Place a container under the differential Differential gear oil drain bolt: gear case to collect the used oil. 7.1 ft·lbf (9.8Nm, 0.98 m·kgf) 3.
  • Page 116 Periodic Maintenance and Adjustment 8-18 temperature. Tightening torque: NOTE: Differential gear oil filler bolt: The coolant should be between the minimum 17 ft·lbf (23Nm, 2.3m·kgf) and maximum level marks. 7. Check for oil leakage. If oil leakage is found, check for the cause. Coolant The coolant level should be checked before each ride.
  • Page 117 8-19 Periodic Maintenance and Adjustment the hood. content of the coolant as soon as possible. Coolant reservoir capacity The radiator fan is automatically ● (up to the maximum level mark): switched on or off according to the 0.37 qt (0.35L) coolant temperature in the radiator.
  • Page 118 Periodic Maintenance and Adjustment 8-20 Spark plug inspection Removal 1. Lift the cargo bed up. (See pages 4-22 - 4-23 for cargo bed lifting and lowering procedures.) 2. Remove the spark plug cap. 1.Front axle boot (×2 each side) 1. Spark plug cap 3.
  • Page 119 8-21 Periodic Maintenance and Adjustment Do not attempt to diagnose such problems yourself. Instead, take the vehicle to a service center. You should periodically remove and inspect the spark plug because heat and deposits will cause the spark plug to slowly break down and erode. If electrode erosion becomes excessive, or if carbon and other deposits are excessive, you should replace the spark plug with the specified...
  • Page 120 Periodic Maintenance and Adjustment 8-22 NOTE: If a torque wrench is not available when you are installing the spark plug, a good estimate of the correct torque is 1/4 to 1/2 turn past finger tight. Have the spark plug tightened to the specified torque as soon as possible.
  • Page 121 8-23 Periodic Maintenance and Adjustment 1. Air filter check hose 1. Holder (×4) 2. Air filter case cover 1. Remove the seats. (See pages 4-18 - 4. Remove the air filter element. 4-19 for seat removal and installation 5. Remove the sponge material from its procedures.) frame.
  • Page 122 Periodic Maintenance and Adjustment 8-24 1. Air filter frame 2. Sponge material 3. Element retaining plate 6. Wash the sponge material gently but thoroughly in solvent. WARNING POTENTIAL HAZARD Using low flash point solvents or gasoline to clean the sponge material. WHAT CAN HAPPEN 1.
  • Page 123 8-25 Periodic Maintenance and Adjustment CAUTION: Do not twist the sponge material when squeezing it. 8. Inspect the sponge material and replace it if damaged. 9. Thoroughly apply foam air filter oil or other quality liquid foam air filter oil (not spray type) to the sponge material.
  • Page 124 Periodic Maintenance and Adjustment 8-26 V-belt cooling duct check hose element rubber joint to the fuel system and The V-belt cooling duct check hose is located manifold fittings securely to avoid the under the driver seat. (See pages 4-18 - 4-19 possibility of unfiltered air entering the for seat removal and installation procedures.) engine.
  • Page 125 8-27 Periodic Maintenance and Adjustment V-belt case drain plug The V-belt case drain plug is located under the driver seat. (See pages 4-18 - 4-19 for seat removal and installation procedures.) After riding in water deep enough to allow water to enter the V-belt case, remove the drain plug to drain any water from the case.
  • Page 126 Periodic Maintenance and Adjustment 8-28 Bolt(×3) 1. Tailpipe 2. Spark arrester 2. Remove the tailpipe by pulling it out of 4. Insert the tailpipe into the muffler and the muffler. align the bolt holes. 3. Tap the tailpipe lightly, and then use a 5.
  • Page 127 8-29 Periodic Maintenance and Adjustment WARNING Valve clearance POTENTIAL HAZARD The correct valve clearance changes with Improper cleaning of the spark arrester. use, resulting in improper fuel-air supply or Hot exhaust system engine noise. To prevent this, the valve WHAT CAN HAPPEN Could injure the eyes.
  • Page 128 Periodic Maintenance and Adjustment 8-30 Rear brake pad check Each brake pad is provided with wear indicator grooves, which allow you to check the brake pad wear without having to disassemble the brake. To check the brake pad wear, check the wear indicator grooves. If a brake pad has worn to the point that the wear indicator grooves have almost disappeared, have a service center replace...
  • Page 129 8-31 Periodic Maintenance and Adjustment The brake fluid reservoir is located under the Checking the brake fluid level hood. (See pages 8-8- 8-9 for hood opening Insufficient brake fluid may let air enter the and closing procedures.) brake system, possibly causing the brakes to become ineffective.

  • Page 130: Brake Fluid Replacement

    Periodic Maintenance and Adjustment 8-32 the fluid and may result in vapor lock. should be no free play in the brake pedal. The brakes should operate smoothly and Brake fluid may deteriorate painted there should be no brake drag. If the brakes surfaces or plastic parts.
  • Page 131 8-33 Periodic Maintenance and Adjustment WARNING Parking brake lever free play adjustment Periodically check the parking brake lever POTENTIAL HAZARD Operating with improperly serviced or free play and adjust it if necessary. adjusted brakes. 1. Shift the drive select lever into low gear WHAT CAN HAPPEN “L”.
  • Page 132 Periodic Maintenance and Adjustment 8-34 1.Parking brake lever free play 1. Locknut 2. Adjusting nut NOTE: 6. Turn the adjusting nut in direction The parking brake lever must be released increase the free play or in direction when checking and adjusting the parking to decrease the free play.
  • Page 133 8-35 Periodic Maintenance and Adjustment Brake light switch adjustment The brake light switch, which is activated by the brake pedal, is properly adjusted when the brake light comes on just before braking takes effect. If necessary, adjust the brake light switch as follows. 1.
  • Page 134 Periodic Maintenance and Adjustment 8-36 Brake pedal and accelerator pedal WARNING lubrication POTENTIAL HAZARD Lubricate the pivoting parts. Damaged control cables. Recommended lubricant: WHAT CAN HAPPEN Lithium-soap-based grease Corrosion can result when the outer (all-purpose grease) covering of control cables becomes damaged.
  • Page 135 8-37 Periodic Maintenance and Adjustment Rear knuckle upper and lower pivot Steering shaft lubrication lubrication Lubricate the pivot points. Lubricate the knuckle upper and lower pivots Recommended lubricant: with a grease gun. Lithium-soap-based grease (all-purpose grease) Recommended lubricant: Lithium-soap-based grease...
  • Page 136 Periodic Maintenance and Adjustment 8-38 Wheel installation Wheel removal 1. Install the wheel and the nuts. Loosen the wheel nuts . NOTE: Elevate the vehicle and place a suitable The arrow mark on the tire must stand under the frame. ●...
  • Page 137 8-39 Periodic Maintenance and Adjustment Battery This vehicle is equipped with a sealed-type battery. Therefore it is not necessary to check the electrolyte or add distilled water in the battery. If the battery seems to have discharged, consult a service center. 1.
  • Page 138 Periodic Maintenance and Adjustment 8-40 WARNING POTENTIAL HAZARD Failure to handle batteries or battery electrolyte carefully. WHAT CAN HAPPEN You could be poisoned. You could be severely burned by the sulfuric acid in battery electrolyte. Batteries produce explosive gases. HOW TO AVOID THE HAZARD Avoid contact with skin, eyes or clothing.
  • Page 139 8-41 Periodic Maintenance and Adjustment Battery maintenance 1. When the vehicle is not used for a month or longer, remove the battery and store it in a cool, dark place. Completely recharge the battery before reinstallation. CAUTION: A special battery charger (constant voltage/ampere or constant voltage) is required for recharging a sealed-type battery.
  • Page 140 Periodic Maintenance and Adjustment 8-42 by lifting it up and pulling it out. Specified fuses: 30.0A Main fuse 15.0A Headlight fuse Speedometer ECU normally 5.0A energized fuse 10.0A Stop lamp fuse 10.0A Turn lamp fuse 10.0A Gear switch fuse 10.0A EPS fuse 15.0A Fuel pump fuse...
  • Page 141 8-43 Periodic Maintenance and Adjustment system. headlight by pulling it off. 6. Install the battery compartment cover. 7. Close the hood. WARNING POTENTIAL HAZARD Using an improper fuse WHAT CAN HAPPEN An improper fuse can cause damage to the electrical system, which could lead to a fire.
  • Page 142 Periodic Maintenance and Adjustment 8-44 1. Headlight bulb holder cover 1. Headlight bulb holder 4. Remove the headlight bulb holder by 5. Remove the defective bulb by pulling it pushing it in and turning it out. counterclockwise.
  • Page 143 8-45 Periodic Maintenance and Adjustment WARNING POTENTIAL HAZARD A headlight bulb is hot when it is on and immediately after it is turned off. WHAT CAN HAPPEN You can be burned, or a fire could start if the bulb touches something flammable. HOW TO AVOID THE HAZARD Wait for the bulb to cool before touching or removing it.
  • Page 144 Periodic Maintenance and Adjustment 8-46 turning it clockwise. 8. Install the bulb holder cover and the cover at the rear of the headlight. CAUTION: Make sure the headlight bulb holder cover is securely fitted over the bulb holder and seated properly. 9.
  • Page 145 8-47 Periodic Maintenance and Adjustment 1. Panel A 1. Quick fastener（×8） 2. Bolt（×2） 3. Panel A 2. Remove the bulb holder（together with the bulb）by turning it counterclockwise. 1. Panel B...
  • Page 146 Periodic Maintenance and Adjustment 8-48 Tightening torque: Panel bolt: 4.7 ft·lbf (6.5N·m, 0.65 m·kgf） Troubleshooting Although vehicles receive a rigid inspection before shipment from the factory, trouble may occur during operation. Any problem in the fuel, compression, or ignition systems can cause poor starting and loss of power.
  • Page 147 8-49 Periodic Maintenance and Adjustment but they are often inferior. WARNING Consequently, they have a shorter service life and can lead to expensive repair bills. POTENTIAL HAZARD Checking the fuel system while smoking or near an open flame. WHAT CAN HAPPEN Fuel can ignite or explode, causing severe injury or property damage.
  • Page 148 Periodic Maintenance and Adjustment 8-50 Solution to Common Problems in Vehicle The below tables show some common problems that may come up when you are driving a UTV, which will help to solve these problems. To repair a UTV requires technical skills, if you cannot repair the UTV yourself, please contact your service center.
  • Page 149 8-51 Periodic Maintenance and Adjustment Table 2：Solution of Common Problems in Brake System. Problems Solutions 1. Check if the handle of parking brake return to its position. Brake system is locked 2. Check if the brake discs are bent or deformed. 3.
  • Page 150 Periodic Maintenance and Adjustment 8-52 fasteners of calipers are deformed. 1. Check if left and right brake force deviation of front brake is with specified limit. 2. Check if the brake force of front brake goes down, which Vehicle makes odd turn causes the rear wheels to lock up before the front wheels.
  • Page 151 8-53 Periodic Maintenance and Adjustment Table 3: Solution of Common Problems in Electrical System Problems Solutions 1. Check if the headlight switch functions properly. Lights do not work. 2. Check if the wires are broken. 3. Check if the lamps or bulbs are broken. 1.
  • Page 152 Periodic Maintenance and Adjustment 8-54 Table 4: Solution of Common Problems in Running System Problems Solutions 1. Check the fasteners connecting steering rod to steering stem and knuckle to find out if they are loose or broken. Swing clearance of 2.
  • Page 153 8-55 Periodic Maintenance and Adjustment 3. Check the inner splines of rear wheel hubs and outer splines of rear wheel axles to find out if they are worn or broken. 4. Check the lock screws of rear wheels and axles to find out if they are loose or broken.
  • Page 154 Periodic Maintenance and Adjustment 8-56 Table 5: Solution of Common Problems in Engine System Problems Solutions Idle speed cannot be Check if the throttle cable is stuck or restricted. adjusted. Check if the high-voltage wire is in poor contact. Idle speed is not stable. Check if the CDI needs replacing.
  • Page 155 8-57 Periodic Maintenance and Adjustment Check the coolant drain tube for with air. Check the battery charge. Check the battery connection. Check the starter for damage. Check if the ignition loop is in good condition. Engine cannot start. Check if the spark plug creating sparks. Check if the ignition signal is in good condition.
  • Page 156 Periodic Maintenance and Adjustment 8-58 WARNING POTENTIAL HAZARD Removing the radiator cap when the engine and radiator are still hot. WHAT CAN HAPPEN You could be burned by hot fluid and steam blown out under pressure. HOW TO AVOID THE HAZARD Wait for the engine to cool before removing the radiator cap.
  • Page 157 Cleaning and Storage Cleaning CAUTION: Frequent, thorough cleaning of your vehicle Excessive water pressure may cause water will not only enhance its appearance but also seepage and deterioration of wheel bearings, will improve its general performance and brakes, transmission seals and electrical extend the useful life of many components.
  • Page 158 Cleaning and Storage chamois, clean towel or soft absorbent cloth. WARNING 6. Clean the seats with vinyl upholstery POTENTIAL HAZARD cleaner to keep the cover pliable and Operation with wet brakes after washing. glossy. WHAT CAN HAPPEN 7. Automotive type wax may be applied to Wet brakes may have reduced stopping all painted and chrome plated surfaces.
  • Page 159 Cleaning and Storage Storage Specified amount: Long-term storage (60 days or more) of your 1 oz of stabilizer to each gallon of fuel (or vehicle will require some preventive 7.5 ml of stabilizer to each liter of fuel) procedures to guard against deterioration. After thoroughly cleaning the vehicle, NOTE: prepare for storage as follows:...
  • Page 160 Cleaning and Storage 6. Tie a plastic bag over the exhaust pipe outlet to prevent moisture from entering. 7. If storing in a humid or salty atmosphere, coat all exposed metal surfaces with a light film of oil. Do not apply oil to any rubber parts or the seat covers.

  • Page 161: Specifications

    10-1 Specifications Model HS700UTV-4 Dimensions: Overall length 3010mm (118.5 in) Overall width 1460m m (57.5 in) Overall height 1940mm (76.4 in) Seat height 818mm (32.2 in) Wheelbase 1890mm (74.4 in) Ground clearance 280mm (11.0 in) Minimum turning radius 3900mm (154 in) Basic weight with oil and full fuel tank 543 kg (1,197 l b) Engine:...
  • Page 162 Specifications 10-2 Model HS700UTV-4 Engine oil: Type API service SG type or higher, JASO standard MA Recommended engine oil classification CAUTION: In order to prevent clutch slippage（since the engine oil also lubricates the clutch）, do not mix any chemical additives. Do not use oils with a diesel specification of “CD”...
  • Page 163 10-3 Specifications Model HS700UTV-4 Final gear case oil: Type SAE80 API GL-4 Hypoid gear oil Quantity: 0.25L (0.26 qt ) Differential gear case oil: Type SAE80 API GL-5 Hypoid gear oil Quantity: 0.32L (0.34 qt ) Radiator capacity（including all routes）: 2.50L (2.64 qt ) Air filter: Engine...
  • Page 164 Specifications 10-4 Model HS700UTV-4 Transmission: Primary reduction system V-belt Secondary reduction system Shaft drive Transmission type V-belt automatic Operation Right hand operation Reverse gear 1.471 Sub transmission ratio 2.059 High 1.238 Chassis: Frame type Steel tube frame Caster angle 5.0° Trail 26.0mm (1.02 in ) Tire:...
  • Page 165 10-5 Specifications Model HS700UTV-4 Brakes: Front brake Type Dual disc brake Ⅰ: Operation Foot operation Rear brake Type Single disc brake Operation Foot operation Front brake Type Dual disc brake Ⅱ: Operation Foot operation Rear brake Type Dual disc brake Operation Foot operation Suspension:...
  • Page 166 Specifications 10-6 Model HS700UTV-4 Electrical: Ignition system Generator system AC magneto U1L-11 or GSU1-9 Battery type 12V32.0Ah or 12V30.0Ah Battery capacity Bulb voltage, wattage × quantity: Headlight 12V30.0W/30.0W × 2 Tail/brake light 12V5.0W/21.0W × 2 Indicator lights: Neutral / Reverse indicator light Coolant temperature warning light Parking brake indicator light On-Command four-wheel-drive/differential gear...
  • Page 167 10-7 Specifications Model HS700UTV-4 Speedometer ECU Normally energized 5.0A Stop lamp 、Turn lamp fuse 10.0A Gear switch fuse、 EPS fuse 10.0A Fuel pump fuse 15.0A Reverse gear fuse 10.0A Auxiliary DC jack fuse 15.0A ECU、Speedometer unit fuse 15.0A Four-wheel drive fuse 15.0A...
  • Page 168 Fault Code of Electronic Injection System 11-1 Fault Code of Electronic Injection System DTC Description Related Calibration Number P0107 MAP Circuit Low Voltage or Open KsDGDM_MAP_ShortLow P0108 MAP Circuit High Voltage KsDGDM_MAP_ShortHigh P0112 IAT Circuit Low Voltage KsDGDM_IAT_ShortLow P0113 IAT Circuit High Voltage or Open KsDGDM_IAT_ShortHigh Coolant/Oil Temperature Sensor Circuit P0117...
  • Page 169 11-2 Fault Code of Electronic Injection System P0132 O2S 1 Circuit High Voltage KsDGDM_O2_1_ShortHigh P0031 O2S Heater Circuit High Voltage KsDGDM_O2_HeaterShortHigh P0032 O2S Heater Circuit Low Voltage KsDGDM_O2_HeaterShortLow P0201 Injector 1 Circuit Malfunction KsDGDM_INJ_CYL_A_Fault P0202 Injector 2 Circuit Malfunction KsDGDM_INJ_CYL_B_Fault P0230 FPR Coil Circuit Low Voltage or Open KsDGDM_FPP_CircuitShortLow...
  • Page 170 Fault Code of Electronic Injection System 11-3 P0563 System Voltage High KsDGDM_SysVoltHigh 1379 P0650 MIL Circuit Malfunction KsDGDM_MIL_Circuit 1616 P1693 Tachometer Circuit Low Voltage KsDGDM_TAC_Circuit_Low 1693 5779 P1694 Tachometer Circuit High Voltage KsDGDM_TAC_Circuit_High 1694 5780 P0137 O2S 2 Circuit Low Voltage KsDGDM_O2_2_ShortLow P0138 O2S 2 Circuit High Voltage...

This manual is also suitable for:

Alligator 700

Table of Contents

Save PDF
