(excluding electrical parts and string clamps), and for a period of one (1) year from the date of purchase for all electrical parts and string clamps. Should any defects develop under normal use within the specified time periods, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser’s expense.

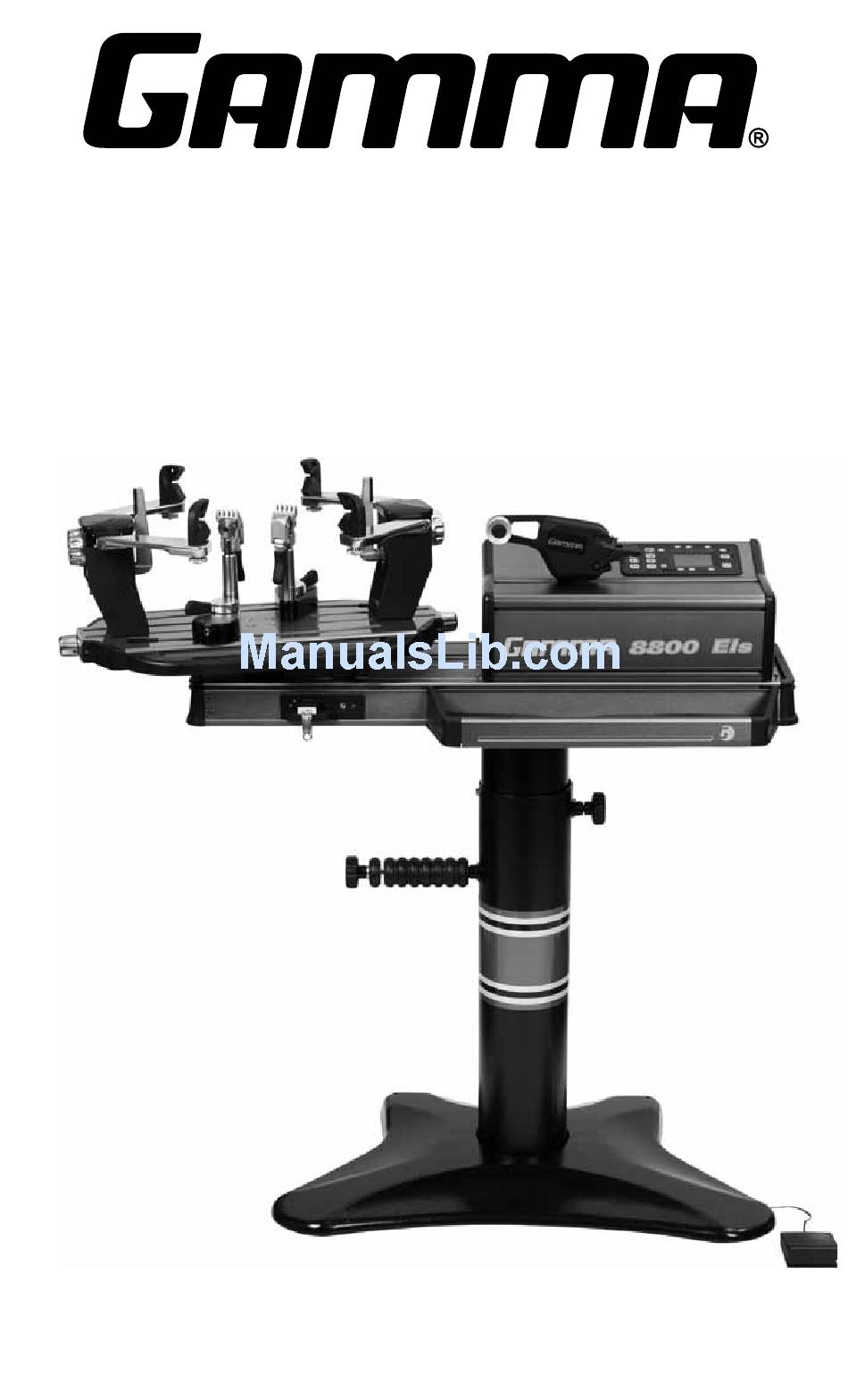

FEATURES MACHINE FEATURES Electric Constant Pull Tensioner with 11.0 to 90.0 lbs Tension Range Digital Tension Setting with LED Display Parallel Jaw Linear Gripper with Diamond Dust Coated Gripping Surfaces Professional Six Point “Self-Centering Suspension Mount” Racquet Mounting System- Accommodates All Racquets Professional “Switch Action”...
Please save the cartons and packing materials for possible shipments in the future. Gamma Sports cannot be responsible for machines that are not returned, shipped in their original, undamaged packaging.
Page 5
ASSEMBLY INSTRUCTIONS Floor Stand Base Assembly The stringing machine uses a pedestal floor stand design that can be set up to orient the machine perpendicular to the operator or to position the machine on an angle. The base plate must be assembled to the lower column before use. Remove all parts from the shipping carton to confirm that contents match the list of parts on Page 4.
ASSEMBLY INSTRUCTIONS Floor Stand Height Adjustment The height of the machine is adjustable from 39” to 46” in approximate 1” increments. To change the height, remove the socket head cap screw from its current position and place it in the appropriate hole to set the desired height of the machine.
Page 7
STRING REEL HOLDER INSTALLATION The string reel holder pin is an 8 mm rod with threads on both ends and flat surfaces machined on one end. Thread the end of the pin without the flat surfaces into the threaded boss on the right side of the lower column. Using the M6 open end wrench positioned on the flat surfaces, securely tighten the pin to the lower column.
Page 8
ASSEMBLY INSTRUCTIONS Turntable and Mounting System Installation To install the turntable remove the four nuts holding the mounting bolts in place during shipment. Position the turntable over the turntable pin and align the bolts with the holes in the flange. Secure them with the included allen wrench.
POWER CONNECTION & CONTROLS Front Panel Features A - String Gripper B - Tension Lever Switch C - LCD Display and Control Panel Back Panel Features Lighted Power Switch A/C Power Cord Socket Foot Pedal Switch Receptacle String Length Meter Receptacle Instructions for Power Connection and Controls CAUTION ! Before connecting to the power supply, check the voltage source that the machine is being connected to.
CONTROL PANEL FEATURES ESC Button - Press to return to the ENTER Button - Press to confirm Stringing Screen from the Settings changes to any machine settings and to Screen, String Length Meter Screen or zero the String Length Meter to cancel a change being made to one of the functional settings RETURN Button -...
Page 11
DISPLAY SCREENS Language Selection If a language other than English is desired, restart the machine and when the Start- up Screen appears press any one of the F6-F8 buttons to change to the Language Selection Screen and press any one of the F2-F8 buttons to scroll through the available languages.
MACHINE FUNCTIONS Setting Tension It is possible to set tension values so the main string and cross strings are pulled at the same tension or at different tensions. Pressing the MAIN/CROSS String button will toggle between the Main String and Cross String Settings and the tension value for the highlighted icon will be the large tension numbers on the display.
Page 13
MACHINE FUNCTIONS Pre-stretch Function The Pre-stretch function is used to pre- stretch strings on each pull by increasing the applied tension by a certain percentage over the tension setting before releasing the string and re-pulling to the desired tension. This function helps to reduce the amount of tension loss in the strings over time.
MOUNTING THE FRAME Mounting Stand Adjustment To adjust the spacing between the mount- ing stands, turn one of the knobs located at either end of the turntable. There is an arrow on the face of each knob indicat- ing the turning direction that will “Tighten” the mounting points and move the mount- ing stands further apart to bring the posts of the frame support slides closer to...
MOUNTING THE FRAME Securing the Shoulder Supports To secure the racquet frame with the shoulder supports, rotate the large adjust- ment knobs on the outside of the mounting stands clockwise to bring the mounting arms together. Adjust until firm contact is made between the shoulder supports and the frame.
Page 16
STRINGING THE FRAME Stringing the Mains Follow the manufacturer’s recommended stringing pattern for one or two piece stringing. To determine which end of the racquet to start install- ing the string count the number of grommet holes located in the throat bridge. If there are 2 or 6 holes start main strings at the center 2 holes of the throat bridge.
Page 17
STRINGING THE FRAME Apply tension the string by pressing the ten- sion lever switch or the foot pedal switch. The Tension Lever Switch string gripper will move to the right, away from the racquet, and gradually apply tension to the string.
Page 18
STRINGING THE FRAME Completing the String Job Once the final cross string is tensioned and clamped, tie off at the appropriate hole speci- fied by the racquet manufacturer. Remove the frame from the mounting system by loosening the shoulder supports and frame supports.
STRING LENGTH METER OPERATION String Length Meter Press the String Length Meter (SLM) button to enable the SLM function and display the SLM screen. To change the measurement units from Feet (FT) and meters (M) press the SLM button to toggle between FT and M. To measure a length of string from a reel or set of string, insert the end of the string through the loop from the backside of the...
ADDITIONAL FEATURES Turntable Brake The turntable may be locked in any position. Flip the lever to the right to lock the turntable brake and flip the lever to the left to release the turntable brake. Storage Drawers There are two storage drawers located in the base of the machine.
PATHFINDER AWL The machine includes the pathfinder string- ing awl which creates a pathway between or around strings to make inserting a string through blocked grommets easier and quicker. Insert the awl through the grommet hole in the same manner as for traditional awls. The pathfinder awl must be in the closed position before insertion.
MAINTENANCE & ADJUSTMENTS Tension Calibration Procedure During power up press both ESC and EN- TER buttons to enable the calibration mode. The display will show 22 lbs or 10 kgs. KG/ LBS can be changed at any time by pressing the LB/KG Button.
Page 23
MAINTENANCE & ADJUSTMENTS Switch Action Clamp Base Adjustment If the clamp bases slip on the turntable, the base locking levers may need adjusted. Turn the cap screw located on the end of the clamp base clock- wise to tighten the clamp and counterclockwise to loosen it.
TROUBLESHOOTING TIPS PROBLEM SOLUTION String slips in clamps - Adjust gap between clamp jaws - Clean clamp jaws String slips in gripper - Adjust gripper jaw stop screw - Clean gripper jaws String clamp base slips on turntable - Clean bottom of clamp & top of turntable with alcohol - Adjust clamp base locking nut String tension too tight or too loose...
PARTS LIST PART # DESCRIPTION PART # DESCRIPTION CAP SCREW - M8X30 MMU2-72 LEVELING FOOT A500 SUPPORT ARM - LEFT STAND BRAKE KNOB A500 SUPPORT ARM - RIGHT MTNG STAND TOP PLATE A500 MNTG STAND (BLK) SHLDER SUPP LOCK KNOB A500 FRAME SUPPORT (HEX) 146A MTNG ARM ADJUST KNOB...
