Summary of Contents for netsys NVF-200LS/Rver.S

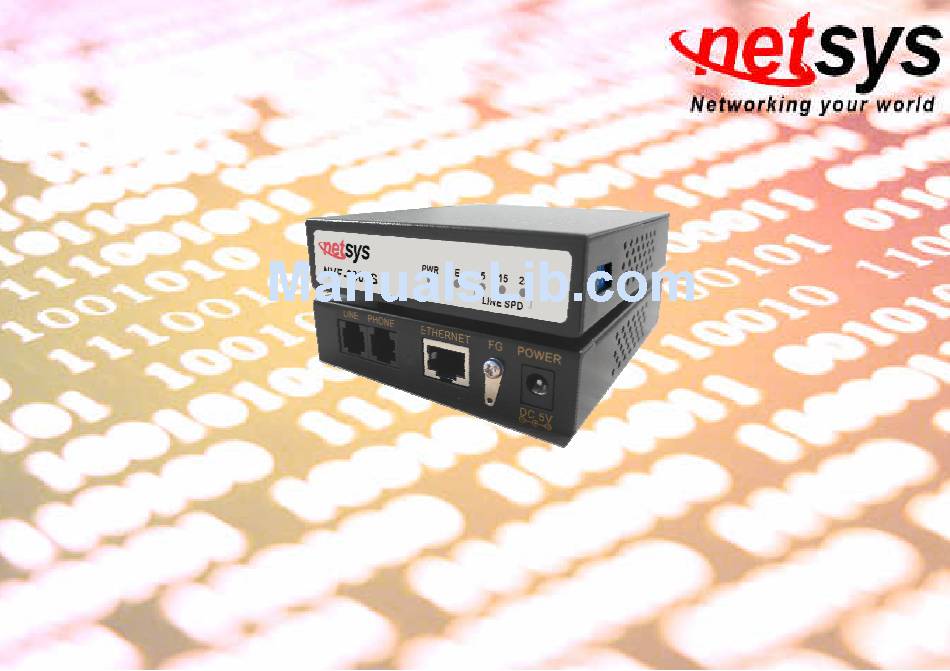

- Page 1 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem with Dip Switch USER’S MANUAL...
-
Page 2: Copyright
In the interest of improving internal design, operational function, and/or reliability, NETSYS reserves the right to make changes to the products described in this document without notice. NETSYS does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. -
Page 3: Vdsl Point To Point Solution
IP DSLAM over auto speed or fix speed function. Therefore, NVF-200LS/Rver.S supports plug & play operations on the subscriber-site and can do auto and manual selection of the data speed. An ideal solution for delivering cost-effective, high-performance broadband/multimedia services to Multi-Dwelling Units... -
Page 4: Safety Warnings
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Safety Warnings For your own safety, make sure to read and follow all warning notices and instructions before using the device. • DO NOT open the unit or device. Opening or removing the covers can expose you to dangerous high voltage points or other risks. -
Page 5: Table Of Contents
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Table of Contents Copyright ....................................1 VDSL Point to Point Solution............................2 Safety Warnings .................................3 1. Unpacking Information ..............................6 Check List...................................6 2. Installing the Modem ..............................7 Hardware Installation.................................7 Pre-installation Requirements ............................7 General Rules..................................8 Connecting the Modem ..............................8... - Page 6 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Appendix D: Troubleshooting............................23 Diagnosing the Modem’s Indicators..........................23 System Diagnostics................................26 Appendix E: Compliance and Safety Information ......................28 Warranty .....................................31...
-
Page 7: Unpacking Information
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 1. Unpacking Information Check List Carefully unpack the package and check its contents against the checklist. Package Contents • VDSL 4-Band Modem (NVF-200LS for CO side / NVF-200Rver.S for CPE side) •... -
Page 8: Installing The Modem
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 2. Installing the Modem Hardware Installation This chapter describes how to install the modem and establishes network connections and may install the modem on any level surface (e.g. a table or shelf). However, please take note of the following minimum site requirements before one begin. -
Page 9: General Rules
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 General Rules Before making any connections to the modem, please note the following rules: • Ethernet Port (RJ-45) All network connections to the modem Ethernet port must be made using Category 5 UTP for 100Mbps, Category 3, 4 UTP for 10Mbps. -
Page 10: Connecting The Rj-11 / Rj-45 Ports
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Connecting the RJ-11 / RJ-45 Ports 1. The modem’s RJ-11 ports supports max distance 1.9km at 5M/5M or max speed 25M/25M symmetrical and distances up to 800m data service across existing phone wiring, without interfering with standard voice transmissions, easy-to-use which do not require installation of additional wiring. - Page 11 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 2. NVF-200LS/R modem has an embedded splitter between every VDSL side (Line) and POTS (Phone) side. It permits one to deliver broadband service on the same lines as Plain Old Telephone Service (POTS), PBX, ISDN traffic and VDSL Signal.
-
Page 12: Hardware Description
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 3. Hardware Description This section describes the important parts of the modem. It features the front panel, side panel and rear connectors. Front Panel The figure shows the front panel. -
Page 13: Front Indicators
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Front Indicators The modem has Five LED indicators. The following Table shows the description. (Table 1) Table 1 LED Indicators Description and Operation Color Status Descriptions The device is receiving the power and functioning properly. -
Page 14: Rear Panel
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Rear Panel The following figure shows the rear connectors. (Figure 3) Figure 3 Rear connectors And the table shows the description. (Table 2) Table 2 Description of the modem rear connectors... -
Page 15: Side Panel
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Side Panel The following figure shows the DIP switch connection. (Figure 4) Figure 4 Side panel At quick glance, it is easy to see that the DIP switch pin 1 is switch ON where it is in auto-speed and that is also the default mode. - Page 16 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 To set the data speed to 25Mbps simply switch ON the pin 2 while the other pins are switch OFF. To change it to 15Mbps, switch ON the pin 3 while the other pins are switch OFF, for 5Mbps switch on the pin 4 while other are switch OFF.
-
Page 17: Firmware Description
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 4. Firmware Description Auto and manual data speed selector description: NVF-200LS/R is a 4band VDSL solution which supports real plug & play and can do auto and manual selection of the data speed, the setting of the data speed depends on the phone cable length limit, they can support 5M/15M/25M symmetrical data service but depends on installation environment. -
Page 18: Appendix A: Cable Requirements
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Appendix A: Cable Requirements A CAT 3, 4 or 5 UTP (Unshielded Twisted Pair) cable is typically used to connect the Ethernet device to the modem. A 10Base-T cable often consists of four pairs of wires, two of which are used for transmission. The connector at the end of the 10Base-T cable is referred to as RJ-45 connector and it consists of eight pins. - Page 19 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Standard telephone wire of any gauge or flat type, twisted or quad is used to connect the modem to the telephone network. A telephone cable typically consists of three pairs of wires, one of which is used for transmission. The connector at the end of the telephone cable is called RJ-11 connector and it consists of six pins.
-
Page 20: Appendix B: Product Specification
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Appendix B: Product Specification Key Features & Benefits • Supports Universal Plug & Play • Compliant with IEEE802.3 10BASE-T, IEEE802.3u and 100BASE-TX standard • Compliant with ETSI, ITU & ANSI standards •... -
Page 21: Product Specification
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Product Specification Standard: IEEE802.3 standard IEEE802.3u standard Compliant with ETSI, ITU & ANSI standards Interface: 1 * RJ-45 10/100Mbps Ethernet port 1 * RJ-11 connector for EoVDSL 1 * RJ-11 connector for telephone connection... - Page 22 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Power Consumption: NVF-200LS (LT): 2.15W NVF-200Rver.S (NT): 2.75W Operating Temperature: -20° C ~ 70° C (-4° F ~ 158° F) Storage Temperature: -20° C ~ 70° C (-4° F ~158° F)
-
Page 23: Appendix C: 4 Band Vdsl Electrical Characteristics
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Appendix C: 4 Band VDSL Electrical Characteristics Parameter Min. Typ. Max. Unit Spectrum Transmit Receive PSD Level Transmit -61.5 dBm/Hz Receive dBm/Hz Noise Margin 5Mbps Link Margin Transmit Receive 15Mbps Link Margin... -
Page 24: Appendix D: Troubleshooting
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Appendix D: Troubleshooting Diagnosing the Modem’s Indicators The modem can be easily monitored through its comprehensive panel indicators. These indicators assist the network manager in identifying problems the hub may encounter. This section describes common problems you may encounter and possible solutions. - Page 25 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 2.6 Make sure that the phone wire must be connected between NVF-200LS and NVF-200Rver.S first, when both are to be power on. 2.7 Replace the defective modem or cable if necessary.
- Page 26 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 5. Symptom: We tested with a regular S0 bus from an NTBA - data works, but ISDN telephone does not. Solution: You must connect according to the following chart if you want to connect CO and CPE with NTBA.
-
Page 27: System Diagnostics
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 7. Symptom: VDSL flickers at 25Mbps when multicast streams. Cause: Power level is too high and noise immunity is weak. Solution: Fixed the speed to 15Mbps, since 15Mbps is ideal for multicast streaming while 25Mbps is for transferring large data file at high speed. - Page 28 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 auto-negotiation. If auto-negotiation fails, then communications are set to half duplex by default. Based on this type of industry-standard connection policy, if you are using a full-duplex device that does not support auto-negotiation, communications can be easily lost (i.e.
-
Page 29: Appendix E: Compliance And Safety Information
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Appendix E: Compliance and Safety Information FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a computing device, pursuant to Part 15 of FCC rules. - Page 30 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance in order for you to make necessary modifications to maintain uninterrupted service.
- Page 31 NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 32: Warranty
NVF-200LS/Rver.S 4 Band VDSL CO/CPE Modem USER’S MANUAL Ver. B.1 Warranty The original owner that the product delivered in this package will be free from defects in material and workmanship for one year parts after purchase. There will be a minimal charge to replace consumable components, such as fuses, power transformers, and mechanical cooling devices.
