Electric Grass Trimmer
Model
21182
Owner's Manual
TOLL-FREE HELPLINE:
1-888-90WORKS
(888.909.6757)
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 21182 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GreenWorks 21182

Summary of Contents for GreenWorks 21182

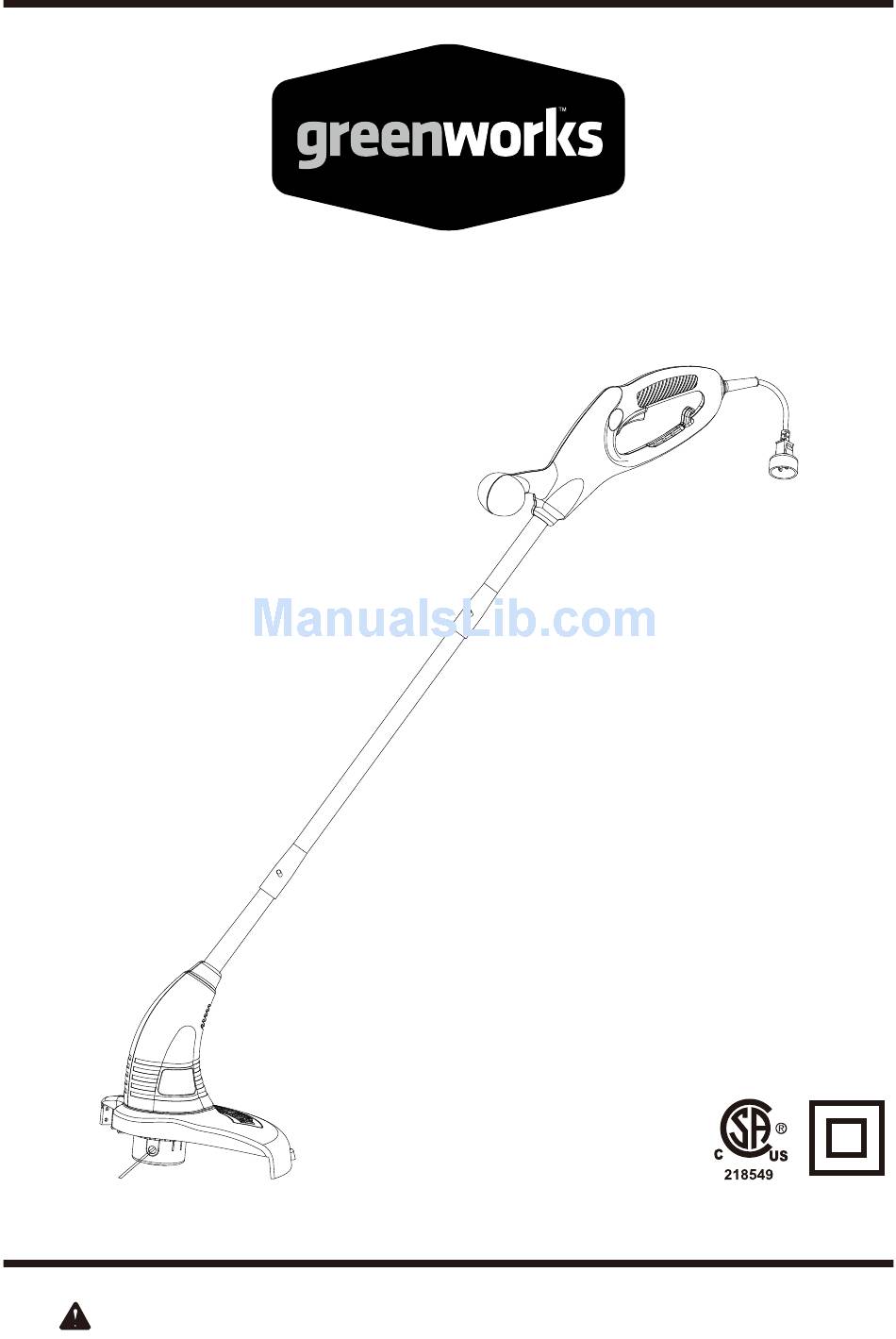

  • Page 1 Electric Grass Trimmer Model 21182 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Read all safety rules and instructions carefully before operating this tool.

  • Page 2: Table Of Contents

    MAINTENANCE......................19 WARRANTY.......................20 PARTS LIST......................21-22 Technical Data ELECTRIC GRASS TRIMMER Model Number.......................21182 Motor..................120 V AC, 60 Hz, 2.2 A Speed......................13,500 RPM Trimmer Line..........1/16" (1.65 mm) diameter monofilament nylon Power cord..............9 in (22.9 cm), 2-prong polarized Cutting circle diameter ................9" (22.8 cm) Overall trimmer length.................45"...

  • Page 3: General Safety Rules

    General Safety Rules Safety is a combination of common sense, staying alert, and knowing how to use your Electric Grass Trimmer. WARNING TO AVOID MISTAKES THAT COULD CAUSE SERIOUS INJURY, DO NOT PLUG IN THE ELECTRIC GRASS TRIMMER UNTIL THE FOLLOWING STEPS HAVE BEEN READ AND UNDERSTOOD.

  • Page 4: General Safety Rules

    General Safety Rules 15.MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. 16.CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, binding, breakage, or any other conditions that may affect the tool’s operation. Any part that is damaged should be properly repaired or replaced before use.

  • Page 5: Specific Safety Rules

    Specific Safety Rules 1. IF YOU ARE NOT thoroughly familiar with the operation of the Electric Grass Trimmer, obtain advice from a qualified person. 2. MAKE SURE wiring codes and recommended electrical connections are followed. The Electric Grass Trimmer is double insulated. When servicing, use only identical replacement parts.

  • Page 6: Symbols

    Symbols The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not avoided, DANGER will result in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, WARNING could result in death or serious injury.

  • Page 7: Electrical Information

    Electrical Information WARNING TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE PROPER CIRCUIT PROTECTION. YOUR LAWN TRIMMER IS WIRED AT THE FACTORY FOR 120 V AC OPERATION. CONNECT TO A 120 V, 15 A CIRCUIT AND USE A 15 A TIME DELAY FUSE OR CIRCUIT BREAKER.
  • Page 8 Electrical Information GROUNDING INSTRUCTIONS IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for electric current and reduces the risk of electricshock. This tool is equipped with an electric cord that has a POLARIZED plug.The plug MUST be plugged into a matching outlet that is properly installed and grounded in accordance with ALL local codes and ordinances.
  • Page 9 Electrical Information GUIDELINES FOR USING EXTENSION CORDS USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause overheating. The table below shows the correct size to use depending on cord length and nameplate ampere rating.

  • Page 10: Know Your Electric Grass Trimmer

    Know Your Electric Grass Trimmer 1. Motor housing 2. Spool head 3. Guard 4. Lower shaft 5. Middle shaft 6. Upper shaft 7. Locking knob 8. Auxiliary grip 9. Trigger switch 10. Cord...

  • Page 11: Assembly And Adjustments

    Assembly and Adjustments UNPACKING (Fig. 1) Remove the motor housing (1), the handle with locking knob (2), the guard (4), and screw (3) from the carton and examine carefully. NOTE: Do not discard box or any packing material until all parts are examined. If any parts are missing or damaged, please call 1-866-456-8934 for assistance.
  • Page 12 Assembly and Adjustments ASSEMBLY INSTRUCTIONS The Electric Grass Trimmer must be assembled before use. The three parts of the shaft must be connected and the guard must be attached. WARNING TO AVOID INJURY, ALWAYS TURN THE SWITCH OFF AND DISCONNECT THE ELECTRIC GRASS TRIMMER FROM THE POWER OUTLET BEFORE INSTALLING OR CHANGING THE TRIMMER LINE OR MAKING ANY ADJUSTMENTS.
  • Page 13 Assembly and Adjustments Install the guard (Fig. 3) 1. Invert the lawn trimmer to access the trimmer head (1). 2. Fit the guard (2) over the trimmer head and align the groove on the guard with the tab on the motor housing (3). 3.
  • Page 14 Assembly and Adjustments Cutting Line (Fig. 4) A spool of monofilament cutting line is preinstalled on the Electric Grass Trimmer. When the cutting line needs replacing, insert a new spool. To remove the spool: 1. Disconnect the Electric Grass Trimmer from the power supply. 2.
  • Page 15 Assembly and Adjustments To Refill the Spool (Fig. 5) 1. Cut a length of 1/16" (1.65 mm) nylon monofilament line (1) approximately 13’ (4.0 m) long. 2. Insert end of line into the small hole (2) to anchor the line. 3.

  • Page 16: Operation

    Operation OPERATING INSTRUCTIONS WARNING TO AVOID INJURY, DO NOT CARRY THE ELECTRIC GRASS TRIMMER WITH YOUR FINGER ON THE SWITCH. AVOID UNINTENTIONAL STARTING. ON/OFF switch (Fig. 6) Your Electric Grass Trimmer is equipped with an ON/OFF trigger switch. Turn on the Electric Grass Trimmer: 1.
  • Page 17 Operation Lengthening the Line (Fig. 7) While the Electric Grass Trimmer is operating, the cutting line gets worn down and becomes shorter. This Electric Grass Trimmer is equipped with Automatic Line Advancement, which automatically feeds additional line to the correct length as it wears down.
  • Page 18 Operation TRIMMER TIPS Before each use • Make sure the protective guard is tightly installed. Tighten the guard screw. • Before trimming, inspect the area for string, wire, branches, or other material that may become entangled in the cutting line or thrown. During use •...

  • Page 19: Maintenance

    Maintenance WARNING ALWAYS TURN OFF THE TOOL AND UNPLUG THE POWER CORD FROM THE OUTLET BEFORE MAINTAINING THE LAWN TRIMMER. GENERAL MAINTENANCE Keep your Electric Grass Trimmer clean and in good repair for maximum performance and machine longevity. Before each use inspect the switch and cord for damage. Check for damaged, missing, or worn parts.

  • Page 20: Warranty

    3. Normal wear, except as noted below; 4. Routine maintenance items such as lubricants, blade sharpening; GREENWORKS HELPLINE: 1-888-909-6757 (1-888-90WORKS) Warranty service is available by calling our toll-free helpline, 9 a.m. to 5 p.m. EST. Monday – Friday.

  • Page 21: Parts List

    Parts list...
  • Page 22 Parts list Item No. Part No. Description Cord with plug assy. 3640129 Terminal sleeve 3420102 B- terminal 3650135 Handle casing(left) 3130129-6 Terminal 3650101 Screw 3220905 Cable restraint 3410801 Micro switch 36303152 Spring 3340115 Swith trigger 3410315-1 Internal cabel 36902332 Screw 3220313 Handle casing(right) 3130129-6...
  • Page 23 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 01 (09-24-13) Printed in China on 100% Recycled Paper...
