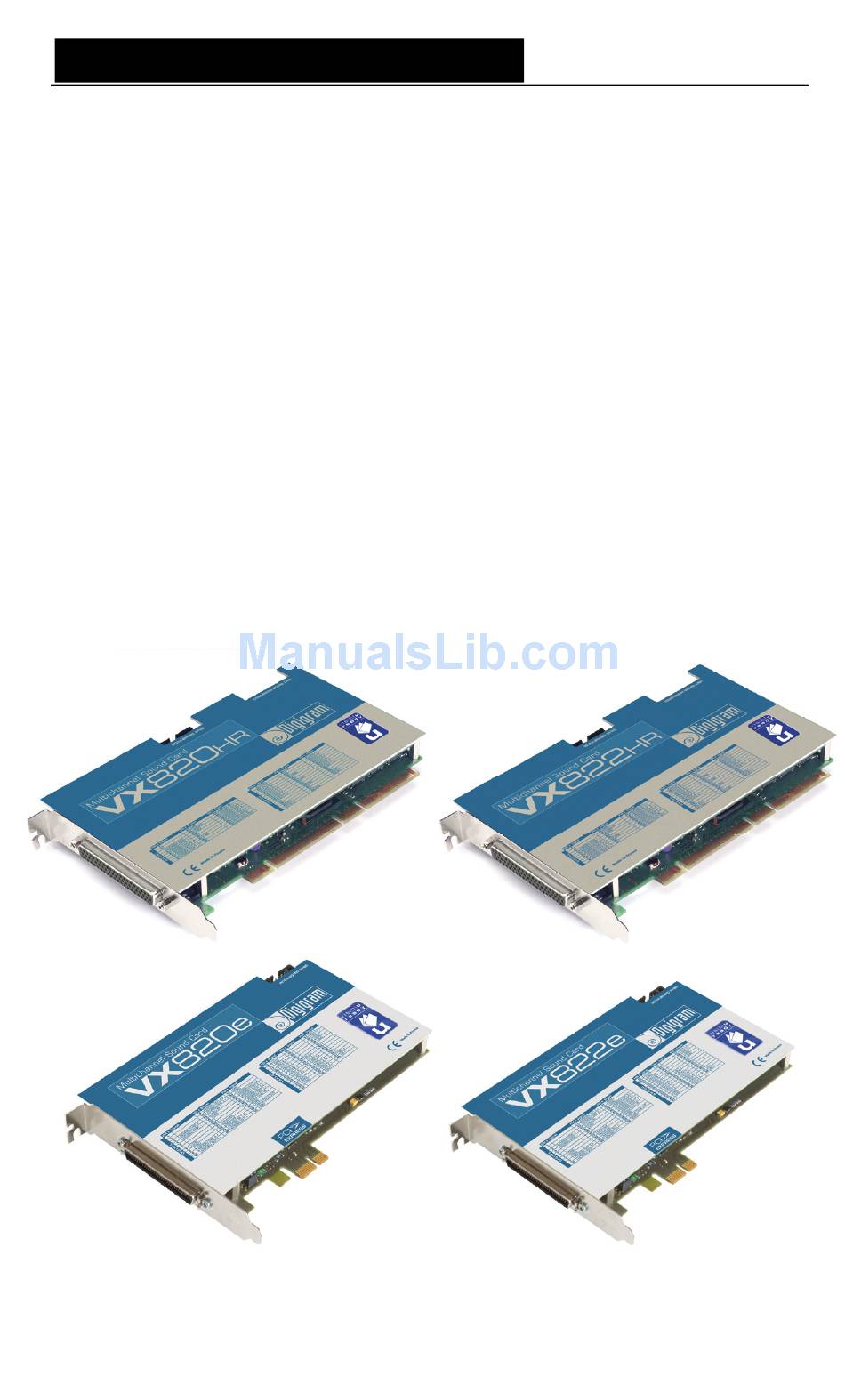

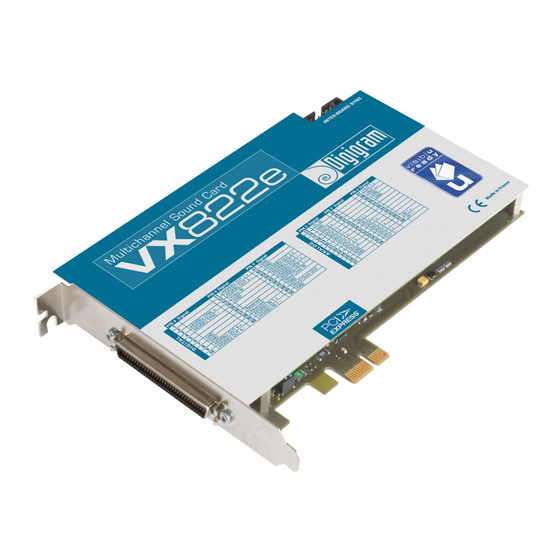

- Page 1 VX820HR, VX822HR VX820e, VX822e Professional Multichannel Sound Cards User manual...
- Page 2 Digigram S.A. 82/84 Allée Galilée, 38330 Montbonnot-Saint-Martin, FRANCE Tel: +33 (0)4 76 52 47 47• Fax: +33 (0) 4 76 52 18 44• E-mail: info@digigram.com Digigram Inc. 2000 North 14th Street - Suite 530, Arlington, VA 22201-USA Tel: +1 703 875 9100 •...
-
Page 3: Table Of Contents
While every effort has been made to ensure accuracy, Digigram is not responsible for typos, errors, or omissions, and reserves the right to make improvements or changes in the products and programs described without notice. -
Page 4: Information For The User
INFORMATION FOR THE USER This device complies with part of FCC rules. Operation is subject to the following two conditions: ( ) This device may not cause harmful interference, and ( ) This device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Important Notice
CONTENTS OF THIS PACKAGE Thank you for purchasing a Digigram VX sound card. The package consists of the following components: • a VX820HR, VX822HR, VX820e or VX822e sound card The end user version additionally includes: •... -
Page 6: Features
FEATURES VX822HR and VX820HR are audio cards for PCI bus. They are ‘Universal PCI 64-bit/66 MHz’, which means they can be plugged in 32-bit/33 MHz 5 V PCI slots as well as in 64-bit/66 MHz 3.3 V keyed PCI slots. The cards are also compatible with PCI-X interfaces. -
Page 7: Main Software Features
CPU power and memory required depend on the operating system and on the audio application used. Software requirements To use your VX820HR/e or VX822HR/e, install the driver from the HR Runtime package version 1.72 or higher. This package includes: •... -
Page 8: Hardware Installation
This application allows the configuration of the hardware resources of Digigram cards for all audio applications. The DHS allows for instance to define the clock of the card, the input source, input and output analog and digital gain, Sample Rate Converters, digital output format, etc... -
Page 9: Standard Installation Under Windows Xp, Windows Server 2003, And Windows Vista
VX820HR, VX822HR, VX820e, & VX822e User Manual • Volume control for input and output • Wave control Under Windows XP and Server 2003 you may also install the driver without installing the DHS control panel, and in this case more controls are available through the DirectSound control panel: •... -
Page 10: Asio Control Panel
Click on Ok. • Click Finish to complete the driver installation. ASIO Control Panel To launch the ASIO control panel, go to <Start>, <Programs>, <Digigram>, <Digigram ASIO HE Settings>. It allows to: •... -
Page 11: Digigram Control Center
Digigram control panel (CPL). (To access this control panel, go to <Start>, <Programs>, <Digigram>, <Digigram Control Center>). For detailed information on how to use the Digigram control panel, please refer to its online help (“? Help” button). -
Page 12: Removing The Driver Under Windows Xp And Windows Server 2003
In the “Modules Information” window, you can see the HR Runtime modules that have been installed, and their versions. • In the “Digigram drivers” window, select the ‘Diagnostics’ tab. You should see here the icons of the cards you have installed. •... - Page 13 The card can be used with any Wave application. Available Wave recording and playback devices are: • VX820HR/e (VX822HR/e) 1+2 (Wave) (record and playback) • VX820HR/e (VX822HR/e) 3+4 (Wave) (playback) • VX820HR/e (VX822HR/e) 5+6 (Wave) (playback) • VX820HR/e (VX822HR/e) 7+8 (Wave) (playback) •...
-
Page 14: The 'Digigram Hardware Settings' ('Dhs') Control Panel
Digigram cards for all audio applications using them. A resource being managed by the DHS application can not be modified by any other application. To enable an audio application to modify a Digigram card resource, this resource must not be managed by the DHS. -
Page 15: Specifications
VX820HR, VX822HR, VX820e, & VX822e User Manual SPECIFICATIONS Configuration VX820HR VX820e VX822HR VX822e PCI ExpressTM (PCIe®) 64-bit/66 Mhz Universal PCI 2.2, Bus/Format PCI-X compatible, (x2, x4, x8, x16, x32 master mode compatible) Digital Signal Processor Motorola 56321 at 240 MHz 512 kWords 175 mm ×... -
Page 16: Outputs
Digital outputs (stereo) ∗∗ 4 AES/EBU , up to 192 kHz (not available on VX820HR/e) analog: from –86 dB to +24 dB Programmable output gain digital: from –110 dB to +18 dB Other outputs Word clock (up to 96 kHz) -
Page 17: Typical Audio Performance
VX820HR, VX822HR, VX820e, & VX822e User Manual Typical Audio Performance Measurements done at Fs=48 kHz unless stated otherwise, with filter on the 22 Hz - 22 kHz range VX820HR VX820e VX822HR VX822e Frequency response 20 Hz–20 kHz: ±0.3 dB (record + play) Channel phase difference: <0.2°/2°... -
Page 18: Appendices
APPENDICES VX820HR and VX820e Schematic Diagram CRYSTAL CLOCK GENERATION LINE OUT ANALOG LINE 1 - 8 IN 1- 2 Level adjust Level adjust INTERFACE PCI/PCIe VX822HR and VX822e Schematic Diagram CRYSTAL Video Word Clock AES/EBU Sync RECEIVE CLOCK GENERATION AES/EBU... -
Page 19: Layout
VX820HR, VX822HR, VX820e, & VX822e User Manual LAYOUT Inter-board Unused sync connector VX820HR VX822HR Inter-board sync VX820e VX822e • J1: I/O connector... -
Page 20: Cable Diagram
AES EBU OUT 2 AES EBU OUT 3 AES EBU OUT 4 WORD CLOCK IN WORD CLOCK OUT BNC Female AES EBU SYNC VIDEO IN RCA Female LTC IN * Your cable may look different if it is not a Digigram cable. -
Page 21: Vx822Hr Wiring Diagram
VX820HR, VX822HR, VX820e, & VX822e User Manual VX822HR wiring diagram Shell Shell Shell Shell Shell Shell Shell Shell Shell Shell Shell Shell Shell Shell Shell Center Outside Center Outside Shell Center Outside Center Outside 22,24, 27,30, 33,36, 39,42 Shell... -
Page 22: Adapter Cable Sub-D 62 Scsi 68 Mdr
Adapter cable Sub-D 62 SCSI 68 MDR Use this adapter cable to connect the VX820e /VX822e cable with the card. Connection cable VX820e/VX822e BoB8... -
Page 23: Sub-D 62 Scsi 68 Mdr Wiring Diagram
VX820HR, VX822HR, VX820e, & VX822e User Manual Sub-D 62 SCSI 68 MDR wiring diagram SCSI Sub-D 62 68-pin MDR 7, 8,48 22,24 27,30 14,16,50 33,36 25,26,59 39,42 41,42,60 Shell Shell... -
Page 24: Vx 820Hr And Vx822Hr Cable Pinout
VX 820HR and VX822HR cable pinout Pin Signal Pin Signal Pin Signal AES/EBU IN 1 - Vidéo IN AES/EBU IN 1 + AES/EBU SYNC - AES/EBU OUT 3 - AES/EBU SYNC + AES/EBU OUT 3 + AES/EBU OUT 4 - AES/EBU OUT 1 - AES/EBU OUT 4 + AES/EBU OUT 1 +...
