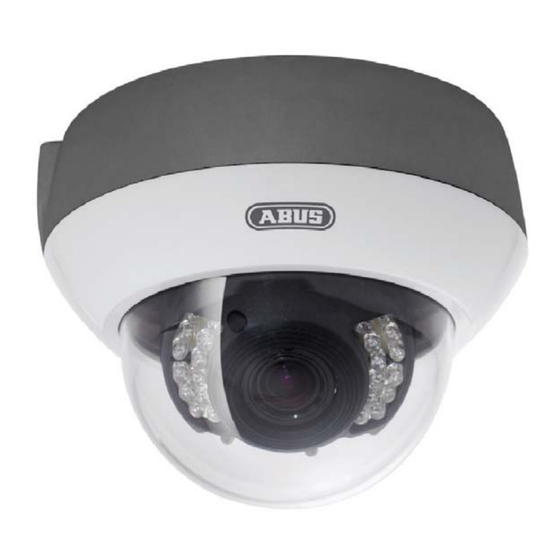

- Page 1 Vandal proof WD DNR Day/Night Vario 650 TVL outdoor dome camera TVCC71000 TVCC71500 Version 12/2010 Original English user manual. Keep for future use.
- Page 2 The ABUS Security-Center GmbH & Co. KG assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.
-
Page 3: Important Safety Instructions
Important safety instructions The warranty will expire for damage due to non-compliance with these operating instructions. We shall not be liable for any consequential loss! We do not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions. -
Page 4: Table Of Contents
Table of contents INTENDED USE ........................23 EXPLANATION OF SYMBOL ....................23 SCOPE OF DELIVERY ......................23 FEATURES AND FUNCTIONS ....................23 DESCRIPTION OF DEVICE ..................... 24 5.1 O – ..................... 24 VERVIEW ITEM NUMBERS 5.2 U ..........................24 NPACKING MOUNTING .......................... -
Page 5: Intended Use
1. Intended use The vandal proof 650TVL outdoor dome camera is equipped with a high quality image sensor. It is used for video surveillance in connection with a recorder or monitor. You can find a detailed description of functions in section “4. Features and functions”. Any other use than that described above can lead to damage to the product and in addition involve other risks. -
Page 6: Description Of Device
5. Description of device 5.1 Overview – item numbers Item number TVCC71000 TVCC71500 Resolution 650 TVL 650 TVL Lens 2.8~10.5 mm 2.8~10.5 mm Day/Night (removable IR cut filter) Voltage 12 VDC 12 VDC 5.2 Unpacking While you are unpacking the device please handle it with utmost care. - Page 7 For this camera type the camera module can be removed, and it is fixed by two fixing screws. Base part of the camera and camera module are connected by a 15 pin D-Sub joint. Unscrew the fixing screws, and carefully remove the camera module. Place the base part to the desired installation position, mark the holes for fixing on the surface, and drill the fixing holes.
-
Page 8: Connectors
6.3 Connectors Before you start with the installation please make sure that the supply voltage and the nominal voltage of the camera comply together. Power supply & video signal Video output (for service purpose) Video output (primäry), BNC (female), FBAS 1Vs-s Power connector (round plug 5.5x2.1mm, 12 VDC) or DC 2-pin adapter Videoausgang (sekundär, Service), Cinch (female) FBAS 1Vs-s 6.4 Camera module adjustment... -
Page 9: Focus And Zoom Adjustment
6.5 Focus and zoom adjustment The cameras TVCC71000 and TVCC71500 are equipped with a vario focal lens. On the bottom side of the lens two adjustment handles for focus and zoom ratio are positioned. The handles additionally act as a fixing screw for the focus and zoom adjustment. -
Page 10: Camera Parameter (Osd Menu)
6.7 Camera parameter (OSD menu) SETUP MENU WHITE BAL BACKLIGHT PICT ADJUST PRIVACY CAMERA ID CAMERA RESET EXIT SAVE ALL Funktion Beschreibung WHITE BAL Settings for White balance function BACKLIGHT Settings for back light handling PICT ADJUST General image settings Adaptive Tone Reproduction –... - Page 11 White Balance (WHITE BAL) Function Description Auto Tracking White Balance The setting for the white balance function will be performed dynamically and continuously in the range of 1800~10500K. PUSH Continuous setting for the white balance with limitation of color temperature range USER1 / User 2 User defined white balance B-GAIN (0~255):...
- Page 12 Function Description Settings for the Wide Dynamic Function (Adaptive Tone Reproduction) OFF: Wide Dynamic Function deactive Wide Dynamic Function active LUMINANCE (LOW/MID/HIGH): Level of the brightness balance. Dark areas will be displayed more bright (LOW->HIGH), in addition the brightness for bright areas will be tried to keep constant. CONTRAST (LOW/MIDLOW/MID/MIDHIGH/HIGH) Increasing of image contrast (LOW->HIGH).
- Page 13 Function Description Settings for the noise reduction (2D DNR) OFF: Noise reduction deactivated NR MODE (Y/C/ Y/C): Noise reduction for luminance signal Noise reduction for chroma signal Y/C: Combination of Noise reduction for luminance and chroma Y LEVEL (0~15): Level for the noise reduction of luminance C LEVEL (0~15): Level for the noise reduction of chroma RETURN: Back to main menu...
-
Page 14: Service And Cleaning
7. Service and cleaning 7.1 Function test Check the technical safety of the product such as damage to the housing at regular intervals. When it can be assumed that the safe operation is no longer possible, the product must be put out of service and precautions taken o ensure that it is not used unintentionally. -
Page 15: Technical Data
9. Technical data Item number TVCC71000 TVCC71500 TV standard Resolution 650 TVL Bildaufnehmer 1/3‘‘ Sony Exview HAD II CCD Sony Effio-E 1020(H) x 596(V) Picture elements (total) Picture elements (effective) 976(H) x 582(V) Signal-to-noise ratio 50 dB Minimum illumination (day) 0.05 Lux @ F1.2...
