Abus TVCC74000 User Manual

Day/night vario outdoor camera
Hide thumbs Also See for TVCC74000:

Advertisement

Quick Links

Day/Night Vario Outdoor Camera
TVCC74000
TVCC74010
TVCC74011
TVCC74020
TVCC74021
Version 03/2011
Original English user manual. Keep for future use.
19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVCC74000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Abus TVCC74000

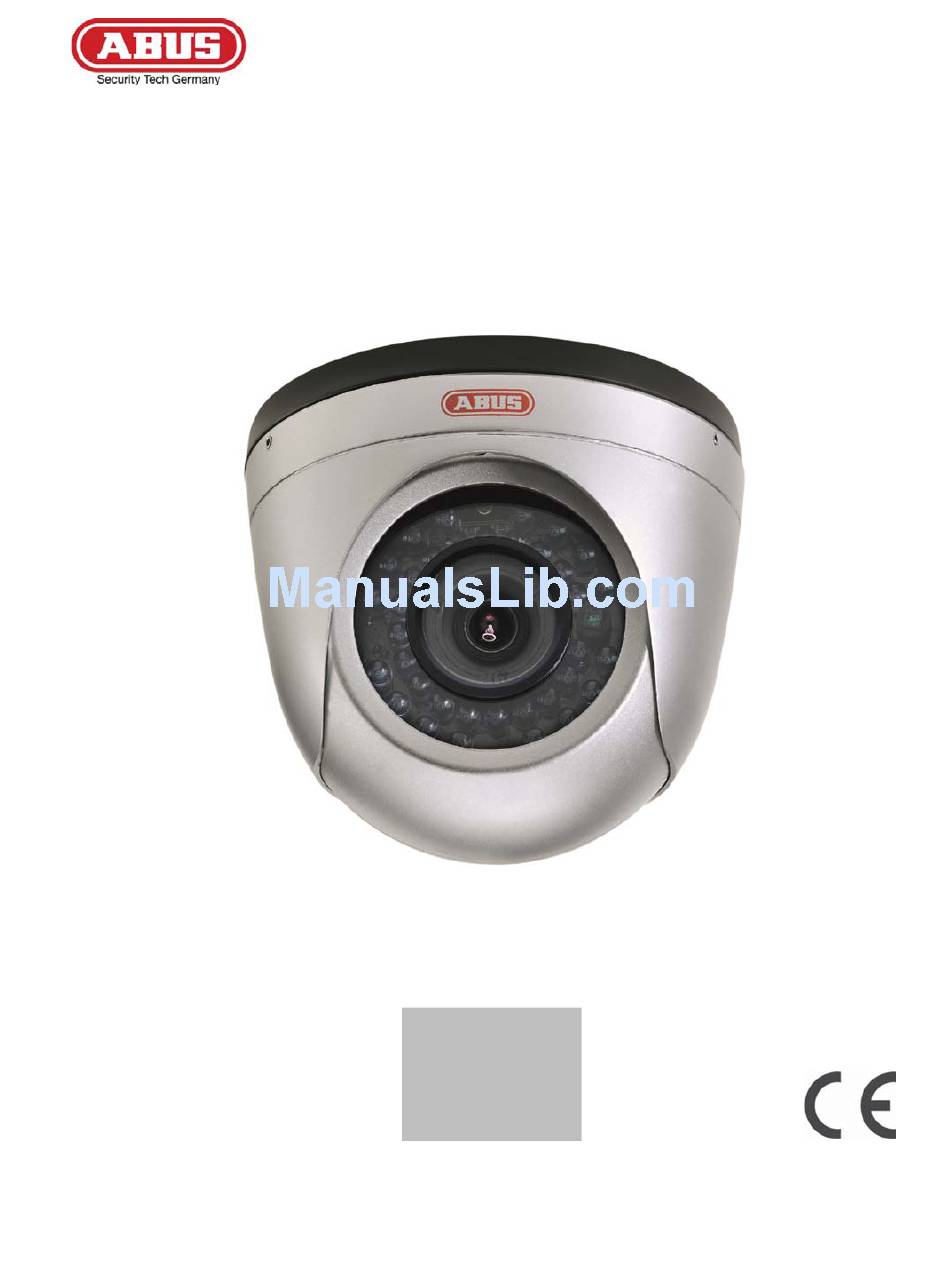

  • Page 1 Day/Night Vario Outdoor Camera TVCC74000 TVCC74010 TVCC74011 TVCC74020 TVCC74021 Version 03/2011 Original English user manual. Keep for future use.
  • Page 2 The ABUS Security-Center GmbH & Co. KG assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.
  • Page 3 Important safety instructions The warranty will expire for damage due to non-compliance with these operating instructions. We shall not be liable for any consequential loss! We do not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions.
  • Page 4: Table Of Contents

    Table of contents Intended use .......................... 23 Explanation of symbols ....................... 23 Scope of delivery ........................23 Features and functions ......................23 Device description ........................ 24 5.1 Overview – type numbers ..................... 24 5.2 Unpacking ........................24 Connections .......................... 24 Camera description ......................
  • Page 5: Intended Use

    This symbol can be found when you are to be given tips and information on operation. 3. Scope of delivery ABUS Day/Night IR vario ball type dome camera 2 meter cable for video signal and power supply (preinstalled) Hexagon wrench...
  • Page 6: Device Description

    6. Connections (1) Video signal (2) Power supply TVCC74000 / TVCC74011 / TVCC74010 / TVCC74020 / TVCC74021 The required power supply for all cameras is 12 VDC. Please pay attention to the polarity. The connector is prepared for a 12VDC wall power supply (DC connector 5.5mm x 2.1mm).
  • Page 7: Camera Description

    7. Camera description Base plate Camera housing Lens window Camera cover Infrared LEDs Fixing screw for camera cover Focus adjustment Zoom adjustment 8. Camera installation 8.1 Cable routing ATTENTION! During the assembly the camera must be separated from the mains voltage. For cable routing there are 2 options: Covered cable routing For covered cable routing please drill a hole at the mounting position.
  • Page 8: Mounting Of The Video Cable

    8.2 Mounting of the video cable To connect the video signal of the camera with a monitor or recorder, use a coaxial cable of the type RG59 with BNC-Connector (male) at the “VIDEO-OUT” connector. The cable length up to the next device should not rise 100 meters. 8.3 Camera mounting Please loose the fixing screws at the 2.
  • Page 9 3. Please fix the base plate and the 4. Put the cover back on the camera and fix mounting plate at the mounting position, the cover by screwing the fixing screws. using the supplied pegs and screws.
  • Page 10: Camera Adjustment

    8.4 Camera adjustment To adjust the viewing angle of the camera please loose the fixing screws first using the hexagon wrench. After angle adjustment please fix the screws. 8.5 Focus and zoom adjustment Please use the supplied tool to adjust focus and zoom. Zoom: Focus:...
  • Page 11: Servicing And Cleaning

    9. Servicing and cleaning 9.1 Function test Check the technical safety of the product such as damage to the housing at regular intervals. When it can be assumed that the safe operation is no longer possible, the product must be put out of service and precautions taken o ensure that it is not used unintentionally.
  • Page 12: Technical Data

    Technical data Article number TVCC74000 TVCC74010 TVCC74020 Standard Resolution 540 TVL 540 TVL 540 TVL Image sensor 1/3“ Sony Super HAD II 1/3‘‘ Pixim DPS CMOS 795(H) x 596(V) Pixel 410.000 Picture elements (total) Picture elements 752(H) x 582(V) Pixel 390.000...
  • Page 13 Article number TVCC74011 TVCC74021 Standard Resolution 650 TVL 690 TVL Image sensor 1/3“ Sony Exview HAD II 1/3‘‘ Pixim DPS CMOS Picture elements (total) 1020(H) x 596(V) Pixel 768(H) x 548(V) Pixel Picture elements 976(H) x 582(V) Pixel 758(H) x 540(V) Pixel (effective) Signal-to-noise ratio 50 dB...
