7.
SPECIFICATIONS
(ES) Especificaciones
Model
Type
LF Drive Unit
Frequency range
Amplifier
Maximum Output (SPL)
Low Level Signal Inputs
Low Level Signal Outputs
Enclosure Type
Internal Volume
Net Weight
Dimensions (H x W x D)
Power Requirements
Power Consumption
Cabinet Finish
KEF AUDIO reserve the right, in line with continuous research and development, to amend or change specifications without prior notice. E. & O.E.
KEF AUDIO (UK)
Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP UK
Telephone: +44 (0) 1622 672261
11
in.
mm
Fax: +44 (0)1622 750653
www.kef.com

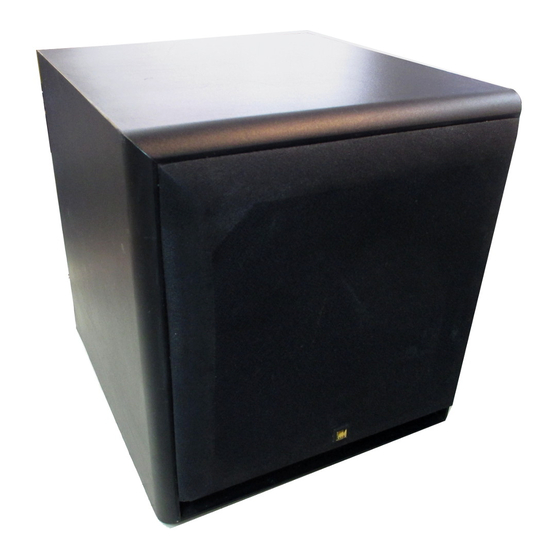

PSW 2150 Subwoofer
Powered Subwoofer
10 in. (1 x 250 mm)
30 Hz - 140 Hz
250 Watts built in
110 dB
RCA phono sockets
RCA phono sockets (Actively filtered at 12dB/octave @130Hz)
Reflex
40.4 litres
40.7 lbs (18.5 kg)
16.5 x 15.0 x 15.8
420 x 380 x 400
115 V / 230 V ac ~, 60 Hz / 50 Hz
220 VA
Black
10 Timber Lane, Marlboro, New Jersey, 07746 USA.
Telephone: (1) 732 683 2356
KEF AMERICA
Fax: (1) 732 683 2358
www.kefamerica.com
Advertisement
Table of Contents
Related Manuals for KEF PSW 2150
Summary of Contents for KEF PSW 2150
-
Page 1: Specifications
220 VA Cabinet Finish Black KEF AUDIO reserve the right, in line with continuous research and development, to amend or change specifications without prior notice. E. & O.E. KEF AUDIO (UK) KEF AMERICA Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP UK 10 Timber Lane, Marlboro, New Jersey, 07746 USA. - Page 2 PSW2150 Powered Subwoofer Installation Manual Manual de instalación Part No. 290147ML Issue 1: April 2003...
-
Page 3: Safety Information
SAFETY INFORMATION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE • A combined mains power input lead and country specific mains plug is provided. • Check before connecting to your local mains supply that the local supply voltage is the same as that marked on the rear panel. -
Page 4: Adjusting The Controls
ADJUSTING THE CONTROLS (ES) Ajuste de los controles... - Page 5 CONNECTIONS (ES) Conexiones...
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please take heed of the following before using the Subwoofer. Note also that the word “appliance” shall refer to the Subwoofer, or any part of it. Read Instructions – All the Safety and Operating Instructions should be read before the appliance is operated. Retain Instructions –... -
Page 7: Using The Manual
Please read this manual fully before you attempt any connections to the PSW2150. Le damos las gracias por haber adquirido el altavoz para graves KEF Modelo PSW2150. Estamos seguros de que el PSW2150 le proporcionará un sonido de calidad y de altas prestaciones durante muchos años. - Page 8 POSITIONING (ES) Posicionamiento 107dB 100dB 103dB 107dB 107dB...
-
Page 9: Instrucciones En Español
INSTRUCCIONES EN ESPAÑOL Ajuste de los controles Controles y conexiones Panel trasero del Subwoofer A. Control de frecuencia Línea en el zócalo de entrada El control de frecuencia cambia el umbral superior de la frecuencia del altavoz de Zócalos de salida pasa alto graves. -
Page 10: Controls And Sockets
CONTROLS AND SOCKETS (ES) Controles y conexiones... -
Page 11: Important Points
IMPORTANT POINTS (ES) Puntos importantes (US) Avoid temperature extremes. (US) Follow this manual carefully for best results (ES) Evite temperaturas extremas. from speakers. (ES) Siga las instrucciones de este manual para obtener los mejores resultados de los altavoces. > 35ºC <... -
Page 12: English Instructions
ENGLISH INSTRUCTIONS Controls and sockets Adjusting the controls Subwoofer Rear Panel A. Frequency Control Line in input sockets High pass output sockets The frequency control changes the upper cut-off frequency of the Ground In / Out subwoofer. Its effective range is from 40Hz to 140Hz at a rate of Level control 12dB/24dB per octave.The frequency control should be adjusted to Music / Cinema...
