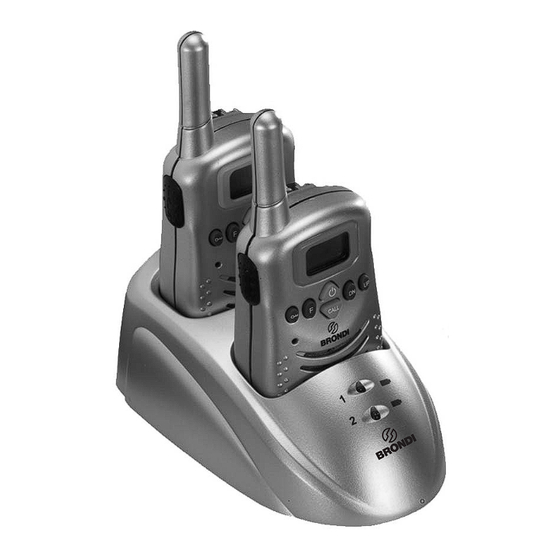

BRONDI FX-35 Twin Manual

8 channel 2-way radios with ctcss security voice-activated
Hide thumbs

Advertisement

Quick Links

8 Channel 2-Way Radios
With CTCSS security
Voice-Activated
English Manual

Advertisement

loading

Related Manuals for BRONDI FX-35 Twin

Summary of Contents for BRONDI FX-35 Twin

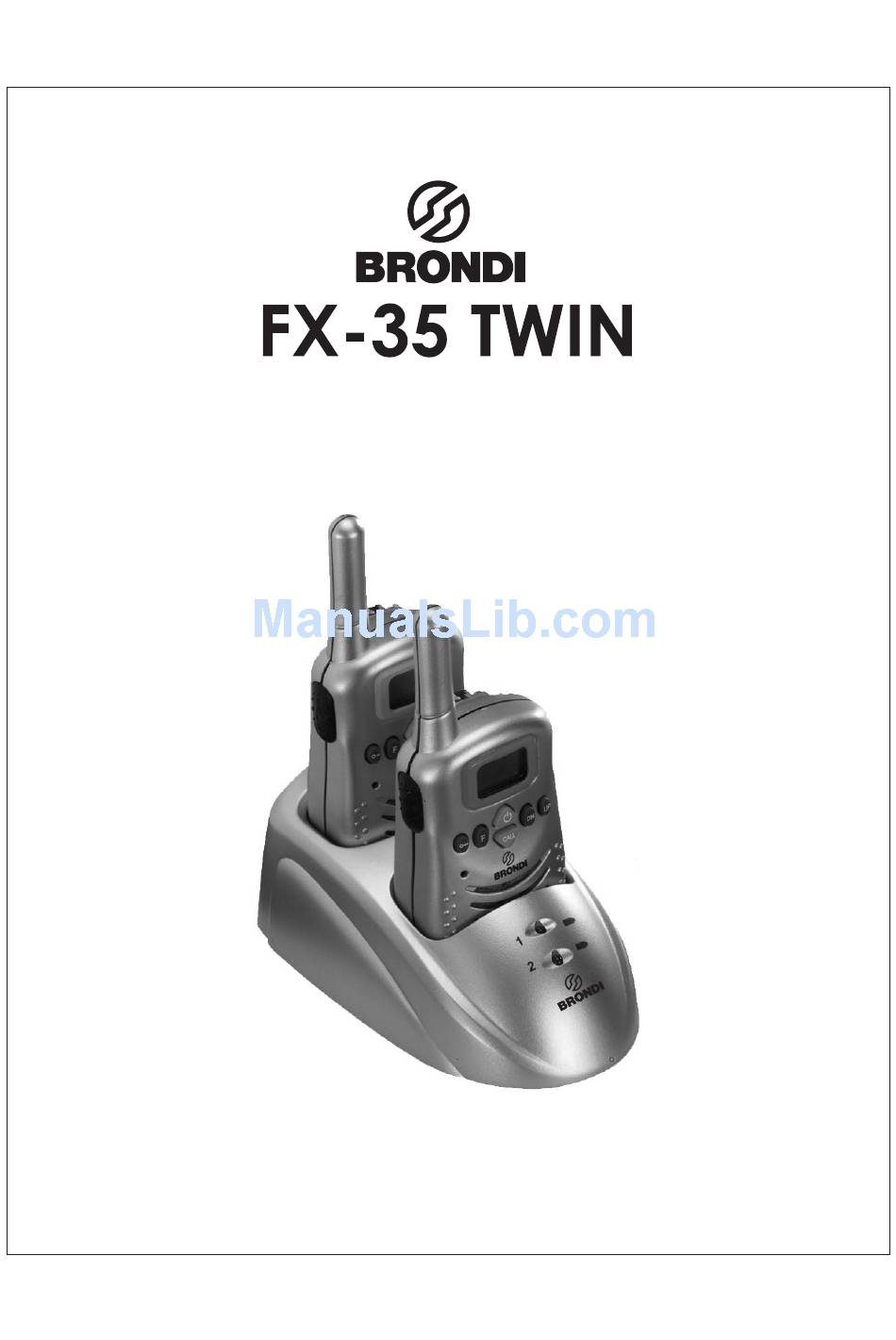

  • Page 1 8 Channel 2-Way Radios With CTCSS security Voice-Activated English Manual...

  • Page 2: Table Of Contents

    catalogue 1.Fitting the batteries 2.Charging the batteries 3.Using the Personal Mobile Radio 4. Cleaning and care 5. Technical specification 6. Guarantee and service 7. Troubleshooting...
  • Page 3 Private Mobile Radio(PMR) With duo charger User Guide F (MENU) button Press to change Channels and ON/OFF button sub-channels, and to switch between modes Up and Down SCAN buttons Lock button Press to change Press and hold to the speaker Lock and unlock Volume.

  • Page 4: Fitting The Batteries

    What' s on the display Channel number(1to8) Sub-channel number(0 to 38) Battery change level-when this shows (low) recharge the batteries Shown when you are transmitting the signal Shown when you are receiving the signal Dual watch-shown when you are monitoring two channels at once.
  • Page 5 Pull the tab forward(away from the handset) to release the belt clip. Then lift the belt clip off. To fit the batteries 1.Insert the lower side of the belt clip into the slot of the bottom side of the unit. belt clip Then lift the battery door off.

  • Page 6: Charging The Batteries

    Make sure the battery compartment cover is securely locked in place when you are charging the batteries. Disposed of used batteries safely and in a way that will not harm the environment never try to burn them or put them anywhere, they could get burnt or punctured.
  • Page 7 Place the handsets in the charging cradle. The charge light comes on when a handset in a charging cradle. To check the charge level, disconnect the jack connector from the handset, switch on and check the display. It takes about 6 hours to recharge the batteries fully if they've become completely run down.

  • Page 8: Using The Personal Mobile Radio

    3.Using the Personal Mobile Radio Transmitting range The talk range depends on environmental and terrain. It will be greatest (up to about 3km or 1 3/4 miles) in wide open spaces, Without obstructions such as hills or buildings. Don't try to use two PMR handsets which are less than 1.5m (5feet)apart.If you do, you may get interference.
  • Page 9 Volume control To adjust the loudspeaker volume Press the UP or DN button. The volume level is shown by the bars on the display. You can change the volume either While you're using your FX-35 handset, or while the handset is idle (switched on but not in Use).
  • Page 10 communicate only with other users tuned to the same channel and sub-channel. To turn the sub-channel function off, simply set the sub-channel to 0 (zero).Then you can communicate with any PMR user on the same channel who also turned off sub-channel operation(or whose PMR handset does not have the feature).
  • Page 11 To listen to another handset user Make sure you are not pressing the TALK button Receiving symbol ( ) is shown on the display when the other person is speaking. Don't try to transmit until they have finished. Monitoring the current channel Normally the PMR will not pick up very weak signals.
  • Page 12 To turn VOX mode ON and OFF: Press F(MENU) button Three times VOX icon display and OF flashes on the LCD panel. Press UP button to set the level of sensitivity. If you press the DN button until OF appear on the display, you can turn off the VOX mode.
  • Page 13 Setting Call-Ring tones Press F(MENU) button for Four times, the unit will enter to Call-Ring setting mode. The LCD will display 1 while 1 is flashing. Press UP or DN button to change the Call-Ring tone. (5 different tones),the different Call-Ring tone can be heard during changing.
  • Page 14 To enable or disable the Roger Beep tone Press the F(MENU) button for Five times until the On flashing on the LCD screen. Press button to enable (" ON" will appear on the display) or disable ("OF" will appear on the display) the key tone feature.
  • Page 15 Monitoring Two channels at once(Dual Watch) Press F(MENU) button for Seven times. DCM appear on the display while " OF " is flashing. Select the desired channel by pressing button. Press F(MENU) button to change the CTCSS code. Press button to select the desired CTCSS code. TALK Press TALK button to confirm the setting.
  • Page 16 Scanning Channels When the Scan function is tuned on, the handset will continuously scan the through all eight channels and all 38 sub-channels until it find one on which another user is transmitting. Press F(MENU) and button at the same time. SCAN appears on the display, and channel number change continuously.

  • Page 17: Cleaning And Care

    4. Cleaning and care To clean your PMR, use a soft cloth dampened with water. Do not use cleaners or solvent, which may cause damage which may not covered by guarantee. 5. Technical specification Operating frequency 446.00625 to 446.09375 MHz(eight channels) Channel spacing 12.5 KHz Output power 0.5 W Channel...

  • Page 18: Guarantee And Service

    Code Freq uency(Hz) Code Freq uency(Hz) 103.5 203.5 107.2 210.7 110.9 218.1 114.8 225.7 118.8 233.6 123.0 241.8 127.3 250.3 The use of this product is allowed in the following countries: Germany, Belgium, Bulgaria, Austria, Czech, Denmark, Estonia, Finland, France, Greece, Ireland, Italy, Letland, Hungary, Iceland, Liechtenstein, Lithuania, Luxemburg, Netherlands, Norway, Portugal, Sweden, Slovenia, Spain, Swiss and England.

  • Page 19: Troubleshooting

    7. Troubleshooting Problem Possible cause solution No power Batteries are low or not fitted correctly check; Handset is not switched on check Batteries are low or not fitted correctly weak reception/ no reception/ Other user is not within range check noisy reception Handsets are not tuned to the same channel check...
  • Page 20 Cannot change Handset is locked check channels Batteries are low or not fitted correctly In VOX mode, Background noise is high move to a quieter the handset place transmits all VOX sensitivity is too high set it to a lower the time level In VOX mode,...
  • Page 21 Effective Range The Transmission range of the product is wholly dependent on the environment or terrain in which it is being used, the following diagram attempts to guide the user on the sort of performance to expect in everyday use.
  • Page 22 WWW.brondi.it Brondi Telefonia S.P .A info@brondi.it...
