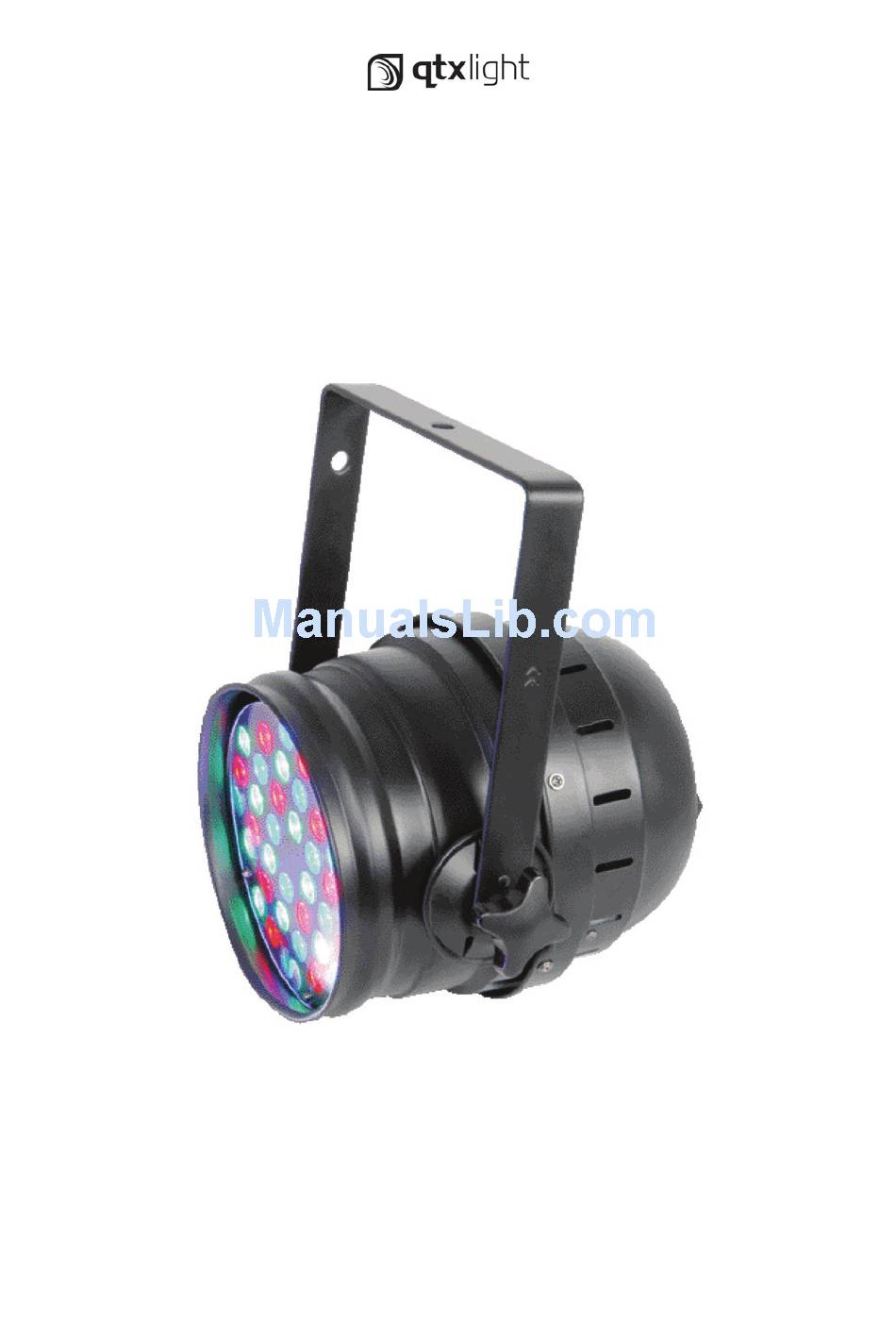

USER MANUAL HIGH POWER LED DMX PAR64 CANS 151.269 / 151.272...
Page 2
151.269 / 151.272 Part I General Information 1.1 Introduction You have purchased the 151.269 / 151.272, High Power LED Par Lamp series product. To assure reliable performance, please read the instructions in this manual thoroughly and carefully before operating. 1.2 Safety Information...
Page 3
PART I General Information (continued) 1.3 Unpacking The 151.269 / 151.272 has been thoroughly tested and shipped in perfect operating condition. Check the shipping carton carefully for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for damage and be sure all accessories necessary to operate the fixture have arrived intact.
Page 4
User Manual 151.269 / 151.272 Part II Installation and Operation 2.1 Fixture Layout Operating Panel...
Page 5
DMX compatible. B. DMX Cable Requirements: Your fixture, 151.269 / 151.272 uses 3-pin XLR cable as its connection media. C. Connection of DMX Connect the provided DMX XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the fixture (please refer to the figure below).
User Manual 151.269 / 151.272 PART II Installation and Operation (continued) D. DMX addressing All fixtures should be given a DMX starting address when using a DMX controller, so the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to "listen"...
Page 7
User Manual 151.269 / 151.272 PART II Installation and Operation (continued) Dipswitch 7 address equals to 64 Dipswitch 8 address equals to 128 Dipswitch 9 address equals to 256 Functions and the Dip of the 2 group Work Mode Dip of the 2...
Page 8
User Manual 151.269 / 151.272 PART II Installation and Operation (continued) A. DMX mode: To have the fixture working in DMX mode, please toggle on the dipswitch #1 of Group1 as illustrates in below figure: 1.DMX channels 1,2,3,5 functions are determined by the settings of channel 4.
Page 9
User Manual 151.269 / 151.272 PART II Installation and Operation (continued) C. Select auto programs To select auto programs, turn the dipswitch #1 of the 2 group dipswitches off and dipswitch# 8 off. Auto programs are then selected by the various combining of dipswitches...
Page 10
User Manual 151.269 / 151.272 PART II Installation and Operation Part III Maintenance and Cleaning Please refer to the following points during the normal inspection: Warning: Make certain all screws and fasteners are securely tightened at all times. Loosened screws may cause unexpected damage or injury.
Page 11
User Manual 151.269 / 151.272 3.3 Troubleshooting Trouble Cause Remedy No power supply Check the mains power switch and the cables. Fixtures do not Disconnect the power and replace the fuse with responds. the same specification. If the fuse is burned...
User Manual 151.269 / 151.272 PART III Maintenance and Cleaning DMX Address Quick Reference Chart Dip Switch Position DMX DIP SWITCH SET 0=OFF 1=ON X=OFF or ON 96 128 160 192 224 256 288 320 352 384 416 448 480...
