Summary of Contents for QTX Light LS-Elements Effects Laser

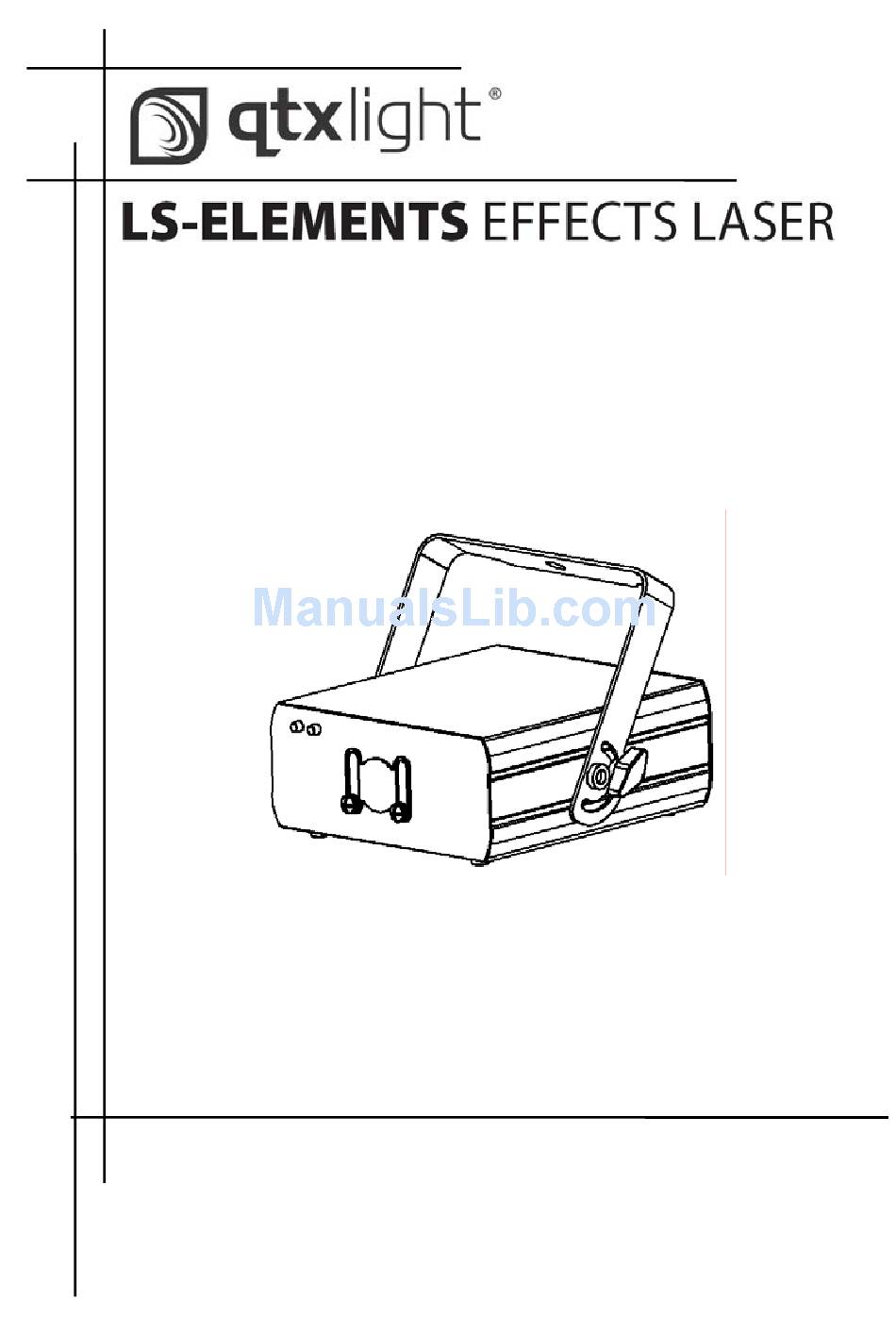

- Page 1 Version: 2.0 This manual contains important laser system safety and operation information. Read and understand all instructions prior to powering on laser unit the first time, to avoid laser eye injury and to avoid breaking the law. Keep this manual in a safe place for future reference.
- Page 2 USER MANUAL WARNING DATA Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in the user manual. Read all instructions carefully BEFORE operating this device.
-
Page 3: Laser Safety Warnings
USER MANUAL LASER SAFETY WARNINGS Potential laser injury hazard exists with this product! Read these instructions carefully, which includes important information about installation, safe use and service! Caution Avoid direct eye contact with laser light. Never intentionally expose your eyes or others to direct laser light. -
Page 4: Stop And Read All Laser Safety Data
USER MANUAL LASER SAFETY AND OPERATING INSTRUCTIONS STOP AND READ ALL LASER SAFETY DATA Laser Light is different from any other light source with which you may be familiar. The light from this product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source. - Page 5 USER MANUAL Do not point lasers at people or animals Never look into the laser aperture or laser beams Do not point lasers in areas in which people can potentially get exposed, such as uncontrolled balconies, etc. Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal.
-
Page 6: Laser Safety Label Reproductions
USER MANUAL LASER SAFETY LABEL REPRODUCTIONS Caution – Class 3B LASER RADIATION, WHEN OPEN, AVOID EXPOSURE TO BEAM LASER RADIOATION AVOID EXPOSURE TO BEAM CLASS 3B LASER PRODUCT. The label indicates the laser beam output aperture. LASER EXPOSURE WARNING LASER LIGHT AVOID DIRECT EYE EXPOSURE Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from... -
Page 7: Laser Emission Data
USER MANUAL LASER EMISSION DATA Laser Classification Class 3B Green Laser Medium DPSS Nd:YVO4, 532nm Red Laser Medium LD GaAlAs 650nm, typical Beam Diameter <5mm at aperture Pulse Data All pulses < 4Hz (>0.25sec) Divergence (each beam) <2 mrad Divergence (total light) <160 degrees Red>100mW, Green>40mW Laser Power... -
Page 8: General Safety Instructions
USER MANUAL GENERAL SAFETY INSTRUCTIONS Every person involved with installation and maintenance of this device have to: Be qualified Follow the instructions of this manual CAUTION! Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the wires! This device has left out premises in absolutely perfect condition. - Page 9 USER MANUAL The electric connection, repairs and servicing must be carried out by a qualified employee. Do not switch the fixture on and off in short intervals as this would reduce the laser diode life. For replacement, please use fuses of same type and rating only. If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately.
-
Page 10: Before Operation
USER MANUAL BEFORE OPERATION Unpacking Instructions CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. - Page 11 USER MANUAL The unit is supplied with a power plug appropriate to its voltage and destination. Should any other connections be required they must be carried out with the following configuration. Cable(EU) Cable(US) International Brown Black Live Light blue White Neutral Yellow/Green Green...
-
Page 12: Rigging The Fixture
USER MANUAL CAUTION: Use of controls, adjustments, or performance of procedures other than what is specified herein may result in hazardous radiation exposure Rigging the Fixture CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers! The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. -
Page 13: Product Overview
USER MANUAL PRODUCT OVERVIEW This device has left out premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. -
Page 14: Control & Function
USER MANUAL NAME DESCRIPTION Main Power Input DC12V-1A Power Supplier Power Switch Switch ON and OFF the fixture Used to attach a safety cable when the fixture is Safety Eye rigged. Check more details in RIGGING Mic Sensitivity Turn the knob (potentiometer) until the laser Knob works in sync with the music. -
Page 15: Operation
USER MANUAL every resetting and saved, the new mode information will be shown on LED monitor at next power on. Mode/Function Option, to choose the operating mode of laser. Confirmation, to confirm all setting or change of LED control panel. UP/DOWN, to change operating mode, parameter or DMX address. - Page 16 USER MANUAL SOUND AVTIVATED SHOW (MUSIC SHOW) Stand Alone Mode Press FUNC to enter MODE OPTION. Till to LED panel shows Sou. Press ENTER to confirm the setting. The laser is working in standalone mode – SOUND ACTIVATED SHOW. Each time when you turn on your laser, you will have this confirmed laser show.
-
Page 17: Maintenance
USER MANUAL MAINTENANCE Make sure the area below the installation place is free from unwanted persons during servicing Switch off the fixture, unplug the mains cable and wait until the unit has been cooled down. Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected... -
Page 18: Specifications
USER MANUAL SPECIFICATIONS Mains Input: AC100-240V, 50/60Hz Fuse: 250V 1.6A Slow Blow (20mm Glass) Total Power: Music Control: Internal microphone Laser Power: 40mW 532nm Green CW 100mW 650nm Red CW Laser Classification: Class 3B Laser Safety Standard: EN60825-1 2007 Condition Temperature: 10~40℃...
