VERSION:2.0
This manual contains important laser system safety and operation
information. Read and understand all instructions prior to powering on
laser unit the first time, to avoid laser eye injury and to avoid breaking
the law. Keep this manual in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS-OPAL and is the answer not in the manual?

Questions and answers

Related Manuals for QTX Light LS-OPAL

Summary of Contents for QTX Light LS-OPAL

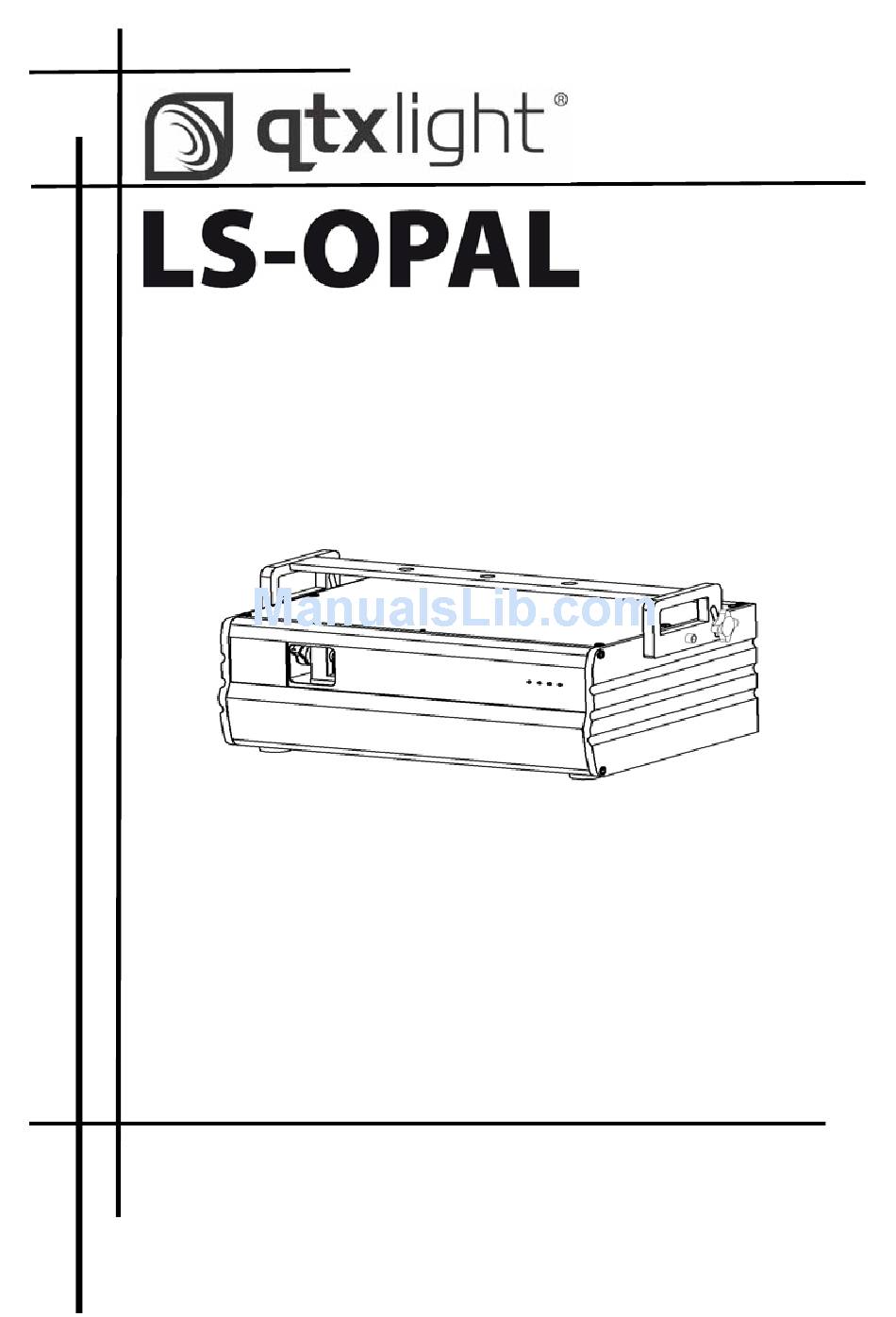

  • Page 1 VERSION:2.0 This manual contains important laser system safety and operation information. Read and understand all instructions prior to powering on laser unit the first time, to avoid laser eye injury and to avoid breaking the law. Keep this manual in a safe place for future reference.
  • Page 2 USER MANUAL WARNING DATA Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in the user manual. Read all instructions carefully BEFORE operating this device.

  • Page 3: Laser Safety Warnings

    USER MANUAL LASER SAFETY WARNINGS Potential laser injury hazard exists with this product! Read these Instructions carefully, which include important information about installation, safe use and service! Caution Avoid direct eye contact with laser 了 light. Never intentionally expose your eyes or others to direct laser radiation.

  • Page 4: Stop And Read All Laser Safety Data

    USER MANUAL LASER SAFETY AND OPERATING INSTRUCTIONS STOP AND READ ALL LASER SAFETY DATA Laser light is different from any other light source witch you may be familiar. The light from this product can potentially cause eyes injury if not set up and used properly.

  • Page 5: Laser Exposure Warning

    USER MANUAL After set up, and prior to public use test laser to ensure proper function. Do not use if any defect is detected. Do not use if laser emits only one or two laser beams rather than dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow emission of higher laser levels.

  • Page 6: Laser Safety Label Reproductions

    USER MANUAL LASER SAFETY LABEL REPRODUCTIONS The label indicates the laser beam output aperture Caution – Class 3B LASER RADIATION, WHEN OPEN, AVOID EXPOSURE TO BEAM LASER RADIOATION AVOID EXPOSURE TO BEAM CLASS 3B LASER PRODUCT. LASER EMISSION DATA Laser Classification Class 3B Green Laser Medium DPSS Nd:YVO4,532nm...

  • Page 7: Laser Compliance Statement

    USER MANUAL LASER COMPLIANCE STATEMENT This laser product complies with EN/IEC 60825-1 Ed 2,2007-03,and US FDA/CDRH FLPPS via the terms of laser Notice No.50 dated June 24,2007. GENERAL SAFETY INSTRUCTIONS Every person involved with installation and maintenance of this device have to Be qualified.
  • Page 8 USER MANUAL cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. It is essential to connect the yellow/green conductor to earth. The electric connection, repairs and servicing must be carried out by a qualified employee.

  • Page 9: Before Operation

    USER MANUAL BEFORE OPERATION Unpacking Instructions CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling.

  • Page 10: Dmx-512 Connection Between Fixtures

    USER MANUAL channel is used solely for a 0% to 100% switch. Before applying power to a fixture, check that the source voltage matches the fixture’s requirement. The unit is supplied with a power plug appropriate to its voltage and destination.
  • Page 11 USER MANUAL Building a serial DMX-chain If you are using the standard DMX-controllers, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter cables.
  • Page 12 USER MANUAL Proper Laser Set Up & Usage This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor.

  • Page 13: Rigging The Fixture

    USER MANUAL Rigging the Fixture CAUTION! Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers! The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation..

  • Page 14: Product Overview

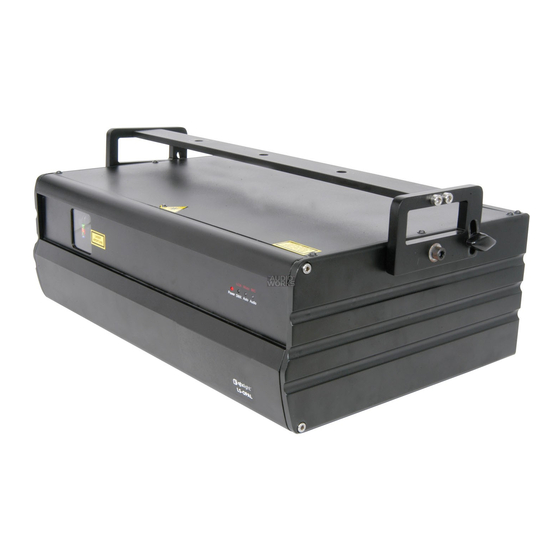

    USER MANUAL PRODUCT OVERVIEW This device has left out premise in absolutely perfect condition. In order to maintain this condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device.

  • Page 15: Front Panel

    USER MANUAL Front Panel NAME FUNCTION Main power indicated LED. Red is ON. POWER ILDA / DMX Red is ILDA connected, Green is DMX model. Music/Auto indicated LED. Red is Music mode Music/Auto and Green is AUTO mode. MIC/Audio indicated LED.
  • Page 16 USER MANUAL Rear Panel NAME FUNCTION Switch Switch on and off the power Mains input With socket and integrated fuse holder Key switch Make sure the professional person use Urgent and safe switch Switch off the laser manually if error occurs DMX output 3PIN Female XLR port，using for DMX DMX input...
  • Page 17 USER MANUAL ILDA / Hardware Setting Panel NAME FUNCTION X SIZE The Size of X / Y axis adjustment Y SIZE X / Y axis mirror setting (It could be done by X MIRROR Y MIRROR LCD control panel as well) Audio Input.

  • Page 18: Control & Function

    USER MANUAL CONTROL & FUNCTION Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use. Do not switch the unit on and off in short time intervals Always unplug the unit when it is not used for a longer time. Or before replacing the bulb or start servicing.

  • Page 19: Operation

    USER MANUAL OPERATION AUTO SHOW 1 Press FUNC to enter MODE OPTION Till to AUTO SHOW 1 shown on LCD monitor. The laser is set at AUTO SHOW 1 standalone mode and it will play the preprogrammed show until next setting is changed. AUTO SHOW 1 is fast and hot show which is better for DISCO.

  • Page 20: Music Show

    USER MANUAL MUSIC SHOW 1 Press FUNC to enter MODE OPTION Till to MUSIC SHOW 1 shown on LCD monitor. The laser is set at MUSIC SHOW 1 standalone mode and it will play the preprogrammed show until next setting is changed. MUSIC SHOW 1 is fast and hot show which is better for DISCO.

  • Page 21: Slave Mode

    USER MANUAL Attention When the laser is connected with DMX controlled or under control by DMX signal, the DMX indicated LED on front panel is in RED. SLAVE MODE Press FUNC to enter MODE OPTION Till to SLAVE shown on LCD monitor. Connect MASTER and SLAVE lasers with DMX cable.

  • Page 22: Dmx Channels Chart

    USER MANUAL ILDA Control Mode This unit has the ILDA DB25 port, and it can be controlled by the PC, There is auto transform set in the inside of the unit to transform the ILDA and preprogrammed show. when connecting by the 25 pin cable, the unit will be control by PC, when disconnect the unit, it will be preprogrammed program control。...
  • Page 23 USER MANUAL SINGLE PATTERN MODE DMX CHART CHANNEL VALUE DESCRIPTION CH 2 000-127 Laser OFF LASER 128-255 Laser ON ON/OFF CH 3 000-255 Every 32 for 1 group, total 8 groups. GROUP CH 4 000-255 Every 16 for 1 pattern, total 16 patterns. PATTERN 000-31 Pattern Original Fixed Color...
  • Page 24 USER MANUAL 000-127 0°~359°fixed pattern rolled CH 10 128-191 Slow to fast clockwise rolling Y AXIS ROLLING 192-255 Slow to fast anticlockwise rolling 000-127 0°~359°fixed pattern rotated CH 11 128-191 Slow to fast clockwise rotating Z AXIS ROTATING 128-255 Slow to fast anticlockwise rotating 000-127 X axis fixed position CH 12...
  • Page 25 USER MANUAL 000-005 Pattern Original Fixed Color COLOR 006-255 Color Loop from slow to fast Full pattern without clipping 001-127 0%~99% fixed pattern clipped CH 7 CLIPING 128-255 slow to fast pattern clipping 000-005 100% full pattern without zooming 005-127 4%~99% fixed pattern zoomed CH 8 ZOOMING...
  • Page 26 USER MANUAL LASER 096-127 Yellow PROJECTOR 128-159 Green 160-191 Cyan 192-223 Blue 224-255 Purple CH 17 000-005 Pattern Original Fixed Color COLOR 006-255 Color Loop from slow to fast Full pattern without clipping CH 18 001-127 0%~99% fixed pattern clipped CLIPING 128-255 slow to fast pattern clipping...
  • Page 27 USER MANUAL WAVE EFFECT MODE DMX CHART CHANNEL VALUE DESCRIPTION CH 2 000-127 Laser OFF LASER 128-255 Laser ON ON/OFF CH 3 000-255 0%~100% wave amplitude AMPLITUDE CH 4 000-255 0%~100% wave frequency FREQUENCY 000-31 Pattern Original Fixed Color 032-063 White 064-095 NONE...
  • Page 28 USER MANUAL PATTERN LIST IN CHANNEL 3&4 000-015 016-031 032-047 048-063 064-079 080-095 096-111 112-127 128-143 144-159 160-175 176-191 192-207 208-223 224-239 240-255...

  • Page 29: Maintenance

    USER MANUAL MAINTENANCE Make sure the area below the installation place is free from unwanted persons during servicing Switch off the unit , unplug the mains cable and wait until the unit has been cooled down. Housings, fixations and installations spots( ceiling, truss, suspensions) should be totally free from any deformation When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced...

  • Page 30: Troubleshooting

    USER MANUAL TROUBLE SHOOTING Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting. The fixture does not work, no laser and the fan does not work. Check the connect power and main fuse. Measure the mains voltage on the main connector.
  • Page 31 USER MANUAL SPECIFICTAIONS Mains Input: AC100~240V, 50/60Hz Fuse: 250V 2A Slow Blow (20mm Glass) Total Power: X/Y Axis Beam Angle: ±25° Music Control: Audio / Sound Activated Laser Power: 350mW 650nm Red CW 60mW 532nm Green CW 50mW 473nm Blue CW Laser Classification: Class 3B Laser Safety Standard:...
