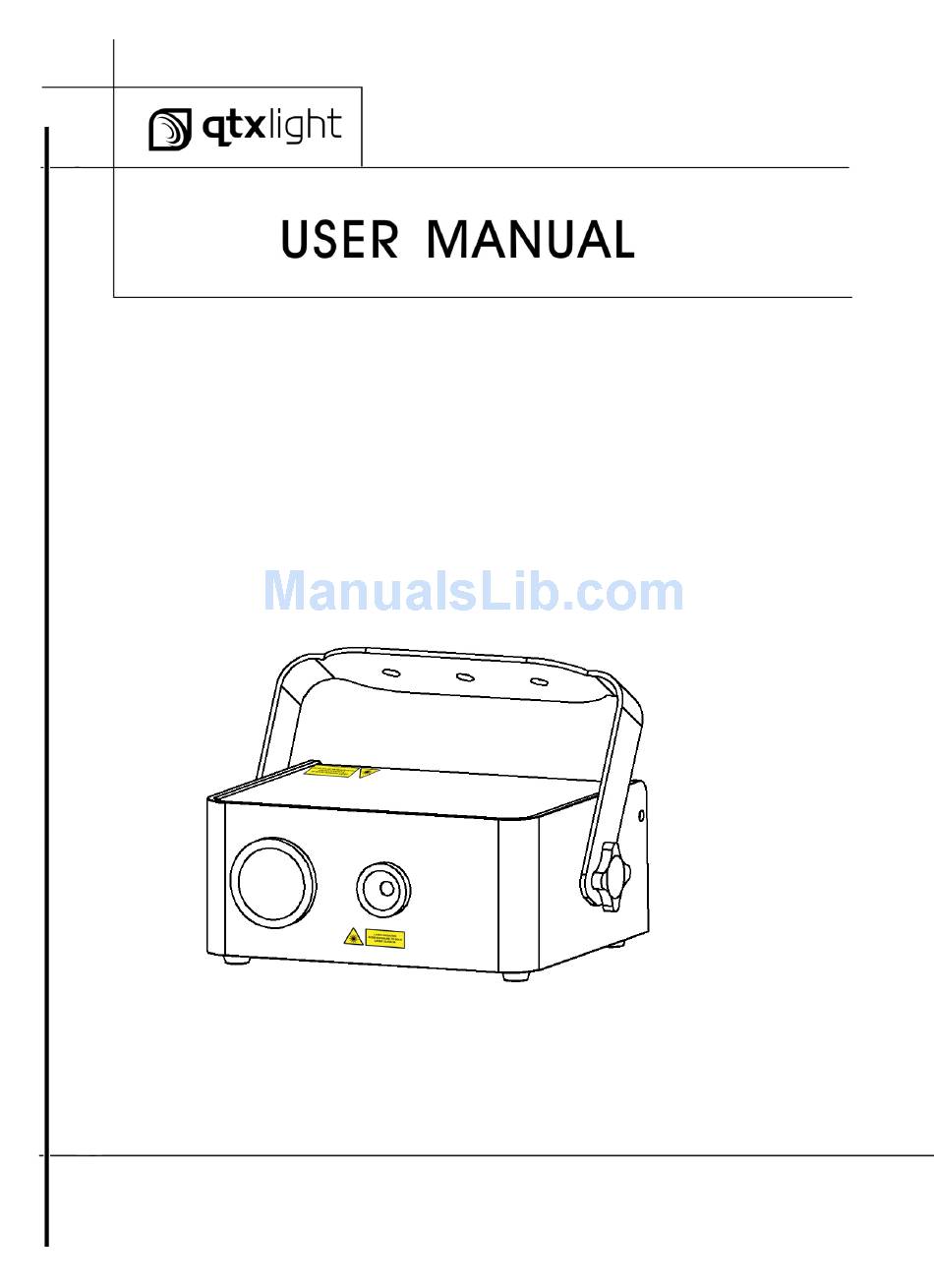

- Page 1 152.740 Please read this instruction manual and all safety warnings before you begin to operate this laser. Keep this instruction manual for future reference.
- Page 2 USER MANUAL WARNING DATA Lasers can be hazardous and have unique safety considerations. Permanent eye injury and blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK and WARNING statement in the user manual. Read all instructions carefully BEFORE operating this device.
-
Page 3: Laser Safety Warnings
USER MANUAL LASER SAFETY WARNINGS Potential laser injury hazard exists with this product! Read these instructions carefully, which includes important information about installation, safe use and service! Avoid direct eye contact with laser light. Never Caution intentionally expose your eyes or others to direct laser light.. -
Page 4: Stop And Read All Laser Safety Data
USER MANUAL LASER SAFETY AND OPERATING INSTRUCTIONS STOP AND READ ALL LASER SAFETY DATA Laser Light is different from any other light source with which you may be familiar. The light from this product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source. -
Page 5: Laser Safety Label Reproductions
USER MANUAL such as uncontrolled balconies, etc. Do not point lasers at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser reflections can be hazardous. Never point a laser at aircraft, this is a federal offense. Never point un-terminated laser beams into the sky. Do not expose the output optic (aperture) to cleaning chemicals. -
Page 6: Laser Exposure Warning
USER MANUAL LASER EXPOSURE WARNING LASER LIGHT AVOID DIRECT EYE EXPOSURE Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from “www.laserinstitute.org”. Many local governments, corporations, agencies, military and others, require all lasers to be used under the guidelines of ANSI Z136.1. -
Page 7: General Safety Instructions
USER MANUAL GENERAL SAFETY INSTRUCTIONS Every person involved with installation and maintenance of this device have to: Be qualified Follow the instructions of this manual CAUTION! Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the wires! This device has left out premises in absolutely perfect condition. - Page 8 USER MANUAL qualified employee. Do not switch the fixture on and off in short intervals as this would reduce the laser diode life. For replacement, please use fuses of same type and rating only. If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately.
-
Page 9: Before Operation
USER MANUAL BEFORE OPERATION Unpacking Instructions CAUTION! Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. -
Page 10: Rigging The Fixture
USER MANUAL Rigging the Fixture CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers! The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. -
Page 11: Proper Laser Set Up & Usage
USER MANUAL Proper Laser Set Up & Usage This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effect are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor. -
Page 12: Product Overview
USER MANUAL PRODUCT OVERVIEW This device has left out premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. -
Page 13: Rear Panel
USER MANUAL Rear Panel NAME DESCRIPTION Power Plug DC 5V/2A Input To interlock laser diodes output Interlock Switch Power switch Switch on and off the power Laser Effect Rotate Direction Interchange laser effect rotating, clockwise Switch anticlockwise Laser Effect Rotating Speed Speed up or slow down laser effect rotating speed Knob Red Laser Strobe Knob... -
Page 14: Control & Function
USER MANUAL CONTROL & FUNCTION Regular breaks during operation are essential to maximize the life of this device as it is not designed for continual use. Do not switch the unit on and off in short time intervals Always unplug the unit when it is not used for a longer time. Or before replacing the bulb or start servicing. -
Page 15: Troubleshooting
USER MANUAL TROUBLE SHOOTING Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: The fixture does not work, no laser and the fan does not work. Check the connect power. Measure the mains voltage on the main connector. Check the power on indicated LED. -
Page 16: Specifications
USER MANUAL SPECIFICATIONS Mains Input: DC 5V / 2A Total Power: Laser Power: 30mW 532nm Green CW 80mW 650nm Red CW Laser Classification: Class 3B Laser Safety Standard: EN60825-1 2007 Condition Temperature: 10~40℃ LED Power: LED Wavelength: 455nm Measurement: See diagram below N Weight: 1.6 Kg Specifications subject to change without prior notice.
