Summary of Contents for PulseTech Xtreme SC-12

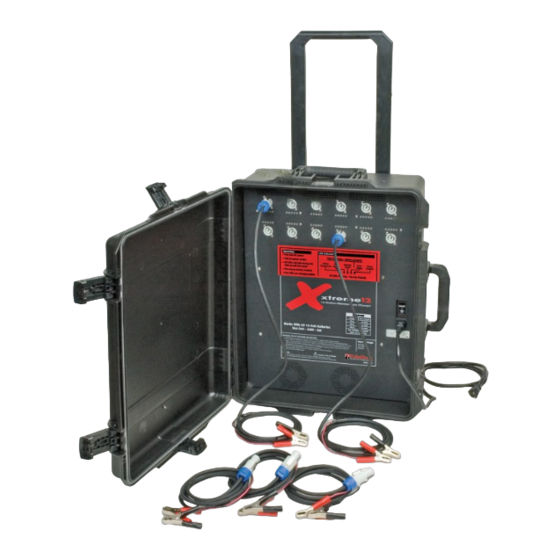

- Page 1 SuitCase Charger 12V Battery Recovery/Maintenance Charger SC-12 SuitCase Charger...
- Page 2 Independent charging channels Retractable handle Rugged HPX plastic Five LED Indicators per cabinet with wheels charging channel On/OFF Switch Dent-resistant, shatter-resistant case A/C Power Cord Flexible, replaceable battery cable with clips...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions for your SC-12 SuitCase Charger. 2. Use of an attachment not recommended or sold by PulseTech Products may result in a risk of fire, electric shock, or injury to persons. -
Page 4: Warning - Risk Of Explosive Gases
9. WARNING – RISK OF EXPLOSIVE GASES. a) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASSES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT EACH TIME BEFORE USING YOUR CHARGER, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY. -
Page 5: Preparing To Charge
h) Use charger for charging a LEAD-ACID battery only. It is not intended to supply power to a low voltage electrical system other than in a starter-motor application. Do not use battery charger for charging dry-cell batteries that are commonly used with home appliances. These batteries may burst and cause injury to persons and damage to property. -
Page 6: Grounding And Ac Power Cord Connection Instructions
will corrode and damage charger. c) Never allow battery acid to drip on charger when reading electrolyte specific gravity or filling battery. d) Do not operate charger in a closed-in area or restrict ventilation in any way. e) Do not set a battery on top of charger. 13. - Page 7 15. FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE. A SPARK NEAR BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR BATTERY: a) Position ac and dc cords to reduce risk of damage by hood, door, or moving engine part.
- Page 8 b) Attach at least a 24-inch-long 6-gauge (AWG) insulated battery cable to NEGATIVE (NEG, N, -) battery post. c) Connect POSITIVE (RED) charger clip to POSITIVE (POS, P, +) post of battery. d) Position yourself and free end of cable as far away from battery as possible - then connect NEGATIVE (BLACK) charger clip to free end of cable.
- Page 9 d) Turn on switch located adjacent to the IEC input connection. This switch has a built in circuit breaker. If the charger turns off for no apparent reason, turn the switch to the off position and turn it back on again. DO NOT TAMPER WITH OR REMOVE SWITCH.
- Page 10 Charge Complete – The battery has been recovered and is fully charged; remove the battery and place it in service or leave it connected to maintain the battery in a fully charged state. Reverse Polarity – The battery clamps are connected backward; reverse the clamps to continue.
- Page 11 PULSETECH PRODUCTS CORPORATION SC-12 SUITCASE CHARGER What Does This Warranty Cover? This warranty covers any defects in workmanship or materials in this charger under normal use and service. How Long Does The Coverage Last? This warranty runs for one (1) year from the date of purchase.
- Page 12 PulseTech Products Corp. 1100 South Kimball Ave. Southlake, Texas 76092 Telephone: 817-329-6099 Toll Free: 800-580-7554 Fax: 817-329-5914 Email: ppc@pulsetech.net Website: www.pulsetech.net 998XM810 11/12...
