Summary of Contents for PulseTech SC-6

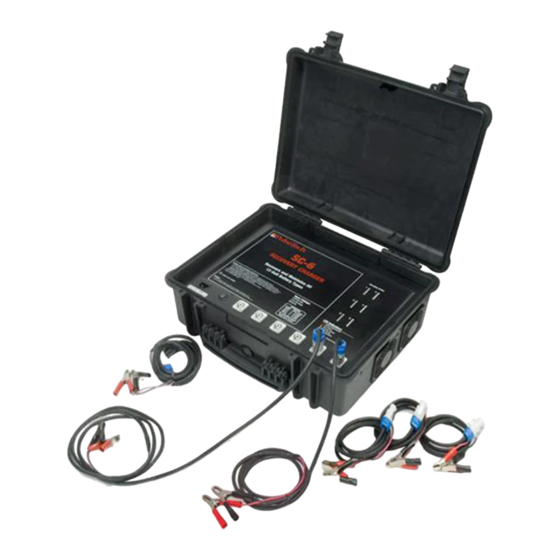

- Page 1 INSTRUCTION MANUAL SuitCase Charger 12V Battery Recovery/Maintenance Charger SC-6 12V Recovery Charger...
- Page 2 Dent resistant, shatter- resistant case Rugged HPX plastic cabinet Independent charging channels Five LED Indicators per charging channel Flexible, replaceable battery cable with clips - 1 -...
-
Page 3: Important Safety Instructions
1. SAVE THESE INSTRUCTIONS – This manual contains important safety and operating instructions for your SC-6 SuitCase Charger 2. Use of an attachment not recommended or sold by PulseTech Products may result in a risk of fire, electric shock, or injury to persons. -
Page 4: Warning - Risk Of Explosive Gases
9. WARNING – RISK OF EXPLOSIVE GASES. a) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASSES DURING NORMAL BATTERY OPERATION. FOR THIS REASON, IT IS OF UTMOST IMPORTANCE THAT EACH TIME BEFORE USING YOUR CHARGER, YOU READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY. -
Page 5: Preparing To Charge
h) Use charger for charging a LEAD-ACID battery only. It is not intended to supply power to a low voltage electrical system other than in a starter-motor application. Do not use battery charger for charging dry-cell batteries that are commonly used with home appliances. -
Page 6: Grounding And Ac Power Cord Connection Instructions
b) Never place charger directly above battery being charged; gases from battery will corrode and damage charger. c) Never allow battery acid to drip on charger when reading electrolyte specific gravity or filling battery. d) Do not operate charger in a closed-in area or restrict ventilation in any way. - Page 7 15. FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE. A SPARK NEAR BATTERY MAY CAUSE BATTERY EXPLOSION. TO REDUCE RISK OF A SPARK NEAR BATTERY: a) Position ac and dc cords to reduce risk of damage by hood, door, or moving engine part.
- Page 8 b) Attach at least a 24-inch-long 6-gauge (AWG) insulated battery cable to NEGATIVE (NEG, N, -) battery post. c) Connect POSITIVE (RED) charger clip to POSITIVE (POS, P, +) post of battery. d) Position yourself and free end of cable as far away from battery as possible –...
- Page 9 c) Connect the charger in accordance with paragraphs 1-16. d) Turn on switch located adjacent to the IEC input connection. This switch has a built in circuit breaker. If the charger turns off for no apparent reason, turn the switch to the off position and turn it back on again.
- Page 10 e) Pulse Charge – The battery is being charged; no action is required. f) Charge Complete – The battery has been recovered and is fully charged; remove the battery and place it in service or leave it connected to maintain the battery in a fully charged state. g) Reverse Polarity –...
- Page 11 PulseTech or (B) damaged in transit to PulseTech, and (2) the owner is not the original purchaser that purchased the product through an authorized PulseTech dealer or distributor. This warranty is void if owner attempts to disassemble the unit or to modify the cable assemblies.
- Page 12 PulseTech Products Corp. 1100 South Kimball Ave. Southlake, Texas 76092 Telephone: 817-329-6099 Toll Free: 800-580-7554 Fax: 817-329-5914 Website: www.pulsetech.net 998XM816 08/14...
