What's Included:
QuadLink 4-Station
[2]
Charger Multiplier, XC-QL4

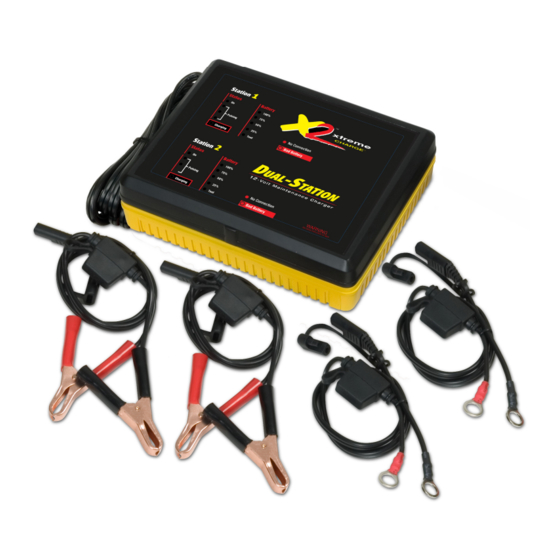

2-Station Battery Maintenance
[1]
Charger, X2
[1]
Battery Tester, XC-822-TEST
2' Battery Leads with
[2]
Clips, XC-CLIPS
[10]
2' Battery Leads with
Lugs, XC-LUGS
5' Battery Extension
[8]
Lead, XC-EXT-5
25' Battery Extension
[4]
Lead, XC-EXT-25
All manuals and user guides at all-guides.com

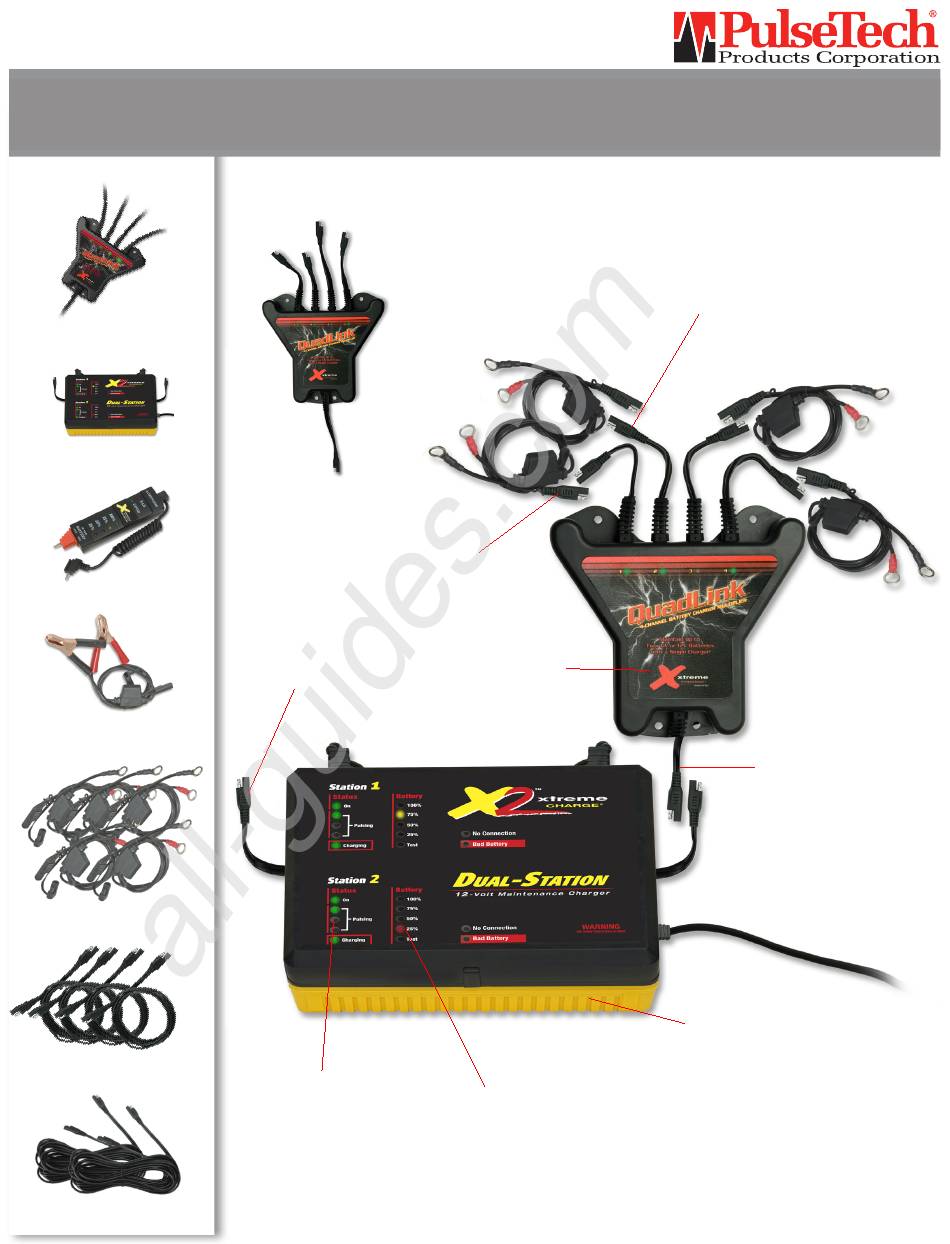

X2-QL4-K2, 8-Station QuadLink Kit
Quick Start Instruction Manual
input connect
2-pin
output connect
Status Indicators
PulseTech Products Corporation • 1100 South Kimball Avenue • Southlake, TX 76092-9009
800-580-7554 • ppc@pulsetech.net • www.pulsetech.ne
2-pin
QuadLink
Battery State of Charge
2-pin
output connect
2-pin
input connect
Xtreme 2-Station 12V
Maintenance Charger
t
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PulseTech QuadLink X2-QL4-K2
Summary of Contents for PulseTech QuadLink X2-QL4-K2
- Page 1 Lugs, XC-LUGS Xtreme 2-Station 12V Maintenance Charger 5’ Battery Extension Status Indicators Battery State of Charge Lead, XC-EXT-5 PulseTech Products Corporation • 1100 South Kimball Avenue • Southlake, TX 76092-9009 25’ Battery Extension Lead, XC-EXT-25 800-580-7554 • ppc@pulsetech.net • www.pulsetech.ne...
- Page 2 All manuals and user guides at all-guides.com X2-QL4-K2, 8-Station QuadLink Kit Quick Start Instruction Manual This Quick Start Instruction Manual is designed to help you quickly set up and use your 8-Station QuadLink Kit correctly. It is not intended to serve as a replacement for the product manuals themselves.
- Page 3 All manuals and user guides at all-guides.com Model X2 12-Volt Charger FEATURE AND USE GUIDE...
- Page 4 Desulfate The unique application of patented PULSE conditioning provided by Pulsetech ® Products increases performance and life cycles of any size or type of 12V lead-acid battery by minimizing the size of damaging lead sul- fate crystals ®...
- Page 5 All manuals and user guides at all-guides.com USE GUIDE Do not operate without first reading the Important Safety Instructions. Connect red battery clip to positive (+) battery post. Then connect black battery clip to negative (-) battery post. Once you’ve connected the battery cables properly, you can begin the ®...
- Page 6 Battery” light illuminates, indicating the battery is non-rechargeable. PULSE TECHNOLOGY The unique application of patented PULSE conditioning provided by ® Pulsetech Products increases performance and life cycles of any size or type of 12V lead-acid battery by minimizing the size of damaging lead...
- Page 7 All manuals and user guides at all-guides.com sulfate crystals. This allows your battery to accept more power than other chargers can provide. Our patented PULSE technology is NOT “Pulse Charging” which is commonly used in the market place today. It IS a total- ly unique 1-2 punch provided by the independent application of our unique high frequency conditioning pulse on one circuit and proprietary charging algorithms on another.
- Page 8 Feature and Use Guide and the Important Safety Instructions) or other conditions beyond the control of PulseTech or (B) damaged in transit to PulseTech, and (2) the owner is not the original purchaser that purchased the product through an authorized PulseTech dealer or distributor.
- Page 9 All manuals and user guides at all-guides.com...
- Page 10 Extend a standard lead by 25 items, contact an authorized feet with this extension. It fea- Xtreme Charge dealer, visit ® tures quick-disconnect termi- www.PulseTech.net or call nals on both ends. Lead is 25 feet long. 800-580-7554. Part #: 100X825 Model: XC-EXT-25 998XM202 04/12...
- Page 11 All manuals and user guides at all-guides.com Model XC-QL4 4-Channel 6/12V DC Charger Multiplier FEATURE AND USE GUIDE...
- Page 12 Products Corporation. ® PulseTech Products Corporation (www.PulseTech.net) is nationally recognized for its innovative technologies specifi cally designed to improve 6/12V battery perfor- mance, trim replacement costs by extending battery life cycles and contributing to the nation’s environmental movement to think and act Green by keeping batteries healthy and out of the waste stream, landfi...
-
Page 13: User Guide
All manuals and user guides at all-guides.com User Guide Do not operate without fi rst reading these important safety notices and use instructions. Additionally, do not use this without fi rst reading important safety notices and use instructions that come with your battery charger/maintainer and your battery. NOTE: As part of good safety routine, this product is designed for use only with automatically controlled charger maintainers and is optimized for use with the Xtreme Charge family of products. - Page 14 All manuals and user guides at all-guides.com C. A blinking green LED light will indicate the fi rst battery connected to the QuadLink. Once additional batteries are connected, a solid glowing green LED light will verify connection to all additional connected stations. Once the charger is connected to the QuadLink and plugged into the AC power source, the charging cycle begins.
-
Page 15: Specifi Cations
4. For use more customized to your specifi c needs, including additional 5' extension leads (part #100X805) and 25' extension leads (part #100X825), please visit www.PulseTech.net. Additional Functionality:... - Page 16 This will give that battery 10 additional minutes of charge time per cycle. For answers to additional questions, please see your dealer or contact PulseTech Products Corporation at 1-800-580-7554, 8 a.m. to 5 p.m. Monday through Friday CST or go to www.PulseTech.net.
-
Page 17: 5-Year Limited Warranty
How Long Does The Coverage Last? This warranty runs for fi ve (5) years from the date of purchase. What Will PulseTech Do? PulseTech will, at its option, repair the unit or replace the unit with a remanufactured unit at no charge. - Page 18 It will be the most used tester in shops, output connector) into a garages and any areas where battery 4-station maintenance charger. checks are performed. Part # 100X004 Part #: 100X822 Model: XC-QL4 Model: XC-822-TEST TO PURCHASE ANY OF THESE ITEMS, VISIT WWW.PULSETECH.NET 998XM104 04/11...
