SYNC-SWITCH - MANUAL
Enumerates the various ports with the corresponding SSM value.
Switch Mode
Allows to automatically choose the reference source based on link quality or to always stick on a particular port.
OCXO
Permits to fine tune the voltage reference of the internal high-stability oscillator.

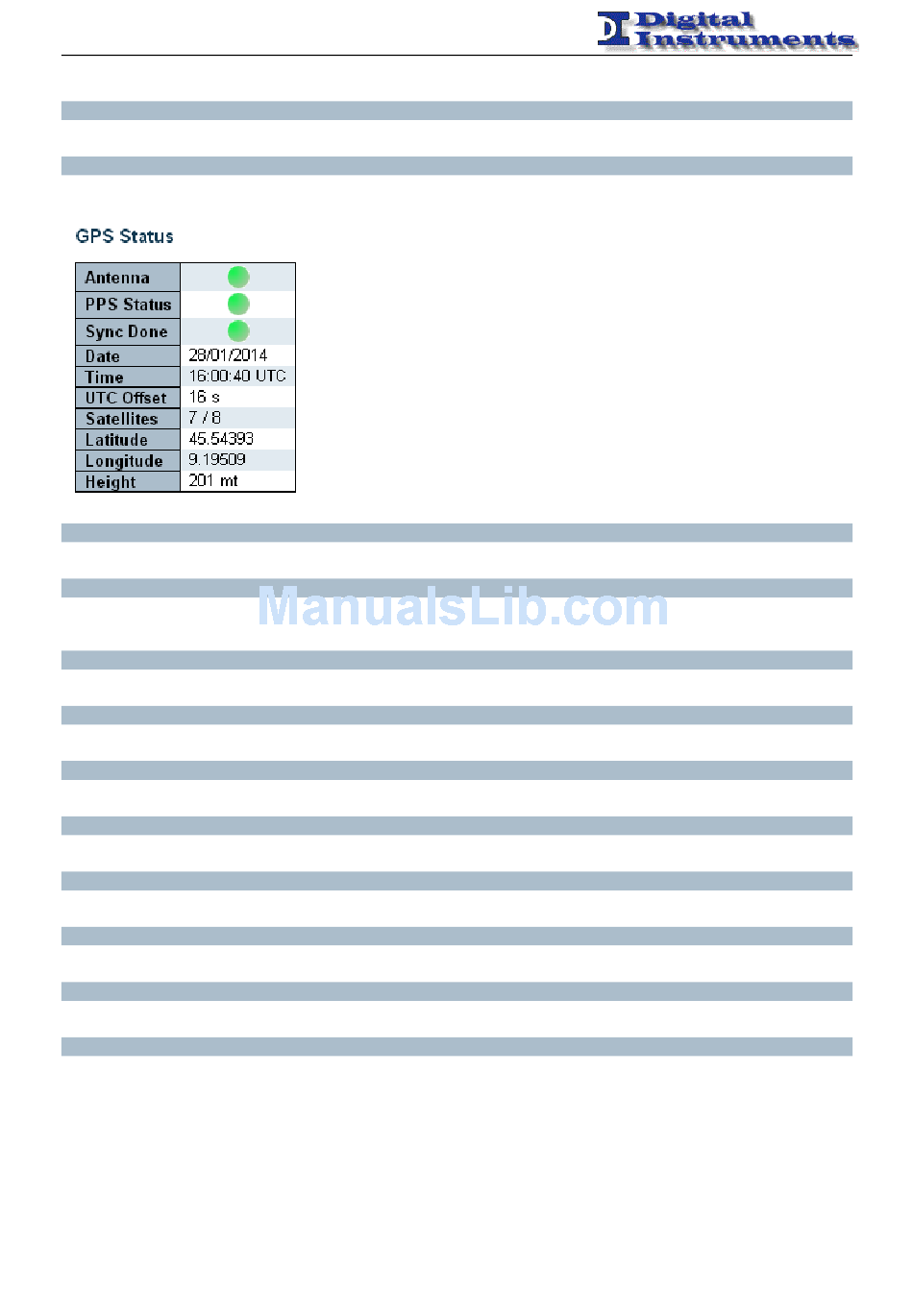

Antenna
Green if a GPS Antenna is connected.
PPS Status
Green if the PPS is being correctly reconstructed.
Usually at least 4 satellites are needed.
Sync Done
Green if the device has correctly locked its internal timebase to the GPS reference.
Date
Calendar date retrieved from GPS.
Time
Calendar time retrieved from GPS in UTC format.
UTC Offset
Offset in seconds between the UTC time and the GPS time.
GPS Satellites
Number of tracked and visible satellites.
Latitude
Latitude position of the device.
Longitude
Longitude position of the device.
Height
Height position of the device.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
