Digitus eSATA II EXPRESSCARD User Manual

eSATA II

EXPRESSCARD

User Manual

Table of Contents

Do you have a question about the eSATA II EXPRESSCARD and is the answer not in the manual?

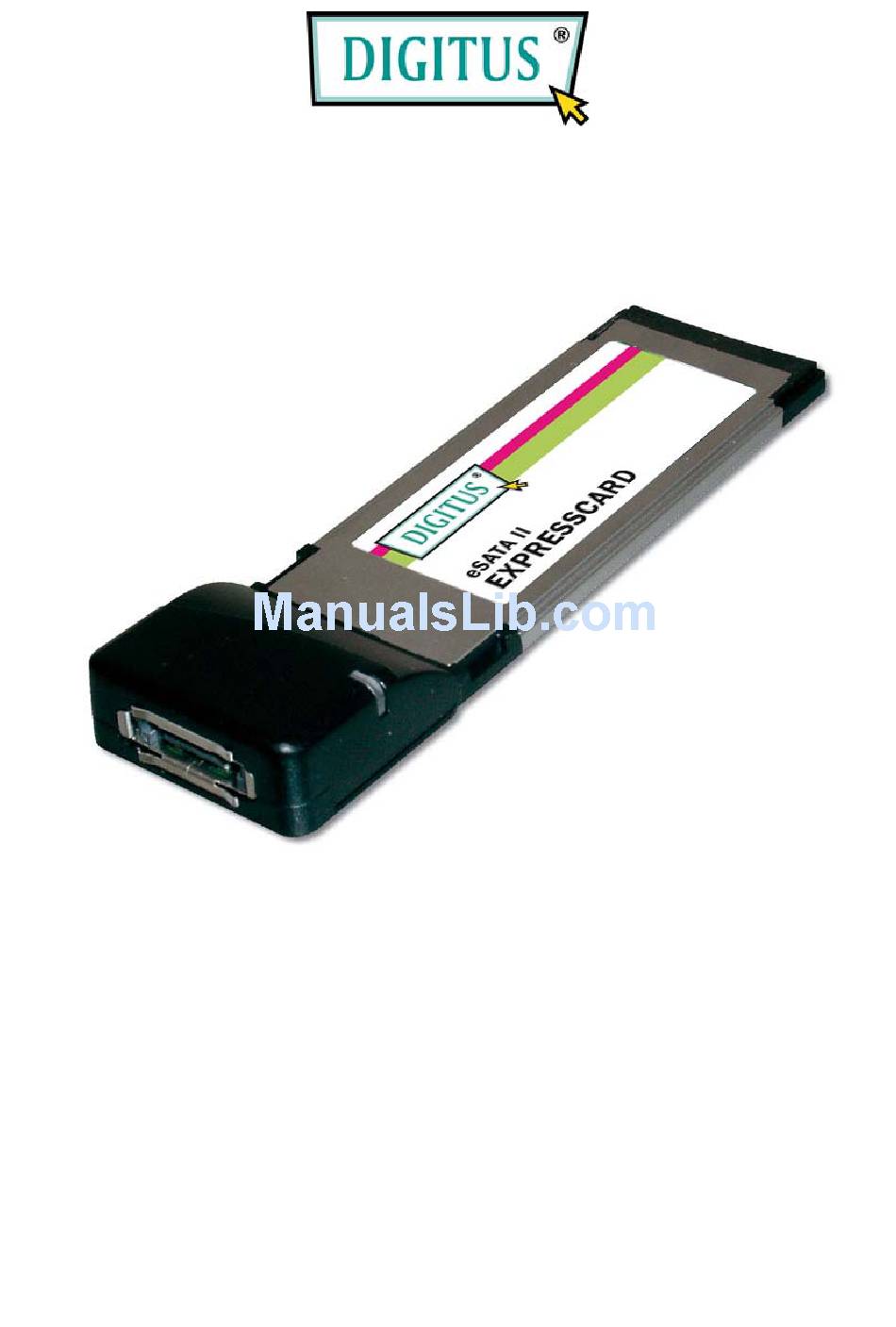

Page 1: User Manual
eSATA II EXPRESSCARD User Manual...
Page 2 Features and Benefits  Fully compliant with ExpressCard Specification 1.0  ExpressCard/34 Form Factor Module  Serial ATA generation 2 transfer rate of 3.0Gbps  Supports hot plug for extend Serial ATA port  Supports Windows 7, Vista, XP, 2000 Package Contents ...
Page 3: Hardware Description
Hardware Description Hardware Installation General instructions for installing the card are provided below. Since the design of system may vary, refer to your system’s reference manual for further information, if needed. Insert the Card into the ExpressCard slot of your system. Make sure it is inserted all the way in for a solid connection.
Page 4: Driver Installation
Driver Installation For Windows® 2000/XP/Server 2003/Vista/ 7 1. At the Found New Hardware Wizard window pop-up, please click Cancel button to cancel the driver installation for the device at this moment. The driver for this device will be installed in the next step. 2.
Page 5 START > Control Panel > System > Device Manager Hot-Plugging A Hard Disk Drive To remove a drive from a powered up system, do the following: 1. Right click My Computer and click Manage. 2. Select Device Manger. 3. Click Disk Drives, right click the target disk and select Disable/Enable.
