eSATA II
ExpressCard
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExpressCard eSATA II and is the answer not in the manual?

Questions and answers

Related Manuals for Digitus ExpressCard eSATA II

Summary of Contents for Digitus ExpressCard eSATA II

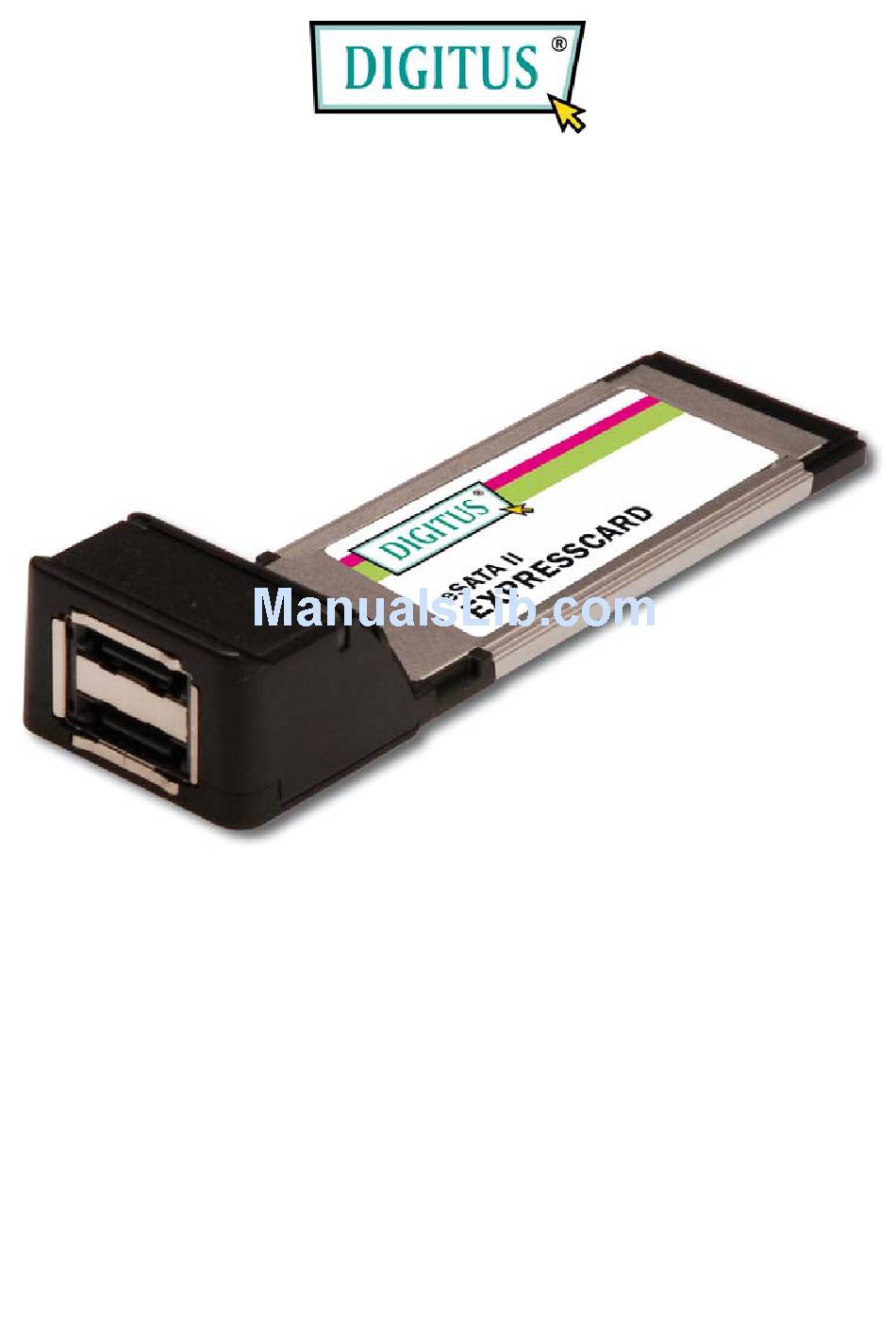

  • Page 1 eSATA II ExpressCard User Manual...

  • Page 2: Features And Benefits

    Features and Benefits  Fully compliant with ExpressCard Specification 1.0  ExpressCard/34 Form Factor Module  Serial ATA generation 2 transfer rate of 3.0Gbps  Adds two eSATA (external Serial ATA) ports  Supports Native Command Queuing (NCQ), Non-zero offsets NCQ, and Out-of-order data delivery NCQ ...

  • Page 3: Hardware Description

    Hardware Description Hardware Installation General instructions for installing the card are provided below. Since the design of system may vary, refer to your system’s reference manual for further information, if needed. Insert the Card into the ExpressCard slot of your system. Make sure it is inserted all the way in for a solid connection.

  • Page 4: Driver Installation

    Driver Installation For Windows® 2000 At the Found New Hardware Wizard, click Next. Select Search for a suitable driver for my device (recommended), then click Next. Please insert the CD driver bound with eSATA II 300 2-Port ExpressCard into your CD-ROM Drive, check CD-ROM drives, uncheck the other boxes, click Next, then click Next again.
  • Page 5 Please insert the CD driver bound with eSATA II 300 2-Port ExpressCard into your CD-ROM Drive, select Install the software automatically (Recommended), and click Next. Accept the default entry, then click Next. Click Finish. Restart Windows to complete the installation. For Windows®...
  • Page 6 Double click SCSI and RAID Controller, then double click Silicon Image SiI 3132 SATALink Controller to display driver properties. A message this device is working properly is displayed in the dialog box, the driver has been correctly installed. Hot-Plugging Hard Disk Drives To remove a drive from a powered up system, do the following: Right click My Computer and click Manage.
