Page 1: Cec Control

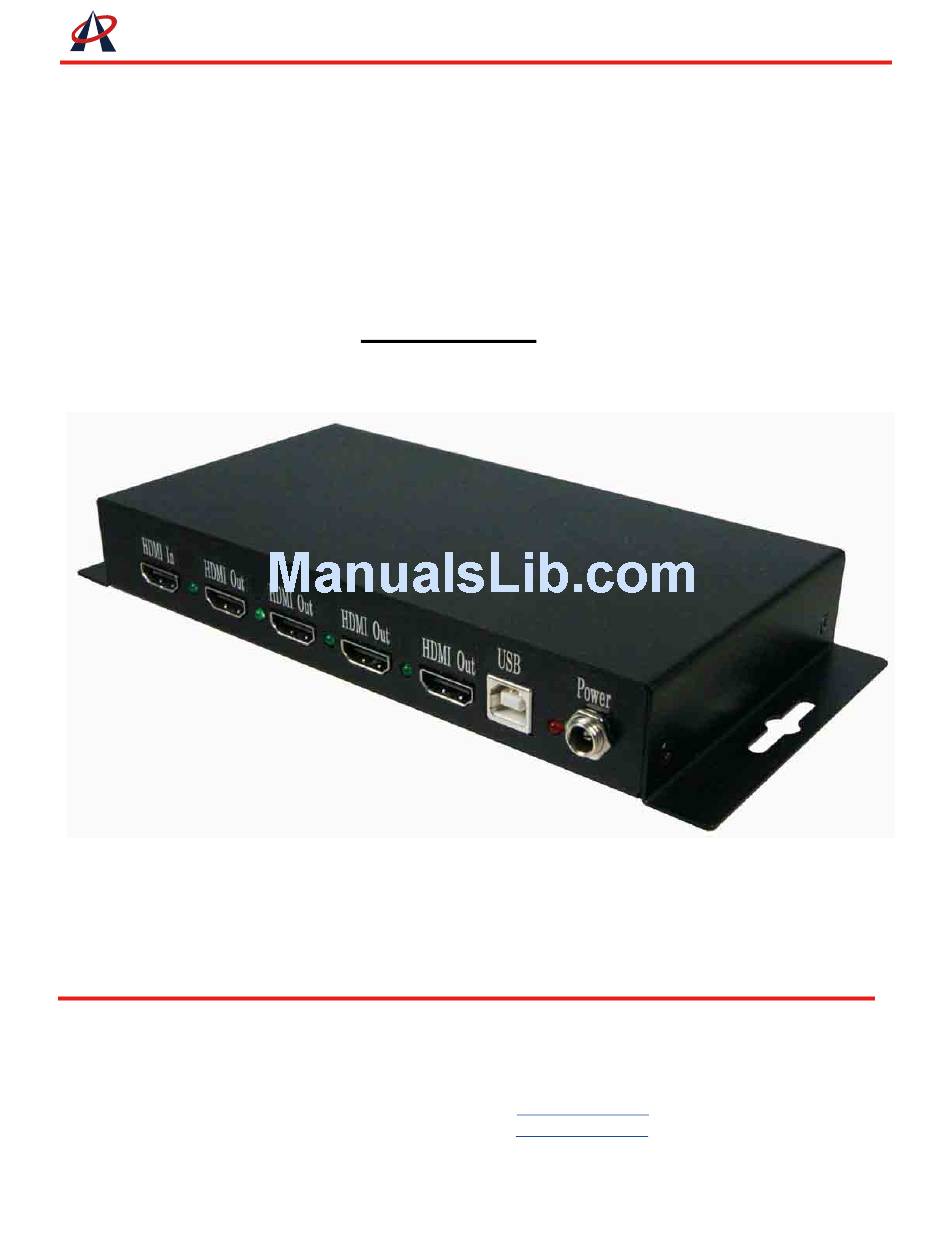

ACE PLUS CORP. EX-G090 1x4 HDMI 1.3 Distribution Amplifier with CEC Control User Manual Page 1 of 8 Headquarters : 9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian, Taipei, Taiwan 231 TEL: +886-2-2912-4201 FAX: +886-2-2912-3164 Website: www.ace-plus.com www.ace-plus.tw... -
Page 2: Safety And Notice
However, like all electronic equipments, the EX-G090 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 HDMI sources and receivers can be further guaranteed. With 12 bit deep color video and high definition audio support, EX-G090 is suitable for high quality A/V broadcasting, digital signage and education applications! Furthermore, the embedded separate CEC paths provide independent CEC communication channels between CEC capable source and all the individual receivers.
-
Page 4: Specifications & Package Contents
Metal Model: Dimensions (L x W x H) Package: 330 x 200 x 95mm [1’1”x7.9”x3.7”] Carton: 495 x 440 x 380mm [1’7.5”x1’5.3”x1’3”] Weight EX-G090: / Package: Fixedness Wall-mounting case with screws upon request Power supply 5V 2A DC Power consumption... -
Page 5: Panel Descriptions
ACE PLUS CORP. Panel Descriptions Rear Panel 1. HDMI IN: HDMI input source 2. HDMI OUT: Distributed HDMI outputs 3. USB IN: For firmware update use only 4. Power Indicator: When power on, the LED will blink. 5. DC IN: 5V 2A When the connected HDMI equipped monitor is verified as HDMI and HDCP compliant, the corresponding green LED will blink. -
Page 6: Hardware Installation
ACE PLUS CORP. Hardware Installation Broadcasts HDMI signal to 4 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the receivers. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply. - Page 7 ACE PLUS CORP. Notice 1. While connecting a new monitor to the splitter, experiencing a short period of time no display may be expected. Automatic EDID learning will analyze the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2.
-
Page 8: Limited Warranty
ACE PLUS CORP. Limited Warranty The SELLER warrants the EX-G090 1x4 HDMI 1.3 Distribution Amplifier with CEC Control to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year...
