EX-G049
1x8 HDMI 1.3 Distribution Amplifier
User Manual
Headquarters :
Page 1 of 7
9F.-2, No.190, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan
JAN 31 / 2011
Tel : +886-2-2912-4201
Fax : +886-2-2912-3164
Version 1.0
E-Mail: marketing@ace-plus.com
Technical Support: vincent@ace-plus.com
http://www.ace-plus.com
http://www.ace-plus.tw
Advertisement
Table of Contents
Related Manuals for Ace Plus EX-G049
Summary of Contents for Ace Plus EX-G049
-
Page 1: User Manual
ACE PLUS CORP. EX-G049 1x8 HDMI 1.3 Distribution Amplifier User Manual Headquarters : Page 1 of 7 9F.-2, No.190, Sec. 2, Zhongxing Rd., Xindian Dist., New Taipei City 231, Taiwan JAN 31 / 2011 Tel : +886-2-2912-4201 Fax : +886-2-2912-3164 Version 1.0... - Page 2 ACE PLUS CORP. Features HDMI 1.3c and DVI 1.0 compliant HDCP 1.2 compliant Wide Frequency Range: 25MHz~225MHz Video bandwidth: 6.75GBPS Supports conversion of HDMI signaling to DVI Resolution up to 1080p or WUXGA Automatic EDID learning Supports xvYCC Supports CEC (not bypassing)*...
- Page 3 Model: mm [] Dimensions (L x W x H) Package: mm [] Carton: 495 x 440 x 380mm [1’7.5”x1’5.3”x1’3”] Weight EX-G049: 630g [1.4 lbs] / Package: 997g [2.2 lbs] Fixedness Wall-mounting case with screws upon request Power supply 5V 4A DC...
-
Page 4: Rear Panel

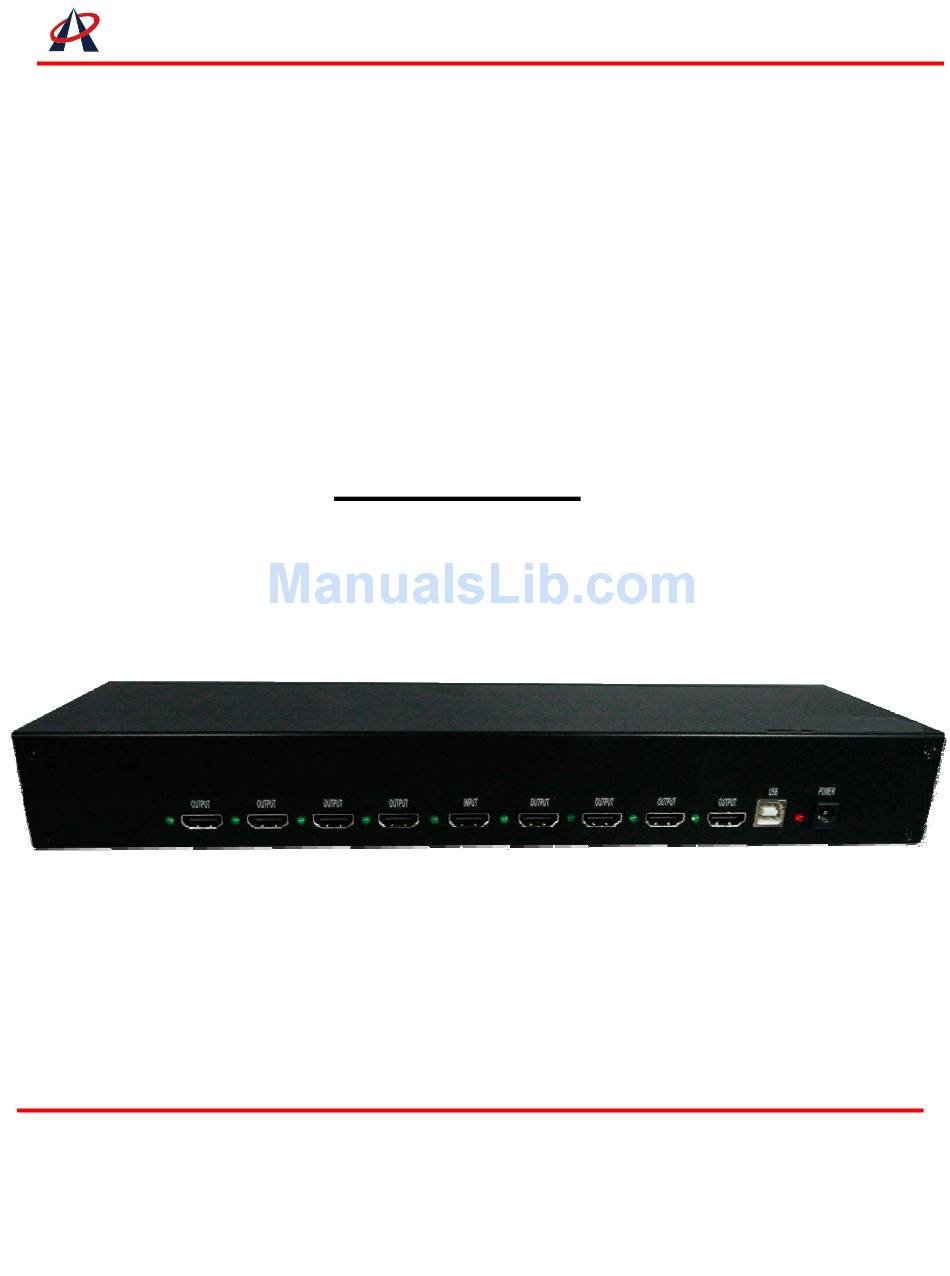

ACE PLUS CORP. Panel Descriptions Rear Panel 1. HDMI OUT: Distributed HDMI outputs 2. HDMI IN: HDMI input source 3. USB IN: For firmware update use only 4. Power Indicator: When power on, the LED will blink. 5. DC IN: 5V 4A When the connected HDMI equipped monitor is verified as HDMI and HDCP compliant, the corresponding green LED will blink. - Page 5 ACE PLUS CORP. Hardware Installation Broadcasts HDMI signal to 8 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the receivers. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply.
- Page 6 HDMI extenders. Limited Warranty The SELLER warrants the EX-G049 1x8 HDMI 1.3 Distribution Amplifier to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period,...
- Page 7 However, like all electronic equipments, the EX-G049 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
