Summary of Contents for StarTech.com USBAUDIO5CH

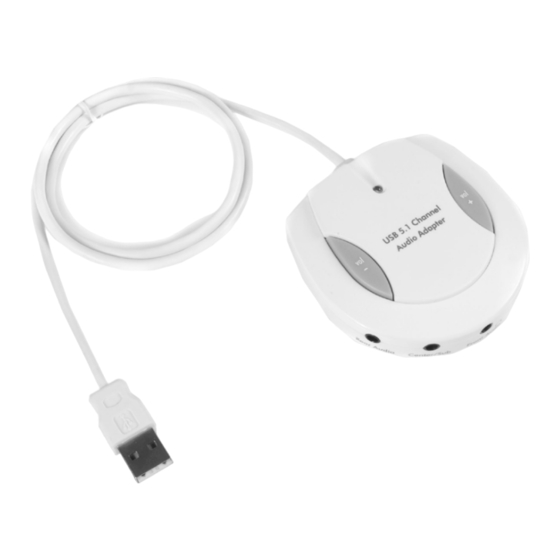

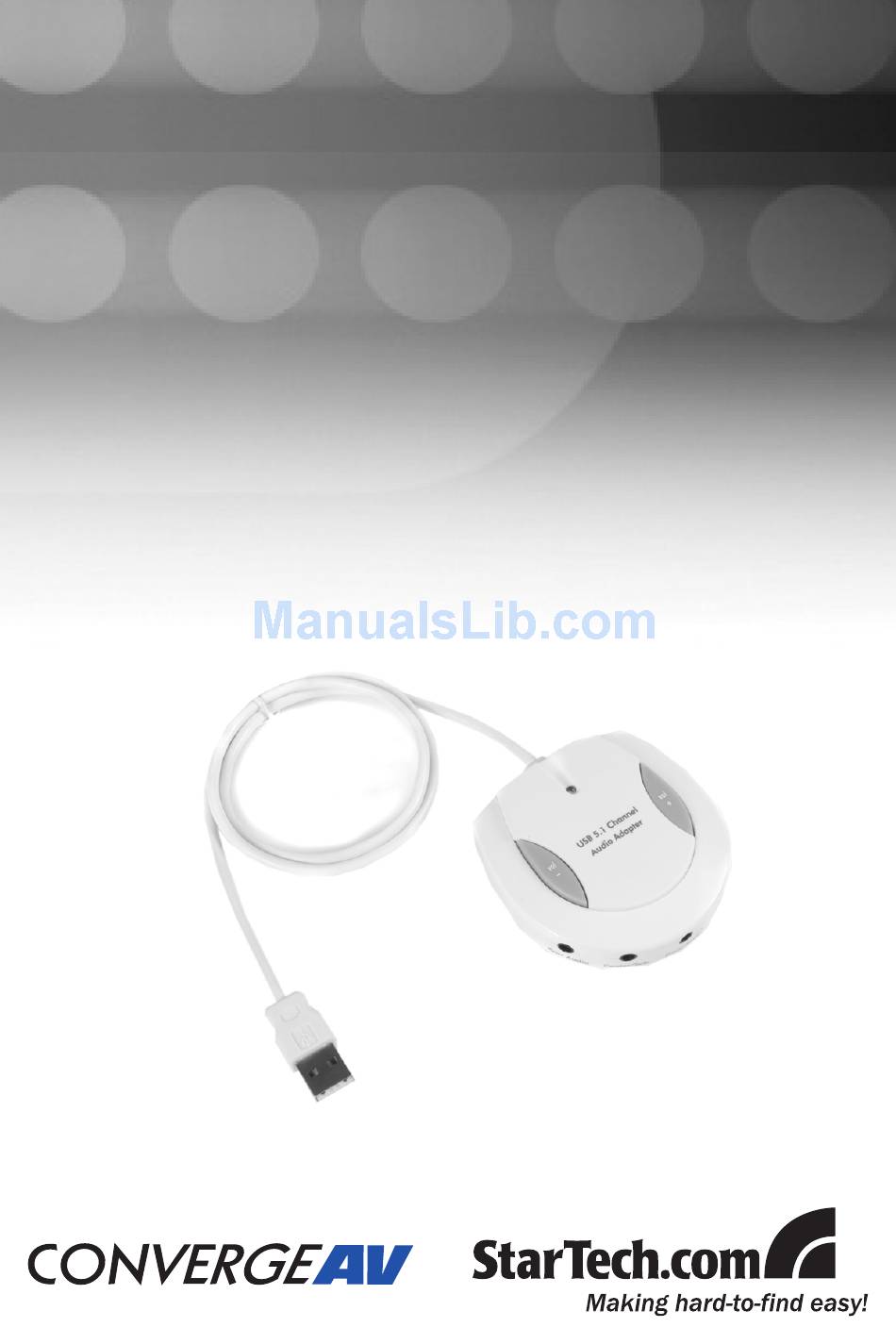

- Page 1 USB 5.1 Channel Audio Adapter USBAUDIO5CH...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 System Requirements ..............1 Installation ..................2 Driver Installation .................2 Windows® 2000/XP ..............2 Windows Vista™..............3 Verifying Successful Driver Installation ........3 Sound Station Software Utility .............4 Accessing Sound Station Configuration ........5 Specifications ................ -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com USB Audio Adapter. Offering a simple way to add 5.1 channel sound to a computer without even having to open the case, this device is designed to provide maximum quality 5.1 Audio using a single USB port, eliminating the need to install a soundcard or make use of onboard audio capabilities. -
Page 5: Installation
Driver Installation Windows® 2000/XP With the computer in a powered state: Insert the USB connector provided by USBAUDIO5CH into an available USB port on the host computer. The operating system will detect that the device has been connected and automatically begin the software installation process. When the... -
Page 6: Windows Vista
Windows Vista™ Driver Installation on the Windows Vista™ operating system is fully automated. To initiate installation, simply connect USBAUDIO5CH to the host computer, and allow installation to complete. Following installation of the necessary files, you will see a message indicating that the ...software for this device has been successfully installed. -
Page 7: Sound Station Software Utility
Sound Station Software Utility Please note: The Sound Station software utility is designed for use with a Microsoft® Windows Operating system. If you are using USBAUDIO5CH with a Mac-based computer, audio configuration must be done from within the operating system-based controls provided. -
Page 8: Accessing Sound Station Configuration
Instruction Manual Accessing Sound Station Configuration To configure Sound Station to the desired settings, double-click on the Sound Station icon located in the taskbar, and selecting Open Setting. From within the Configuration Utility, you will be able to change the necessary audio settings to suit any environment:... -
Page 9: Specifications
Instruction Manual Specifications Transfer Rates supported 1.5, and 12Mbps Sampling Rate 48KHz analog recording and playback Output Channels 6 / 5.1(maximum) Input Channels 2 (Stereo or Mono) USB HID USB HID class specification version 1.1 USB Specification USB 1.1 compliant 1 x 3.5mm microphone input Input Connectors 1 x 3.5mm line IN... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 Cable Finder, Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT or A/V solution. Find out for yourself why our products lead the industry...
