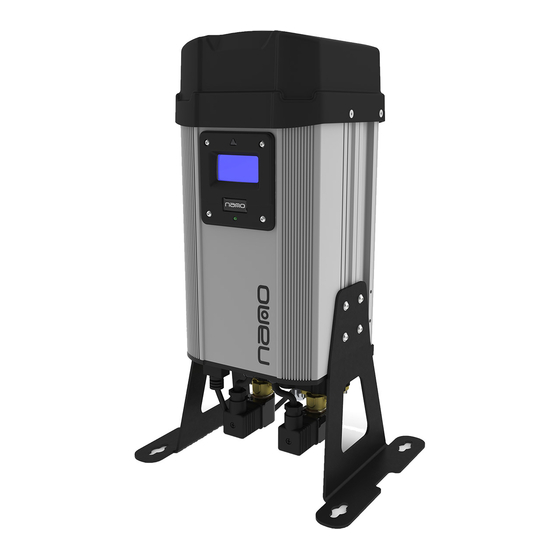

NANO NDL 010 User Manual
Heatless desiccant air dryer
Hide thumbs
Also See for NDL 010:
- Maintenance service manual (22 pages) ,
- Maintenance service manual (26 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NANO NDL 010
Summary of Contents for NANO NDL 010
- Page 1 Heatless Desiccant Air Dryer User guide...
- Page 2 User Guide - Heatless Desiccant Air Dryer nano–porous systems Dryer range: NDL 010 NDL 020 NDL 030 NDL 040 NDL 050 17-100-0100...
-
Page 3: Table Of Contents
nano-porous systems Ltd Contents Title Page 1. General information ..................4 Document introduction Manufacturers details Warranty guidelines Packaging Dryer contents 2. Technical description ..................7 3. General safety ....................8 Intended use of the dryer Personnel Safe handling 4. Installation & operation ................. 9 Typical Installation Site selection Dryer start-up... -
Page 4: General Information
User Guide - Heatless Desiccant Air Dryer 1. General information Copyright This manual is copyrighted, all rights reserved. It may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine readable form without prior consent in writing from nano-porous systems limited. -
Page 5: Manufacturers Details
nano-porous systems Ltd 1.2 Manufacturer’s details For all enquiries please contact our Head Office: 1.3 Warranty guidelines All dryers are supplied with a 12 month manufacturer’s warranty from the date of purchase. For further information please refer to the ‘warranty guidelines’ section on our www.ctarefrigeracion.com website: 1.4 Packaging... -
Page 6: Dryer Contents
User Guide - Heatless Desiccant Air Dryer 1.5 Dryer contents 1 x Heatless desiccant-air dryer Packaging: 2 x Packing support cushions 3 x power IEC cables: 1 x UK 1 x Europe 1 x North America Dryer stand components: 2 x Brackets* 8 x M4 socket button head screws* 1 x Allen key * Note:... -
Page 7: Technical Description
nano-porous systems Ltd 2. Technical description The n-psl dryer uses the pressure swing adsorption principle of drying compressed air, utilising two identical columns each containing a hygroscopic desiccant bed. Wet air enters the dryer through the inlet valve and is directed into one of the columns. -
Page 8: General Safety
User Guide - Heatless Desiccant Air Dryer 3. General safety For your own safety, when carrying out work on the dryer, please comply with all relevant national safety regulations relating to pressurised systems. 3.1 Intended use of the dryer The dryer is exclusively intended for drying compressed air, which is free from bulk water, oil and solid matter constituents. -
Page 9: Installation & Operation
nano-porous systems Ltd 4. Installation & operation 4.1 Typical installation Figure 3: Dryer installation 4.2 Site selection When selecting an installation site for the dryer, the following conditions should be met: • Installation site should be protected from the weather and other harmful conditions. -
Page 10: Dryer Start-Up
User Guide - Heatless Desiccant Air Dryer 4.3 Dryer start-up • Electrical connections. To set up for compressor eco mode. Remove the link between pins 1 and 4 in the Hirschman connector, located underneath the dryer. A zero volt switching signal from the compressor needs to connect between pins 1 and 4. -
Page 11: Monitoring Dryer Performance (Energy Saving Option)
nano-porous systems Ltd 4.4 Monitoring dryer performance (Energy saving option) • The dew-point is displayed on the control panel. When the dew-point displayed is better than -48° C PDP the dryer will switch into ec onomy mode and stop cycling. When the dew-point degrades to -42°... -
Page 12: Maintenance
User Guide - Heatless Desiccant Air Dryer 5. Maintenance Maintenance operations should only be carried out by authorised personnel. 5.1 Maintenance guidelines • Maintenance operations only to be conducted when the system has been shut down and fully depressurised. • All connections must be undone with care, paying particular attention to the areas that become pressurised. -
Page 13: Troubleshooting
nano-porous systems Ltd 6. Troubleshooting Problem Probable Cause Solution 1. Insufficient inlet pressure 1. Inlet pressure = min 4 bar. If not adjust inlet pressure settings. 2. Electrical Fault 2. Ensure the power is on and the dryer front panel is illuminated;... -
Page 14: Technical Specification
User Guide - Heatless Desiccant Air Dryer 7. Technical specification • Flow rates are based on air inlet pressure of 7.0 barg (100 psig) and temperature of 37.7C (100F). • For dryer performance at other inlet conditions or -70C (-100F) dewpoint requirements, Please see www.compressedairtreatment.com. - Page 15 nano-porous systems Ltd Notes: 17-100-0100...
- Page 16 User Guide - Heatless Desiccant Air Dryer 17-100-0100...
