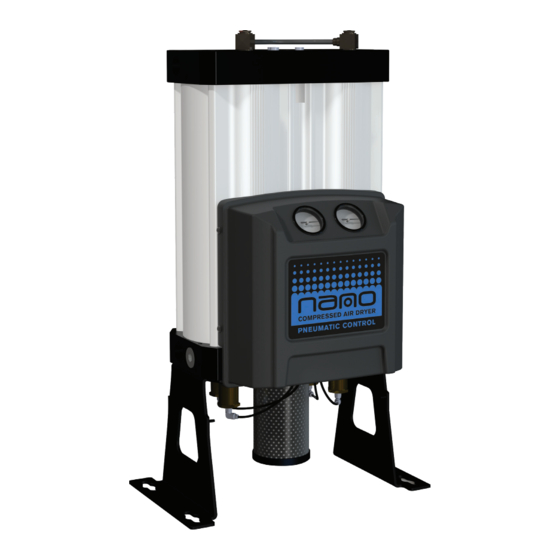

NANO D2 User Manual
Pneumatic heatless desiccant dryer
Hide thumbs
Also See for D2:
- User manual (24 pages) ,
- Maintenance service manual (29 pages) ,
- Maintenance service manual (30 pages)
Related Manuals for NANO D2
Summary of Contents for NANO D2

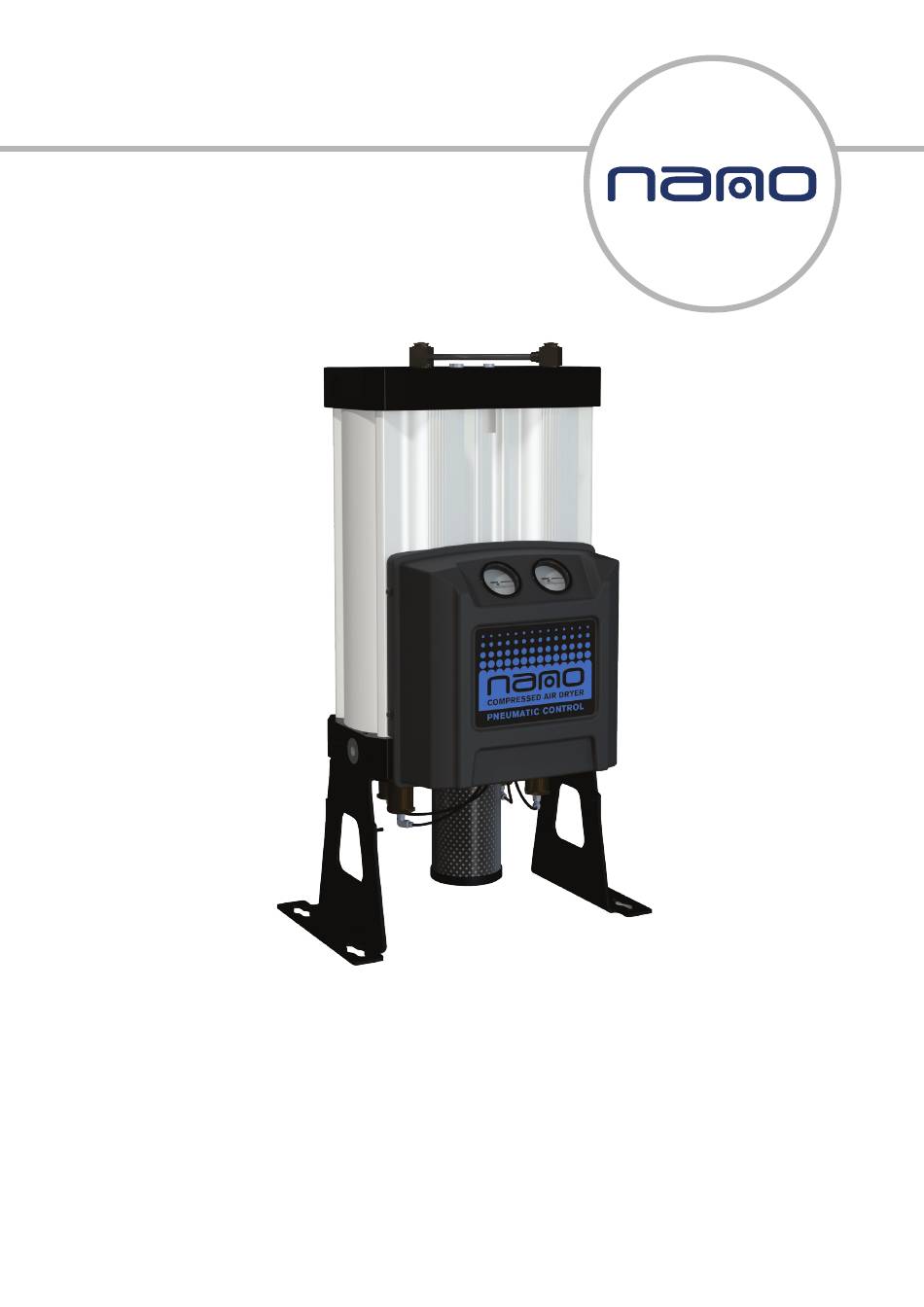

- Page 1 User Guide pneumatic heatless desiccant dryer revision: REV;2022-019 document: 17-100-0119 © 2022 Air & Gas Solutions LLC. www.n-psi.co.uk...
- Page 2 They are the contractors who install them, the manufacturers who use them in their processes and the service people who maintain them. At nano we have developed our products, packaging and support materials to ensure they exceed all of our Customers’...
-
Page 3: Table Of Contents
table of contents section description page general information manufacturer details and support document introduction warranty guidelines packaging damage to packaging general safety intended use of the product personnel 1.10 safe handling technical specification flow rates correction factors product dimensions product overview system layout site location maintenance and servicing... -
Page 4: General Information
Dukesway Team Valley Trading Estate Gateshead NE11 0PZ United Kingdom telephone: +44 (0) 191 497 7700 internet: www.n-psi.co.uk email sales@n-psi.co.uk germany - nano-purification solutions GmbH. address: Erkelenz Germany telephone: +49 2151 4828 418 internet: www.n-psi.de email sales@n-psi.de usa - nano-purification solutions inc. -
Page 5: Document Introduction
pneumatic heatless desiccant dryer 1.3 document introduction This manual provides factory prescribed installation and maintenance procedures for a series 2 heatless desiccant compressed air dryer. The procedures illustrated in this document are only to be performed by authorized personnel. For further information regarding the procedures outlined in this document contact the manufacturer before proceeding. -
Page 6: General Safety
pneumatic heatless desiccant dryer 1.7 general safety No modifications must be made to the product. Any modifications may reduce the operational safety of the product and invalidate the manufacturer’s warranty. This could potentially result in damage to the product and serious personal injury. For your own safety, when carrying out work on this product, all relevant national safety regulations must be complied with relating to pressurized and electrical systems. -
Page 7: Technical Specification
pneumatic heatless desiccant dryer 2.1 technical specification specifications standard maximum water content (ISO class) (4) class 2 -40°C (-40°F) pdp minimum operating pressure 6 barg (87 psig) maximum operating pressure 16 barg (232 psig) recommended operating temp range 1.5 to 35°C (35 to 95°F) design operating temperature range 1.5 to 50°C (35 to 122°F) All dryers should be preceded by a coalescing filter regardless of oil or oil free applications, a 0.01mg/m... -
Page 8: Product Dimensions
pneumatic heatless desiccant dryer 2.4 product dimensions DIMENSION C DIMENSION B weight model inches inches inches inches inches NDM-060-PNU 28.9 26.81 44.0 NDM-070-PNU 28.9 26.81 44.0 NDM-080-PNU 36.0 33.89 54.0 NDM-090-PNU 36.0 33.89 54.0 16.7 12.4 NDM-100-PNU 1090 42.9 1036 40.78 64.0 NDM-110-PNU... -
Page 9: Product Overview
pneumatic heatless desiccant dryer 2.5 product overview number description number description compressed air inlet inlet valve ‘A’ compressed air outlet inlet valve ‘B’ dryer column exhaust valve ‘B’ exhaust silencer pneumatic control box exhaust valve ‘A’ purge control... -
Page 10: System Layout
pneumatic heatless desiccant dryer 2.6 system layout by pass) IMPORTANT: It is essential that the system into which the dryer module is installed is fitted with a pressure limiting/ relief device. This device should be installed between the compressor and the dryer module. 2.7 site location When selecting an installation site for the dryer, ensure the following conditions are met: •... -
Page 11: Maintenance And Servicing
pneumatic heatless desiccant dryer 3.1 maintenance and servicing Maintenance operations should only be carried out by authorized, suitably trained personnel. • Maintenance operation should only be conducted when the system has been shut down and fully depressurized. • Isolate the dryer from the compressed air supply ensuring the system is in a safe condition for maintenance to be carried out. •... -
Page 12: Service Schedule And Breakdown
pneumatic heatless desiccant dryer 3.4 service schedule and breakdown service year 1 year 2 year 3 year 4 year 5 year 6 year 7 year 8 (12 months) (24 months) (36 months) (48 months) (60 months) (72 months) (84 months) (96 months) ... -
Page 13: Service Kits And Spares
pneumatic heatless desiccant dryer 3.5 service kits and spares service B model service A service C standard -40˚F (-40˚F) NDM-060-PNU NDK-060 NDM-070-PNU NDK-070 (x1) OVSK-130 NDM-080-PNU NDK-080 (x2) NDB-100 NDM-090-PNU NDK-090 ESK-130 NDM-100-PNU NDK-100 NDM-110-PNU NDK-110 (x1) OVSK / (x1) NDB-100 NDM-120-PNU NDK-120 (x1) NDB-130... -
Page 14: Service Record
pneumatic heatless desiccant dryer 4.1 service record part number serial number installed by installation date serviced by service hour run date comments / observations interval (if applicaple) print sign year 1 year 2 year 3 year 4 year 5 year 6 year 7 year 8 year 9... -
Page 15: 4.2 Trouble Shooting
pneumatic heatless desiccant dryer 4.2 trouble shooting problem problem caused solution Inlet pressure should be a minimum of 6 barg (87 psig) if not then Insufficient inlet pressure adjust inlet pressure settings. Eliminate the cause of contamination, replace desiccant cartridges (do Moist or contaminated desiccant not re-use). -
Page 16: Process And Instrumentation Diagram
pneumatic heatless desiccant dryer 4.3 process and instrumentation diagram INLET ‘A’ INLET ‘B’ VALVE VALVE COMPRESSED AIR INLET... -
Page 17: Notes
pneumatic heatless desiccant dryer 5.0 notes... - Page 18 pneumatic heatless desiccant dryer 6.0 notes...
- Page 19 pneumatic heatless desiccant dryer notes...
- Page 20 Experience. Customer. Service. nano-purification solutions gateshead, united kingdom tel: +44 (0) 191 497 7700 sales@n-psi.co.uk www.n-psi.co.uk nano-purification solutions nano-purification solutions erkelenz, germany st. catharines, ontario, canada tel: +49 (0) 2151 482 8218 tel: +1 905 684 6266 sales@n-psi.de support@n-psi.com www.n-psi.de www.n-psi.com...
