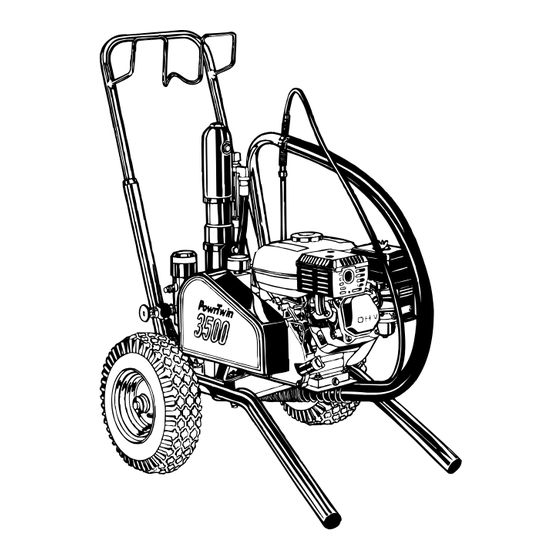

Owner’s Manual For professional use only Do not use this equipment before reading this manual! PowrTwin 3500 50th Anniversary Special Model Number: Gas Bare 335-580 NOTE: This manual contains important warnings and instructions. Please read and retain for reference. Printed in the U. S. A.
English Congratulations on having selected the finest airless sprayer 313-1307 labels, order directly from available in the world. Speeflo piston pumps are tireless Speeflo free of charge. workhorses — so tough they are virtually indestructible, even 313-785 French under the most severe service.
Page 3
• Always flush unit into a separate metal container, at low WARNING pump pressure, with spray tip removed. Hold gun firmly against side of container to ground container and prevent static sparks. HAZARD: Injection injury - A high pressure stream •...
Grounding Instructions Gasoline Engine Safety Electric models must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric WARNING shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug.
Specifications Gas Units Delivery (GPM) (LPM) Cycles per gallon Cycles per liter Cycles per minute (maximum) Maximum Tip Size - 1 Gun .034" Maximum Tip Size - 2 Guns .025" Maximum Tip Size - 3 Guns .019" Pressure Range (psi) 400 - 3300 Pressure Range (bar) 28 - 228...
If spark knock or pinging persists, consult your authorized 5. Fill the wet-cup 1/2 full with Speeflo Piston Lube (P/N 700- Honda dealer. Failure to do so is considered 925) supplied by the factory. This extends packing life.
CAUTION trigger open, without spray tip attached, until the fluid flows smoothly. Use of Speeflo's Coolflo™ Hydraulic Fluid is mandatory in 7. Repeat above starting procedure with paint material. Lock the PowrTwin hydraulic system. Do not use any other gun trigger and attach spray tip. Refer to the spray gun’s hydraulic fluid.
Cleanup Color Change/Clean Out WARNING CAUTION Use only compatible solvents when cleaning out oil based Special cleanup instructions for use with flammable enamels, lacquers, coal tar, and epoxies. Check with the solvents: fluid manufacturer for the recommended solvent. • Always flush spray gun preferably outside and at 1.
2. Change the hydraulic fluid every twelve months. Drain the from your local Honda dealer. old fluid from the tank and fill with 5 quarts of Speeflo Coolflo™ Hydraulic Fluid. Start operation of the unit at Engine Operation and Service just enough pressure to operate the fluid pump.
Troubleshooting Airless Gun Problem Cause Solution Spitting gun 1. Air in system 1. Inspect connections for air leaks. 2. Dirty gun 2. Disassemble and clean. 3. Needle assembly out of adjustment 3. Inspect and adjust. 4. Broken or chipped seat 4.
Troubleshooting Hydraulic Motors Solution Problem Cause 1. If connecting rod is okay, remove cylinder Oil motor stalls at bottom (no 1. Fluid pump piston seat unthreaded head plug and pop valve down. Replace unusual heat problems) plug and start machine. If machine cycles up and stops at bottom again, then problem is piston seat on fluid pump.
Troubleshooting Spray Patterns Problem Cause Solution Tails 1. Inadequate fluid delivery 1. Fluid not atomizing correctly: Increase fluid pressure. Change to smaller tip orifice size. Reduce fluid viscosity. Reduce hose length. Clean gun and filter(s). Reduce number of guns using pump.
Sécurité MESURES PRÉVENTIVES: • Veiller à éviter toute accumulation de vapeurs inflammables en Le présent manuel comprend des renseignements devant être lus vous assurant que la zone où la pulvérisation a lieu est attentivement avant toute utilisation de l'appareil. Lorsque l'un des suffisamment ventilée.
Page 15
DANGER: GÉNÉRALITÉS - Peut causer des dommages Sécurité du moteur à essence matériels ou corporels sérieux. MESURES PRÉVENTIVES: AVERTISSEMENT • Avant d'utiliser tout équipement, lire attentivement toutes les instructions et les consignes de sécurité L’État de la Californie reconnaît que les gaz d’échappement de •...
Seguridad • Evite todas las fuentes de ignición como son las chispas electrostáticas, llamas abiertas, flamas de piloto, objetos Este manual contiene información que debe leer y comprender antes calientes, cigarros, y chispas que se generan al conectar y de usar el equipo. Cuando se encuentre con uno de los siguientes desconectar las extensiones o de apagadores de luz que estén símbolos, asegúrese de observar sus indicaciones de seguridad.
Page 17
• Observe todos los códigos locales, estatales y nacionales Seguridad con los motores de gasolina apropiados que rigen las medidas de ventilación, prevención de incendios y operación. ADVERTENCIA • Los Estándares de Seguridad del Gobierno de los Estados Unidos se han adoptado bajo el Acta de Seguridad y Salud El escape del motor de esta unidad contiene químicos que el Ocupacionales (OSHA por sus siglas en inglés).
DC — Electric Convertokits ON/OFF switch is also circuit breaker reset CSA Approved Motor 506-217 506-204 506-214 115V CSA, 115V 220V Item Part # Description Qty. Qty. Qty. 506-259 Cover ..............1 ....1 ....1 860-501 Nut stop ..............4 ....4 ....4 860-002 Lock washer............4 ....4 ....4 860-004 Flat washer .............8 ....8 ....8...
Page 21
Electric Convertokit Service Instructions 4. Inspect the commutator for burning, excessive pitting or gouging. A black color on the commutator is normal. WARNING Before servicing the electric motor, follow the Pressure Relief Procedure in the Cleanup section of this manual. Once you have completed this procedure, unplug the power supply cord.
Hydraulic Motor Disassembly of Hydraulic Motor Disassembly of the hydraulic motor must be carried out in an absolutely clean area. Any dust or metallic particles left in the Torque head plug to motor or entering it on reassembly may damage the critical Torque flex locknut to 15 ft./lbs.
Page 25
See page 31 for installation instructions. Item Part # Description Quantity Reassembly of Hydraulic Motor 1. Separate spool/sleeve set (5). Place o-rings (6) onto 235-018 Trip retainer ..........2 sleeve. Lubricate o-rings with hydraulic oil. Gently push the 141-007 O-ring ............2 sleeve into cylinder head (11) with the flatter side of the 325-005 Trip spring, ..........2...
235-028 Rod seal ...........1 or if pump strokes become faster on one stroke or the other. The use of Speeflo Connecting Pin Arrangement Piston Lube (P/N 700-925) is recommended as an upper packing lubricant. DO NOT SUBSTITUTE OIL, WATER, OR SOLVENT for an upper packing lubricant.
Page 27
4. Remove the motor/pump block, PTFE o-ring (3), upper packing spring (5), and upper packing set (4). 5. Hold the displacement rod (6) in a vise by the flats at the top of the displacement rod and remove the piston seat (11) with a wrench while holding the displacement rod horizontal with wooden support, if necessary.
Outlet Accessories Cleaning Clean the filter regularly. Dirty or clogged filters can greatly reduce filtering ability and cause a number of system problems 920 Outlet Manifold Filter Assembly including poor spray patterns, clogged spray tips, etc. To clean the filter, shutoff the system and relieve all system pressure.
SAE O-Ring Fitting Installation Accessories and Service Kits These items may be purchased separately from your local Speeflo distributor. Steps 1 & 2: Lubricate Part # Description 103-826 5 Gal. Siphon Hose Assembly w/Rock Catcher 1" x 4-1/2"' Lubricate 103-827 55 Gal.
Titan Tool Inc. warrants all equipment manufactured by it and bearing its brand names to be free from defects in material and workmanship at the time of sale by an authorized Speeflo distributor. Titan Tool Inc. will for a period of twelve months (twenty-four months on selected air powered models) from the date of sale, repair or replace any part of the equipment proven defective.
