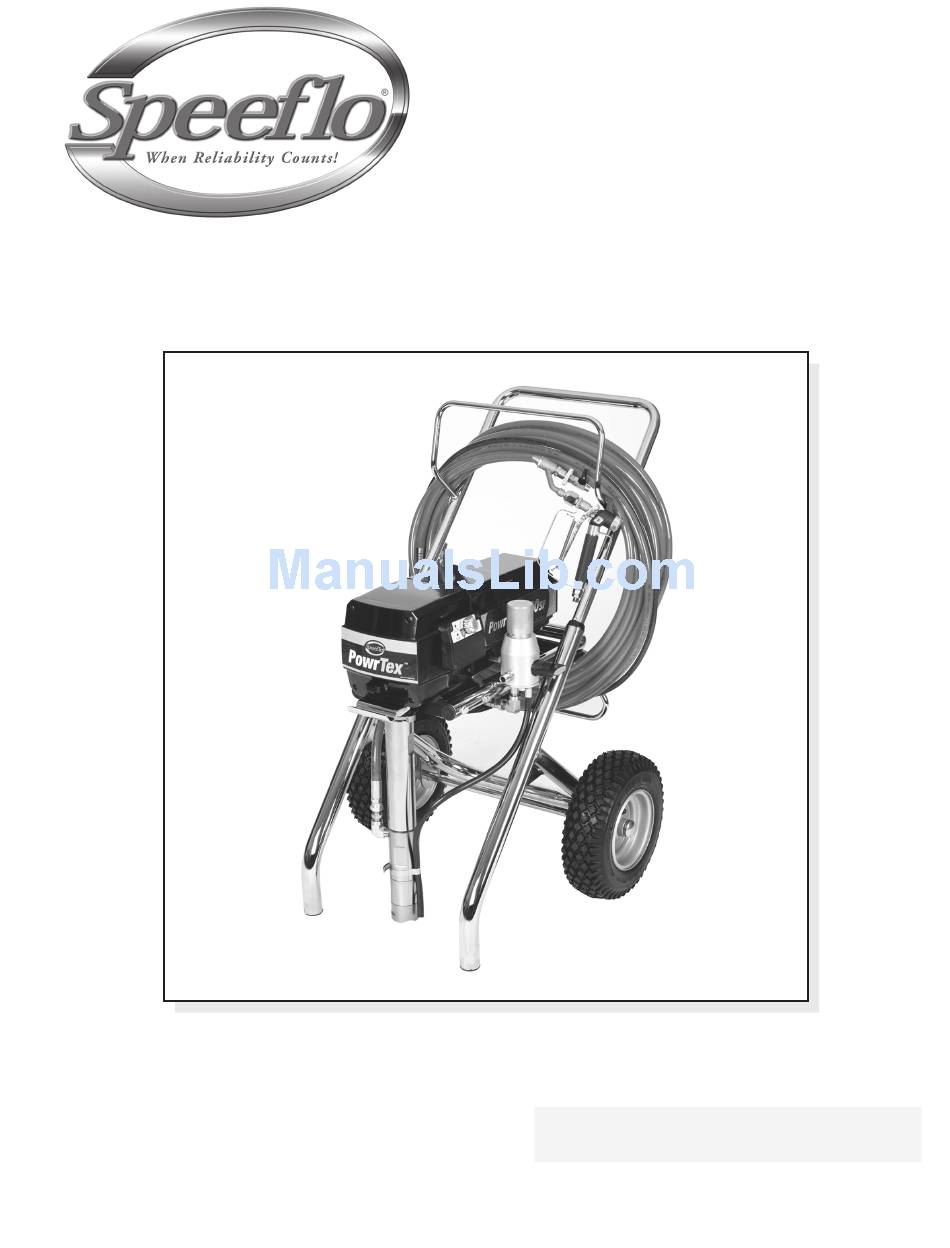

PowrTex 1200 SF
Airless Texture and Paint Sprayer
Model Numbers:
Complete
600- 150
Bare
600- 151
Printed in the U. S. A.
Owner's Manual
For professional use only
Do not use this equipment
before reading this manual!
NOTE: This manual contains important warnings
and instructions. Please read and retain for
reference.
0107 © 2007 Titan Tool Inc. All rights reserved. Form No. 313-2751A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowrTex 1200 SF and is the answer not in the manual?

Questions and answers

Related Manuals for Speeflo PowrTex 1200 SF

Summary of Contents for Speeflo PowrTex 1200 SF

  • Page 1 Owner’s Manual For professional use only Do not use this equipment before reading this manual! PowrTex 1200 SF Airless Texture and Paint Sprayer Model Numbers: Complete 600- 150 Bare 600- 151 NOTE: This manual contains important warnings and instructions. Please read and retain for reference.

  • Page 2: Table Of Contents

    Table of Contents 2. For units intended for use with only water-based materials — Do not spray or clean with flammable Safety Precautions ..............2 liquids. For use with water-based liquids only. Français ................16 3. For units intended for use with only water-based or Español ................18 mineral spirit-type materials with a minimum flash point General Description ...............4...

  • Page 3: Grounding Instructions

    When the sprayer is used with a generator or uncontrolled 4. Stay alert and watch what you are doing. line voltage, the use of Speeflo’s “Line Surge Protector” 5. Do not operate the unit when fatigued or under the (P/N 800-935) is recommended.

  • Page 4: General Description

    General Description WARNING This airless sprayer is a precision power tool used for spraying many types of materials including textured products from a Make sure all airless hoses and spray guns are electrically ready-mixed or powdered formulation. Read and follow this grounded and rated at or above the maximum operating instruction manual carefully for proper operating instructions, pressure range of the airless sprayer.

  • Page 5: Spraying

    4. Set the pressure to minimum by turning CAUTION the pressure control knob to the “Min” Min PSI setting in the yellow zone. (Bar) Always keep the trigger lock on the spray gun in the 5. Move the PRIME/SPRAY valve down to locked position while preparing the system.

  • Page 6: Control Panel Indicators

    Control Panel Indicators Pressure Relief Procedure The following is a description of the control panel indicators. WARNING Be sure to follow the pressure relief procedure when Blinking Yellow 0-200 PSI shutting the unit down for any purpose, including Solid Yellow 201-1900 PSI servicing or adjusting any part of the spray system, Pressure...
  • Page 7 Menu Screens Service Time Screen SERVICE TIME Several menu screens are available for the user to customize The Service Time screen SELECT-4 MENU-1 and monitor sprayer operation. They include Main Screen, allows the user to set a service User Pre-Sets, Volume Pumped, Job Volume, Unit Serial #, time interval (in hours).

  • Page 8: Spraying Technique

    Proper lapping (overlap of spray pattern) is essential to an Pulse Clean Screen even finish. Lap each stroke. If you are spraying horizontally, PULSE CLEAN The Pulse Clean screen aim at the bottom edge of the preceding stroke, so as to lap ACTUAL PSI XXXX appears when the pressure...

  • Page 9: Cleanup

    Ground the gun by holding it against the 4. If you have any further questions concerning your edge of the metal container while SPEEFLO Airless Sprayer, call SPEEFLO: flushing. Failure to do so may lead to a static electric discharge, which may Customer Service (U.S.) .......1-800-526-5362...

  • Page 10: Replacing The Motor Assembly

    Replacing the Motor Assembly Replacing the Gears 1. Perform the Pressure Relief Procedure and unplug the 1. Perform the Pressure Relief Procedure and unplug the sprayer. sprayer. 2. Loosen and remove the four motor shroud screws. 2. Loosen and remove the four motor shroud screws. Remove the motor shroud.

  • Page 11: Replacing The Transducer

    Replacing the Transducer Replacing the PRIME/SPRAY Valve 1. Perform the Pressure Relief Procedure and unplug the Perform the following procedure using PRIME/SPRAY valve sprayer. replacement kit P/N 800-915. 2. Loosen and remove the four motor shroud screws. 1. Push the groove pin out of the valve handle. Remove the motor shroud.

  • Page 12: Servicing The Fluid Section

    Servicing the Fluid Section NOTE: During reassembly, make sure the Viton o-rings and the Teflon back-up rings between the upper Use the following procedures to service the valves and repack housing and lower housing as well as between the fluid section. Perform the following steps before the lower housing and the foot valve housing performing any maintenance on the fluid section.

  • Page 13: Replacing The Filters

    Replacing the Filters Install lower packing with 16. Insert the lower packing partially the side that has the o-ring into the bottom of the upper Gun Filter closest to the face of the housing so that the side that packing facing up. 1.

  • Page 14: Troubleshooting

    4. Faulty or loose wiring. 4. Inspect or take to a Speeflo authorized service center. 5. Excessive motor temperature. 5. Allow motor to cool.

  • Page 15: Xact Digital Control System Error Messages

    3300 PSI / 22.8 MPa. Take the sprayer to a Speeflo authorized service center for repair. Check the paint level and refill. Restart the sprayer by following the “Painting”...

  • Page 16: Français

    Consignes de sécurité 7. N’utilisez pas de peinture ou de solvant contenant du halon, par exemple, le chlore, les agents antimoisissure à Le présent manuel comprend des renseignements devant être l’eau de Javel, le chlorure de méthylène et le lus attentivement avant toute utilisation de l'appareil. Lorsque trichloroéthane.
  • Page 17 6. Ne laissez pas l’appareil sous tension ou sous pression 12. Avant chaque emploi, vérifiez tous les tuyaux pour quand vous vous en éloignez. Quand vous n’utilisez détecter d’éventuelles coupures, fuites, abrasion ou pas l’appareil, éteignez-le et libérez la pression couvercle bombé.

  • Page 18: Español

    Precauciones de seguridad 8. Mantenga la zona de pulverización bien ventilada. Asegúrese de que circula aire fresco por la zona para Este manual contiene información que debe leer y comprender evitar que se acumulen vapores inflamables en el aire antes de usar el equipo. Cuando se encuentre con uno de los de la zona de pulverización.
  • Page 19 Instrucciones para conectar a tierra 9. Este sistema es capaz de producir 3300 PSI / 22.8 MPa. Utilice solamente piezas de repuesto o Este producto se debe conectar a tierra. En caso de que accesorios especificados por el fabricante y con una ocurra un corto circuito, la conexión a tierra reduce el riesgo capacidad nominal de 3300 PSI como mínimo.

  • Page 20: Parts Listings

    Parts List Main Assembly Item Part # Description Quantity Item Part # Description Quantity 800-600 High rider cart ..........1 800-710 Fluid section assembly .......1 800-477 Bolt..............2 730-334 Hose clamp..........1 800-478 Flat washer ..........2 800-904 Return hose ..........1 800-479 Tool box ............1 800-481 Filter plug assembly........1 ----------...

  • Page 21: Drive Assembly

    Drive Assembly Item Part # Description Quantity Item Part # Description Quantity 800-078 Electronic cover ..........1 704-599 Dust cover (for sprayers without Xact 800-205 Screw............3 Digital Control System).......1 800-984 Motor assembly ..........1 704-487 Screw............2 800-525 Housing gasket ...........1 779-567 Strain relief..........1 800-541 Shroud gasket..........1 704-553...

  • Page 22: Fluid Section Assembly

    Item Part # Description Quantity Fluid Section Assembly (P/N 800-710) 800-634 Cylinder............1 800-643 Stopping spacer..........1 800-636 Extension bushing ........1 800-638 Piston extension .........1 800-637 Extension slider ..........1 800-639 Connecting pin..........2 800-325 Upper seal retainer ........1 800-327 Spacer ............1 800-353 Upper packing assembly ......1 800-351 Upper housing ..........1 800-355...

  • Page 23: High Rider Cart

    High Rider Cart (P/N 800-600) Filter Plug Assembly (P/N 800-481) Item Part # Description Quantity 800-612 Filter plug ............1 800-906 O-ring, Teflon ..........1 800-908 Plug, 3/8” ............1 800-901 Filter housing ..........1 800-915 PRIME/SPRAY valve assembly....1 800-907 Plug, 1/4” ............1 800-437 Transducer..........1 NOTE: The flter plug assembly comes installed on the sprayer and is used when spraying...

  • Page 24: Filter Parts

    Filter Parts Labels Part # Description NOTE: The following parts are included with the unit 0551286 Logo label and can be installed into the filter housing 0551287 Front label when spraying standard materials. 313-1673 Warning label (injection/explosion) 313-1847 Shock hazard label 313-2395 Infinity logo label 313-2324...

  • Page 25: Electrical Schematic

    Electrical Schematic NOTE: All electrical work should be performed Transducer Potentiometer by an authorized service center. GREEN Fuse, 15A Ground Switch WHITE Motor AC-Motor AC-Motor BLACK AC-Line AC-Neut Surge Suppressor Control Panel Electronic Control Board Assembly WHITE WHITE © Titan Tool Inc. All rights reserved.

  • Page 26: Accessories

    Accessories LX-80 Airless Gun • 3600 PSI Airless Tip Selection • All metal construction Tips are selected by the orifice size and fan width. The proper • In-handle filter selection is determined by the fan width required for a specific •...
  • Page 27 6,179,222 5,934,883 4,723,892 Des fiches techniques de sécurité des produits (FTSS) sont disponibles sur le site Internet de Speeflo’s ou par téléphone en vous adressant au Service Client. Patentes Estos productos están protegidos por una de las siguientes patentes (U.S.A.):...

  • Page 28: Warranty

    Warranty • Garantie • Garantía Titan Tool, Inc., (“Titan”) warrants that at the time of delivery to the original purchaser for use (“End User”), the equipment covered by this warranty is free from defects in material and workmanship. With the exception of any special, limited, or extended warranty published by Titan, Titan’s obligation under this warranty is limited to replacing or repairing without charge those parts which, to Titan’s reasonable satisfaction, are shown to be defective within twelve (12) months after sale to the End User.
