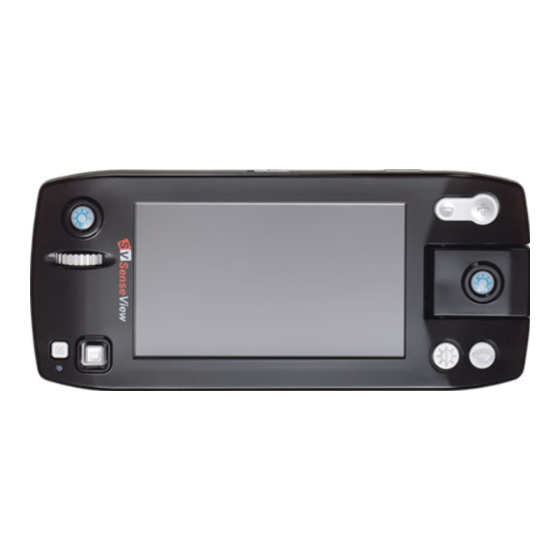

      1. What is the SenseView DUO? The SenseView Duo is a new designed portable magnifier. Whether in the long or short distance, all you need is Duo to magnify text. Duo offers a built-in distance and a close-up camera.
  • Page 5: Safety Precaution

     Do not touch power plug with wet hands to prevent electronic shock.  Only the power adapter supplied by Hims should be used. Other adapter may damage the unit.  Do not use this unit in moisture environment like a bathroom or shower room to prevent any damage.
  • Page 6: Package

    User manual – SenseView DUO 3. Package (1) SenseView DUO (2) AC adapter (3) Carrying bag (4) Strap (5) User manual 6  ...
  • Page 7: Configuration

    User manual – SenseView DUO 4. Configuration )   )   )   )   )   )   )   )   )   (1) Power switch (2) AC Jack (connect to a power adapter) (3) Strap hole (4) Battery charging indicator...
  • Page 8 User manual – SenseView DUO (16)   (15)   (10)   (11 (14)   (13)   )   )     (10) Close-up/handwriting camera indicator (11) Zoom-in button (12) Zoom-out button (13) Image capture button (14) Camera selection switch (15) Distance camera indicator (16) Focus knob for distance camera 8  ...
  • Page 9: After Purchasing

    User manual – SenseView DUO (17) 5. After purchasing (1) Charging Battery must be fully charged approximately for 3 hours prior to initial use.  To charge the battery, plug the supplied AC adapter into the AC adapter jack on the left of the front.
  • Page 10: Remove Lcd Protection Film

    User manual – SenseView DUO (2) Remove LCD protection film A protection film is covered on the LCD. Make sure to take it off before using the unit. 10  ...
  • Page 11: How To Use

    User manual – SenseView DUO 6. How to use (1) Starting the SenseView DUO ① Power on/off  The Power switch is at the left of the front panel. (When you hold the unit with your hands, you can touch it with your left thumb.) ...
  • Page 12: ② Changing The Camera Mode

    User manual – SenseView DUO ② Changing the camera mode You can use the Close-up/handwriting camera for small text such as a regular book and use the Distance camera for objects in the long distance. You can select the camera by using the Camera mode switch.
  • Page 13: Zoom-In/Out

    User manual – SenseView DUO inaccurately, check the indicator whether the camera is selected correctly.  When you use the Close-up/handwriting camera, put the camera on the object that you want to magnify. (2) Zoom-in/out You can adjust the magnification rate, depending on the text size.
  • Page 14 User manual – SenseView DUO 14  ...
  • Page 15: Changing Color

    User manual – SenseView DUO (3) Changing color The image on the LCD screen can be viewed in 7 color modes in the Close-up/handwriting mode and 6 color modes in the Distance mode.  The Color mode button is the right button between two buttons at the lower right of the top panel.
  • Page 16: Changing Brightness

    User manual – SenseView DUO (4) Changing brightness You can adjust brightness for the darker and lighter images depending on material viewing on the LCD.  The Brightness button is the left button between two buttons at the lower right of the top panel.
  • Page 17: ② Storing An Image

    User manual – SenseView DUO ② Storing an image  After capturing an image, press the Image capture button once again more than 1.5 seconds to store the image. After storing the image, it returns to the normal viewing mode.
  • Page 18: Using The Distance Camera

    User manual – SenseView DUO (7) Using the Distance camera With the Distance camera, you can magnify objects over 1m distance.  To use the Distance camera, move the Camera selection switch to the left.  To get a clear view, you need to focus the object as its distance.
  • Page 19: Using The Menu

    User manual – SenseView DUO (8) Using the menu You can see and delete the stored images, turn on/off the light and sound, and check the storage. ① How to use the menu  You can open and close the menu by using the Menu button and set options by using the Panning/selection button.
  • Page 20 User manual – SenseView DUO  To focus next or previous icon, move the Panning/selection button to the left or right.  To execute the focused icon, press the Panning/selection button. ② Opening stored images You can open stored images. You can magnify and change the color of the stored images as well.
  • Page 21 User manual – SenseView DUO  After opening images, you can move to the next or previous images by moving the Panning/handwriting button.  You can magnify current image by pressing the Zoom in/out button. To see the covered part...
  • Page 22 User manual – SenseView DUO  To delete the images, move to the image you want by using the Panning/selection button and press the button. It will move to the next image after deleting.  After deleting an image, you can delete more images by pressing the Panning/selection button repeatedly.
  • Page 23 User manual – SenseView DUO  When the light is on, the Light on icon will be displayed. When the light is off, the Light off icon will be displayed. [Light   on   icon]           [Light   off   icon]  ...
  • Page 24 User manual – SenseView DUO  It will display the capacity of the storage for 3 seconds. ⑥ Sound on/off When you press each button, you can hear a sound to confirm your button stroke. You can turn on/off the sound for your convenience.
  • Page 25: Additional Features

    User manual – SenseView DUO (9) Additional features ① Power saving mode In order to save the battery, the Power saving mode will be activated when you do not use the unit for few minutes.  If you leave the unit turned on and unmoved for 3 minutes or more it automatically goes into a power saving mode.
  • Page 26: ② Checking The Battery Status

    User manual – SenseView DUO ② Checking the battery status The battery indicator icon is displayed at lower right corner on the LCD screen as a 3 segment horizontal bars in an oblong frame.   [A battery charging indicator]  ...
  • Page 27: Zoom Rate Table

    User manual – SenseView DUO 7. Zoom rate table Close-up/handwriting camera Distance from Object Zoom level On Object 15mm Level 1 3.5X Level 2 3.8X 2.1X Level 3 4.6X 2.6X Level 4 5.4X Level 5 6.5X 3.6X Level 6 7.3X Level 7 8.2X...
  • Page 28: Distance Camera

    User manual – SenseView DUO Distance camera ※ Zoom level Digital zoom rate Level 11 단 1.0X 계 Level 2 1.2X Level 3 1.4X Level 4 1.7X Level 5 2.0X Level 6 2.3X Level 7 2.5X Level 8 2.9X Level 9 3.4X...
  • Page 29 User manual – SenseView DUO (2) The power is on, but I can’t get an accurate image.  In the Capturing an image mode, it may seem to be defective. Turn off this mode by pressing the Image capture button.
  • Page 30 User manual – SenseView DUO (5) I wiped the screen, but a piece of dirt still on it.  It may not on the screen but the camera lens. Wipe the camera lens with soft cloth. (6) LCD is too light or too dark.
  • Page 31: Technical Specifications

    User manual – SenseView DUO 9. Technical Specifications (1) LCD: 4.3 inch wide type TFT-LCD (2) Magnification rate: 2X~13.4X (3) Brightness: 4 level (4) Color modes: 7 color modes (5) Camera: Close-up/handwriting camera, Distance camera (6) Battery: Rechargeable lithium polymer (3000mAh, 3.7V)
  • Page 32 User manual – SenseView DUO (NOTE) The warranty term will be different from ※ each country. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 33 User manual – SenseView DUO compliance could void the user’s authority to operate the equipment. 33  ...
