HIMS GoVision GV100 Quick Start Manual

Transportable electronic magnifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
GoVision

Advertisement

Table of Contents
loading

Related Manuals for HIMS GoVision GV100

Summary of Contents for HIMS GoVision GV100

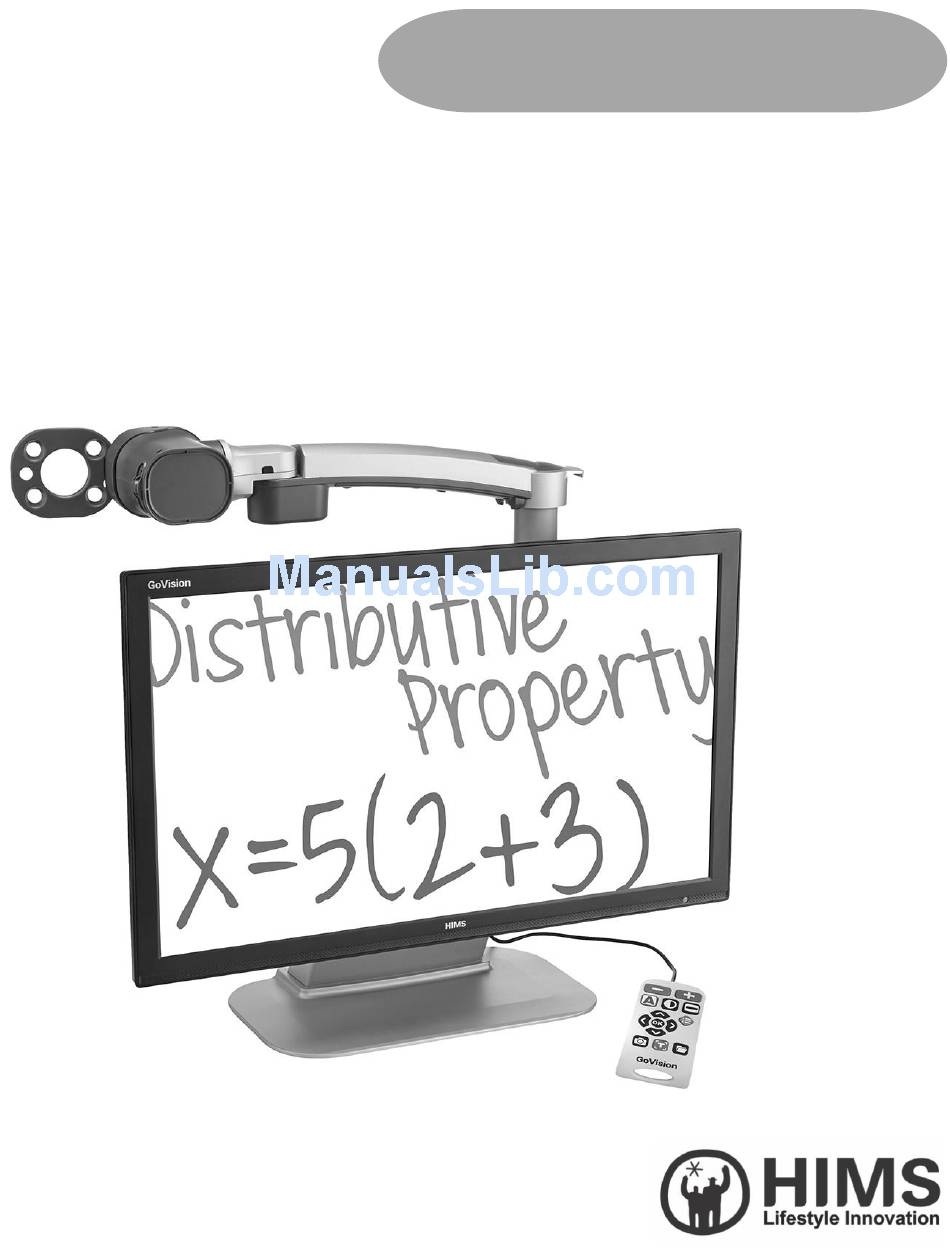

  • Page 1 Quick Start Guide GoVision...
  • Page 3 JAWON Medical CO., LTD. and HIMS Inc., and may not be used without expressed permission from JAWON Medical CO., LTD. This User Guide may not be copied in whole or part, without permission.

  • Page 4: Safety Precautions

    GoVision Quick Start Guide Safety Precautions To ensure your personal safety and the proper use of the product as well as to prevent accidental damage, please be aware of and abide by the following safety precautions. WARNING! For Your Safety Failing to follow the below precautions may cause serious injury or death.
  • Page 5 GoVision Quick Start Guide Safety Precautions Failing to follow the precautions marked with this sign, may result in personal injury or property damage. Do not use loose power outlets, or a damaged power ▪ connector or cord. Do not touch the product, the power connectors, or a wall ▪...

  • Page 6: Product Information

    GoVision Quick Start Guide Product Information Package Contents Please ensure all of the following items are included in your packing box. If any items are missing, please contact the dealer from whom you purchased the product. Note Content may differ slightly from the actual components, as items are subject to change without prior notice to improve the quality of the product.

  • Page 7: Physical Orientation

    GoVision Quick Start Guide Number Name GoVision ① Remote control ② Power adapter ③ HDMI cable ④ Headphone ⑤ Quick start guide ⑥ USB memory ⑦ Optional X/Y moving table ⑧ Physical Orientation Please take a moment to familiarize yourself with the various parts and controls of the GoVision.
  • Page 8 GoVision Quick Start Guide Number Name Jog Switch ① Near View Mode Lens ② Monitor ③ Power Switch ④ Camera Arm ⑤ Camera Connector ⑥ Camera ⑦...
  • Page 9 GoVision Quick Start Guide Back Face Number Name Remote Control Holder ① Lock Lever ② Remote Control Port ③ Power Port ④ HDMI Port ⑤ USB Port ⑥...

  • Page 10: Set Up Govision

    GoVision Quick Start Guide Set up GoVision Powering Up Connect the power adapter to the power port on the back of the product. Connect the power cord to a wall outlet. Remote Control Setup Connect the end of the remote control's cable to the Remote Port on the back of the GoVision.

  • Page 11: Connecting Headphones

    GoVision Quick Start Guide control is ready to use. Connecting Headphones It may be advantageous to use earphones in noisy environments or in environments where you do not wish to disturb those around you. Connect the earphone to the headphone jack located on the right side of the top of the remote control.

  • Page 12: Basic Functions

    GoVision Quick Start Guide Basic Functions Power ON / OFF Press and hold the Power button for more than 3 seconds. The standby screen appears, then the unit powers on. To turn the power off, press the Power button again for more than 3 seconds.

  • Page 13: Camera Setup

    GoVision Quick Start Guide Camera Setup Place the lock lever in the horizontal position. Pull up on the camera arm to adjust the height.
  • Page 14 GoVision Quick Start Guide Return the lock lever back to the vertical position. Adjust the location of the camera by rotating the camera arm.
  • Page 15 GoVision Quick Start Guide You may move the camera left, right, up or down. Using Near View Mode Use Near View to read or view things at close range, such assigning a check or viewing a photo. Rotate the camera arm so that the camera faces the front of the product.
  • Page 16 GoVision Quick Start Guide Make sure the camera is pointed downward. Ensure the Near View lens is closed.
  • Page 17 GoVision Quick Start Guide Using Distance View Mode Use when viewing distant objects, such as a blackboard in a classroom. Rotate the camera arm so that it faces the back of the product. Point the camera so that it is facing the distant target.
  • Page 18 GoVision Quick Start Guide Open the Near View lens. Using Self View Mode Use as a mirror with the added benefit of magnification when applying makeup or performing other facial grooming. Note The maximum distance for Self View Mode is 45 cm from the camera.
  • Page 19 GoVision Quick Start Guide Rotate the camera so that it is facing the front of the product. Point the camera toward your face.
  • Page 20 GoVision Quick Start Guide Set LED Note This setting applies only in in Near View Mode. LED Lights turn off automatically when switching to Distance View Mode or Self View mode. LED ON/OFF Press and hold the center of the Jog Switch for more than 2 seconds.

  • Page 21: Using The Remote Control

    GoVision Quick Start Guide Using the Remote Control...
  • Page 22 GoVision Quick Start Guide Order Button Function Increase and Decrease ① Magnification Adjust Color Mode ② Contrast Adjustment ③ ④ Move Up, Down, Left, and Right ⑤ Select ⑥ FREEZE Execute (optical character ⑦ recognition) File Browser ⑧ Menu, to set User Preferences ⑨...

  • Page 23: Advanced Functions

    GoVision Quick Start Guide Advanced Functions User Preferences You can use the menu to customize many of the features of GoVision. To open the menu, press [ ] on the remote control. Selecting Options Button Functions ① Activate the current menu item ②...
  • Page 24 GoVision Quick Start Guide Menu Items Order Items Light Focus Lock OCR Language Digital Photo Frame Digital Clock Color Mode Settings Marker Settings Voice Settings OCR Settings Language Settings Digital Photo Frame Settings Advanced options Digital Clock Settings Screen Saver settings Camera Frequency My Settings Initialization...

  • Page 25: Screen Magnification

    GoVision Quick Start Guide Screen Magnification Increase and Decrease Magnification You can adjust the screen magnification in 68 increments. Press [ ] to increase magnification, and [ decrease it. The current level is displayed on the screen.
  • Page 26 GoVision Quick Start Guide Check current Reading Position Press and hold [ ] simultaneously. The document is reduced to normal size, and your current position is marked with a cross shape [ + ]. Release the Zoom buttons and you are returned to your previous position and magnification level.

  • Page 27: Color Mode

    GoVision Quick Start Guide Color Mode Note In addition to changing the general color modes, you can use the menu to define 4 of the color modes with text and background colors of your choosing. Cycle through the enabled color modes. To change the Color Mode on the current screen, press...

  • Page 28: Contrast Control

    GoVision Quick Start Guide Contrast Control Due to variations in paper type, text type and color and the background color of documents or books that you are reading, you may need to adjust the contrast from 1 to 40 steps to read the documents or books clearly.
  • Page 29 GoVision Quick Start Guide Note To adjust the contrast, press and hold [ ] while pressing ] or [ ] on the remote control Markers Markers help you to focus on the text that you are reading by narrowing the display area with window markers or by underlining the sentence that you are reading.

  • Page 30: Screen Capture

    GoVision Quick Start Guide Screen Capture To display a still image for a closer look at the content, or to save an image for later viewing, you can capture an image and save the content to a USB flash drive. Screen Capture Press the [ ], and the current image is frozen on the...
  • Page 31 GoVision Quick Start Guide When the image is frozen, you may adjust magnification or color modes, just as with the live view. To return to live viewing, press [ ] again. Saving a Still Image Connect the USB cable to the USB port on the back of the product.
  • Page 32 GoVision Quick Start Guide When “Save photo done” [ ] is displayed and spoken, the image is saved to the USB drive. Note If the USB drive is not connected correctly, the message "Save file failed" is displayed on the screen. The image is saved to the USB as /GoVision/Image/MMDDYYYYhhmm.png.
  • Page 33 GoVision Quick Start Guide reading aloud. Use [ ] or [ ] to read the next and previous sentence, use the [ ] or [ ] to move by paragraph. Press [ ] while reading and playback is paused, pressing [ ] again resumes reading.

  • Page 34: File Viewer

    GoVision Quick Start Guide File Viewer You can use the File Viewer to view saved images, OCR scans, videos, or text-based files. Connect the USB Connect the USB cable to the USB port on the back of the product. Press [ ] on the remote control.
  • Page 35 GoVision Quick Start Guide Image, video, and document files and folders appear on the screen. Use [ ] or [ ] to navigate to your desired file, then press [ To close the document, press [ Document View Setting Button Function Increase and Decrease Magnification...

  • Page 36: Voice Guide

    GoVision Quick Start Guide Voice Guide You can adjust speed, volume and pitch of the voice guide as well as turn it on and off. Press [ ] on the remote control and select [Advanced Options]. Select [Voice Attribute Setting], then press [ ] or Select [Voice Guide], then press [ ] or [...

  • Page 37: Focus Lock

    GoVision Quick Start Guide Focus Lock If there is movement in the camera view, such as when you are writing under it, you may wish to lock the focus so that it doesn't try to follow your hand or pen. Press [ ] on the remote control.

  • Page 38: Digital Photo Frames

    GoVision Quick Start Guide Add-Ons Digital Photo Frames You can view images on a USB drive on GoVision's monitor as a slide show. Note The first time you connect a USB drive to the product, a [GoVision] folder is automatically created. If the folder does not exist, disconnect and reconnect the USB drive.

  • Page 39: Digital Clock

    GoVision Quick Start Guide Press [ ] on the remote control. Select [Digital Photo Frame], then press [ ] or Pictures in the [GoVision] folder are sequentially displayed on the monitor. Note Press [ ] and [ ] simultaneously to start and stop the Digital Photo Frame.

  • Page 40: Screen Savers

    GoVision Quick Start Guide To return to the previous screen, press [ ] or [ Screen Savers In order to protect the screen of the product, you may use the clock or your digital photos as a screen saver. Press [ ] on the remote control and select [Advanced Options].
  • Page 41 GoVision Quick Start Guide Select [Timer Setting], then press [ ] or [ Select [Screen saver operation based on time], then press [ ] or [ Note To activate the screen saver, press [ ], [ ], [ simultaneously. If you press any button on the camera or remote control, or if the camera detects movement while the screen saver is in operation, the screen saver will be canceled.
  • Page 42 GoVision Quick Start Guide Initialization If something doesn't seem to be operating as you think it should, you can restore all settings to the factory defaults. Press [ ] on the remote control and select [Advanced Options]. Select [Initialization], then press [ ] or [ Select [Yes], and press [ [Reset done] is displayed on the screen when the...

  • Page 43: Govision As A Computer Display

    GoVision Quick Start Guide GoVision as a Computer Display You can use the HDMI cable included in the product packaging to connect your GoVision to a PC or Mac and use it as a monitor. Connect the HDMI cable to the HDMI port of the GoVision.
  • Page 44 GoVision Quick Start Guide The computer image is shown on the GoVision screen. Note When the GoVision is connected to a computer, the screen saver will not be activated, even if no activity occurs for the period of time you set in the Screen Saver Settings. To change the setting, on the remote control, press [ ], [ ] simultaneously.
  • Page 45 GoVision Quick Start Guide Quick Start Button Guide Function Remote Control Main Body press and hold the Power Power On button for 3 seconds press and hold The power Power Off button for 3 seconds press the power button press PC / CCTV Switch briefly when powered on simultaneously...
  • Page 46 GoVision Quick Start Guide Adjust Voice Speed press the Freeze Image short press of Save Frozen Image press and hold Execute OCR short press of press and hold the OCR Save OCR button press Media File Explorer simultaneously press OCR file Explorer simultaneously Document File press...

  • Page 47: Warranty Statement

    TWO years from the date of original purchase when purchased new. Normal wear and tear is exempted from this warranty. HIMS will repair at no labor charge and, at its sole discretion, will repair or replace any parts during the warranty period.
  • Page 48 For Technical Support and Service, Contact HIMS Inc. Phone: 512-837-2000 | Fax: 512-837-2011 Email: support@hims-inc.com North American headquarters located at: 4616 W Howard Ln., Ste 960 Austin, TX 78728 To learn more about HIMS products for people with low vision or blindness, visit our website: www.hims-inc.com...
