Rating:
Amperes:
Chuck speed:
Chuck:
Maximum drilling capacity in wood:
Maximum drilling capacity in metal:
Weight:
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665
Technical questions
•
Replacement parts
•
Parts missing from package
•

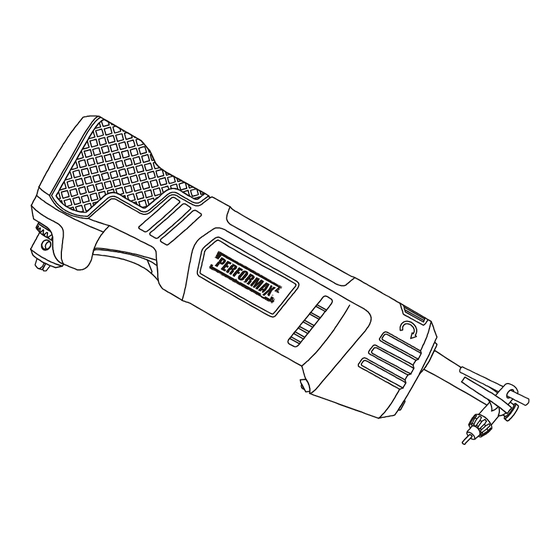

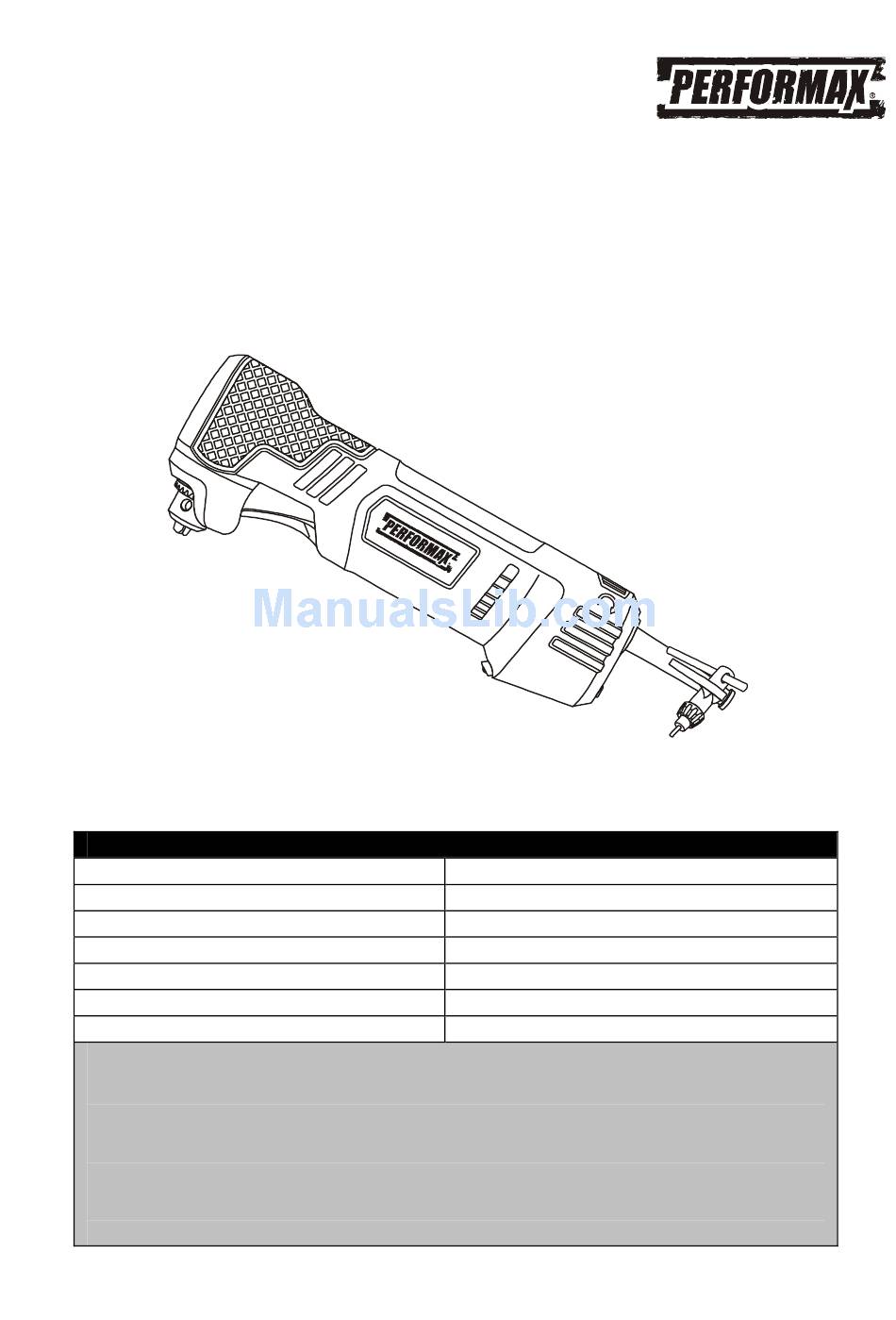

3/8" RIGHT ANGLE DRILL
PRODUCT SPECIFICATIONS
120 V, 60 Hz, AC
4 AMP
0–1,200 RPM (no load)
3/8" Keyed
1" (25 mm)
3/8" (10 mm)
3 lb 14 oz (1.76 kg)
1
241-0976
Owner's Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Performax 241-0976
Summary of Contents for Performax 241-0976
-
Page 1: Product Specifications
3/8" RIGHT ANGLE DRILL 241-0976 Owner’s Manual PRODUCT SPECIFICATIONS Rating: 120 V, 60 Hz, AC Amperes: 4 AMP Chuck speed: 0–1,200 RPM (no load) Chuck: 3/8" Keyed Maximum drilling capacity in wood: 1" (25 mm) Maximum drilling capacity in metal: 3/8"... -
Page 2: Table Of Contents
TABLE OF CONTENTS Product specifications ………….……………………………………………………. Table of contents ……………………………………………………………………... General safety warnings …………………………………………………………….. 3–4 Eye, ear & lung protection …………………………………………………………… 3–4 Electrical safety ………………………………………………………………………. Power tool safety ……………………………………………………………………... 5–6 General safety rules ………………………………………………………………….. Work area ………………………………………………………………….………….. Electrical safety ………………………………………………………………………. Personal safety ……………………………………………………………………….. -
Page 3: General Safety Warnings
GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. It must be understood that common sense and caution are factors which cannot be built into the product. -
Page 4: Electrical Safety
GENERAL SAFETY WARNINGS EYE, EAR & LUNG PROTECTION – cont’d WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. WARNING: Dust that is created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals that are known to cause cancer, birth defects, or other genetic abnormalities. -
Page 5: Power Tool Safety
POWER TOOL SAFETY WARNING: Read all safety warnings and When operating a power tool outdoors, use all instructions. Failure to follow the warnings an extension cord suitable for outdoor use. and instructions may result in electric shock, fire Use of a cord suitable for outdoor use reduces and/or serious injury. -
Page 6: Power Tool Use And Care
POWER TOOL SAFETY Keep cutting tools sharp and clean. Properly PERSONAL SAFETY – cont’d maintained cutting tools with sharp cutting Dress properly. Do not wear loose clothing edges are less likely to bind and are easier to or jewellery. Keep your hair, clothing and control. -
Page 7: Specific Safety Rules
SPECIFIC SAFETY RULES WARNING: Secure the workpiece. Use clamps or a vise to Know your drill. Do not plug hold the workpiece. It is safer than using your the drill into the power source until you have hand and it frees both hands to operate the tool. read and understand this Instruction Manual. -
Page 8: Extension Cord Safety
EXTENSION CORD SAFETY WARNING: Keep the extension cord clear of the working area. Position the cord so it will not get caught on the workpiece, tools or any other obstructions while you are working with the power tool. Make sure any extension cord used with this tool is in good condition. -
Page 9: Symbols
SYMBOLS WARNING: Some of the following symbols may appear on the drill. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Volts Direct current Amperes No load speed Hertz Alternating or direct current... -
Page 10: Know Your Right Angle Drill
KNOW YOUR RIGHT ANGLE DRILL Air vents Forward/reverse switch Chuck Variable speed switch LED worklight LED worklight Chuck key switch... -
Page 11: Assembly And Operating
ASSEMBLY AND OPERATING LED WORKLIGHT VARIABLE-SPEED SWITCH The LED worklight (1) is turned ON and OFF by This drill is equipped with a variable-speed pressing the worklight switch button (2) (Fig. 1). ON/OFF switch. To turn the worklight ON, press the worklight switch button once. -
Page 12: Removing Bits
ASSEMBLY AND OPERATING INSTALLING DRILL BITS – cont’d REMOVING BITS Insert the bit into the chuck the full length Remove the drill plug from the power of the jaws. Raise the front of your drill source. slightly to prevent the bit from falling out of the chuck jaws. -
Page 13: Driving Screws
ASSEMBLY AND OPERATING DRILLING – cont’d Hold the drill firmly with both hands whenever possible. Use one hand to grasp the rear of the handle and switch and the other to grasp the forward body of the drill. NOTE: Make sure your hands do not cover the air vents in the drill housing. - Page 14 ASSEMBLY AND OPERATING CHUCK REMOVAL – cont’d Insert the hex key into the chuck and tighten the jaws of chuck securely (Fig. 9). Tap the hex key sharply with a mallet (4) in Tap the hex key sharply with a mallet in a a clockwise direction.
-
Page 15: Retightening A Loose Chuck
MAINTENENCE RETIGHTENING A LOOSE CHUCK GENERAL After installing the chuck once it has been WARNING: When servicing, use only removed, the chuck may become loose on the identical replacement parts. The use of any spindle and develop a wobble. Also, the chuck other part may create a hazard or cause screw may become loose causing the chuck product damage. -
Page 16: Exploded View
EXPLODED VIEW... -
Page 17: Parts List
PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the drill. Any attempt to repair or replace electrical parts on this drill may create a safety hazard unless repairs are performed by a qualified technician. -
Page 18: Parts List
PARTS LIST Key # Part # Part Name Quantity 1140020040 Chuck 4020030010 M5X23(L) 4010010048 Bearing 608 2RS 3011010022 JD2050U housing 1010010019 Rotor 2050050044 Spiral spring 1230010135 Brush 2030070050 Upper brush holder 4030010006 ST2x6 4010010034 Bearing 607-2Z 3110040009 LED Cover 2030070050 Down brush holder 3120010083 Switch... -
Page 19: Warranty
® back to your nearest MENARDS® retail store. At its discretion, PERFORMAX agrees to have the tool or any defective part(s) repaired or replaced with the ®...
