WIRELESS VEHICLE DETECTION AT ITS BEST!!!
DA-600 & DA-605P INSTALLATION MANUAL
THE BASICS
1

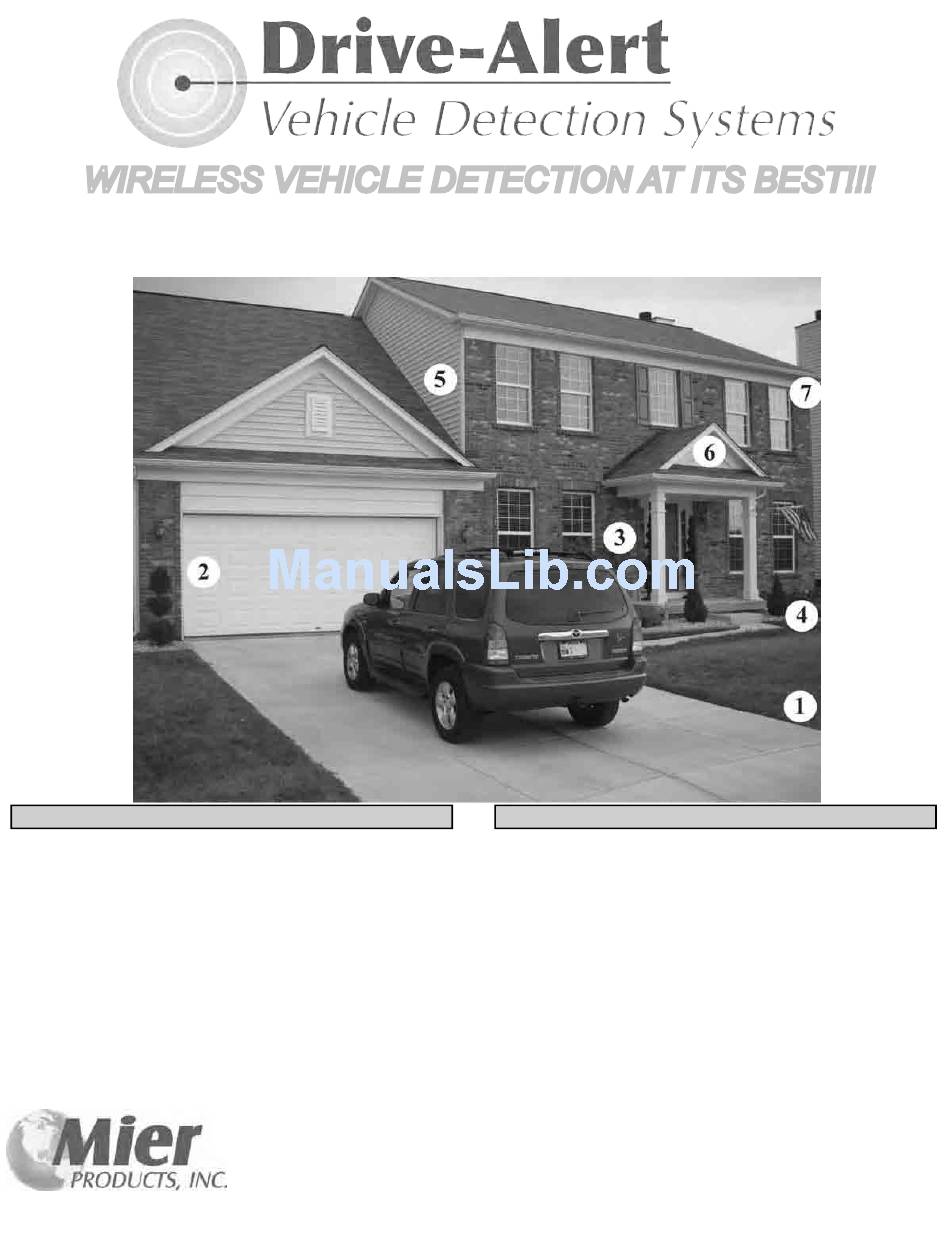

A sensor(s) detect(s) a vehicle entering a monitored
area
2 A control panel receives a signal from the sensor
and triggers an alert inside the home or business
MORE OPTIONS
3 Add a remote chime in the front room to alert those
on the first floor
4 Add another chime in the basement to alert those
downstairs
5 Add a third chime in an upstairs bedroom to alert
those upstairs
6 Add a wireless or hard-wired timer controlled light
kit to turn on outdoor lights, indoor overhead lights,
and/or lamps to warn strangers or welcome friends
7 Attach video surveillance to record activity and
display the driveway on a monitor inside
8 Add a portable chime to alert those in the backyard
pool, garden or deck
9 Activate signs, gates or other equipment
Advertisement
Related Manuals for Mier Drive Alert DA-600
Summary of Contents for Mier Drive Alert DA-600
- Page 1 WIRELESS VEHICLE DETECTION AT ITS BEST!!! DA-600 & DA-605P INSTALLATION MANUAL THE BASICS MORE OPTIONS 3 Add a remote chime in the front room to alert those A sensor(s) detect(s) a vehicle entering a monitored on the first floor area 2 A control panel receives a signal from the sensor 4 Add another chime in the basement to alert those and triggers an alert inside the home or business...
- Page 2 TABLE OF CONTENTS Page Content Cover Page Table of contents Introduction to the Wireless Drive-Alert Systems Quick Installation Guide Wireless DA-600 Drive-Alert Control Panel and Receiver Installation Wireless DA-600 Drive-Alert Control Panel Terminals, Hooking Up Other Equipment Wireless DA-600, DA-605P, DA-610TO, and DA-611TO Specifications Wireless DA-605P Drive-Alert Control Panel and Receiver Installation Wireless Drive-Alert Options - DA-660 Long Range Antenna and Sensor Choices Wireless DA-660 Long Range Reception Booster Antenna Installation Instructions 10-12...
- Page 3 INTRODUCTION TO THE 2012 WIRELESS DRIVE-ALERT FAMILY OF SYSTEMS The Mier Products’ Wireless Drive-Alert Detection Systems give you the benefit of easy and economical wireless installation. All Mier Wireless Vehicle Detection Systems includes 3 components: Receiver DA-600 Sensor/Transmitter and DA-605P Sound Annunciator or control Mier’s Wireless Vehicle Detection Systems are the:...
- Page 4 Wireless Drive-Alert Quick Installation Guide 1) Test the system before installation by: • Plugging in the Receiver. If it has a Whistle Switch (e.g. DA-600) turn it on. • If the system is equipped with wireless chimes, plug one in nearby the Receiver. •...
- Page 5 These relay contacts may be supplied with 24 volts DC or used as Form C dry contacts. The DA-600 control panel will op- erate any of Mier’s Drive-Alert accessories listed on the “Accessories” pages of this manual. It can also be used to control other external bells, surveillance systems, signs, gates and relays.
- Page 6 WIRELESS DA-600 DRIVE-ALERT PAGE 2 OF 3 Under the unit cover are the address code switches (see FIGURE 1: SW1, SW2, SW3, SW4 in left lower quadrant) that must be set to match those in the transmitter. These switches are preset at the factory for code 0000. They should only be changed if the transmitter code is also changed.
- Page 7 If your Drive-Alert does not Red wire to “NO” look like this, you may have Black Black wire to “C” an older model. Please call Mier’s free tech support line FIGURE 4 at 800-473-0213 SPECIFICATIONS: DA-600 and DA-605P CONTROL PANEL/RECEIVER: INPUT POWER:...
- Page 8 If your Drive-Alert does not look like this, you may have an older model. Please call Mier’s free tech support line at 800-473-0213 DA-605P Control Panel with one DA-068 Plug-in Remote Chime and a DA-610TO Sensor/Transmitter (Optional DA-070 Battery Operated Portable Chime pictured on Accessories Page)
- Page 9 DA-611TO The DA-660 Long Range Antenna is an option that can be used with all of Mier’s Wireless Drive-Alert Systems to boost the reception-range from the sensor to the control panel up to 1/2- mile. This is a factory installed accessory and must be ordered at the time of purchase by adding an “LR”...
- Page 10 “LR” to the end of the part number. Example: DA-600LR or DA-605PLR will be a or outdoors. Typically, it is mounted hidden complete system with the DA-660 Booster Antenna included • Retro-fits must be shipped back to Mier Products for installation of the components inside the attic of a home or business. Specifications: needed for the long range antenna Weight - 1.2 lbs.
-
Page 11: Wireless Sensor Installation
For most installations, the DA-611TO sensor should be buried 6 -12 inches below ground and the sensor buried under the drive and the cable 3 - 6 inches below ground. Mier HIGHLY RECOMMENDS burying the cable in the receiver hidden in a nearby tree. - Page 12 Clockwise. In most cases the factory sensitivity and address code setting will function for the installation. If a unique address code is needed (e.g. interference from a neighboring Mier wireless system) open the top cover revealing the transmitter circuit board. Look for the blue and white rocker switches labeled ADDRESS in the lower middle of the circuit board.
- Page 13 WIRELESS DRIVE-ALERT SENSOR INSTALLATION page 3 of 3 With factory settings, install the Sensor/Transmitter at least 60 feet from streets or roads (see FIGURE 7). FIGURE 7 illustrates a typical installation for all receivers and sensor/transmitters. Underground OR Overhead Power or Telephone Lines 40 ft (min) Garage Driveway...
- Page 14 DA-ROCK1 (DA-606, DA-071, DA-072) If your Drive-Alert accessories do not look like these, you may have older models. Please call Mier’s free tech support line at 800-473-0213 WIRELESS DRIVE-ALERT ACCESSORIES: • The DA-066 Remote Chime Transmitter is used in combination with the wireless DA-068 Remote Plug-in Chime(s) and/ or the DA-070 Battery-operated Portable Chime(s) in applications where a more pleasant chime and alerts in more rooms/ areas of a home are desired.
- Page 15 Mier Products, Inc.’s Limited Warranty Program for Drive-Alert models and accessories protects the original owner for one year from the date of purchase against defects in original parts or workmanship. Mier Products, Inc. agrees to repair or replace parts (Mier’s option) that are deemed defective by our Quality Control Team, without charge for parts or labor, if the defective unit is returned prepaid to Mier Products, Inc., Kokomo, IN, 46901, within the one-year period.
- Page 16 WIRELESS DRIVE-ALERT TROUBLESHOOTING TREE Step 1 - Check to make sure the Power Light is on. If not, replace the internal 1A fuse, or send to Mier Products for repair. Step 2 - Make sure the Control Panel is mounted in an above ground area where its antenna can receive a good signal from the Sensor/Transmitter, and make sure the Sensor/Transmitter is in a position free where it can send a signal freely.
