WIRELESS VEHICLE DETECTION AT ITS BEST!!!
DA-700 Instruction Manual
Page(s)
Content
2
Product Features
3
Quick Installation Page
4-6
Sensor & Transmitter Comprehensive Installation
7
Control Panel/Receiver Comprehensive Details of Functions
8
Control Panel/Receiver Programming the Timers or the Mute Function
9-11
Control Panel/Receiver Hooking Up Chimes, Lights and Accessories
12
Accessories
13
Long Range Installation Options
14
Supplemental Information
15-16
Troubleshooting
17
Technical Support Information and Warranty
3
2
3
THE BASICS
1) A sensor(s) detect(s) a vehicle entering monitored
area(s) . Up to 3 may be used in different areas.
2) A control panel up to 1000 feet away receives a
signal from the sensor and triggers an alert inside
the home or business (booster antenna increases
4
range to 3/4-mile)
MORE OPTIONS
3) Add remote plug-in chimes in the front room,
basement, upstairs, back yard, by the pool, or in
other buildings
4) Set the DA-700s Timer Relay to turn on outdoor
and indoor lights to warn strangers or welcome
friends
5) Activate video surveillance to record activity and
display the driveway on a monitor
6) Activate signs, gates, alarm panels or other
equipment
7) Add a repeater to send the signal another 1000 feet
to trigger alerts in other buildings, or add a DA-660
booster-antenna for buildings up to 3/4-mile away
8) Monitor up to three different driveways and/or
areas with different alert chimes or signals for each
DA-700
DA-700-611
MP010770
Advertisement
Related Manuals for Mier Drive-Alert DA-700
Summary of Contents for Mier Drive-Alert DA-700
- Page 1 THE BASICS 1) A sensor(s) detect(s) a vehicle entering monitored area(s) . Up to 3 may be used in different areas. 2) A control panel up to 1000 feet away receives a signal from the sensor and triggers an alert inside the home or business (booster antenna increases range to 3/4-mile) MORE OPTIONS...
- Page 2 Use of an unlimited Wireless Sensor/Transmitters (DA-610TO, DA-611TO, DA-612TO) with a DA-700 Control Panel/Receiver • Compatible with Mier Accessories detailed in this manual (See Accessories Page), as well as many after-market accessories • Compatible with and interface with many security panels and systems (call our tech support for assistance) •...
- Page 3 The relay contacts on the terminal board are Form C dry contacts. These contacts may be supplied with 24 or 12 VDC with the addition of a jumper from the needed voltage to the C terminal. The Control Panel will operate any of Mier’s Drive-Alert accessories listed on the “Accessories”...
- Page 4 The address codes for these Sensor/Transmitters, as well as the Control Panel/Receivers are pre-set at the factory. However, if a unique address code is needed (e.g. interference from a neighbor’s Mier wireless Drive-Alert) you can change the address codes making sure you do so in both the Sensor/ Transmitter AND the Control Panel/Receiver so they are different than factory spec, but still match one another.

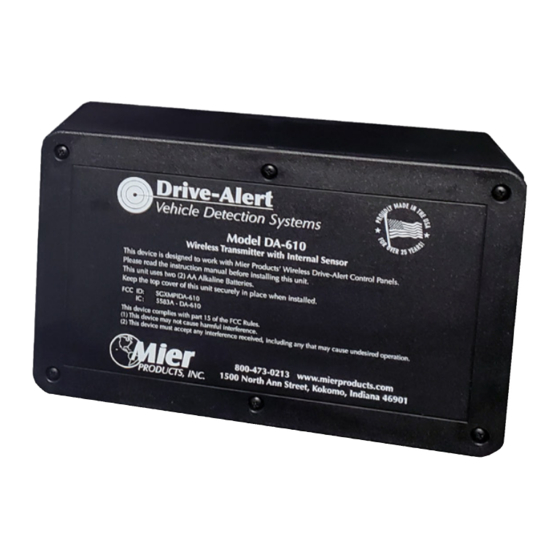

- Page 5 Wireless Drive-Alert Sensor/Transmitter Installation Guide DA-610TO DA-611TO DA-612TO The Sensor/Probe portion of a DA-610TO, DA-611TO or DA-612TO senses the vehicle and should to be placed less than 3 feet of Zone/ area you wish to monitor moving vehicles or assets (the closer the better). The Transmitter portion contains the electronics inside the black box.
- Page 6 Wireless Drive-Alert Sensor/Transmitter Installation Guide If occasional false alarms occur, or you are not detecting some vehicles, you can try re-locating the Sensor, or you can reduce the Sensor Sensitivity. There is a small blue sensitivity pot on the electrical board. Maximum sensitivity adjustment is clockwise and minimum is counter-clockwise (note arrow direction).
- Page 7 DA-700 and DA-700-611 Control Panel Installation Guide Under the DA-700 Control Panel/Receiver cover you will see the electrical board (shown below). A Power LED GREEN indicates that the power is on and that the internal solid-state 1 Amp Fuse is okay. The Control Panel/Receiver Address Code Jumper Ports (A3, A2, A1) must be set to match those in the Sensor/Transmitter.
- Page 8 DA-700 Control Panel Programming the Accessory Timer or the Mute/Delay Both the Mute/Delay and the Accessory Timer are programmed the same way. Both timers are monitored by either relays or logic values. Both retain their programs if the unit is powered off and on, or if there is a power outage. They can be reprogrammed or erased. The Mute/Delay can be set for 10, 20, 30 or 60 minutes, and the Accessory Timer can be set for a quick 1.5 seconds or 5, 30 or 60 minutes.
- Page 9 DA-700 Control Panel Terminals The terminal block provides convenient wire connection for external device control and tests. All contacts are dry, rated low voltage/low current, so DO NOT APPLY 120VAC to any of these contacts. Attach your wiring to the terminal block and push it up into the terminal block receptacle of the DA-700. +24 Gnd Timer Relay All Det Relay Gnd +12...
- Page 10 DA-700 Control Panel Hooking Up Other Equipment Connecting a DA-066MP Wireless Chime Transmitter, for DA-078 Chimes, to a DA-700 Control Panel +24 Gnd Timer Relay All Det Relay Gnd +12 +10,0 Mute P/B DC or Relay Relay Relay or DC (Remote) used C NO...
- Page 11 DA-700 Control Panel Hooking Up Other Equipment Continued Connecting Wireless Transmitters, such as Mier’s DA-606 Wireless Transmitter Control for lights to a DA-700 Control Panel +24 Gnd Timer Relay All Det Relay Gnd +12 +10,0 Mute P/B DA-606LK Wireless Transmitter...
- Page 12 • The DA-050 Power Pack is a replacement power-pack/transformer for the Drive-Alerts. If your Drive-Alert accessories do not look like these, you may have older models. Please call Mier’s free tech support line at 800-473-0213...
- Page 13 50 feet away and 4 feet above ground for an increased transmitting range. The sensor should be buried 6-12 inches below ground and the cable 6 inches below ground. Mier HIGHLY RECOMMENDS burying the cable in 1/2-inch PVC pipe to protect it. Try the Sensor and Transmitter above ground for a week, before burying the Sensor, to assure conditions and product operate satisfactorily.
-
Page 14: Supplemental Specifications
(1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes not expressly authorized by Mier Products, Inc. may void the user’s authority to operate this equipment. IC ID: 5583ADA-066MP Cet appareil est conforme a des reglements d’industrie Canada exempts de license standard RSS (s). - Page 15 Check to make sure the Power Light is on. If not, unplug and wait 5 minutes, then power up again to see if the internal solid-state 1A fuse cleared the fault and reset. If not, and the power light still does not come on, send to Mier Products for repair.
- Page 16 Support. They will work with you time, the system will not respond and might recommend returning with a chime. the system to Mier Products for diagnosis and repair. Check that All Detect red LED, RL5/D12 on in the Control Panel when a detection and transmission was to occur.
- Page 17 Mier Products, Inc. agrees to repair or replace parts (Mier’s option) that are deemed defective by our Quality Control Team, without charge for parts or labor, if the defective unit is returned prepaid to Mier Products, Inc., Kokomo, IN, within the one-year period.
- Page 18 Mier Product’s Drive-Alert Equipment Installed and Part Numbers: _________________________________________________________ ________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________ Name/Contact Information of where the Mier Products’ Drive-Alert Equipment was purchased if different than Installation Company: _______________________________________________________________________________________________________________ Other manufacturer’s and Accessories/Equipment Installed and Part Numbers: _______________________________________________ ________________________________________________________________________________________________________________ ________________________________________________________________________________________________________________...
- Page 19 NOTES...
