Mier DA-066MP Quick Manual

DA-066MP Chime Transmitter and DA-078 & DA-080 Wireless Chimes

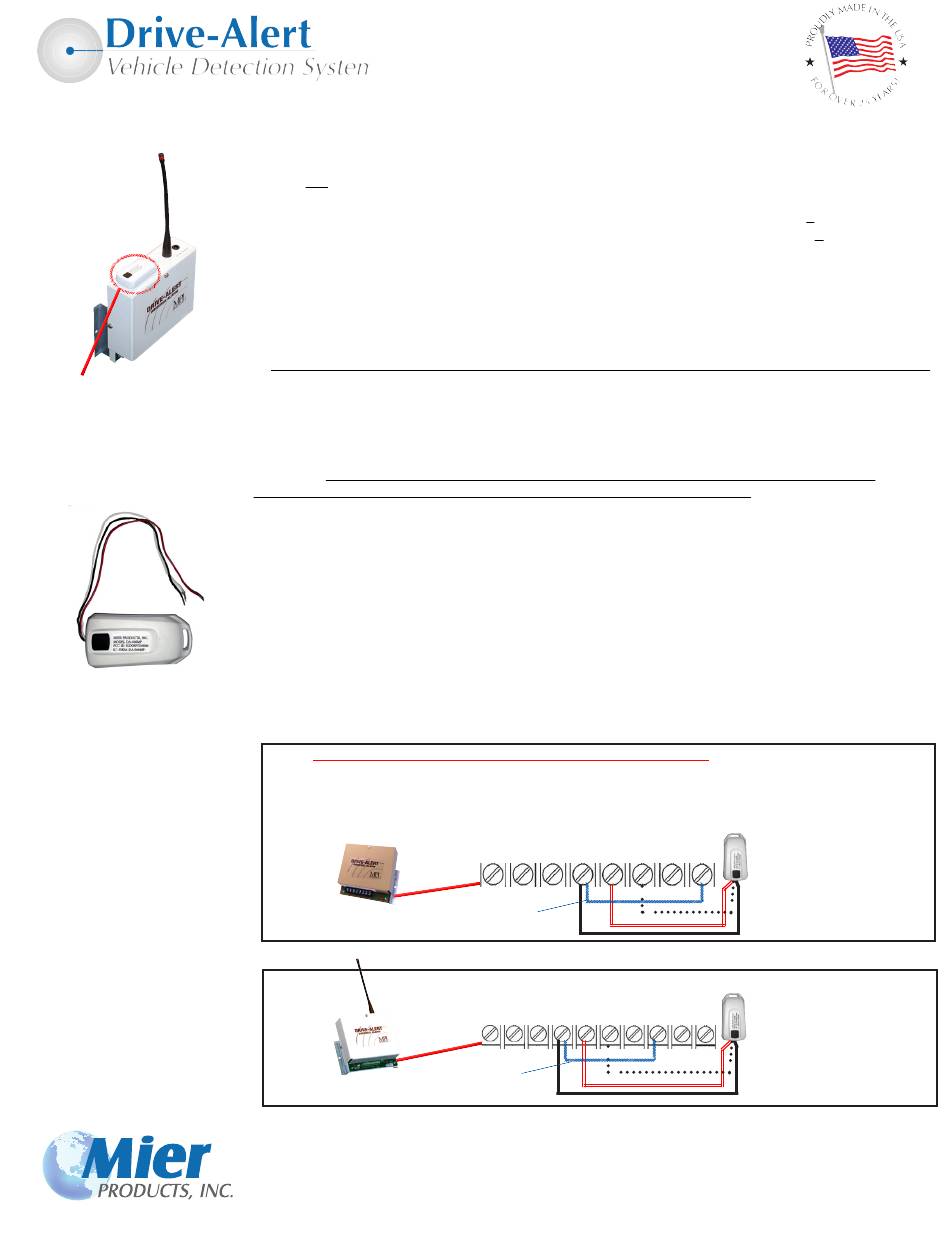

The DA-066MP
Remote Chime
Transmitter
shown mounted on top of a
DA-605
The DA-066MP
Remote Chime
Transmitter
shown as an accessory
The DA-066MP Wireless Chime Transmitter is designed to be both backward and forward compatible: it will
activate any wireless chime Mier Products has sold in the past, as well as any future models.
• This DA-066MP and a DA-078 Wireless Plug-in Chime are standard on the DA-605P Drive-Alert System
• This DA-066MP and a DA-080 Wireless Portable Chime are standard on the DA-605B Drive-Alert System
• The DA-066MP, DA-078 and DA-080 can also be added as accessories to the DA-500 or DA-600 Drive-
Alert Systems.
The internal codes are pre-set for the chimes and push-button transmitter. Do not change these codes.
T DA-066MP
he As sTAnDArD equiPMenT on The
This DA-066MP Chime Transmitter is mounted on top of the Control Panel. When a vehicle is detected, the
DA-605 control panel activates the DA-066MP to send a signal to DA-078 chimes and/or DA-080 chimes up
to 100+ feet away! (please see the next page for DA-078 and DA-080 chime installation).
i DA-066MP
nsTAlling A
The DA-066MP as optional equipment on the DA-500 or DA-600 Drive-Alerts:
The DA-500 and DA-600 models come equipped with an electronic whistle in the control panel which serves
as the alert when a vehicle is detected. Often, customers later decide they would rather have a more pleasant
sounding chime than the supplied whistle, and would like to have alerts in multiple rooms or a portable alert.
This can easily and quickly be accomplished by adding this DA-066MP Wireless Chime Transmitter to the
contacts on these Drive-Alert models, to work in conjunction with DA-078 and DA-080 Wireless Chimes.
When adding a DA-066MP to a DA-500 or DA-600, the DA-066MP must be mounted on the outside of
the Drive-Alert Control Panel. Note: the control panel may have to be moved to find the best location to
communicate with the wireless chimes.
Connect The RED wire to "+24 VDC" terminal, then the BLACK wire to "NEG" or "GND" terminal, then a
"JUMPER" from that same "NEG" or "GND" to the "C" terminal, and finally the WHITE wire to the "NO"
terminal. (see illustrations below)
NOTE: On the DA-500 Control Panel the Whistle Switch must be OFF. If it is ON, the 1 amp fuse inside
the control panel will be blown.
DA-500LKA Accessory Set of Contacts must be added to the control panel.
DA-500
DA-600
800-473-0213 | info@mierproducts.com | www.mierproducts.com
DA-500
onTo A
If you wish to use both the DA-066MP AND the Whistle, then a
DA-500 with WHISTLE OFF
RED BLACK SHLD NEG +24DC NO
UN REG
Jumper
DA-600 with WHISTLE ON or OFF
SIG ALA +5VDC GND NO NC
+24DC
UN REG
Jumper
DA-605P DA-605B D
or
DA-600 C
or onTrol
DA-066MP Push-Button
NC C
Wireless Chime Transmitter
DA-066MP Push-Button
C NO C
Wireless Chime Transmitter
-A :
rive lerT
P :
Anel
