Panel Front Assembly (Artcool type Only)

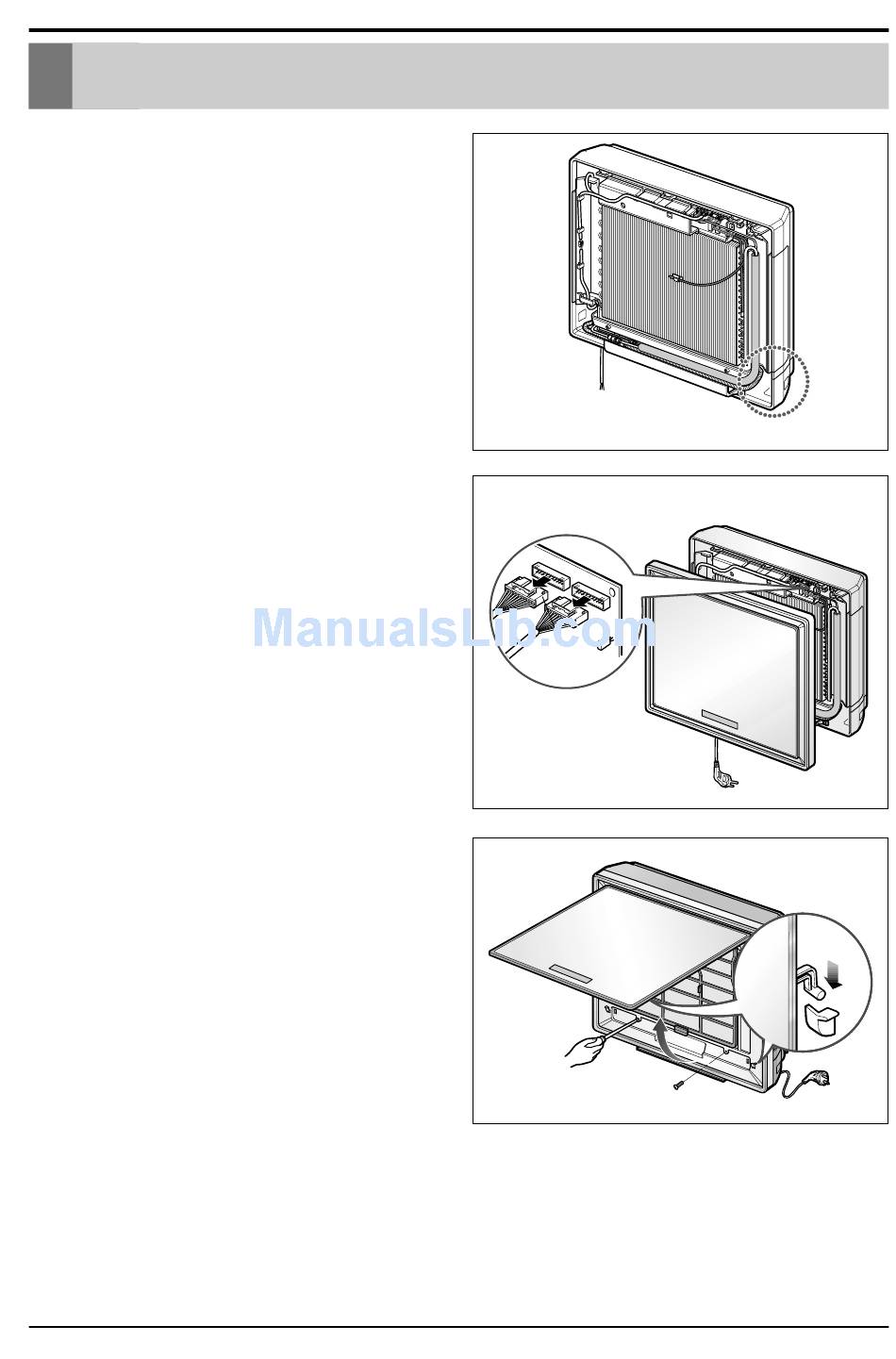

1. First, Check the side cover

assembly exactly, Fix power cord

in the bottom groove of cover side

left.

2. Assemble connecting lead wire

with controller and first fix the

upper part of panel front, then

match the lower part of panel front

3. Suspend hook of front panel in the

groove after contract lower of 2

screws.

28 Room Air Conditioner

Panel Front

Connector
