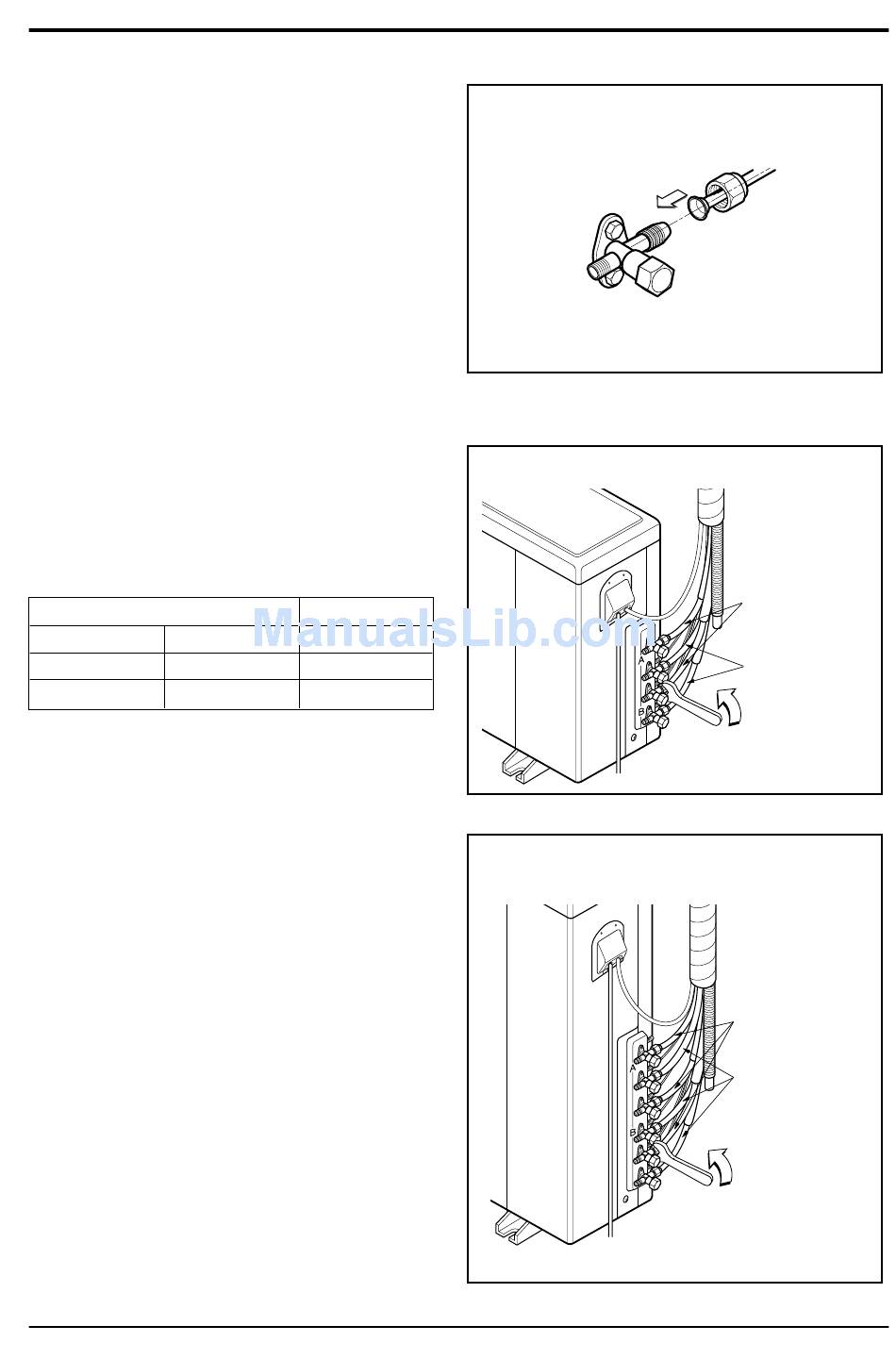

Flaring Work and Connection of Piping
Outdoor
Align the center of the pipings and sufficiently
tighten the flare nut by hand.
Finally, tighten the flare nut with torque wrench
until the wrench clicks.
• When tightening the flare nut with torque
wrench, ensure the direction for tightening
follows the arrow on the wrench.
Outside diameter
mm
Ø6.35
Ø9.52
18 Room Air Conditioner
Torque
kg . m
inch
1/4
1.8
3/8
4.2
Outdoor unit
24k
Outdoor unit
36k
A-UNIT
Gas side piping
B-UNIT
Liquid side piping
Torque wrench
A-UNIT
Gas side piping
B-UNIT
Liquid side piping
C-UNIT
Torque wrench
